SKU:302.0200.1200

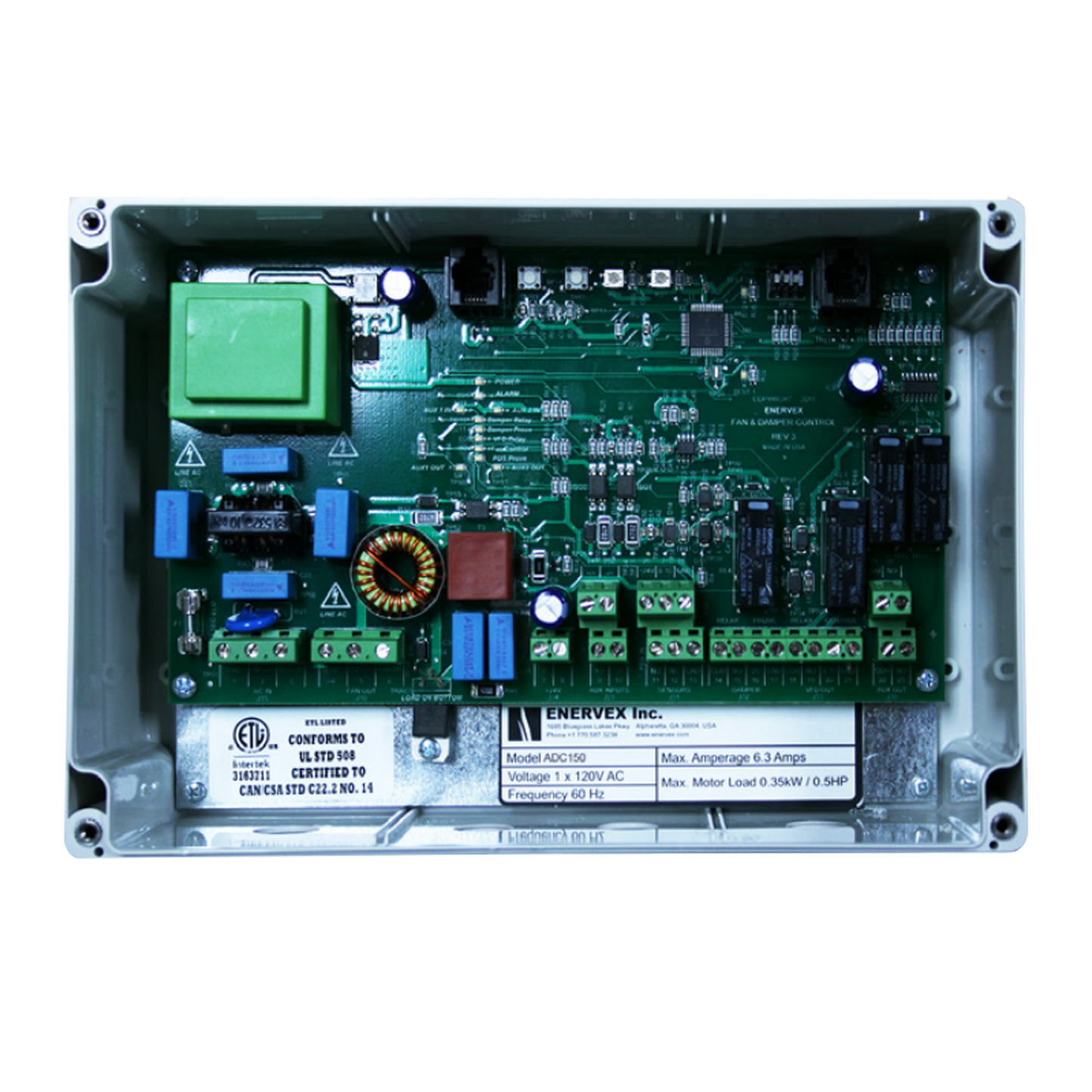

Enervex ADC150 Modulating Fan & Damper Controller
Enervex ADC150 Modulating Fan & Damper Controller
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
The ADC150 monitors the draft in a chimney system via a connection to a pressure transducer (XTP) attached to the chimney, and maintains the draft by modulating the fan speed. It provides a 10-120V AC power to single phase fans and 0-10V DC control signal to control 3-phase fans via a variable requency drive.
The control has an integrated safety system that assures the heating appliance(s) is shut down in case of insufficient draft after 15-180 seconds (user adjustable). The ADC150 has an integrated damper relay that works with ENERVEX MFD (Mechanical Fireplace Damper) to automatically open the damper prior to fan initialization and close the damper after the appliance shuts down. End-switches in the damper actuator wired to the ADC150 ensure the damper must be fully open prior to allowing the appliance to operate. The control also features a post purge function (3 min) to evacuate the chimney system of residual flue gases after the appliance shuts down.
What's Included
- ADC150 Control Box
- XTP Pressure Transducer
- Stack Probe
- 6' Silicone Tubing
Features
- Material – The enclosure is made of NEMA 1 rated ABS plastic.
- 0-10VDC control signal for EDrive and 10-120VAC for variable speed
- Integrated safety system with adjustable shutdown time
- Integrated damper relay that works with an EcoDamper.
- End-switches in an EcoDamper actuator can be wired to the ADC150
- Post purge function (180 sec) to evacuate residual flue gases after fireplace shuts down.
Specifications
| Model Number | ADC150 |
| Item Number | 302.0200.1200 |
| Control Mode | Continuous or Intermittent |
| Insulation Class | NEMA 1 (IP 20) |
| Power Supply | 1x120VAC |
| Amperage | 7.0 |
| Operating Temperature (°F / °C) | -4 to 122 / -20 to 50 |
| Range of Operation (inWC / PA) | 0.05-0.55 / 12.5-137.5 |
| Tolerance (inWC / PA) | 0.01/3 +/-10% |
| Control signal (mA) | Max. 10 |
| Control relay | Max. 120 |
| Output – VAC | 10-120 |
| Output – VDC | 0-10 |
| Weight (lbs / kg) | 2.6 / 1.2 |
| EMC Standard (Emission) | EN 50 081-1 |
| EMC Standard (Immunity) | EN 50 082-2 |
| Listing Certification | *UL508/UL 60947, Standard for Industrial Control Panels *CSA C22.2 No. 14-95, Standard for Industrial Control Equipment |
Technical Drawings & Dimensions
Dimensions (in / mm)
| A | 9.6 / 244 |
| B | 6.3 / 160 |
| C | 3.5 / 90 |
XTP Sensor
| Power Supply (VDC) | 12-36 |
| Amperage (mA) | <20 |
| Output (VDC) | 0-10 |
| Operating Temperature (°F / °C) | 0 to 160 / -18 to 71 |
| Accuracy (iWC / PA) | +/-0.08% |
| Weight (lbs / kg) | .6 / .3 |
Dimensions (in / mm)
| D | 3.70 / 94 |
| E | 5.12 / 130 |
| F | 6.18 / 157 |
| G | 3.13 / 80 |
Stack Probe
Dimensions (in / mm)
| H | 4.25 / 108 |
| I | 3.50 / 89 |
Warranty
 |
2-Year Factory Warranty |
