• Enervex PDS-1, Proven Draft Switch
1 1

301.1001.0000

Enervex PDS-1, Proven Draft Switch

Enervex PDS-1, Proven Draft Switch

$298.00
$298.00
Sale Sold out

  • Free Shipping on Orders Over $200
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

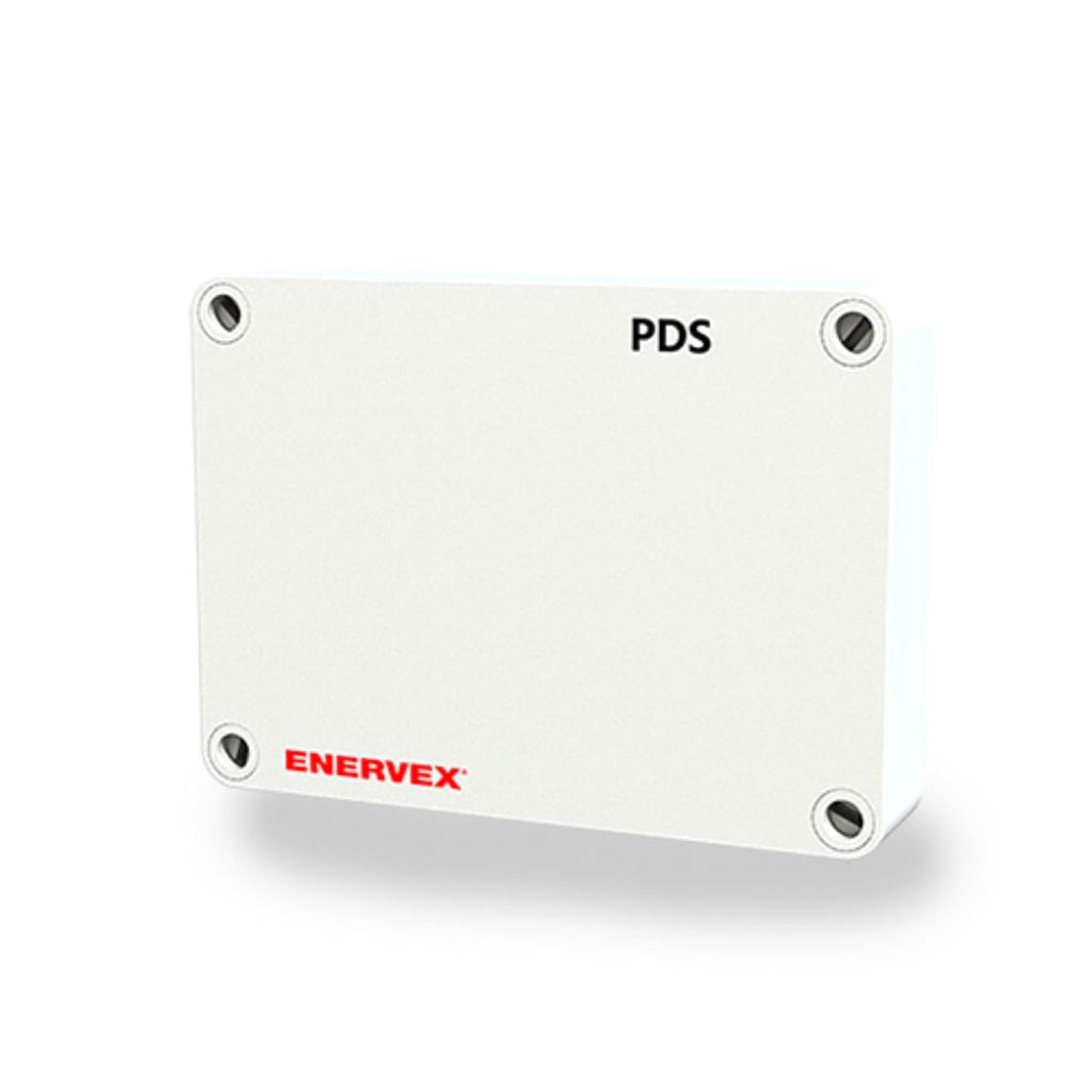

PDS Proven Draft Switch. Protect against insufficient draft and unsafe draft conditions caused by mechanical or electrical failure.

The Proven Draft Switch (PDS) is a fixed set-point differential pressure switch that integrates seamlessly with ENERVEX Mechanical Draft Systems to safely shut down heating appliances during a fan failure.

Used with gas- or oil-fired appliances, the PDS pressure switch can be interlocked with the gas supply valve or safety or control circuit of your appliance. The differential pressure acts via diaphragm against the force of setting spring on the microswitch.

      Common Companion Product

      • Chimney Fan

      Features

      • Reliable pressure monitoring
      • Suitable for air, flue & exhaust gases
      • Operates without any auxiliary power

      Specification

      Diaphragm Material NBR (Silicone)
      Max Load 3 Amps @ 120 VAC
      Range of Operation 0.05 50 0.5 inWC (13 to 135 Pa)
      Temperature Limits -40°F to +190°F (-40°C to +88°C)
      Max Pressure 3 PSI (207 mBar)
      Wiring Connection 1/4" Solderless Quick Connect Terminals
      Pressure Connections 2 plastic tubes, 1/4" (6 mm) outside diameter
      Weight 9.6 oz (0.275 kg)
      Insulation Class NEMA 1 (IP 20)
      Warranty 2-Year Factory Warranty
      Listing Certification UL Standard

      Related Searches: All → Chimney → Electric → Enervex → Enervex Draft System →

      View full details
