Firegear

FPB-19RPSSF11TPSI-N

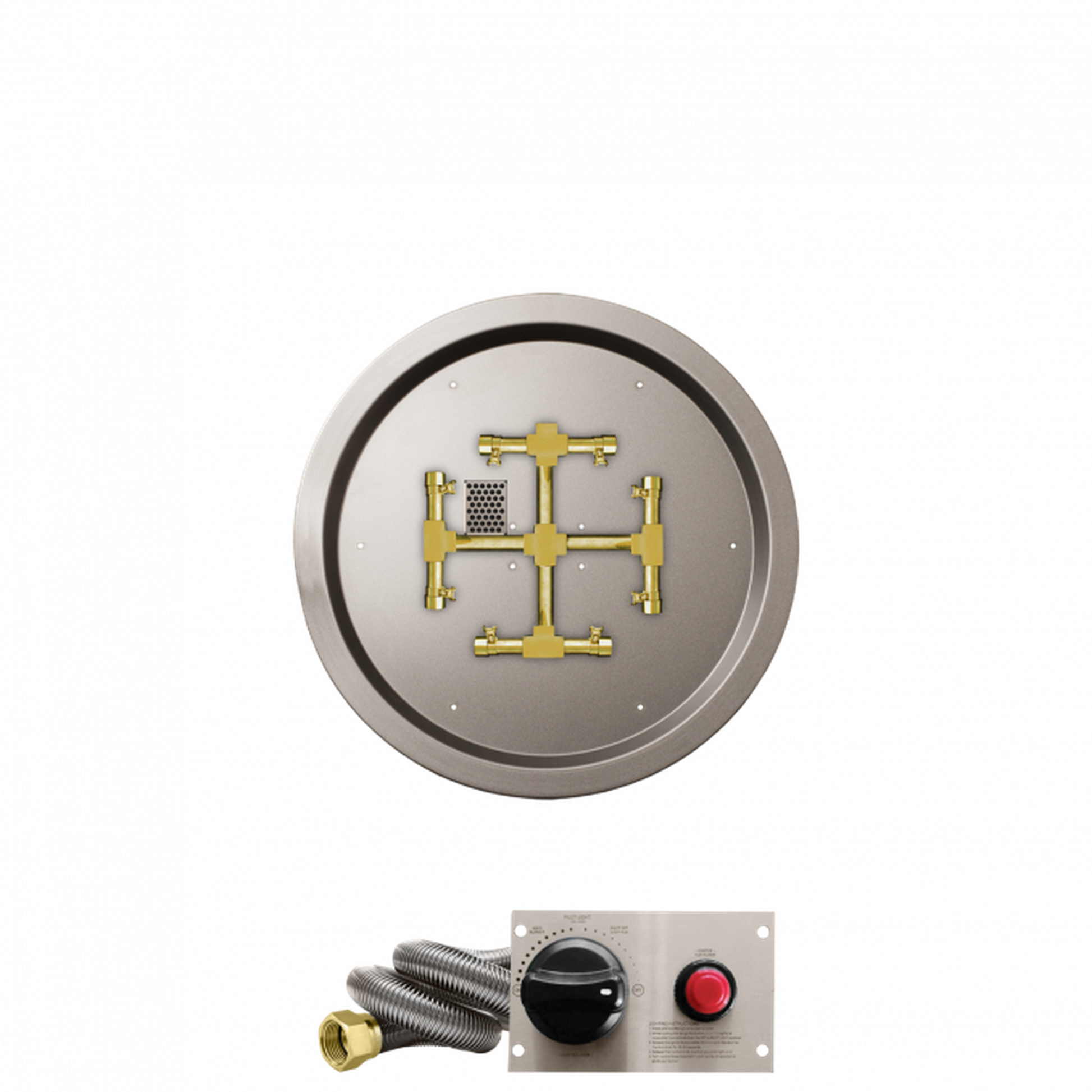

Firegear Pro Series Snowflake Round Drop-In Pan Gas Fire Pit Burner Kit w/ TPSI Ignition System

Fuel Type: Natural Gas
Size: 19-inch


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Firegear Outdoors is the premier provider of outdoor fire products. We specialize in burner systems, outdoor fire features & accessories for the outdoor fire industry.


Overview - TPSI Ignition

Thermocouple Piloted System with Safety Valve turns gas off when loss of flame. Easy ignition with Battery Spark Igniter included.

Click to see more information

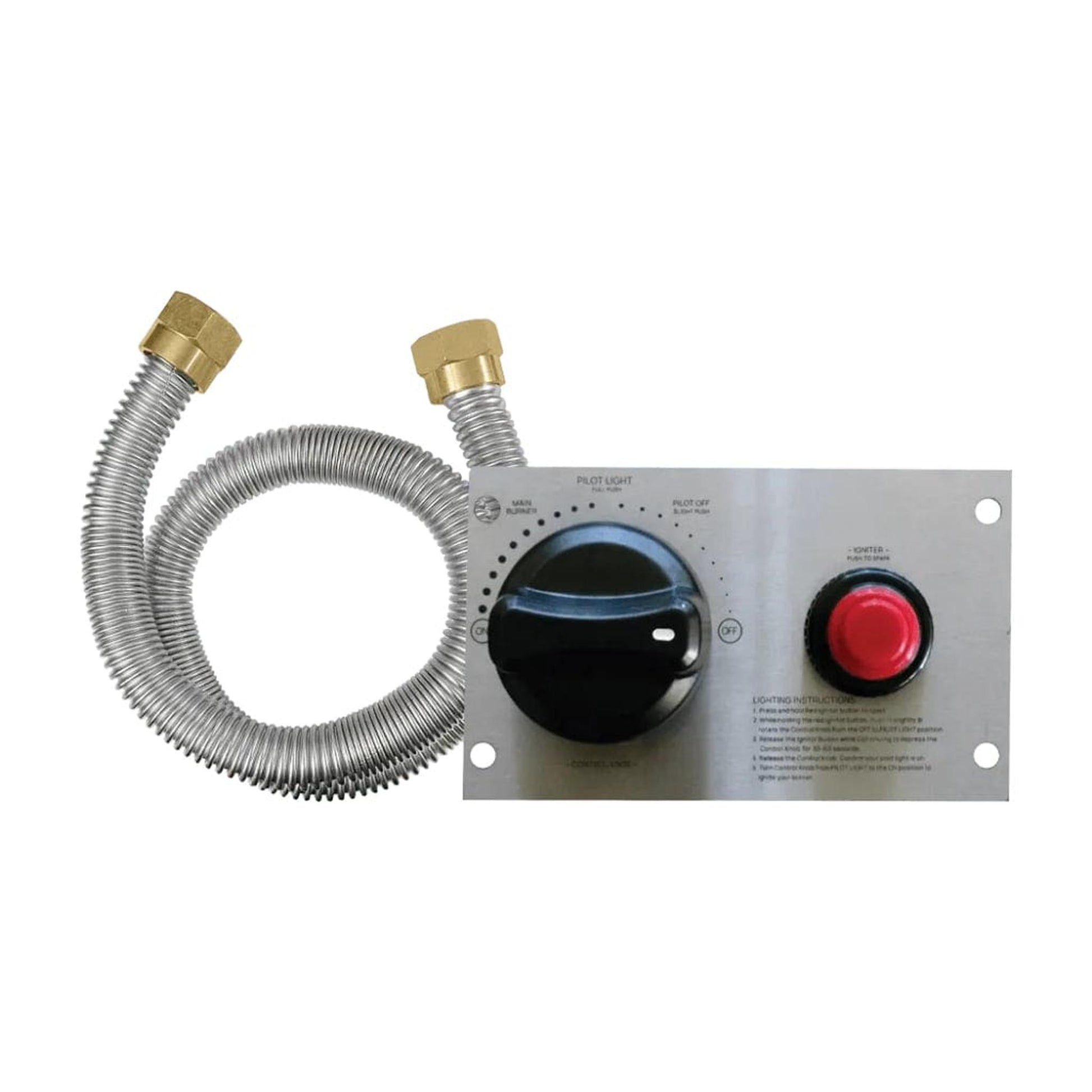

TPSI | Thermocouple Piloted Safety Ignition

Overview

  • Thermocouple Piloted System with Safety Valve turns gas off when loss of flame
  • Easy ignition with Battery Spark Igniter (included)
  • TPSI system with Safety Valve turn gas off when pilot flame goes out
  • Robust ignition system with full BTU throughput


How it Lights

  1. Press and hold Red Ignitor button to spark
  2. While holding the red ignitor button, Push in slightly & rotate the Control Knob from the OFF to PILOT LIGHT position
  3. Release the Ignitor Button while Continuing to depress the Control Knob for 30-60 seconds.
  4. Release the Control Knob Confirm your pilot light is on.
  5. Turn Control Knob from PILOT LIGHT to the ON position to ignite your burner.


Features


Specifications

Pan Size Burner Size Gas Type
BTU Suggested Lid
19" 11" NG 50,000
22" (D) x 2.5" (H)
19" 11" LP 42,000
22" (D) x 2.5" (H)
25" 18" NG
145,000
28" (D) x 2.5" (H)
25"
18" LP 124,000
28" (D) x 2.5" (H)


Options & Accessories

Stainless Steel Lid
  • Made of 304 stainless steel
  • Brushed finished round lid
  • Sleek and round flat design for a contemporary look.
Flexflame Installation Collar
  • Allows you the flexibility to fill the gap between the fire pit structure and the pan.
  • Larger size allows the use of any round, square, or linear drop-in pan or flat in fire pits up to 5” larger than their OD size.
  • Size: 44” per piece.
Paver Control Panel Kit
  • For use when building fire pit enclosures with SRW block or pavers and a TPSI burner system.
  • Includes stainless steel paver kit bracket and extender, lintel 12"x3" (20 gauge galvanized steel), screws and fittings, and Tapcon® concrete anchors.
Paver Vent Kit
  • Intended for gas fire pit enclosures made from paver stones
  • Kit includes two 3.625" x 8" or 5.625" x 8" vents with mounting plate and extension plate that extend up to 10” wide, two Tapcon® concrete anchors, and two 12”x3” Lintels (20 gauge galvanized steel).
  • Each vent provides 18 square inches of ventilation


Media Use Guide & Options

ID of Fire Pit 19" 25"
Lava Rock Only 10 lbs.
15 lbs.
Lava Rock as a Base 10 lbs. 15 lbs.
Glass (on top of Lava Rock)
20 lbs.
30 lbs.
Lava Stones (on top of Lava Rock)
15 lbs. 20 lbs.
Glass Only 40 lbs. 70 lbs.
Click to see media options

Media Options

Broken Glass Media

  • Broken glass, approximately 1/2" to 3/4" in size.

Black

Copper

Crystal

Light Blue

Seabreeze




Reflective Glass Media

  • Mirror finish broken reflective, approximately 1/2" to 3/4" in size.

Black

Bronze

Cobalt

Copper

Silver




Lava Rock

  • Mined from the earth, these dark rocks contrast beautifully against a bright flame. Each rock is approximately 1" to 2" in diameter.
  • Available in 10-pound bag and 1 cubic foot bag (Approx weight 30-40lbs.).


Lava Stone

  • Made from tumbled lava rock, these stones lend a casual elegance. Each stone is approximately 1" to 2" in diameter.


Warranty

Residential Application: Lifetime Warranty on construction and manufacturer defects, brass burners, and stainless steel pans; Five (5) years on gas valve, spark igniter, pilot assemblies, and AWS electronic ignition systems (24VAC, 30 VDC).

Commercial Application: Two (2) years Warranty on construction and manufacturer defects, brass burners, pans, gas valve, spark igniter, pilot assemblies, and AWS electronic ignition systems (24VAC, 30 VDC).


Downloads

Safety Information: Check CA Prop 65 Warning for more information.
