LOF-3606TTPSI-N

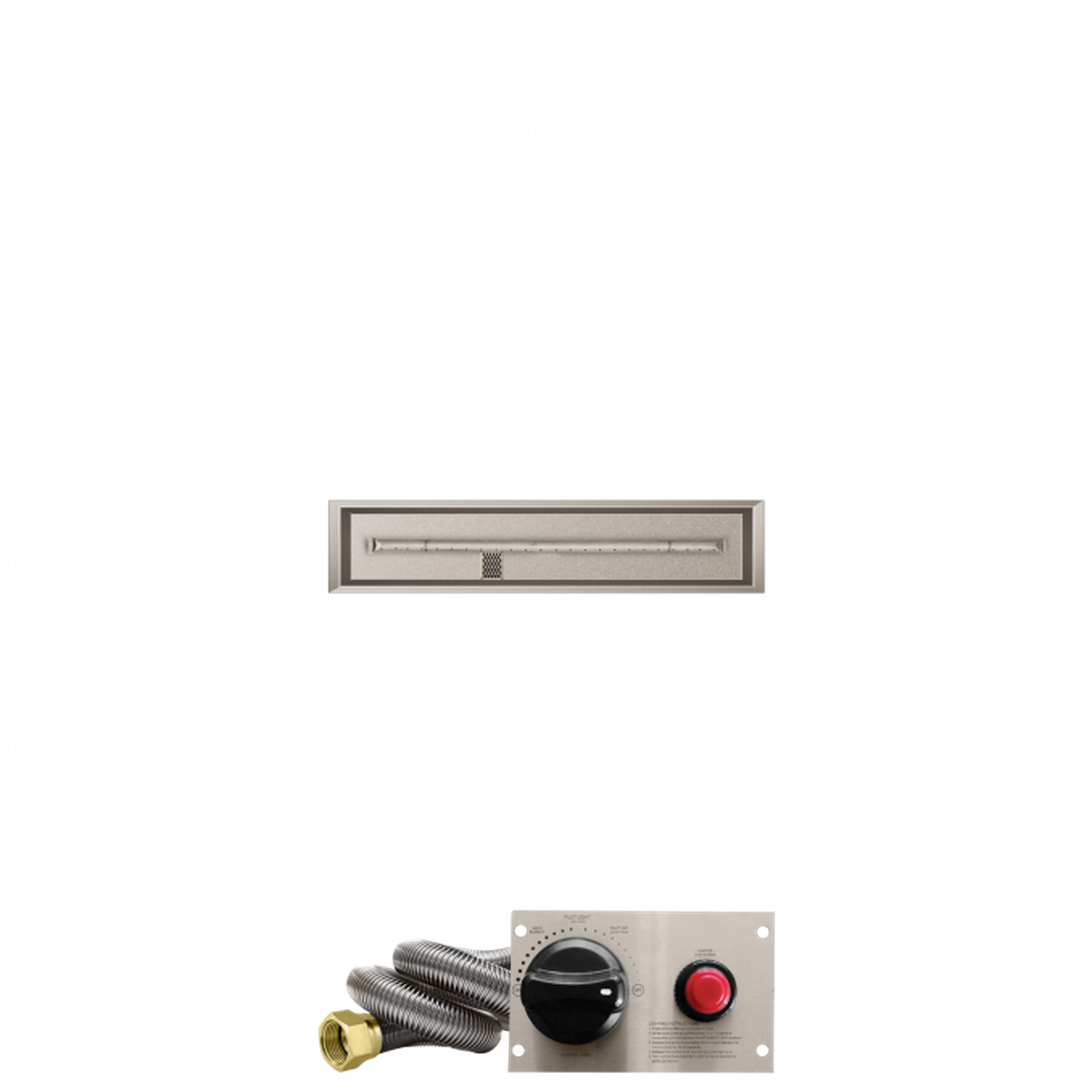

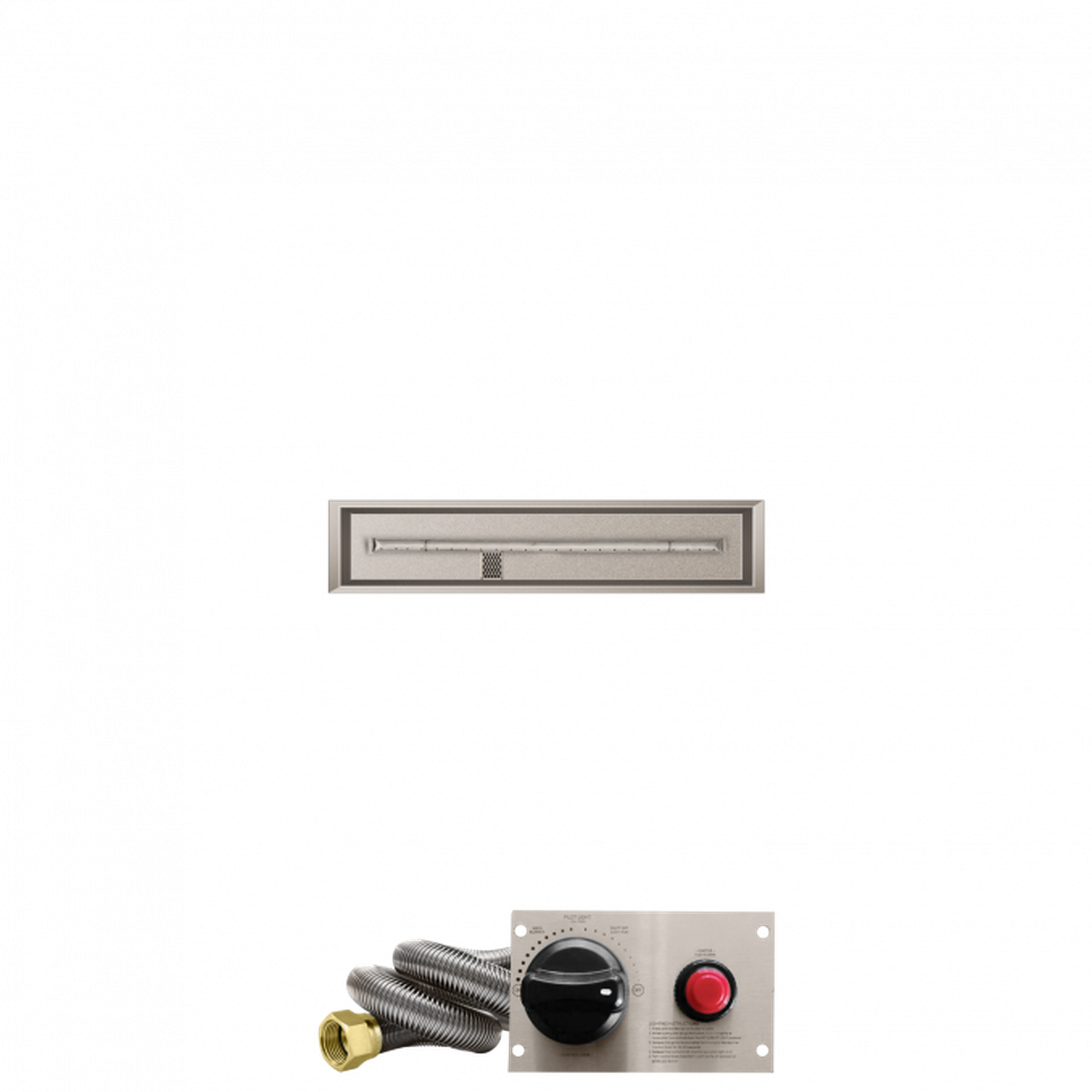

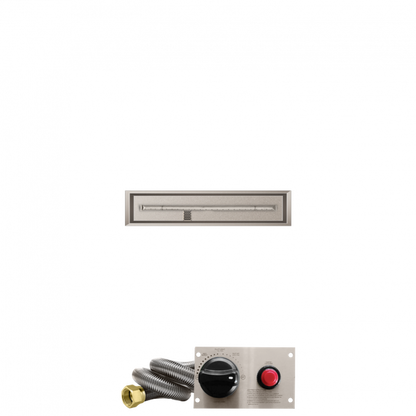

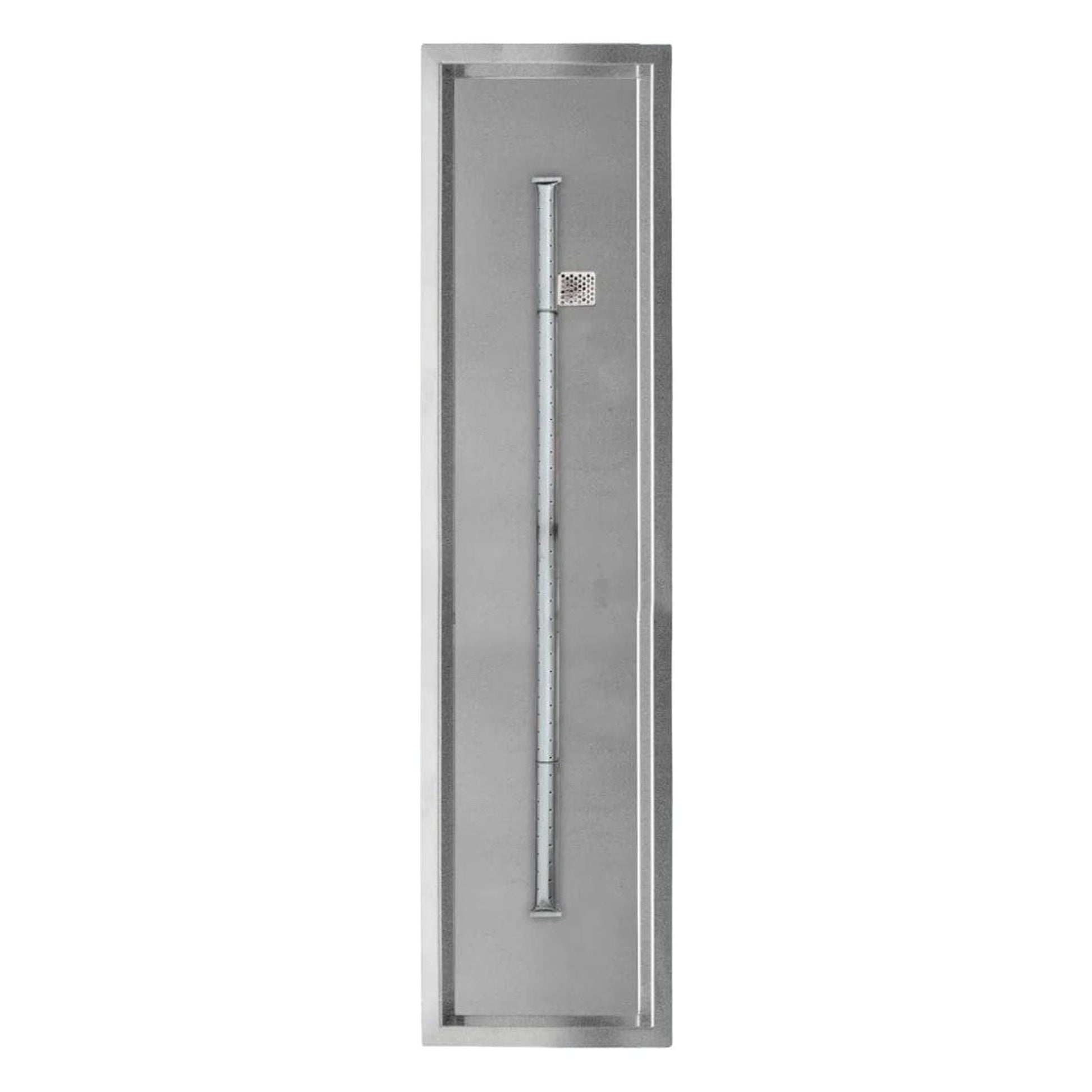

Firegear Stainless Steel Linear Drop-In Pan T Burner Gas Fire Pit Kit w/ TPSI Ignition System

Firegear Stainless Steel Linear Drop-In Pan T Burner Gas Fire Pit Kit w/ TPSI Ignition System

$1,499.00
$1,499.00
Sale Sold out
Fuel Type
Pan Size

Flexframe Installation Collar

-- Please Select --

Firegear 3-Piece Pro Series Flexframe Stainless Steel Paver Fire Pit Installation Collar

Firegear 3-Piece Flexframe Stainless Steel Paver Fire Pit Installation Collar

Firegear 2-Piece Flexframe Stainless Steel Paver Fire Pit Installation Collar

No, Thank You

Paver Control Panel Kit

-- Please Select --

Firegear Paver Fire Pit Control Panel Kit for TPSI Ignition System

No, Thank You

Paver Vent Kit

-- Please Select --

Firegear 3.625" x 8" Paver Fire Pit Vent Kit w/ Mounting Plate & Lintel

Firegear 5.625" x 8" Paver Fire Pit Vent Kit w/ Mounting Plate & Lintel

No, Thank You

LP Conversion Kit

-- Please Select --

Firegear TPSI-LPK41 Propane Conversion Kit for 75,000 BTU TPSI Fire Pit Burner

Firegear TPSI-LPK35 Propane Conversion Kit for 100,000 BTU TPSI Fire Pit Burner

Firegear TPSI-LPK31 Propane Conversion Kit for 125,000 BTU TPSI Fire Pit Burner

Firegear TPSI-LPK29 Propane Conversion Kit for 150,000 BTU TPSI Fire Pit Burner

No, Thank You

Glass Media

30 Lbs. Black Broken Large Fire Glass
30 Lbs. Copper Broken Large Fire Glass
30 Lbs. Crystal Broken Large Fire Glass
30 Lbs. Light Blue Broken Large Fire Glass
30 Lbs. Seabreeze Broken Large Fire Glass
30 Lbs. Dark Blue Broken Large Fire Glass
30 Lbs. Black Large Reflective Fire Glass
30 Lbs. Bronze Large Reflective Fire Glass
30 Lbs. Cobalt Blue Large Reflective Fire Glass
30 Lbs. Copper Large Reflective Fire Glass
30 Lbs. Silver Large Reflective Fire Glass
40 Lbs. Black Broken Large Fire Glass
40 Lbs. Copper Broken Large Fire Glass
40 Lbs. Crystal Broken Large Fire Glass
40 Lbs. Light Blue Broken Large Fire Glass
40 Lbs. Seabreeze Broken Large Fire Glass
40 Lbs. Dark Blue Broken Large Fire Glass
40 Lbs. Black Large Reflective Fire Glass
40 Lbs. Bronze Large Reflective Fire Glass
40 Lbs. Cobalt Blue Large Reflective Fire Glass
40 Lbs. Copper Large Reflective Fire Glass
40 Lbs. Silver Large Reflective Fire Glass
50 Lbs. Black Broken Large Fire Glass
50 Lbs. Copper Broken Large Fire Glass
50 Lbs. Crystal Broken Large Fire Glass
50 Lbs. Light Blue Broken Large Fire Glass
50 Lbs. Seabreeze Broken Large Fire Glass
50 Lbs. Dark Blue Broken Large Fire Glass
50 Lbs. Black Large Reflective Fire Glass
50 Lbs. Bronze Large Reflective Fire Glass
50 Lbs. Cobalt Blue Large Reflective Fire Glass
50 Lbs. Copper Large Reflective Fire Glass
50 Lbs. Silver Large Reflective Fire Glass
60 Lbs. Black Broken Large Fire Glass
60 Lbs. Copper Broken Large Fire Glass
60 Lbs. Crystal Broken Large Fire Glass
60 Lbs. Light Blue Broken Large Fire Glass
60 Lbs. Seabreeze Broken Large Fire Glass
60 Lbs. Dark Blue Broken Large Fire Glass
60 Lbs. Black Large Reflective Fire Glass
60 Lbs. Bronze Large Reflective Fire Glass
60 Lbs. Cobalt Blue Large Reflective Fire Glass
60 Lbs. Copper Large Reflective Fire Glass
60 Lbs. Silver Large Reflective Fire Glass

Lava Rock

Firegear 10 Lbs. Black Lava Rock
Firegear 40 Lbs. Black Lava Rock

Lava Stones

Firegear 50 lbs. Black Lava Stones
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Firegear Outdoors is the premier provider of outdoor fire products. We specialize in burner systems, outdoor fire features & accessories for the outdoor fire industry.


Overview - TPSI Ignition

Thermocouple Piloted System with Safety Valve turns gas off when loss of flame. Easy ignition with Battery Spark Igniter included.

Click to see more information

TPSI | Thermocouple Piloted Safety Ignition

Overview

  • Thermocouple Piloted System with Safety Valve turns gas off when loss of flame
  • Easy ignition with Battery Spark Igniter (included)
  • TPSI system with Safety Valve turn gas off when pilot flame goes out
  • Robust ignition system with full BTU throughput

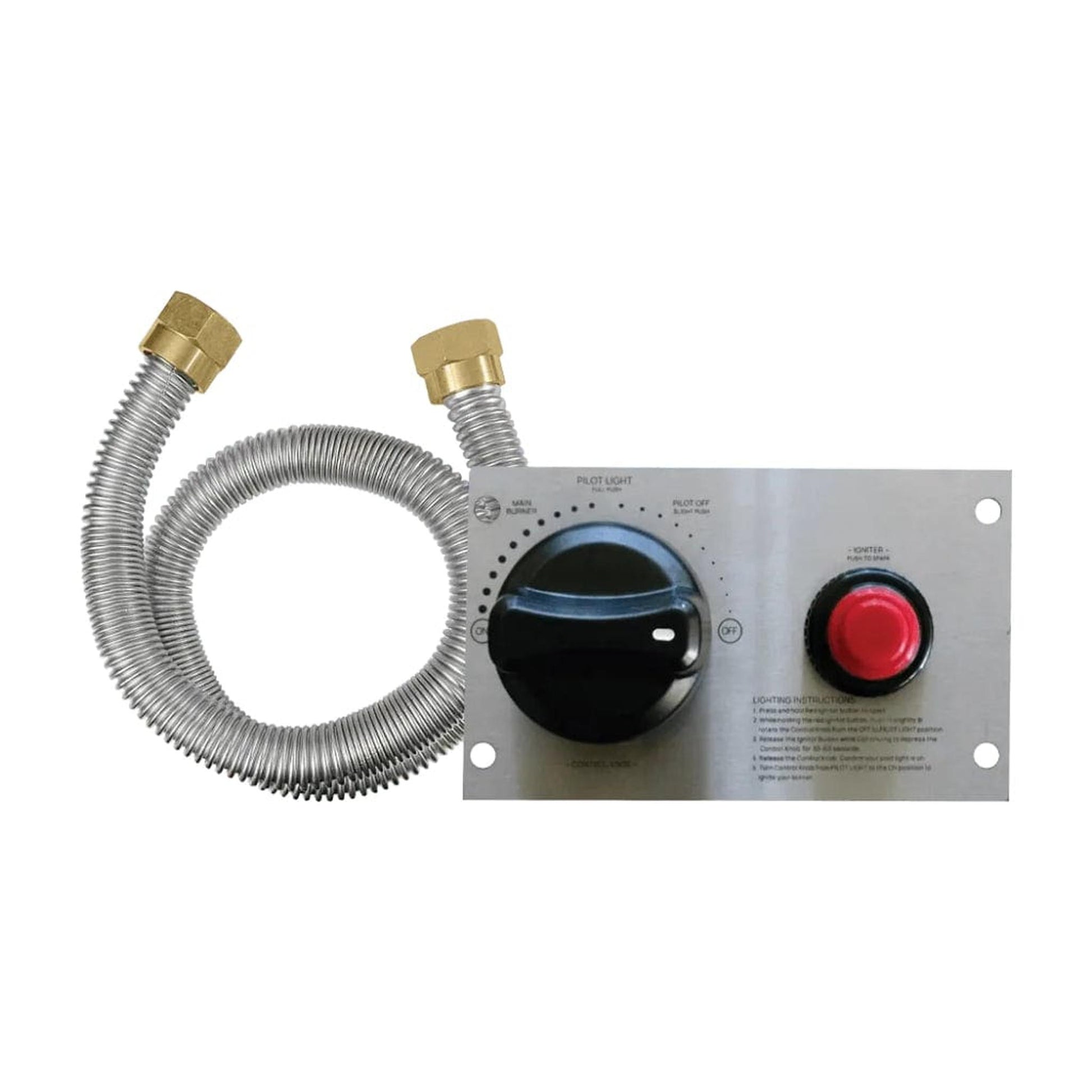

How it Lights

  1. Press and hold Red Ignitor button to spark
  2. While holding the red ignitor button, Push in slightly & rotate the Control Knob from the OFF to PILOT LIGHT position
  3. Release the Ignitor Button while Continuing to depress the Control Knob for 30-60 seconds.
  4. Release the Control Knob Confirm your pilot light is on.
  5. Turn Control Knob from PILOT LIGHT to the ON position to ignite your burner.


Features

  • Linear stainless steel drop-in pan with lip
  • Stainless steel "T" Burner
  • TPSI Ignition with battery-powered spark igniter.
  • Ships as Natural Gas or Propane. (Propane conversion kits are also available and sold separately.)
  • Also available in models with AWS Electronic Ignition and Match Throw Ignition Systems.


Specifications

Pan Size Burner Size BTU LP Conv. Kit
36” x 6” 33" 75,000 TPSI-LPK41
48” x 6” 45" 100,000 TPSI-LPK35
60” x 6” 57" 125,000 TPSI-LPK31
72” x 6” 69" 150,000 TPSI-LPK29

Options & Accessories

 Stainless Steel Lid
  • Made of 304 stainless steel
  • Brushed-finished rectangular lid
Flexframe Installation Collar
  • Allows you the flexibility to fill the gap between the fire pit structure and the pan.
  • Engineered to protect against the outdoor elements including salt water environment
  • Flexible and easy to adapt for round, square, and rectangular fire pits.
Paver Control Panel Kit
  • For use when building fire pit enclosures with SRW blocks or pavers and a TPSI burner system.
  • Includes stainless steel paver kit bracket and extender, lintel (12" x 3"), screws and fittings, and Tapcon® concrete anchors.
Paver Vent Kit
  • Intended for gas fire pit enclosures made from paver stones
  • Kit includes two 3.625" x 8" or 5.625" x 8" vents with mounting plate and extension plate that extend up to 10” wide, two Tapcon® concrete anchors, and two 12”x3” Lintels (20 gauge galvanized steel).
  • Each vent provides 18 square inches of ventilation


Media Use Guide & Options

Pan Size Lava Rock
 Glass Lava Stones
36” x 6”
 10 lbs.
 30 lbs. 10 lbs.
48” x 6”
 20 lbs. 40 lbs.
 20 lbs.
60” x 6”
 20 lbs.
 50 lbs.
 20 lbs.
72” x 6”
 20 lbs. 60 lbs.
 20 lbs.
Click to see media options

Media Options

Broken Glass Media

  • Broken glass, approximately 1/2" to 3/4" in size.

Black

Copper

Crystal

Light Blue

Seabreeze




Reflective Glass Media

  • Mirror finish broken reflective, approximately 1/2" to 3/4" in size.

Black

Bronze

Cobalt

Copper

Silver




Lava Rock

  • Mined from the earth, these dark rocks contrast beautifully against a bright flame. Each rock is approximately 1" to 2" in diameter.
  • Available in 10-pound bag and 1 cubic foot bag (Approx weight 30-40lbs.).


Lava Stone

  • Made from tumbled lava rock, these stones lend a casual elegance. Each stone is approximately 1" to 2" in diameter.

Warranty

Residential Application: Lifetime Warranty on construction and manufacturer defects, and stainless steel burners and pans; Five (5) years on gas valve, spark igniter, pilot assemblies, and TFS/TMSI electronic components.

Commercial Application: Two (2) years Warranty on construction and manufacturer defects, and stainless steel burners, pans, gas valve, spark igniter, and pilot assemblies.
