SKU:FPB-19RBS16TPSI-N

Firegear Stainless Steel Round Drop-In Pan Gas Fire Pit Burner Kit w/ TPSI Ignition System

Firegear Stainless Steel Round Drop-In Pan Gas Fire Pit Burner Kit w/ TPSI Ignition System

Regular price $1,489.00
Regular price Sale price $1,489.00
Sale Sold out
Fuel Type
Pan Size

Flat Stainless Steel Lid

-- Please Select --

Firegear 22" x 2.5" Round Flat Stainless Steel Fire Pit Lid With Handle for 19" Round Drop-In Pan

Firegear 28" x 2.5" Round Flat Stainless Steel Fire Pit Lid With Handle for 25" Round Drop-In Pan

Firegear 32" x 2.5" Round Flat Stainless Steel Fire Pit Lid With Handle for 29" Round Drop-In Pan

Firegear 36" x 2.5" Round Flat Stainless Steel Fire Pit Lid With Handle for 33" Round Drop-In Pan

No, Thank You

Flexframe Installation Collar

-- Please Select --

Firegear 3-Piece Pro Series Flexframe Stainless Steel Paver Fire Pit Installation Collar

Firegear 3-Piece Flexframe Stainless Steel Paver Fire Pit Installation Collar

Firegear 2-Piece Flexframe Stainless Steel Paver Fire Pit Installation Collar

No, Thank You

Paver Control Panel Kit

-- Please Select --

Firegear Paver Fire Pit Control Panel Kit for TPSI Ignition System

No, Thank You

Paver Vent Kit

-- Please Select --

Firegear 3.625" x 8" Paver Fire Pit Vent Kit w/ Mounting Plate & Lintel

Firegear 5.625" x 8" Paver Fire Pit Vent Kit w/ Mounting Plate & Lintel

No, Thank You

LP Conversion Kit

-- Please Select --

Firegear TPSI-LPK41 Propane Conversion Kit for 75,000 BTU TPSI Fire Pit Burner

Firegear TPSI-LPK31 Propane Conversion Kit for 125,000 BTU TPSI Fire Pit Burner

Firegear TPSI-LPK29 Propane Conversion Kit for 150,000 BTU TPSI Fire Pit Burner

No, Thank You

Glass Media

20 Lbs. Black Broken Large Fire Glass
20 Lbs. Copper Broken Large Fire Glass
20 Lbs. Crystal Broken Large Fire Glass
20 Lbs. Light Blue Broken Large Fire Glass
20 Lbs. Seabreeze Broken Large Fire Glass
20 Lbs. Dark Blue Broken Large Fire Glass
20 Lbs. Black Large Reflective Fire Glass
20 Lbs. Bronze Large Reflective Fire Glass
20 Lbs. Cobalt Blue Large Reflective Fire Glass
20 Lbs. Copper Large Reflective Fire Glass
20 Lbs. Silver Large Reflective Fire Glass
30 Lbs. Black Broken Large Fire Glass
30 Lbs. Copper Broken Large Fire Glass
30 Lbs. Crystal Broken Large Fire Glass
30 Lbs. Light Blue Broken Large Fire Glass
30 Lbs. Seabreeze Broken Large Fire Glass
30 Lbs. Dark Blue Broken Large Fire Glass
30 Lbs. Black Large Reflective Fire Glass
30 Lbs. Bronze Large Reflective Fire Glass
30 Lbs. Cobalt Blue Large Reflective Fire Glass
30 Lbs. Copper Large Reflective Fire Glass
30 Lbs. Silver Large Reflective Fire Glass
40 Lbs. Black Broken Large Fire Glass
40 Lbs. Copper Broken Large Fire Glass
40 Lbs. Crystal Broken Large Fire Glass
40 Lbs. Light Blue Broken Large Fire Glass
40 Lbs. Seabreeze Broken Large Fire Glass
40 Lbs. Dark Blue Broken Large Fire Glass
40 Lbs. Black Large Reflective Fire Glass
40 Lbs. Bronze Large Reflective Fire Glass
40 Lbs. Cobalt Blue Large Reflective Fire Glass
40 Lbs. Copper Large Reflective Fire Glass
40 Lbs. Silver Large Reflective Fire Glass
50 Lbs. Black Broken Large Fire Glass
50 Lbs. Copper Broken Large Fire Glass
50 Lbs. Crystal Broken Large Fire Glass
50 Lbs. Light Blue Broken Large Fire Glass
50 Lbs. Seabreeze Broken Large Fire Glass
50 Lbs. Dark Blue Broken Large Fire Glass
50 Lbs. Black Large Reflective Fire Glass
50 Lbs. Bronze Large Reflective Fire Glass
50 Lbs. Cobalt Blue Large Reflective Fire Glass
50 Lbs. Copper Large Reflective Fire Glass
50 Lbs. Silver Large Reflective Fire Glass
70 Lbs. Black Broken Large Fire Glass
70 Lbs. Copper Broken Large Fire Glass
70 Lbs. Crystal Broken Large Fire Glass
70 Lbs. Light Blue Broken Large Fire Glass
70 Lbs. Seabreeze Broken Large Fire Glass
70 Lbs. Dark Blue Broken Large Fire Glass
70 Lbs. Black Large Reflective Fire Glass
70 Lbs. Bronze Large Reflective Fire Glass
70 Lbs. Cobalt Blue Large Reflective Fire Glass
70 Lbs. Copper Large Reflective Fire Glass
70 Lbs. Silver Large Reflective Fire Glass
90 Lbs. Black Broken Large Fire Glass
90 Lbs. Copper Broken Large Fire Glass
90 Lbs. Crystal Broken Large Fire Glass
90 Lbs. Light Blue Broken Large Fire Glass
90 Lbs. Seabreeze Broken Large Fire Glass
90 Lbs. Dark Blue Broken Large Fire Glass
90 Lbs. Black Large Reflective Fire Glass
90 Lbs. Bronze Large Reflective Fire Glass
90 Lbs. Cobalt Blue Large Reflective Fire Glass
90 Lbs. Copper Large Reflective Fire Glass
90 Lbs. Silver Large Reflective Fire Glass
110 Lbs. Black Broken Large Fire Glass
110 Lbs. Copper Broken Large Fire Glass
110 Lbs. Crystal Broken Large Fire Glass
110 Lbs. Light Blue Broken Large Fire Glass
110 Lbs. Seabreeze Broken Large Fire Glass
110 Lbs. Dark Blue Broken Large Fire Glass
110 Lbs. Black Large Reflective Fire Glass
110 Lbs. Bronze Large Reflective Fire Glass
110 Lbs. Cobalt Blue Large Reflective Fire Glass
110 Lbs. Copper Large Reflective Fire Glass
110 Lbs. Silver Large Reflective Fire Glass

Lava Rock

Firegear 10 Lbs. Black Lava Rock
Firegear 40 Lbs. Black Lava Rock

Lava Stones

Firegear 50 lbs. Black Lava Stones
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Firegear Outdoors is the premier provider of outdoor fire products. We specialize in burner systems, outdoor fire features & accessories for the outdoor fire industry.


Overview - TPSI Ignition

Thermocouple Piloted System with Safety Valve turns gas off when loss of flame. Easy ignition with Battery Spark Igniter included.

Click to see more information

TPSI | Thermocouple Piloted Safety Ignition

Overview

  • Thermocouple Piloted System with Safety Valve turns gas off when loss of flame
  • Easy ignition with Battery Spark Igniter (included)
  • TPSI system with Safety Valve turn gas off when pilot flame goes out
  • Robust ignition system with full BTU throughput


How it Lights

  1. Press and hold Red Ignitor button to spark
  2. While holding the red ignitor button, Push in slightly & rotate the Control Knob from the OFF to PILOT LIGHT position
  3. Release the Ignitor Button while Continuing to depress the Control Knob for 30-60 seconds.
  4. Release the Control Knob Confirm your pilot light is on.
  5. Turn Control Knob from PILOT LIGHT to the ON position to ignite your burner.


Features

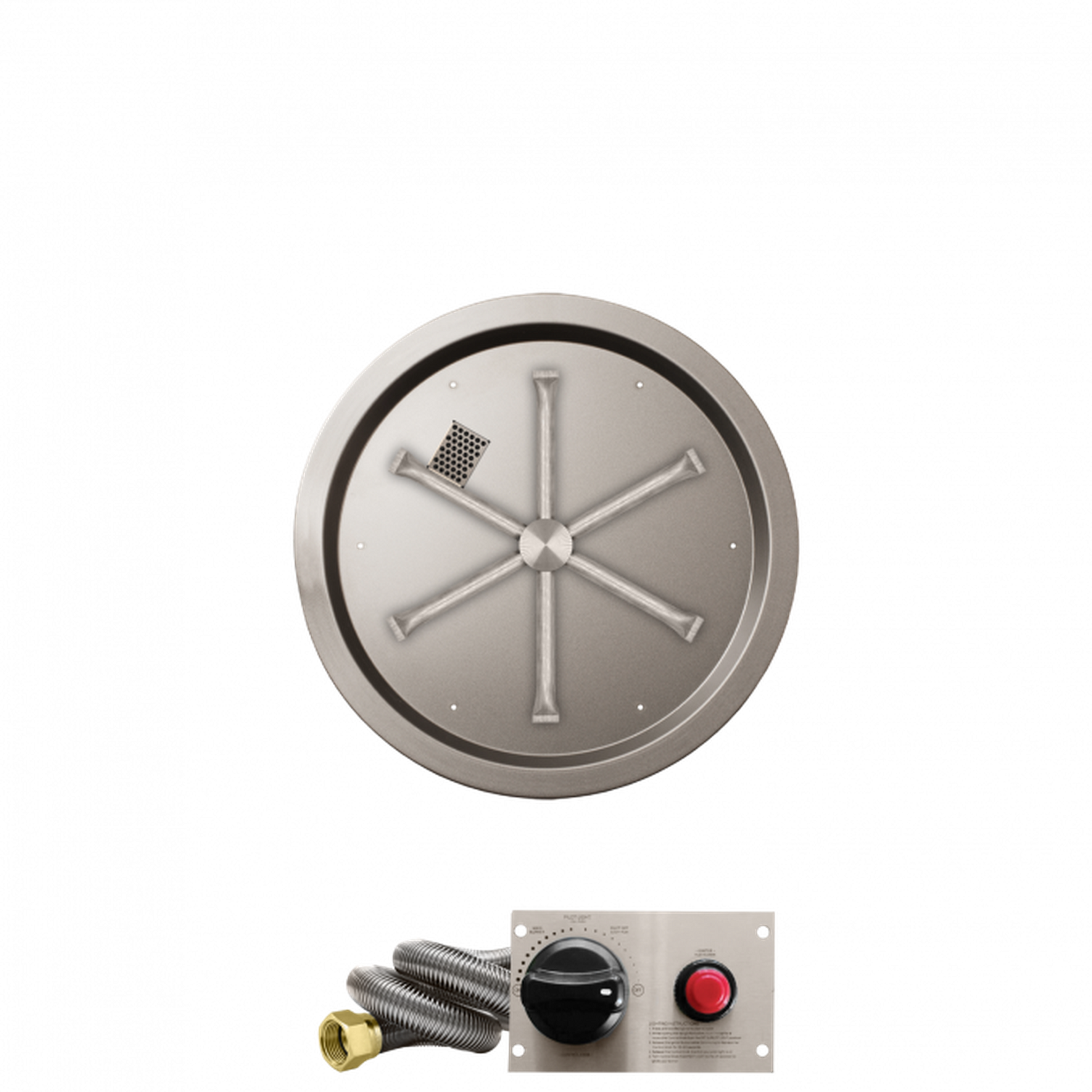

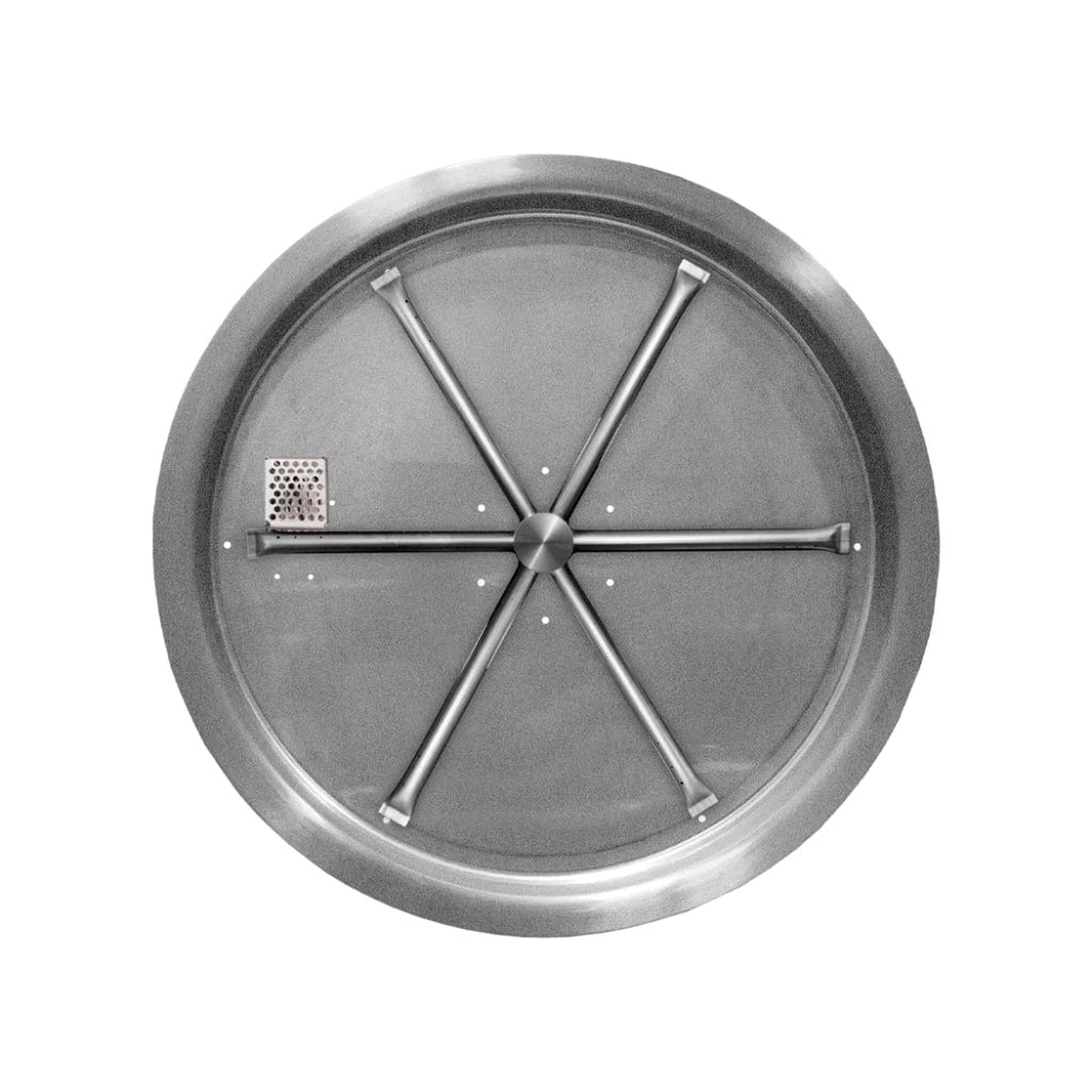

  • Round stainless steel drop-in pan with lip
  • Stainless steel burning spur
  • TPSI Ignition with battery-powered spark igniter.
  • Ships as Natural Gas or Propane. (Propane conversion kits are also available and sold separately.)
  • Also available in models with AWS Electronic Ignition and Match Throw Ignition Systems.


Specifications

Pan Size Burner Size BTU LP Conv. Kit
19" 16" 75,000 TPSI-LPK41
25" 22" 125,000 TPSI-LPK31
29" 22" 125,000 TPSI-LPK31
33" 31" 175,000 TPSI-LPK29


Options & Accessories

Stainless Steel Lid
  • Made of 304 stainless steel
  • Brushed finished round lid
  • Sleek and round flat design for a contemporary look
  • Note: Lid for 16" pan is not available.
Flexframe Installation Collar
  • Allows you the flexibility to fill the gap between the fire pit structure and the pan.
  • Engineered to protect against the outdoor elements including salt water environment
  • Flexible and easy to adapt for round, square, and rectangular fire pits.

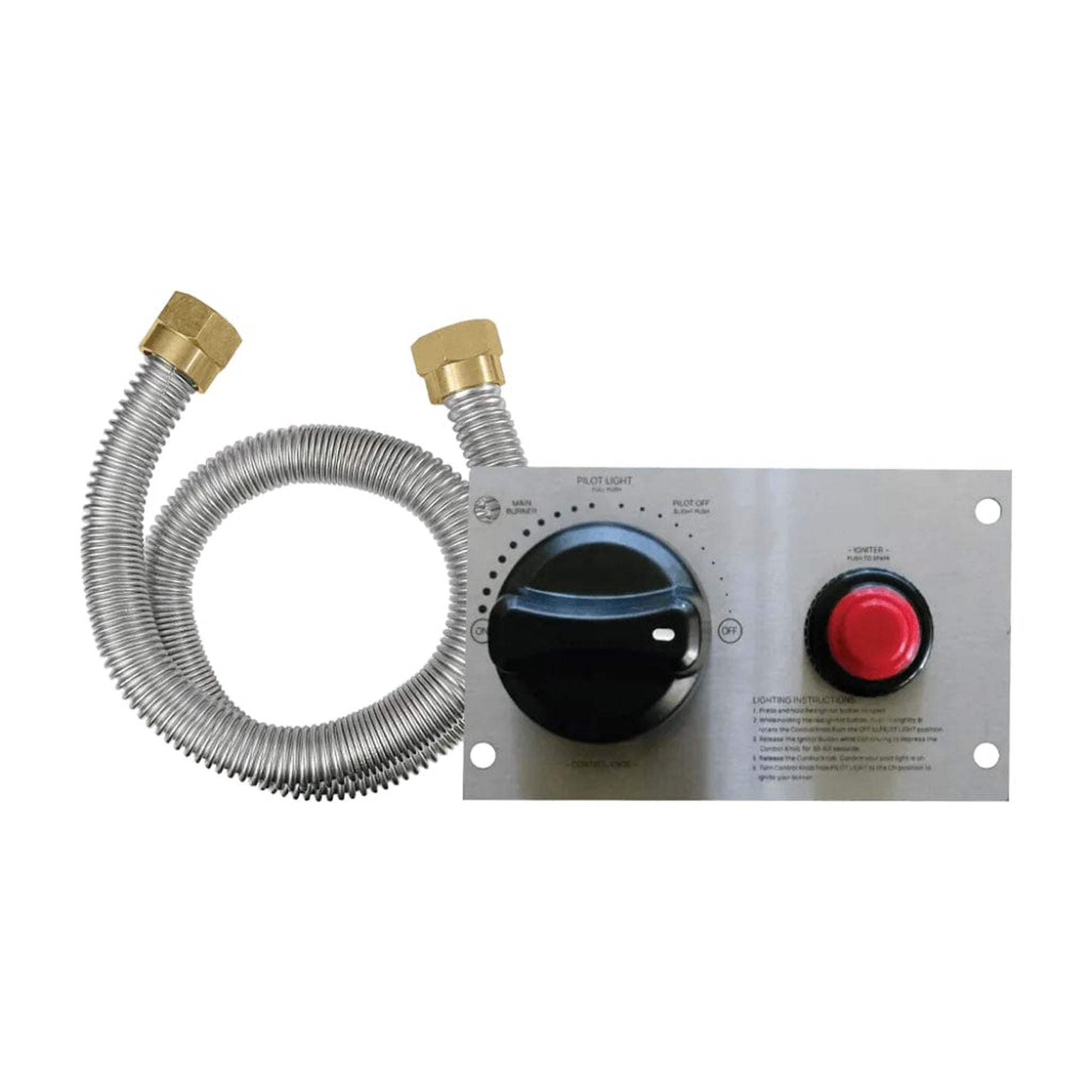

Paver Control Panel Kit
  • For use when building fire pit enclosures with SRW blocks or pavers and a TPSI burner system.
  • Includes stainless steel paver kit bracket and extender, lintel 12"x3" (20 gauge galvanized steel), screws and fittings, and Tapcon® concrete anchors.
Paver Vent Kit
  • Intended for gas fire pit enclosures made from paver stones
  • Kit includes two 3.625" x 8" or 5.625" x 8" vents with mounting plate and extension plate that extend up to 10” wide, two Tapcon® concrete anchors, and two 12”x3” Lintels (20 gauge galvanized steel).
  • Each vent provides 18 square inches of ventilation


Media Use Guide & Options

ID of Fire Pit 19" 25"
29"
33"
Lava Rock Only 10 lbs. 15 lbs. 20 lbs. 25 lbs.
Lava Rock as a Base 10 lbs. 15 lbs.
20 lbs.
25 lbs.
Glass
(on top of Lava Rock)
20 lbs. 30 lbs.
40 lbs.
50 lbs.
Lava Stones
(on top of Lava Rock)
15 lbs. 20 lbs.
25 lbs.
30 lbs.
Glass Only 40 lbs. 70 lbs. 90 lbs. 110 lbs.
Click to see media options

Media Options

Broken Glass Media

  • Broken glass, approximately 1/2" to 3/4" in size.

Black

Copper

Crystal

Light Blue

Seabreeze




Reflective Glass Media

  • Mirror finish broken reflective, approximately 1/2" to 3/4" in size.

Black

Bronze

Cobalt

Copper

Silver




Lava Rock

  • Mined from the earth, these dark rocks contrast beautifully against a bright flame. Each rock is approximately 1" to 2" in diameter.
  • Available in 10-pound bag and 1 cubic foot bag (Approx weight 30-40lbs.).


Lava Stone

  • Made from tumbled lava rock, these stones lend a casual elegance. Each stone is approximately 1" to 2" in diameter.


Warranty

Residential Application: Lifetime Warranty on construction and manufacturer defects, and stainless steel burners and pans; Five (5) years on gas valve, spark igniter, pilot assemblies, and TFS/TMSI electronic components.

Commercial Application: Two (2) years Warranty on construction and manufacturer defects, and stainless steel burners, pans, gas valve, spark igniter, and pilot assemblies.


Downloads

Safety Information: Check CA Prop 65 Warning for more information.
