Grand Canyon

3BRN-18-NG-MVKEI-GCRK

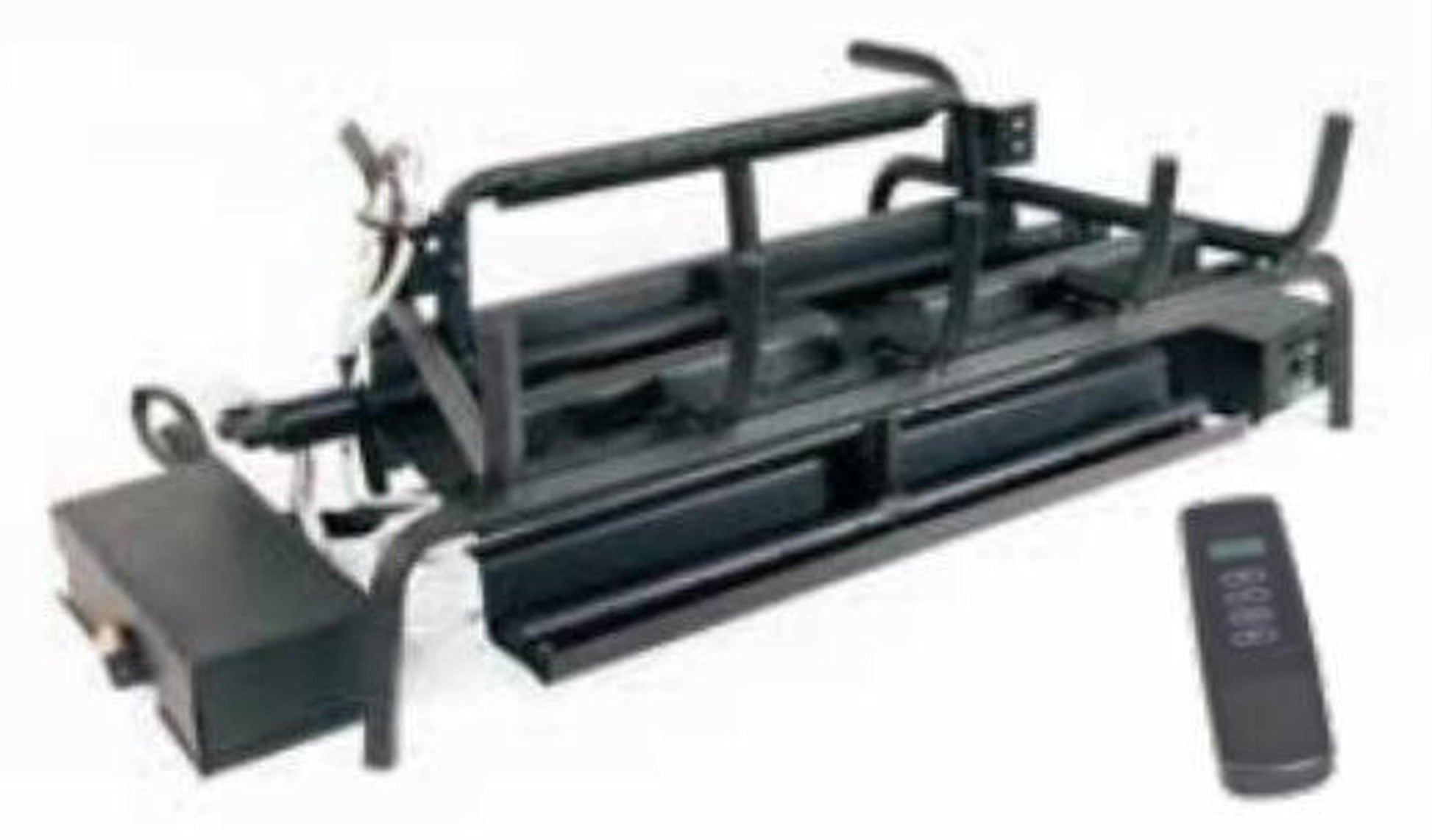

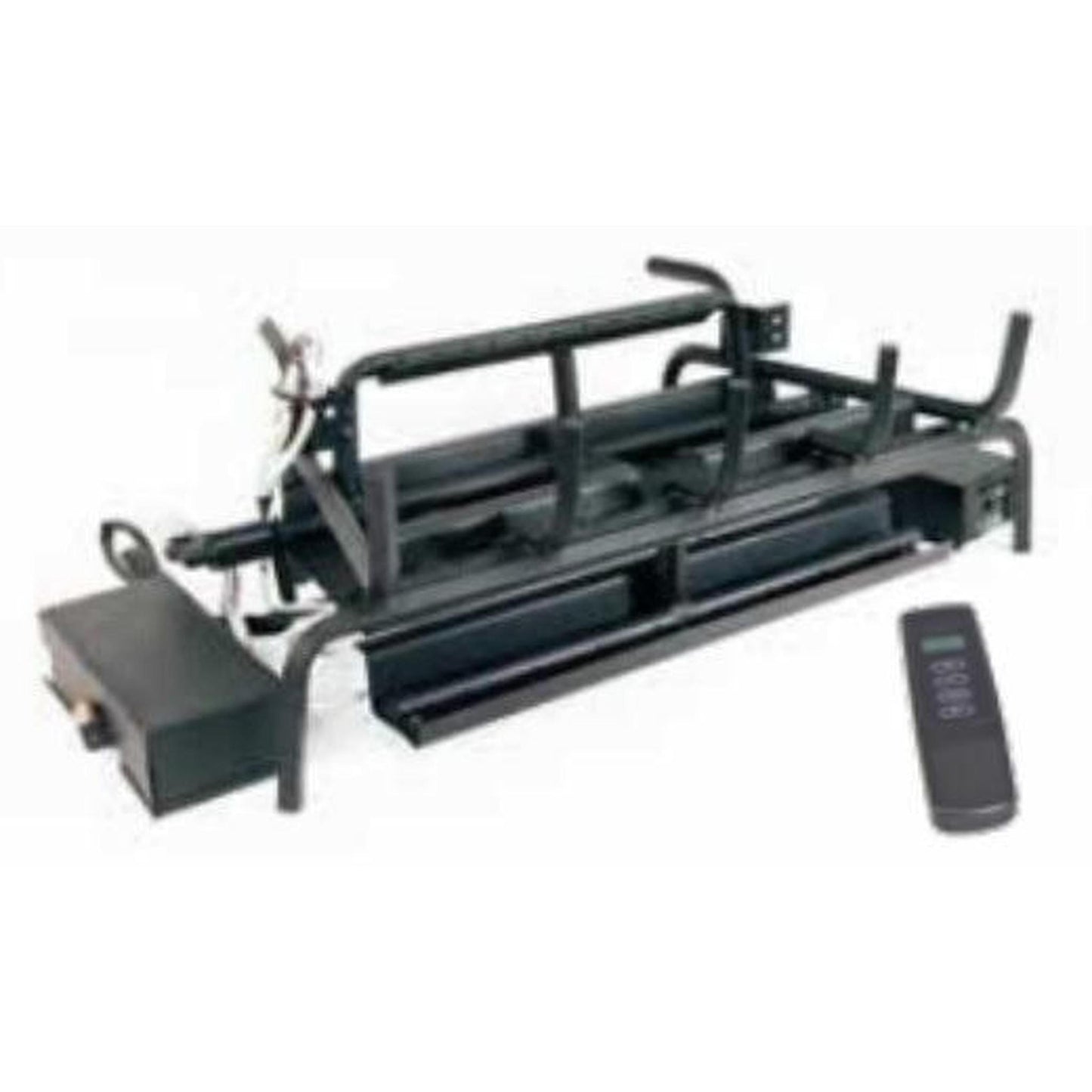

Grand Canyon 18" to 42" Assembled 3-Burner with Battery Electronic and Remote System

Fuel Type: Natural Gas
Size: 18-Inch


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

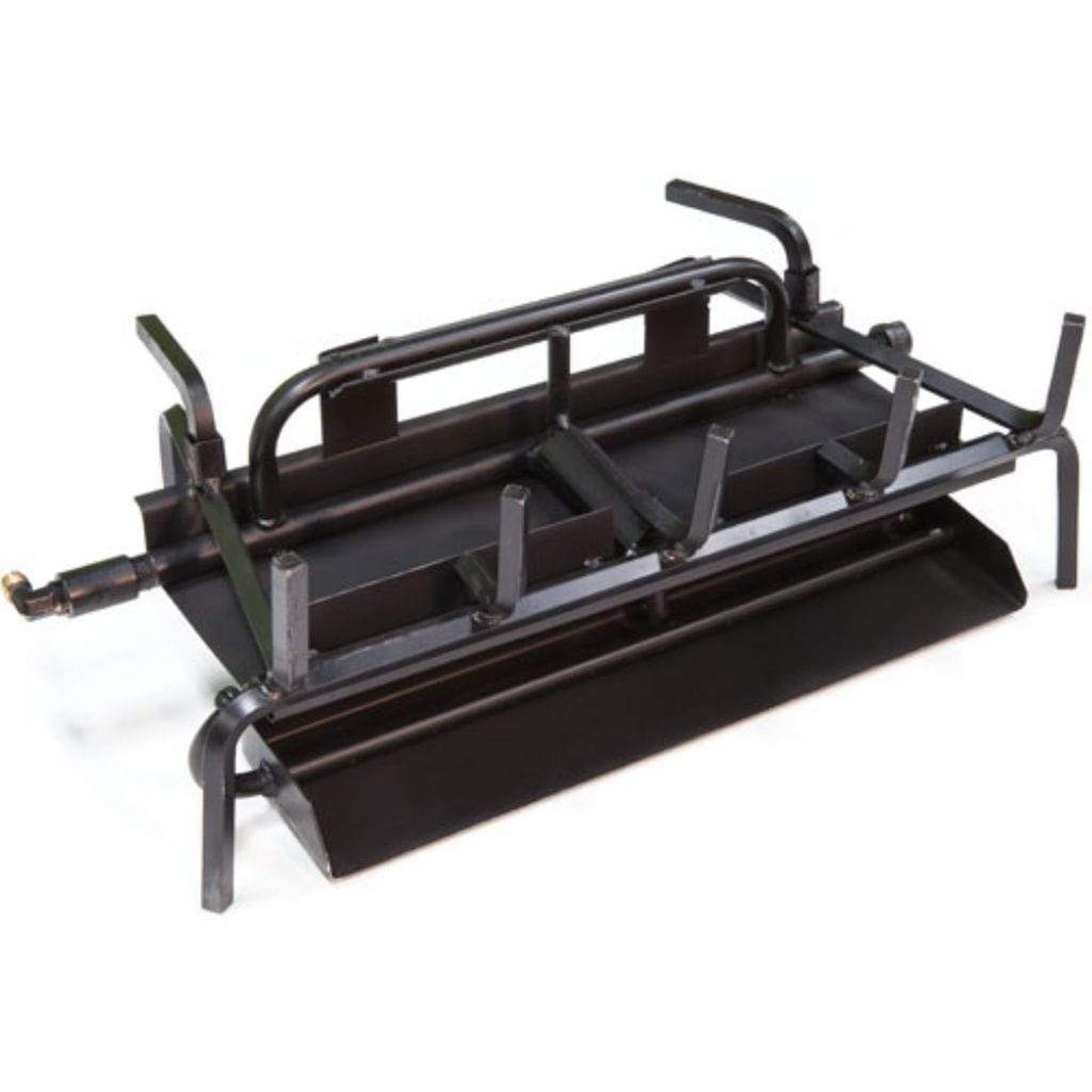

Grand Canyon 3 Burner System provides a high quality burner component to help complete your ideal gas fireplace. Grand Canyon's 3 Burner system features a 304 stainless steel chassis for ultimate durability and performance while allowing for gas to flow in from either side of the burner. With 1 elevated back burner that stretches across the entire rear of the burner, 1 middle burner that rolls over the front log, and 1 ember burner, this component is sure to create enough heat to give your living space a much more comfortable atmosphere while the burner tines can be raised or lowered depending on the size of your fireplace opening and preferred log style.

This burner package comes complete with metal bar stock and burner pipes, lava rock, necessary fittings, a flex line and the ember damper clamp. With (6) different burner size options and a propane or natural gas option, Grand Canyon has ensured a burner that will fit any style of indoor living space, allowing you to achieve an area that your friends and family will love for years to come.

Assembled Indoor 3 Burner

Assembled burner systems feature factory tested and installed control systems. Tested to the ANSI standard, these assembled system area plug and play approach. Indoor use ONLY, Stainless Steel pan construction with metal bar stock and burner pipes.

Use with logs:  Arizona Weathered Oak (AWO), Arizona Weathered Oak Charred (AWOC), Arizona Juniper (AJ), Quaking Aspen (ASPEN), Driftwood, and Blue Pine Split (BPS).

All burner kits include:  burner, lava rock, black embers, fittings, flex
line, damper clamp & vermiculite (LP ONLY).

Please Note: Logs Not Included.

Features:

  • ANSI certified
  • Lifetime warranty
  • Stainless steel pan
  • For indoor use only
  • Valve Type: IPI (intermittent pilot)
  • Metal bar stock and burner pipes
  • Propane version includes vermiculite
  • Natural gas or propane versions available
  • Fully welded system with sandless design
  • Factory tested and installed control system
  • Includes lava rock, black embers, flex line, and damper clamp
  • Even distribution rear burner w/ dual action middle burner and dedicated ember glow burner

Specifications

18-Inch
  • Front Width: 18"
  • Depth: 12"
  • Back Width: 11"
  • Height: 8"
  • BTU Rating NG: 46K
  • BTU Rating LP: 41K
21-Inch
  • Front Width: 21"
  • Depth: 12"
  • Back Width: 13"
  • Height: 8"
  • BTU Rating NG: 58K
  • BTU Rating LP: 58K
24-Inch
  • Front Width: 24"
  • Depth: 12"
  • Back Width: 16"
  • Height: 8"
  • BTU Rating NG: 74K
  • BTU Rating LP: 64K
30-Inch
  • Front Width: 30"
  • Depth: 14"
  • Back Width: 22"
  • Height: 8"
  • BTU Rating NG: 102K
  • BTU Rating LP: 91K
36-Inch
  • Front Width: 36"
  • Depth: 14"
  • Back Width: 27"
  • Height: 8"
  • BTU Rating NG: 111K
  • BTU Rating LP: 106K
42-Inch
  • Front Width: 42"
  • Depth: 14"
  • Back Width: 33"
  • Height: 8"
  • BTU Rating NG: 120K
  • BTU Rating LP: 121K
