Grand Canyon

GLASSBRN-18/12-H-NG-MVK-GCRK

Grand Canyon 18" to 42" H-Style Assembled Glass Burner

Fuel Type: Natural Gas
Size: 18-Inch
Valve Type: Millivolt and Remote System


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

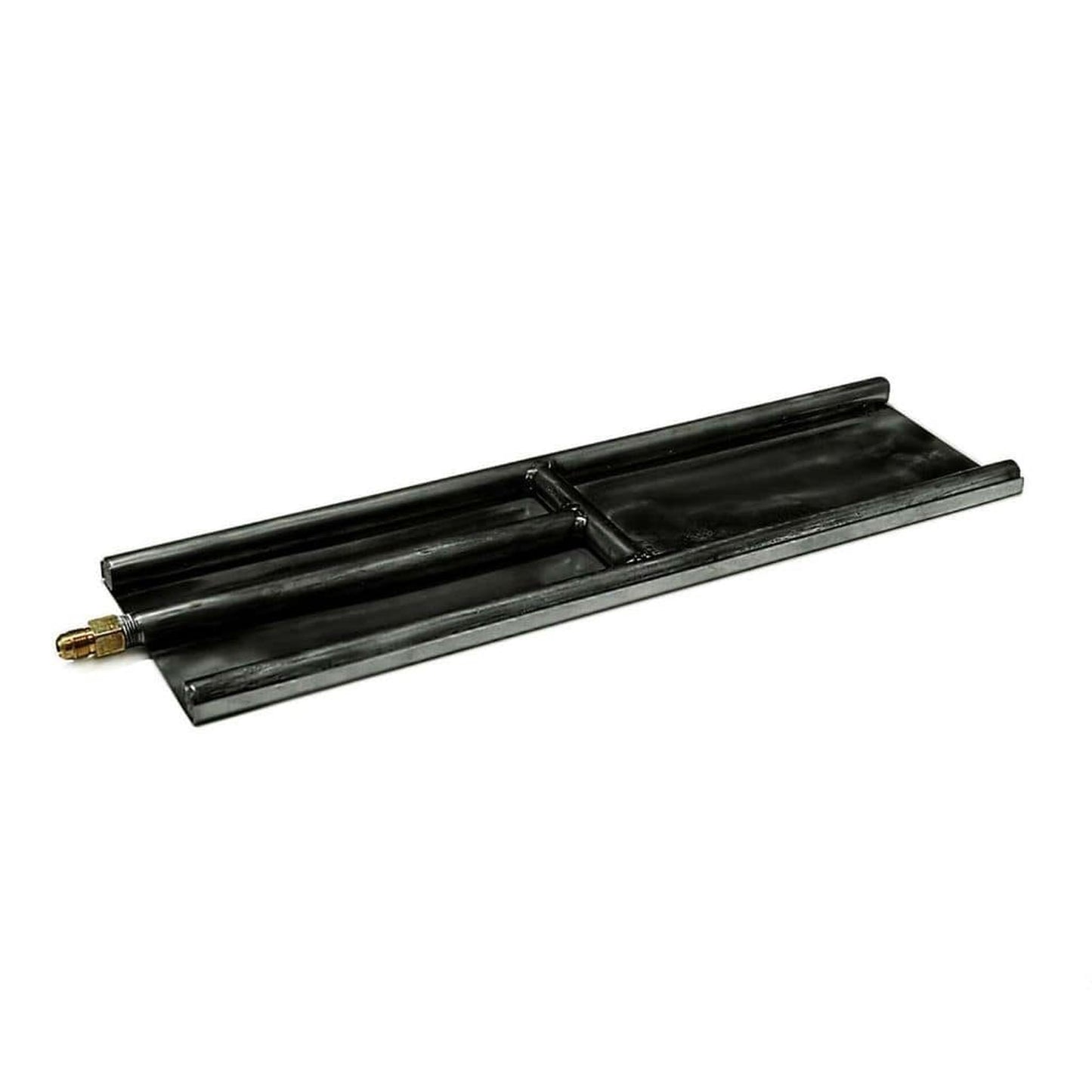

Grand Canyon H-Style Assembled Glass Burner offers a premium burner system for your fireplace. With its impressive H-burner design, this burner offers a full and lively flame inside of your fireplace.

Designed for use with either reflective glass or lava rock, this burner allows for either a contemporary or more traditional look for your hearth. Grand Canyon H-Style glass burners are available in sizes ranging from 18 inches to 42 inche, while three different valve options are available to meet the needs of your space.

Features

  • Standards: Built to ANSI Standards
  • Usage: Indoor
  • Materials: Stainless Steel Chassis
  • Warranty: Standard Model Lifetime Warranty Indoors
  • Piping: ½” Piping, ¾” Piping on (48”-120”)
  • Fittings: N/A
  • Convertible to LP: NG Burner Convertible to LP
  • Media: Includes Connection Fittings
  • Pilot: Concealed Pilot Mounting Brackets
  • Design: Fully Welded System with Sandless Design

Configurable Options

  • Burner Size - 18", 24", 30", 36" and 42-inch options
  • Fuel Type - Choose from Propane or Natural Gas
  • Media - Lava Rock Granules or Premium Reflective Fire Glass
  • Valve Kit - Millivolt and Remote System, Modulating Millivolt and Remote System and Battery Electronic and Remote System

Specifications

18-Inch
  • Front Width: 30"
  • Rear Width: 18"
  • Depth: 12"
  • Height: 14"
  • BTU Rating NG: 52K
  • BTU Rating LP: 49K
24-Inch
  • Front Width: 36"
  • Rear Width: 24"
  • Depth: 12"
  • Height: 14"
  • BTU Rating NG: 64K
  • BTU Rating LP: 66K
30-Inch
  • Front Width: 42"
  • Rear Width: 30"
  • Depth: 14"
  • Height: 14"
  • BTU Rating NG: 76K
  • BTU Rating LP: 79K
36-Inch
  • Front Width: 48"
  • Rear Width: 36"
  • Depth: 14"
  • Height: 14"
  • BTU Rating NG: 81K
  • BTU Rating LP: 83K
42-Inch
  • Front Width: 54"
  • Rear Width: 42"
  • Depth: 14"
  • Height: 14"
  • BTU Rating NG: 90K
  • BTU Rating LP: 85K



Options & Accessories




Black Granules -10 lbs

  • 10 pound bag
  • Optional accessory
  • Black lava granules
  • Enhances the realistic appearance of gas logs


Click to see Reflective Fire Glass




Terra Copper

  • Terra Copper
  • Indoor/outdoor use
  • 1/2" reflective premium fire glass
  • Compatible with all Grand Canyon glass and fire pit burners



Vesper Black

  • Vesper Black
  • Indoor/outdoor use
  • 1/2" reflective premium fire glass
  • Compatible with all Grand Canyon glass and fire pit burners





Apollo Bronze

  • Apollo Bronze
  • Indoor/outdoor use
  • 1/2" reflective premium fire glass
  • Compatible with all Grand Canyon glass and fire pit burners





Krystallo Diamond

  • Krystallo Diamond
  • Indoor/outdoor use
  • 1/2" reflective premium fire glass
  • Compatible with all Grand Canyon glass and fire pit burners





Adriatic Topaz

  • Adriatic Topaz
  • Indoor/outdoor use
  • 1/2" reflective premium fire glass
  • Compatible with all Grand Canyon glass and fire pit burners





Poseidon Blue

  • Poseidon Blue
  • Indoor/outdoor use
  • 1/2" reflective premium fire glass
  • Compatible with all Grand Canyon glass and fire pit burners





Amber Diamond

  • Amber Diamond
  • Indoor/outdoor use
  • 1/2" reflective premium fire glass
  • Compatible with all Grand Canyon glass and fire pit burners
