Hargrove

CTS3017ST

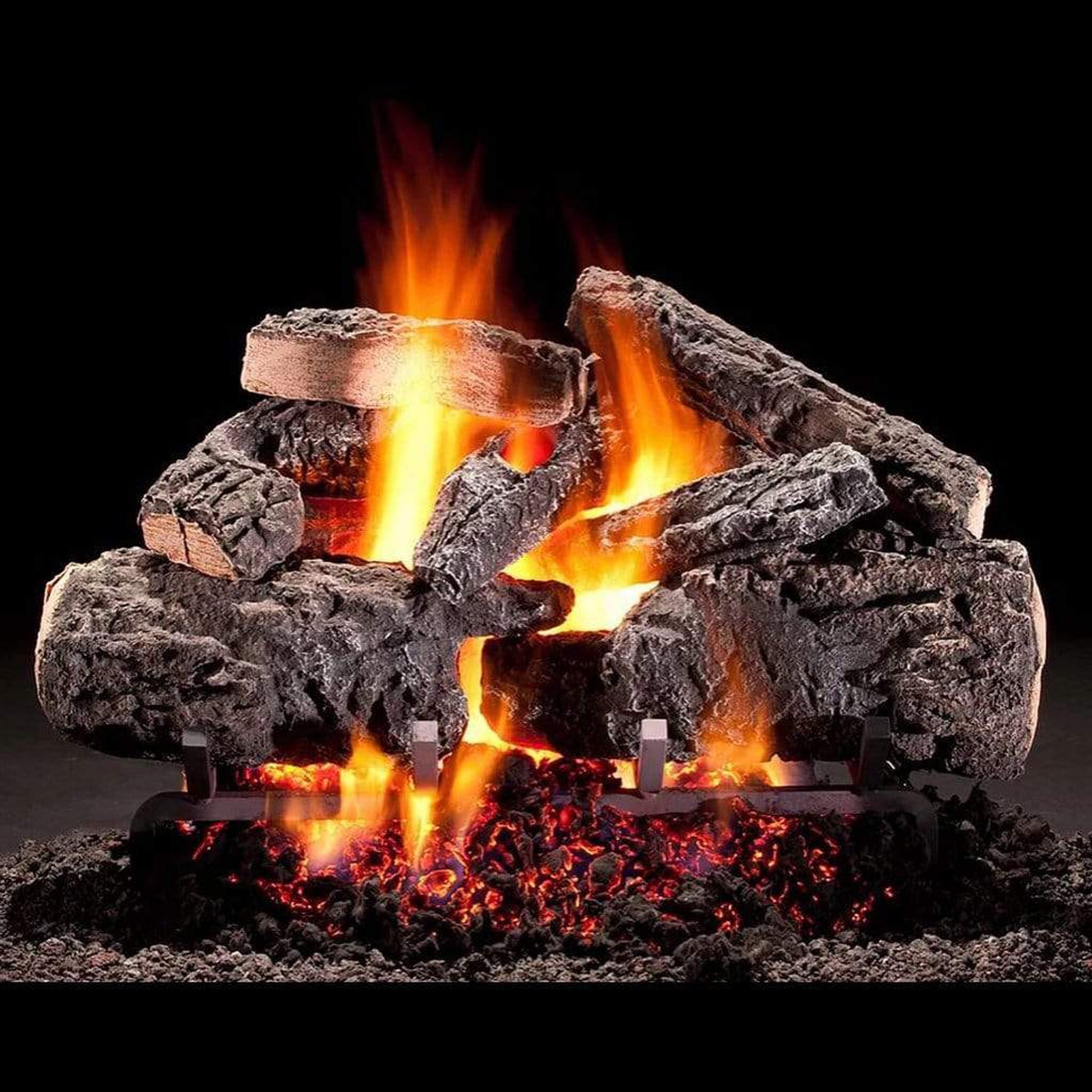

Hargrove 30" Cross Timbers See-Thru Vented Gas Log


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove's Radiant Heat series vented log sets allow you to have the most realistic-looking log set with all of the heat you want.

  • Radiant Riser technology directs the heat output forward
  • Revolutionary molding process gives log detail previously unattainable with Ceramic Fiber Logs
  • Ceramic Fiber material and Hargrove's Radiant Riser gives much greater heating efficiency than other vented log sets
  • Heat comparable with vent-free sets, with realistic fire and ember bed not possible with vent-free units

      The Cross Timbers features substantial front logs, heavy bark, abundant charring, and a warm glow.

      • Available in 21", 24", 30", and 36" sizes
      • Single Side and See Through Sets available
      • Works with See-Thru Burner kits
      • Available for Natural Gas or Liquid Propane

                  *Notes:

                  • Burner System is not included with the log set and should be ordered separately.
                  • Remote controls are not included with Millivolt Safety Pilot, and High Capacity Millivolt Safety Pilot and should be ordered separately.



                  Specification Sheet
                  See-Thru Fireplaces
                  Set Size Model # Certified Models Weight
                  (lbs)
                  # of Logs in Set
                  21" CTS2113ST Non-Certified 21 13
                  24" CTS2416ST Non-Certified 24 16
                  30" CTS3017ST Non-Certified 29 17
                  36" CTS3618ST Non-Certified 31 18
                  All See-Thru sets above can be used with See-Thru Burner Kits

                   *Note: Click to See Full Details of Fireplace Dimensions



                  Vented Burner System Specification Sheet
                  Natural Gas
                  Burner System
                  Certification Weight BTU Compatible Log Size
                  30" See-Thru (R)RGA2/72 (C)ANSI Z.21.60 61 140,000 30"
                  Propane
                  30" See-Thru (R)RGA2/72 (C)ANSI Z.21.60 65 115,000 30"

                  *Notes:

                  • See-Thru Burner kits require a minimum of 22" of depth.

                  See-Thru Burner kit includes: See-Thru Burner, grate, sand, or vermiculite, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.



                  Limited Warranty

                   Refractory Logs Hargrove gas logs carry a limited lifetime warranty against any manufactured defect or breakage when installed indoors. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. Products installed in outdoor applications carry a one (1) year limited warranty.
                  Burner & Grate If the burner or grate fails due to deterioration within five (5) years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty
                  All Other Parts If any assembled part should fail to operate or be found defective within two (2) years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty.

                  Option and Accessories

                  Click to see Burner Systems
                  30" See-Thru Burner Kits
                  • Available in 18” to 42” sizes
                  • Available with Match Light, Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, Variable Flame Safety Pilot w/Remote Control, Millivolt Safety Pilot w/Wall Switch, and High Capacity Millivolt Safety Pilot w/Wall Switch
                  • S-shaped burner design
                  • Recommended for various Fresh Cut, Char, and Radiant Heat Series logs


                    AF-LCK Latch Tap Remote Control Upgrade Kit for Safety Pilot Valve

                    • Latch-Tap Kit (ON/OFF) for Safety Pilot Remote Control (AF-CMT-PO) with RC-S6V-LT Remote Control Included

                    AF-SCK Variable Flame Height Remote Control Upgrade Kit for Safety Pilot Valve

                    • Variable Flame Height for AF-CMT-PO with RC-S6V-ST Remote Control Included

                    Click to see Control Systems
                    Cool Mount Manual Safety Pilot Valve
                    • Turn the control knob to turn set on and adjust the main burner flame
                    • Valve System is mounted using a flex connector allowing it to be located further from the main burner
                    • Standing Pilot
                    • Natural Gas or Liquid Propane
                    Cool Mount LatchTap Safety Pilot Valve with On/off Remote Control
                    • Use Remote Control to turn the main burner on and off – flame can be adjusted with the valve control knob
                    • Valve System is mounted using a flex connector allowing it to be located further from the main burn
                    • Standing Pilot
                    • Natural Gas or Liquid Propane
                    Cool Mount Variable Safety Pilot with Variable Remote Control
                    • Use Remote Control to turn the main burner on and off and adjust the flame height
                    • Valve System is mounted using a flex connector allowing it to be located further from the main burn
                    • Standing Pilot
                    • Natural Gas or Liquid Propane
                    Millivolt Safety Pilot with Wall Switch
                    • Use Wall Switch to turn the main burner on and off
                    • Valve is mounted in a forward position for optimal performance.
                    • Natural Gas or Liquid Propane
                    Electronic Ignition Safety Pilot with Variable Flame Remote
                    • Use Remote Control to activate the pilot, turn main burner on and off and adjust the flame height
                    • Valve System is mounted using a flex connector allowing it to be located further from the main burn
                    • No Standing Pilot
                    • Natural Gas or Liquid Propane (Liquid Propane requires an LP conversion kit)

                    Click to See Latch-Tap Controls and Switching Accessories
                    WS-S6V-LT DC Operated Wireless Wall Switch
                    • DC powered Wireless wall switch for Latch-Tap- remote features: on/off
                    WS-S6V-WIRED DC Operated Wired Wall Switch
                    • Flame Height Control Wall Switch for Latch-Tap (vented), Cumberland Char or Highland Glow (vent-free)
                    BPBCS DC Operated Bark Chip Switch
                    • DC powered bark chip switch for Latch-Tap System, on/off function

                    Click to see Millivolt Controls and Switching Accessories
                    RC-S12V-MV Millivolt DC operated on/off remote control
                    • Kit includes 12 VDC remote/receiver - remote features: on/off function
                    RC-I12V-BT Millivolt Remote & Bluetooth
                    • Kit includes 12VDC Remote/Receiver & Bluetooth smartphone capability
                    BT-IBUG Millivolt Bluetooth Module Control
                    • Includes Bluetooth Module Control for smartphone capability
                    RC-A110V-A Millivolt AC operated on/off remote control
                    • Requires 110 volt A/C electricity - remote features: on/off function, child-proof switch
                    BCS Bark Chip Switch
                    • Bark chip switch, on/off function
                    PCS Millivolt Pine Cone Switch
                    • 2 Piece Pine Cone switch, on/off function

                    Click to see Gas Log Accessories
                    CK-6 Combo Kit
                    • This kit includes a 1x pinecone, 1x twig and 4x bark chips to add to your fireplace
                    CCKGO Charred Chip Kit
                    • A kit of charred chips that can be used to add character to your log set
                    • 4x Decorative charred chips for ember bed
                    BCKGO Bark Chip Kit
                    • 4x - Decorative Bark Chips for Ember Bed
                    TK-2 Twig Kit
                    • 2x - Decorative Twigs - #602CL, #1110CL
                    DPCK-2 Pine Cone Kit
                    • 2x - Decorative Pine Cones - #1201, #1203
                    FCC-3 3x Decorative Charred Chips Kit
                    • 3x - Decorative Charred Chips for Ember Bed
                    FCC-7 7x Decorative Charred Chips Kit
                    • 7x - Decorative Charred Chips for Ember Bed
                    1203-BX Pine Cone
                    • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                    1204-BX Pine Cone
                    • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                    1205-BX Pine Cone
                    • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                    1210-BX Pine Cone
                    • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                    1215-BX Pine Cone
                    • These Pine Cones can be used to add some customization or to conceal a valve within your set.
                    RW Glowing Ember
                    • PART B (Glowing Embers) ONLY
                    PB-5 Platinum Bright Embers 5 Grams Bag
                    • Clean Burning, Luminous Embers for
                    • Vented Gas Logs
                    • For best use, mix with Standard Ember
                    • Material to accent the Ember Bed.
                    SD Silica Sand - 10 lb. bag
                    • Sand for Natural Gas burner pan on vented log sets
                    VC Volcanic Cinders - 5 lb. bag
                    • Volcanic Cinder used to cover the fireplace floor
                    VM Vermiculite - 1 lb. bag
                    • Vermiculite for Liquid Propane burner pan on vented log sets
                    VM-10 Vermiculite - 10 lb. bag
                    • Vermiculite for Liquid Propane burner pan on vented log sets
                    RW-10 Glowing Ember 10 lb. Bag
                    • PART B (Glowing Embers) ONLY
                    VCFP-S 3/8" Small Vocanic Cinders 5 gal.
                    • 5 gal small Vocanic Cinders
                    VCFP-L 1" to 3" Large Vocanic Cinders 5 gal.
                    • 5 gal Large Vocanic Cinders
                    SD-50 Silica Sand - 50 lb. bag
                    • Sand for Natural Gas burner pan on vented log sets
