Hargrove

ISS3007AA

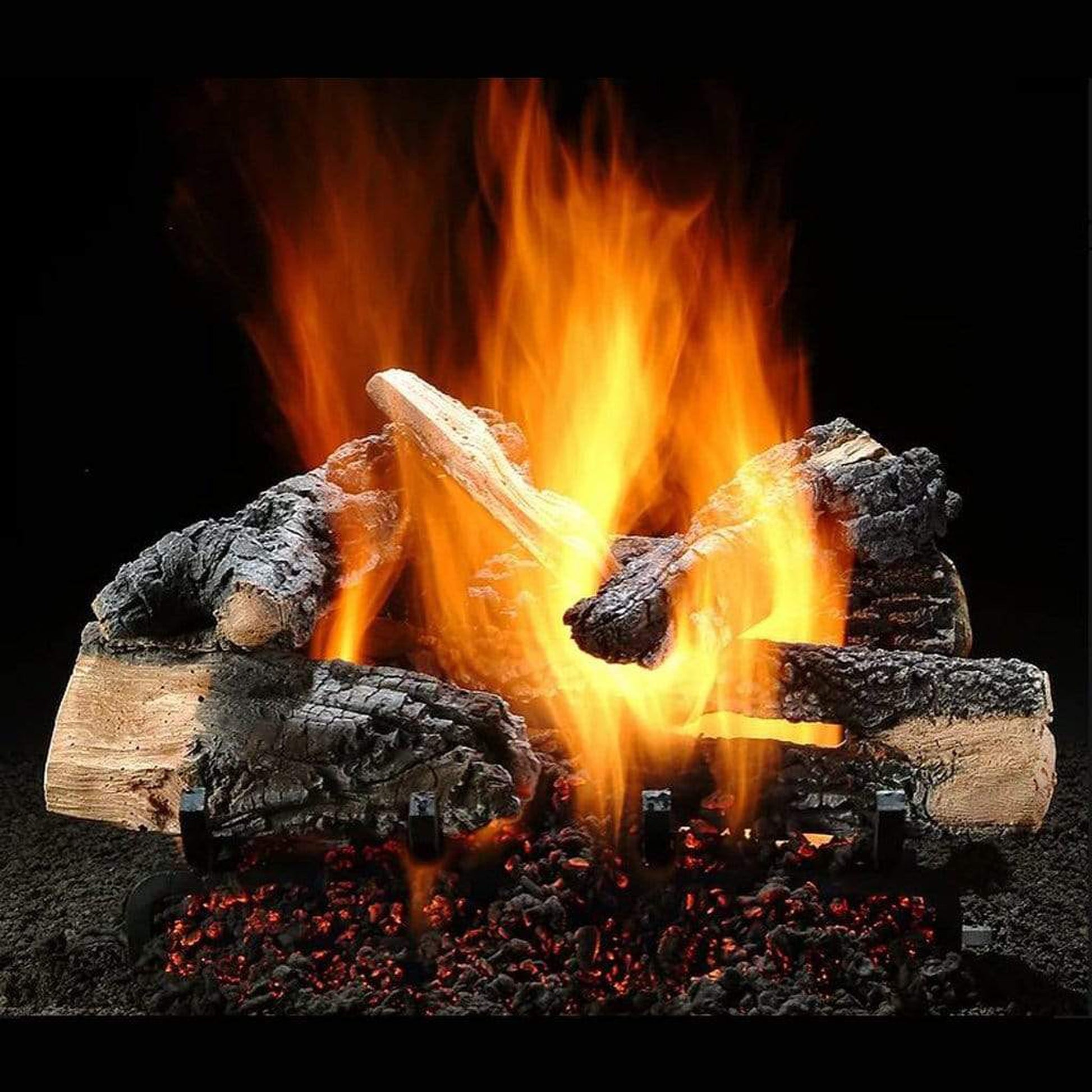

Hargrove 30" Inferno Series Single Side Vented Gas Log


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove's Charred Style log sets bring realism to your hearth with our deep bark detail, smokey charring, and natural log stacks.

  • Refractory materials capable of withstanding temps over 2000°F
  • Crisp detail that Hargrove is known for
  • Each log is hand-painted
  • Reinforced with metal mesh reinforcement for added strength and durability

    The Inferno Series features the appearance of a wood fire that is an hour or two old, with flames that are working away on the partially burned logs

    • Available in 18", 21", 24", and 30" sizes
    • Single Side and See Through Sets available
    • Works with E-Burner, H-Burner, Hidden Controls, and System 4 Burner kits
    • Available for Natural Gas or Liquid Propane

        *Notes:

        • Burner System is not included with the log set and should be ordered separately.
        • Remote controls are not included with Millivolt Safety Pilot, and High Capacity Millivolt Safety Pilot and should be ordered separately.



        Specification Sheet
        Single Side Fireplaces
        Set Size Model # Certified Models Weight
        (lbs)
        # of Logs in Set
        18" ISS1805AA ANSI/RGA2/72 23 5
        21" ISS2106AA ANSI/RGA2/72 29 6
        24" ISS2406AA ANSI/RGA2/72 43 6
        30" ISS3007AA ANSI/RGA2/72 45 7
        All Single Side sets above can be used with E-Burner, H-Burner, or System 4 Burner Kits

         *Note: Click to See Full Details of Fireplace Dimensions



        Vented Burner System Specification Sheet
        Natural Gas
        Burner System
        Certification Weight BTU Compatible Log Size
        30" E-Burner (R)RGA2/72 (C)ANSI Z.21.60 40 90,000 30"
        30" H-Burner (R)RGA2/72 (C)ANSI Z.21.60 40 90,000 30"
        30" Hidden Control Burner ANSI Z21.60 39 90,000 30"
        Propane
        30" E-Burner (R)RGA2/72 (C)ANSI Z.21.60 40 78,000 30"
        30" H-Burner System (R)RGA2/72 (C)ANSI Z.21.60 40 78,000
        30"
        30" System 4 Burner ANSI Z.21.60 36 68,000 30"
        30" Hidden Control Burner ANSI Z21.60 39 75,000 30"

        *Notes:

        • E-Burner, H-Burner, and Hidden Control kits require a minimum of 14" of depth.
        • System 4 Burner kits require a minimum of 16" of depth.

        E-Burner and H-Burner kits include: Burner, custom 5/8" grate, sand, or vermiculite, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.

        System 4 Burner Kits include: Burner, custom 5/8" grate, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.

        Hidden Control Burner kits include: HC Burner, custom 5/8" grate, sand or vermiculite, embers, volcanic cinder, fittings, and black non-whistling flex connector



        Limited Warranty

         Refractory Logs Hargrove gas logs carry a limited lifetime warranty against any manufactured defect or breakage when installed indoors. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. Products installed in outdoor applications carry a one (1) year limited warranty.
        Burner & Grate If the burner or grate fails due to deterioration within five (5) years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty
        All Other Parts If any assembled part should fail to operate or be found defective within two (2) years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty.

        Option and Accessories

        Click to see Burner Systems
        30" E-Burner Standard Kit
        • Available in 15” to 42” sizes
        • Compatible with 18" to 21" Log Size
        • Available with Match Light, Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, Variable Flame Safety Pilot w/Remote Control, Millivolt Safety Pilot w/Wall Switch,and High Capacity Millivolt Safety Pilot w/Wall Switch
        • Single Burner that provides a large body of flame
        • Recommended for Fresh Cut Series Logs
        30" H-Burner Standard Kit
        • Available in 18” to 36” sizes
        • Compatible with 18" to 21" Log Size
        • Available with Match Light, Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, Variable Flame Safety Pilot w/Remote Control, Millivolt Safety Pilot w/Wall Switch,and High Capacity Millivolt Safety Pilot w/Wall Switch
        • Dual Burner that provides a large body of flame and additional flame in front of the logs.
        • Recommended for Char and Radiant Heat Series Logs
        30" System 4 Burner Standard Kit - Specialized for LP Gas
        • Available in 18” to 42” sizes
        • Compatible with 18" to 21" Log Size
        • Available with Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, and Variable Flame Safety Pilot w/Remote Control
        • A full-bodied flame that provides outstanding performance in liquid propane applications
        • Recommended for Fresh Cut, Char, and Radiant Heat Series Logs

        30" Hidden Control Vented Burner System with Manual Safety Pilot Valve

        • Available in 18" to 36" sizes
        • Compatible with 18" to 21" Log Size
        • Available with Safety Pilot Valve,  Variable Flame Safety Pilot, and Electronic Ignition w/Remote Control
        • Burner design hides control system from view
        • Recommended for use with Radiant, Charred, and Fresh Cut Styles

        AF-LCK Latch Tap Remote Control Upgrade Kit for Safety Pilot Valve

        • Latch-Tap Kit (ON/OFF) for Safety Pilot Remote Control (AF-CMT-PO) with RC-S6V-LT Remote Control Included

        AF-SCK Variable Flame Height Remote Control Upgrade Kit for Safety Pilot Valve

        • Variable Flame Height for AF-CMT-PO with RC-S6V-ST Remote Control Included

        Click to see Control Systems
        Cool Mount Manual Safety Pilot Valve
        • Turn the control knob to turn set on and adjust the main burner flame
        • Valve System is mounted using a flex connector allowing it to be located further from the main burner
        • Standing Pilot
        • Natural Gas or Liquid Propane
        Cool Mount LatchTap Safety Pilot Valve with On/off Remote Control
        • Use Remote Control to turn the main burner on and off – flame can be adjusted with the valve control knob
        • Valve System is mounted using a flex connector allowing it to be located further from the main burn
        • Standing Pilot
        • Natural Gas or Liquid Propane
        Cool Mount Variable Safety Pilot with Variable Remote Control
        • Use Remote Control to turn the main burner on and off and adjust the flame height
        • Valve System is mounted using a flex connector allowing it to be located further from the main burn
        • Standing Pilot
        • Natural Gas or Liquid Propane
        Millivolt Safety Pilot with Wall Switch
        • Use Wall Switch to turn the main burner on and off
        • Valve is mounted in a forward position for optimal performance.
        • Natural Gas or Liquid Propane
        Electronic Ignition Safety Pilot with Variable Flame Remote
        • Use Remote Control to activate the pilot, turn main burner on and off and adjust the flame height
        • Valve System is mounted using a flex connector allowing it to be located further from the main burn
        • No Standing Pilot
        • Natural Gas or Liquid Propane (Liquid Propane requires an LP conversion kit)

        Click to See Latch-Tap Controls and Switching Accessories
        WS-S6V-LT DC Operated Wireless Wall Switch
        • DC powered Wireless wall switch for Latch-Tap- remote features: on/off
        WS-S6V-WIRED DC Operated Wired Wall Switch
        • Flame Height Control Wall Switch for Latch-Tap (vented), Cumberland Char or Highland Glow (vent-free)
        BPBCS DC Operated Bark Chip Switch
        • DC powered bark chip switch for Latch-Tap System, on/off function

        Click to see Millivolt Controls and Switching Accessories
        RC-S12V-MV Millivolt DC operated on/off remote control
        • Kit includes 12 VDC remote/receiver - remote features: on/off function
        RC-I12V-BT Millivolt Remote & Bluetooth
        • Kit includes 12VDC Remote/Receiver & Bluetooth smartphone capability
        BT-IBUG Millivolt Bluetooth Module Control
        • Includes Bluetooth Module Control for smartphone capability
        RC-A110V-A Millivolt AC operated on/off remote control
        • Requires 110 volt A/C electricity - remote features: on/off function, child-proof switch
        BCS Bark Chip Switch
        • Bark chip switch, on/off function
        PCS Millivolt Pine Cone Switch
        • 2 Piece Pine Cone switch, on/off function

        Click to see Gas Log Accessories
        CK-6 Combo Kit
        • This kit includes a 1x pinecone, 1x twig and 4x bark chips to add to your fireplace
        CCKGO Charred Chip Kit
        • A kit of charred chips that can be used to add character to your log set
        • 4x Decorative charred chips for ember bed
        BCKGO Bark Chip Kit
        • 4x - Decorative Bark Chips for Ember Bed
        TK-2 Twig Kit
        • 2x - Decorative Twigs - #602CL, #1110CL
        DPCK-2 Pine Cone Kit
        • 2x - Decorative Pine Cones - #1201, #1203
        FCC-3 3x Decorative Charred Chips Kit
        • 3x - Decorative Charred Chips for Ember Bed
        FCC-7 7x Decorative Charred Chips Kit
        • 7x - Decorative Charred Chips for Ember Bed
        1203-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        1204-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        1205-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        1210-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        1215-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        RW Glowing Ember
        • PART B (Glowing Embers) ONLY
        PB-5 Platinum Bright Embers 5 Grams Bag
        • Clean Burning, Luminous Embers for
        • Vented Gas Logs
        • For best use, mix with Standard Ember
        • Material to accent the Ember Bed.
        SD Silica Sand - 10 lb. bag
        • Sand for Natural Gas burner pan on vented log sets
        VC Volcanic Cinders - 5 lb. bag
        • Volcanic Cinder used to cover the fireplace floor
        VM Vermiculite - 1 lb. bag
        • Vermiculite for Liquid Propane burner pan on vented log sets
        VM-10 Vermiculite - 10 lb. bag
        • Vermiculite for Liquid Propane burner pan on vented log sets
        RW-10 Glowing Ember 10 lb. Bag
        • PART B (Glowing Embers) ONLY
        VCFP-S 3/8" Small Vocanic Cinders 5 gal.
        • 5 gal small Vocanic Cinders
        VCFP-L 1" to 3" Large Vocanic Cinders 5 gal.
        • 5 gal Large Vocanic Cinders
        SD-50 Silica Sand - 50 lb. bag
        • Sand for Natural Gas burner pan on vented log sets
