Hargrove

MIS3610AA

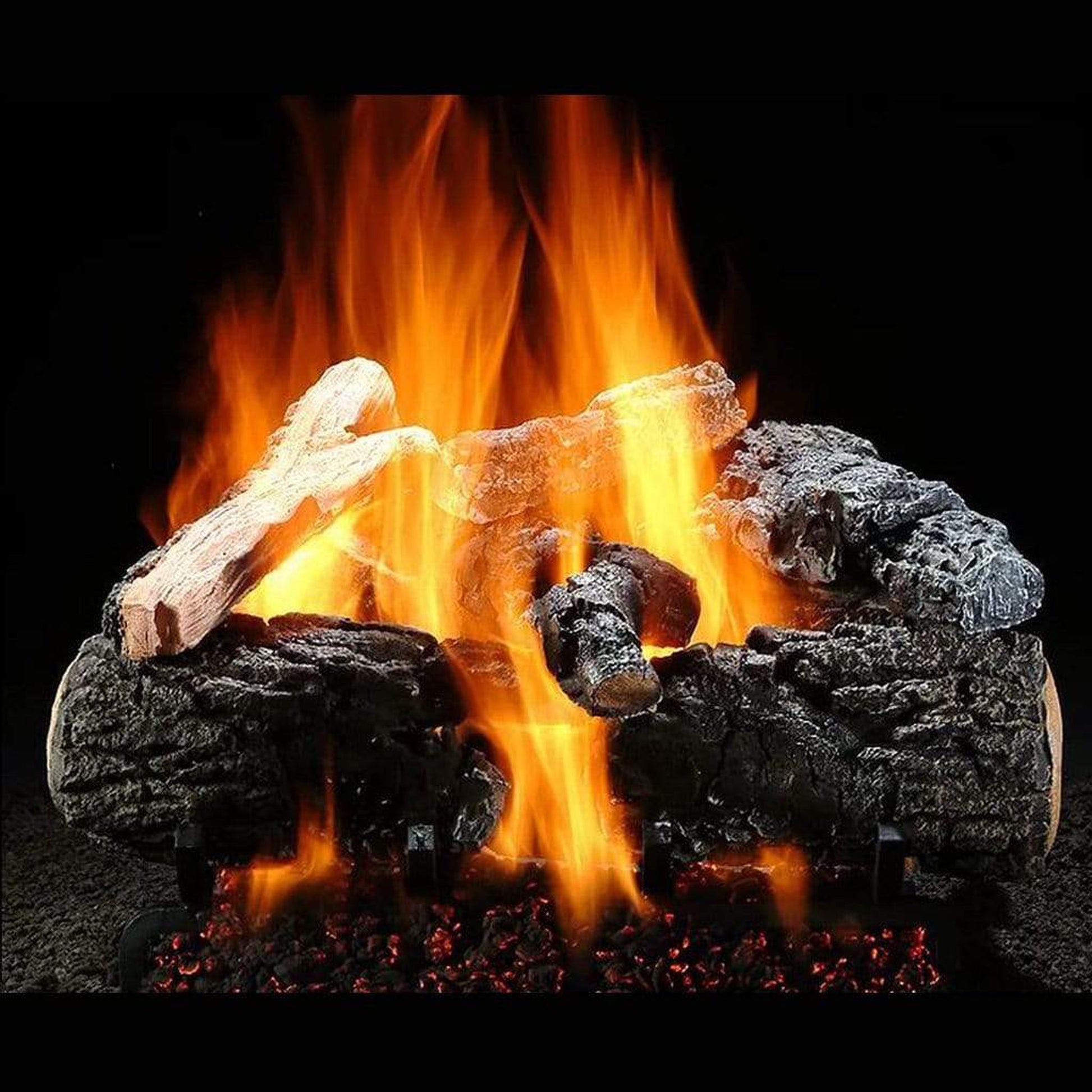

Hargrove 36" Magnificent Inferno Single Side Vented Gas Log


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove's Charred Style log sets bring realism to your hearth with our deep bark detail, smokey charring, and natural log stacks.

  • Refractory materials capable of withstanding temps over 2000°F
  • Crisp detail that Hargrove is known for
  • Each log is hand-painted
  • Reinforced with metal mesh reinforcement for added strength and durability

    The Magnificent Inferno Series features a large two-piece front log with an impressive flame/ember viewing area

    • Available in 21", 24", 30", and 36" sizes
    • Single Side and See Through Sets available
    • Works with E-Burner, H-Burner, Hidden Controls, and System 4 Burner kits
    • Available for Natural Gas or Liquid Propane

          *Notes:

          • Burner System is not included with the log set and should be ordered separately.
          • Remote controls are not included with Millivolt Safety Pilot, and High Capacity Millivolt Safety Pilot and should be ordered separately.



          Specification Sheet
          Single Side Fireplaces
          Set Size Model # Certified Models Weight
          (lbs)
          # of Logs in Set
          21" MIS2106AA ANSI/RGA2/72 41 6
          24" MIS2407AA ANSI/RGA2/72 50 7
          30" MIS3008AA ANSI/RGA2/72 62 8
          36" MIS3610AA ANSI/RGA2/72 75 10
          All Single Side sets above can be used with E-Burner, H-Burner, or System 4 Burner Kits

           *Note: Click to See Full Details of Fireplace Dimensions



          Vented Burner System Specification Sheet
          Natural Gas
          Burner System
          Certification Weight BTU Compatible Log Size
          36" E-Burner (R)RGA2/72 (C)ANSI Z.21.60 53 100,000 36"
          36" H-Burner (R)RGA2/72 (C)ANSI Z.21.60 53 100,000 36"
          36" Hidden Control Burner ANSI Z21.60 53 100,000 36"
          Propane
          36" E-Burner (R)RGA2/72 (C)ANSI Z.21.60 53 79,000 36"
          36" H-Burner System (R)RGA2/72 (C)ANSI Z.21.60 53 79,000
          36"
          36" System 4 Burner Non-Certified 40 90,000 36"
          36" Hidden Control Burner ANSI Z21.60 53 85,000 36"

          *Notes:

          • E-Burner, H-Burner, and Hidden Control kits require a minimum of 14" of depth.
          • System 4 Burner kits require a minimum of 16" of depth.

          E-Burner and H-Burner kits include: Burner, custom 5/8" grate, sand, or vermiculite, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.

          System 4 Burner Kits include: Burner, custom 5/8" grate, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.

          Hidden Control Burner kits include: HC Burner, custom 5/8" grate, sand or vermiculite, embers, volcanic cinder, fittings, and black non-whistling flex connector



          Limited Warranty

           Refractory Logs Hargrove gas logs carry a limited lifetime warranty against any manufactured defect or breakage when installed indoors. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. Products installed in outdoor applications carry a one (1) year limited warranty.
          Burner & Grate If the burner or grate fails due to deterioration within five (5) years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty
          All Other Parts If any assembled part should fail to operate or be found defective within two (2) years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty.

          Option and Accessories

          Click to see Burner Systems
          36" E-Burner Standard Kit
          • Available in 15” to 42” sizes
          • Compatible with 18" to 21" Log Size
          • Available with Match Light, Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, Variable Flame Safety Pilot w/Remote Control, Millivolt Safety Pilot w/Wall Switch,and High Capacity Millivolt Safety Pilot w/Wall Switch
          • Single Burner that provides a large body of flame
          • Recommended for Fresh Cut Series Logs
          36" H-Burner Standard Kit
          • Available in 18” to 36” sizes
          • Compatible with 18" to 21" Log Size
          • Available with Match Light, Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, Variable Flame Safety Pilot w/Remote Control, Millivolt Safety Pilot w/Wall Switch,and High Capacity Millivolt Safety Pilot w/Wall Switch
          • Dual Burner that provides a large body of flame and additional flame in front of the logs.
          • Recommended for Char and Radiant Heat Series Logs
          36" System 4 Burner Standard Kit - Specialized for LP Gas
          • Available in 18” to 42” sizes
          • Compatible with 18" to 21" Log Size
          • Available with Safety Pilot Valve, Latch Tap Safety Pilot w/Remote Control, and Variable Flame Safety Pilot w/Remote Control
          • A full-bodied flame that provides outstanding performance in liquid propane applications
          • Recommended for Fresh Cut, Char, and Radiant Heat Series Logs

          36" Hidden Control Vented Burner System with Manual Safety Pilot Valve

          • Available in 18" to 36" sizes
          • Compatible with 18" to 21" Log Size
          • Available with Safety Pilot Valve,  Variable Flame Safety Pilot, and Electronic Ignition w/Remote Control
          • Burner design hides control system from view
          • Recommended for use with Radiant, Charred, and Fresh Cut Styles

          AF-LCK Latch Tap Remote Control Upgrade Kit for Safety Pilot Valve

          • Latch-Tap Kit (ON/OFF) for Safety Pilot Remote Control (AF-CMT-PO) with RC-S6V-LT Remote Control Included

          AF-SCK Variable Flame Height Remote Control Upgrade Kit for Safety Pilot Valve

          • Variable Flame Height for AF-CMT-PO with RC-S6V-ST Remote Control Included

          Click to see Control Systems
          Cool Mount Manual Safety Pilot Valve
          • Turn the control knob to turn set on and adjust the main burner flame
          • Valve System is mounted using a flex connector allowing it to be located further from the main burner
          • Standing Pilot
          • Natural Gas or Liquid Propane
          Cool Mount LatchTap Safety Pilot Valve with On/off Remote Control
          • Use Remote Control to turn the main burner on and off – flame can be adjusted with the valve control knob
          • Valve System is mounted using a flex connector allowing it to be located further from the main burn
          • Standing Pilot
          • Natural Gas or Liquid Propane
          Cool Mount Variable Safety Pilot with Variable Remote Control
          • Use Remote Control to turn the main burner on and off and adjust the flame height
          • Valve System is mounted using a flex connector allowing it to be located further from the main burn
          • Standing Pilot
          • Natural Gas or Liquid Propane
          Millivolt Safety Pilot with Wall Switch
          • Use Wall Switch to turn the main burner on and off
          • Valve is mounted in a forward position for optimal performance.
          • Natural Gas or Liquid Propane
          Electronic Ignition Safety Pilot with Variable Flame Remote
          • Use Remote Control to activate the pilot, turn main burner on and off and adjust the flame height
          • Valve System is mounted using a flex connector allowing it to be located further from the main burn
          • No Standing Pilot
          • Natural Gas or Liquid Propane (Liquid Propane requires an LP conversion kit)

          Click to See Latch-Tap Controls and Switching Accessories
          WS-S6V-LT DC Operated Wireless Wall Switch
          • DC powered Wireless wall switch for Latch-Tap- remote features: on/off
          WS-S6V-WIRED DC Operated Wired Wall Switch
          • Flame Height Control Wall Switch for Latch-Tap (vented), Cumberland Char or Highland Glow (vent-free)
          BPBCS DC Operated Bark Chip Switch
          • DC powered bark chip switch for Latch-Tap System, on/off function

          Click to see Millivolt Controls and Switching Accessories
          RC-S12V-MV Millivolt DC operated on/off remote control
          • Kit includes 12 VDC remote/receiver - remote features: on/off function
          RC-I12V-BT Millivolt Remote & Bluetooth
          • Kit includes 12VDC Remote/Receiver & Bluetooth smartphone capability
          BT-IBUG Millivolt Bluetooth Module Control
          • Includes Bluetooth Module Control for smartphone capability
          RC-A110V-A Millivolt AC operated on/off remote control
          • Requires 110 volt A/C electricity - remote features: on/off function, child-proof switch
          BCS Bark Chip Switch
          • Bark chip switch, on/off function
          PCS Millivolt Pine Cone Switch
          • 2 Piece Pine Cone switch, on/off function

          Click to see Gas Log Accessories
          CK-6 Combo Kit
          • This kit includes a 1x pinecone, 1x twig and 4x bark chips to add to your fireplace
          CCKGO Charred Chip Kit
          • A kit of charred chips that can be used to add character to your log set
          • 4x Decorative charred chips for ember bed
          BCKGO Bark Chip Kit
          • 4x - Decorative Bark Chips for Ember Bed
          TK-2 Twig Kit
          • 2x - Decorative Twigs - #602CL, #1110CL
          DPCK-2 Pine Cone Kit
          • 2x - Decorative Pine Cones - #1201, #1203
          FCC-3 3x Decorative Charred Chips Kit
          • 3x - Decorative Charred Chips for Ember Bed
          FCC-7 7x Decorative Charred Chips Kit
          • 7x - Decorative Charred Chips for Ember Bed
          1203-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          1204-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          1205-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          1210-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          1215-BX Pine Cone
          • These Pine Cones can be used to add some customization or to conceal a valve within your set.
          RW Glowing Ember
          • PART B (Glowing Embers) ONLY
          PB-5 Platinum Bright Embers 5 Grams Bag
          • Clean Burning, Luminous Embers for
          • Vented Gas Logs
          • For best use, mix with Standard Ember
          • Material to accent the Ember Bed.
          SD Silica Sand - 10 lb. bag
          • Sand for Natural Gas burner pan on vented log sets
          VC Volcanic Cinders - 5 lb. bag
          • Volcanic Cinder used to cover the fireplace floor
          VM Vermiculite - 1 lb. bag
          • Vermiculite for Liquid Propane burner pan on vented log sets
          VM-10 Vermiculite - 10 lb. bag
          • Vermiculite for Liquid Propane burner pan on vented log sets
          RW-10 Glowing Ember 10 lb. Bag
          • PART B (Glowing Embers) ONLY
          VCFP-S 3/8" Small Vocanic Cinders 5 gal.
          • 5 gal small Vocanic Cinders
          VCFP-L 1" to 3" Large Vocanic Cinders 5 gal.
          • 5 gal Large Vocanic Cinders
          SD-50 Silica Sand - 50 lb. bag
          • Sand for Natural Gas burner pan on vented log sets
