Hargrove

MTS3608AA

Hargrove 36" Mountain Timber Single Side Large Vented Gas Log


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove offers log sets and burner systems specifically designed for larger fireplaces.

  • Massive logs
  • Three burner systems (Double/Triple Stack, Ember Supreme, Summit Oak) that accommodate various log styles.
  • Refractory log materials capable of withstanding temperatures of 2000ºF.
  • Crisp log detail.

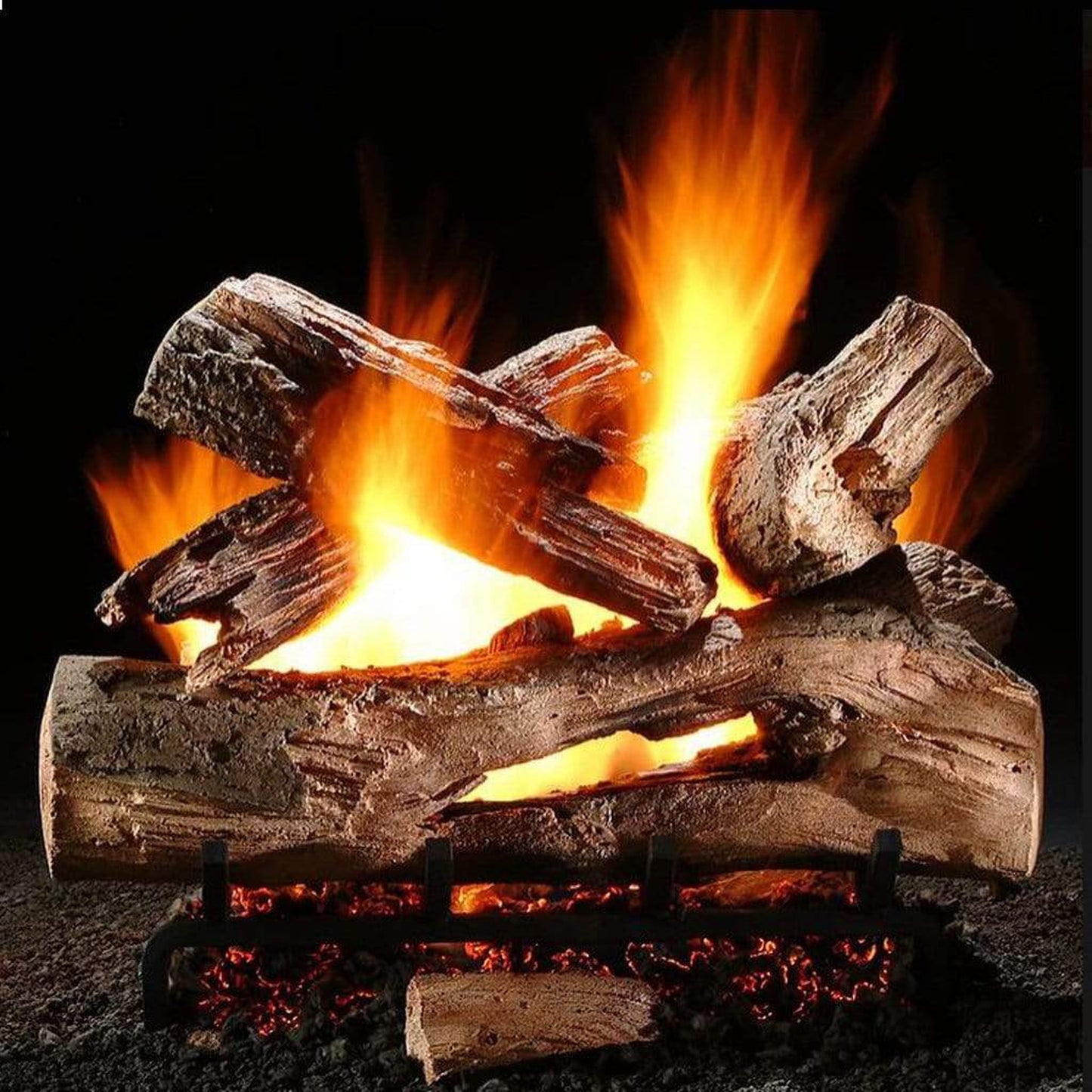

    The Mountain Timber features massive rounded split logs with rich colors and detail

    • Available in 30", 36", 42", 48" and 60" sizes
    • Single Side
    • Works with Ember Supreme Burner Kit
    • Available for Natural Gas

        *Notes:

        • Burner System is not included with the log set and should be ordered separately.
        • Remote controls are not included with Millivolt Safety Pilot, and High Capacity Millivolt Safety Pilot and should be ordered separately.



         Specification Sheet
        Single Side Fireplaces
        Set Size Model # Certified Models Weight
        (lbs)
        # of Logs in Set
        30" MTS3007AA ANSI/RGA2/72 94 7
        36" MTS3608AA ANSI/RGA2/72 124 8
        42" MTS4208AA ANSI/RGA2/72 173 8
        48" MTS4809AA ANSI/RGA2/72 190 9
        60" MTS6010AA ANSI/RGA2/72 200 10
        All Single Side sets above use with the Ember Supreme Burner Burner Kits


        Vented Burner System Specification Sheet
        Natural Gas
        Burner System
        Certification Weight BTU Compatible Log Size
        36" Ember Supreme Non-Certified 79 250,000 36"

        *Note:

        • Ember Supreme Burner kits require a minimum of 24" of depth.

        Ember Supreme Burner kit Includes: Burner, grate, sand, or vermiculite, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.



         The size chart below indicates the minimum size fireplace opening in which different size gas log sets can be installed.

        Minimum Fireplace Dimension
         Gas Log Set Size Minimum Depth Minimum Front Width
        30"
        24" 34"
        36" 24" 40"
        42" 24" 46"
        48" 24" 52"
        60" 24" 64"

        Limited Warranty

         Refractory Logs Hargrove gas logs carry a limited lifetime warranty against any manufactured defect or breakage when installed indoors. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. Products installed in outdoor applications carry a one (1) year limited warranty.
        Burner & Grate If the burner or grate fails due to deterioration within five (5) years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty
        All Other Parts If any assembled part should fail to operate or be found defective within two (2) years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty.

        Option and Accessories

        Click to see Burner Systems

        36" Ember Supreme Burner Kits

        • Available in 30” to 60” sizes
        • Large piped single burner that produces a massive body of flame
        • Recommended for Mountain Timber Series logs
        • Available with Match Light, Manual Safety Pilot Valve, and High Capacity Millivolt Safety Pilot w/Wall Switch

        Click to see Control Systems
        Cool Mount Manual Safety Pilot Valve
        • Turn the control knob to turn set on and adjust the main burner flame
        • Valve System is mounted using a flex connector allowing it to be located further from the main burner
        • Standing Pilot
        • Natural Gas or Liquid Propane

        High Capacity Millivolt Safety Pilot with Wall Switch

        • Higher BTU Capacity Millivolt Pilot Kit for natural gas that utilizes the “Cool Mount” system. This kit is recommended for use on larger (36”sets vand up) single side and See Thru sets. Uses 250 degree heat rated valve. Valve is mounted in a forward position for optimal performance. This pilot kit allows the use of the Switching Accessories listed below.

        Click to see Millivolt Controls and Switching Accessories
        RC-S12V-MV Millivolt DC operated on/off remote control
        • Kit includes 12 VDC remote/receiver - remote features: on/off function
        RC-I12V-BT Millivolt Remote & Bluetooth
        • Kit includes 12VDC Remote/Receiver & Bluetooth smartphone capability
        BT-IBUG Millivolt Bluetooth Module Control
        • Includes Bluetooth Module Control for smartphone capability
        RC-A110V-A Millivolt AC operated on/off remote control
        • Requires 110 volt A/C electricity - remote features: on/off function, child-proof switch
        BCS Bark Chip Switch
        • Bark chip switch, on/off function
        PCS Millivolt Pine Cone Switch
        • 2 Piece Pine Cone switch, on/off function

        Click to see Gas Log Accessories
        CK-6 Combo Kit
        • This kit includes a 1x pinecone, 1x twig and 4x bark chips to add to your fireplace
        CCKGO Charred Chip Kit
        • A kit of charred chips that can be used to add character to your log set
        • 4x Decorative charred chips for ember bed
        BCKGO Bark Chip Kit
        • 4x - Decorative Bark Chips for Ember Bed
        TK-2 Twig Kit
        • 2x - Decorative Twigs - #602CL, #1110CL
        DPCK-2 Pine Cone Kit
        • 2x - Decorative Pine Cones - #1201, #1203
        FCC-3 3x Decorative Charred Chips Kit
        • 3x - Decorative Charred Chips for Ember Bed
        FCC-7 7x Decorative Charred Chips Kit
        • 7x - Decorative Charred Chips for Ember Bed
        1203-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        1204-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        1205-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        1210-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        1215-BX Pine Cone
        • These Pine Cones can be used to add some customization or to conceal a valve within your set.
        RW Glowing Ember
        • PART B (Glowing Embers) ONLY
        PB-5 Platinum Bright Embers 5 Grams Bag
        • Clean Burning, Luminous Embers for
        • Vented Gas Logs
        • For best use, mix with Standard Ember
        • Material to accent the Ember Bed.
        SD Silica Sand - 10 lb. bag
        • Sand for Natural Gas burner pan on vented log sets
        VC Volcanic Cinders - 5 lb. bag
        • Volcanic Cinder used to cover the fireplace floor
        VM Vermiculite - 1 lb. bag
        • Vermiculite for Liquid Propane burner pan on vented log sets
        VM-10 Vermiculite - 10 lb. bag
        • Vermiculite for Liquid Propane burner pan on vented log sets
        RW-10 Glowing Ember 10 lb. Bag
        • PART B (Glowing Embers) ONLY
        VCFP-S 3/8" Small Vocanic Cinders 5 gal.
        • 5 gal small Vocanic Cinders
        VCFP-L 1" to 3" Large Vocanic Cinders 5 gal.
        • 5 gal Large Vocanic Cinders
        SD-50 Silica Sand - 50 lb. bag
        • Sand for Natural Gas burner pan on vented log sets
