Hargrove

KCS4814DS+KCS4804TS

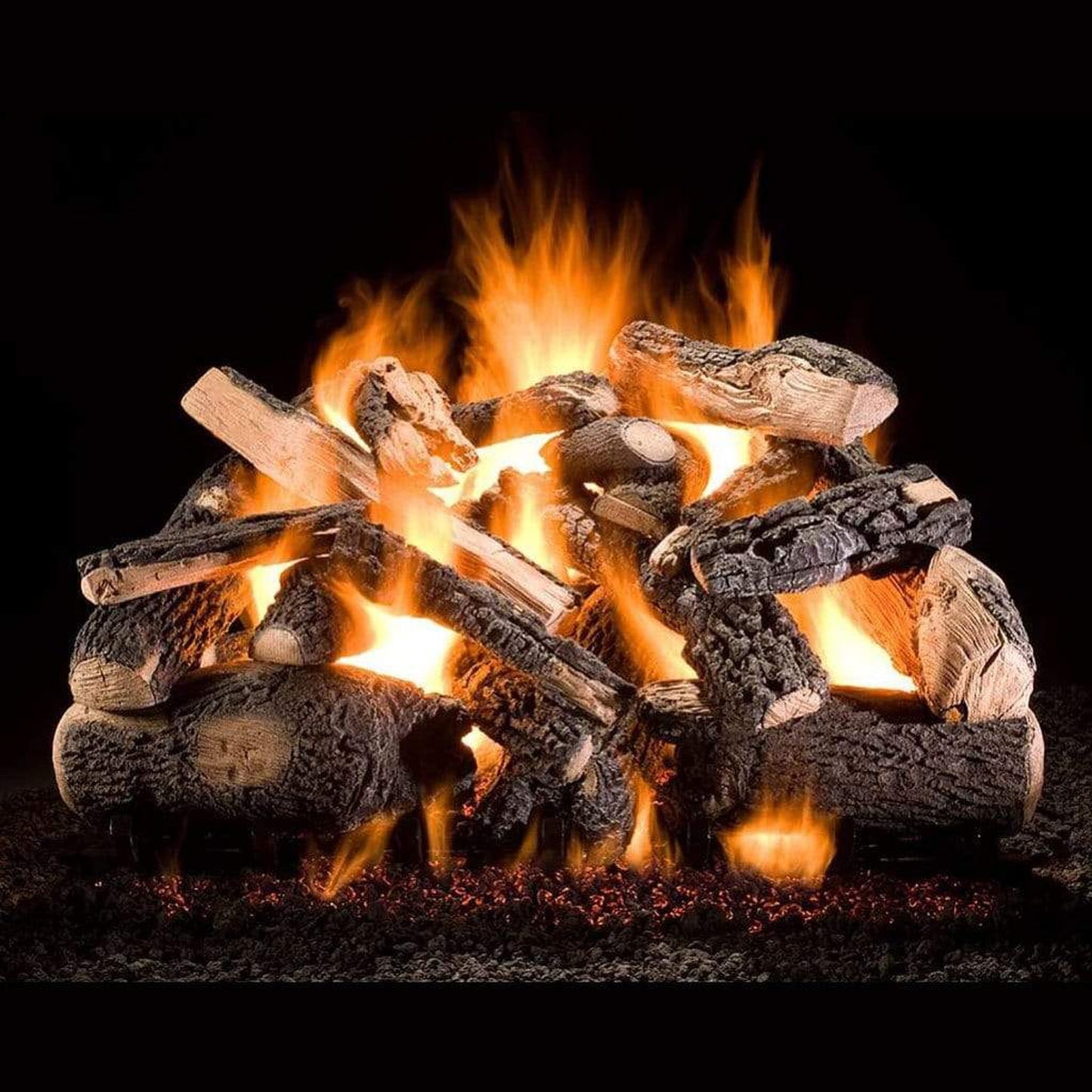

Hargrove 48" Kodiak Char Triple Stack Single Side Large Vented Gas Log


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove offers log sets and burner systems specifically designed for larger fireplaces.

  • Massive logs
  • Three burner systems (Double/Triple Stack, Ember Supreme, Summit Oak) that accommodate various log styles.
  • Refractory log materials capable of withstanding temperatures of 2000ºF.
  • Crisp log detail.

    The Kodiak Char features large logs that combine with a two-piece front log for open ember viewing

    • Available in 30", 36", 48", and 60" sizes (min. of 31" fireplace depth required)
    • Single Side Sets available
    • Works with specially designed Double Stack and Triple Stack burner
    • Available for Natural Gas or Liquid Propane (Liquid Propane up to 36")

            *Notes:

            • Burner System is not included with the log set and should be ordered separately.
            • Remote controls are not included with Millivolt Safety Pilot, and High Capacity Millivolt Safety Pilot and should be ordered separately.



             Specification Sheet
            Single Side Fireplaces
            Set Size Model # Certified Models Weight
            (lbs)
            # of Logs in Set
            30" KCS3010DS + KCS3003TS Non-Certified 193
            13
            36" KCS3611DS + KCS3604TS Non-Certified 248
            15
            48" KCS4814DS + KCS4804TS Non-Certified 335
            18
            60" KCS6016DS + KCS6004TS Non-Certified 370
            20
            All Single Side sets above use with the Ember Supreme Burner Burner Kits


            Vented Burner System Specification Sheet
            Natural Gas
            Burner System
            Certification Weight BTU Compatible Log Size
            48" Triple Stack Non-Certified 103 390,000 48"

            *Note:

            • Double Stack Burner kits require a minimum of 31" of depth.

            Double Stack Burner kit Includes: Burner, grate, sand, or vermiculite, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.



             The size chart below indicates the minimum size fireplace opening in which different size gas log sets can be installed.

            Minimum Fireplace Dimension
             Gas Log Set Size  Depth Front Width Back Width
            30"
            31" 36" 36"
            36" 31" 42" 42"
            48" 31" 54" 54"
            60" 31" 66" 66"

            Limited Warranty

             Refractory Logs Hargrove gas logs carry a limited lifetime warranty against any manufactured defect or breakage when installed indoors. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. Products installed in outdoor applications carry a one (1) year limited warranty.
            Burner & Grate If the burner or grate fails due to deterioration within five (5) years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty
            All Other Parts If any assembled part should fail to operate or be found defective within two (2) years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty.

            Option and Accessories

            Click to see Burner Systems

            48" Triple Stack Burner Kits

            • Available in 30” to 60” sizes
            • A combination of a large ember bed burner and an elevated main burner that provides flame depth and height needed for larger fireplaces
            • Recommended for Kodiak Split and Kodiak Char Series logs
            • Available with Match Light and High Capacity Millivolt Safety Pilot w/Wall Switch

            Click to see Control Systems

            High Capacity Millivolt Safety Pilot with Wall Switch

            • Higher BTU Capacity Millivolt Pilot Kit for natural gas that utilizes the “EZ Mount” system. This kit is recommended for use on larger (36” sets and up) single side and See-Thru sets. Uses a 250-degree heat rated valve. Valve is mounted in a forward position for optimal performance


            Click to see Millivolt Controls and Switching Accessories
            RC-S12V-MV Millivolt DC operated on/off remote control
            • Kit includes 12 VDC remote/receiver - remote features: on/off function
            RC-I12V-BT Millivolt Remote & Bluetooth
            • Kit includes 12VDC Remote/Receiver & Bluetooth smartphone capability
            BT-IBUG Millivolt Bluetooth Module Control
            • Includes Bluetooth Module Control for smartphone capability
            RC-A110V-A Millivolt AC operated on/off remote control
            • Requires 110 volt A/C electricity - remote features: on/off function, child-proof switch
            BCS Bark Chip Switch
            • Bark chip switch, on/off function
            PCS Millivolt Pine Cone Switch
            • 2 Piece Pine Cone switch, on/off function

            Click to see Gas Log Accessories
            CK-6 Combo Kit
            • This kit includes a 1x pinecone, 1x twig and 4x bark chips to add to your fireplace
            CCKGO Charred Chip Kit
            • A kit of charred chips that can be used to add character to your log set
            • 4x Decorative charred chips for ember bed
            BCKGO Bark Chip Kit
            • 4x - Decorative Bark Chips for Ember Bed
            TK-2 Twig Kit
            • 2x - Decorative Twigs - #602CL, #1110CL
            DPCK-2 Pine Cone Kit
            • 2x - Decorative Pine Cones - #1201, #1203
            FCC-3 3x Decorative Charred Chips Kit
            • 3x - Decorative Charred Chips for Ember Bed
            FCC-7 7x Decorative Charred Chips Kit
            • 7x - Decorative Charred Chips for Ember Bed
            1203-BX Pine Cone
            • These Pine Cones can be used to add some customization or to conceal a valve within your set.
            1204-BX Pine Cone
            • These Pine Cones can be used to add some customization or to conceal a valve within your set.
            1205-BX Pine Cone
            • These Pine Cones can be used to add some customization or to conceal a valve within your set.
            1210-BX Pine Cone
            • These Pine Cones can be used to add some customization or to conceal a valve within your set.
            1215-BX Pine Cone
            • These Pine Cones can be used to add some customization or to conceal a valve within your set.
            RW Glowing Ember
            • PART B (Glowing Embers) ONLY
            PB-5 Platinum Bright Embers 5 Grams Bag
            • Clean Burning, Luminous Embers for
            • Vented Gas Logs
            • For best use, mix with Standard Ember
            • Material to accent the Ember Bed.
            SD Silica Sand - 10 lb. bag
            • Sand for Natural Gas burner pan on vented log sets
            VC Volcanic Cinders - 5 lb. bag
            • Volcanic Cinder used to cover the fireplace floor
            VM Vermiculite - 1 lb. bag
            • Vermiculite for Liquid Propane burner pan on vented log sets
            VM-10 Vermiculite - 10 lb. bag
            • Vermiculite for Liquid Propane burner pan on vented log sets
            RW-10 Glowing Ember 10 lb. Bag
            • PART B (Glowing Embers) ONLY
            VCFP-S 3/8" Small Vocanic Cinders 5 gal.
            • 5 gal small Vocanic Cinders
            VCFP-L 1" to 3" Large Vocanic Cinders 5 gal.
            • 5 gal Large Vocanic Cinders
            SD-50 Silica Sand - 50 lb. bag
            • Sand for Natural Gas burner pan on vented log sets
