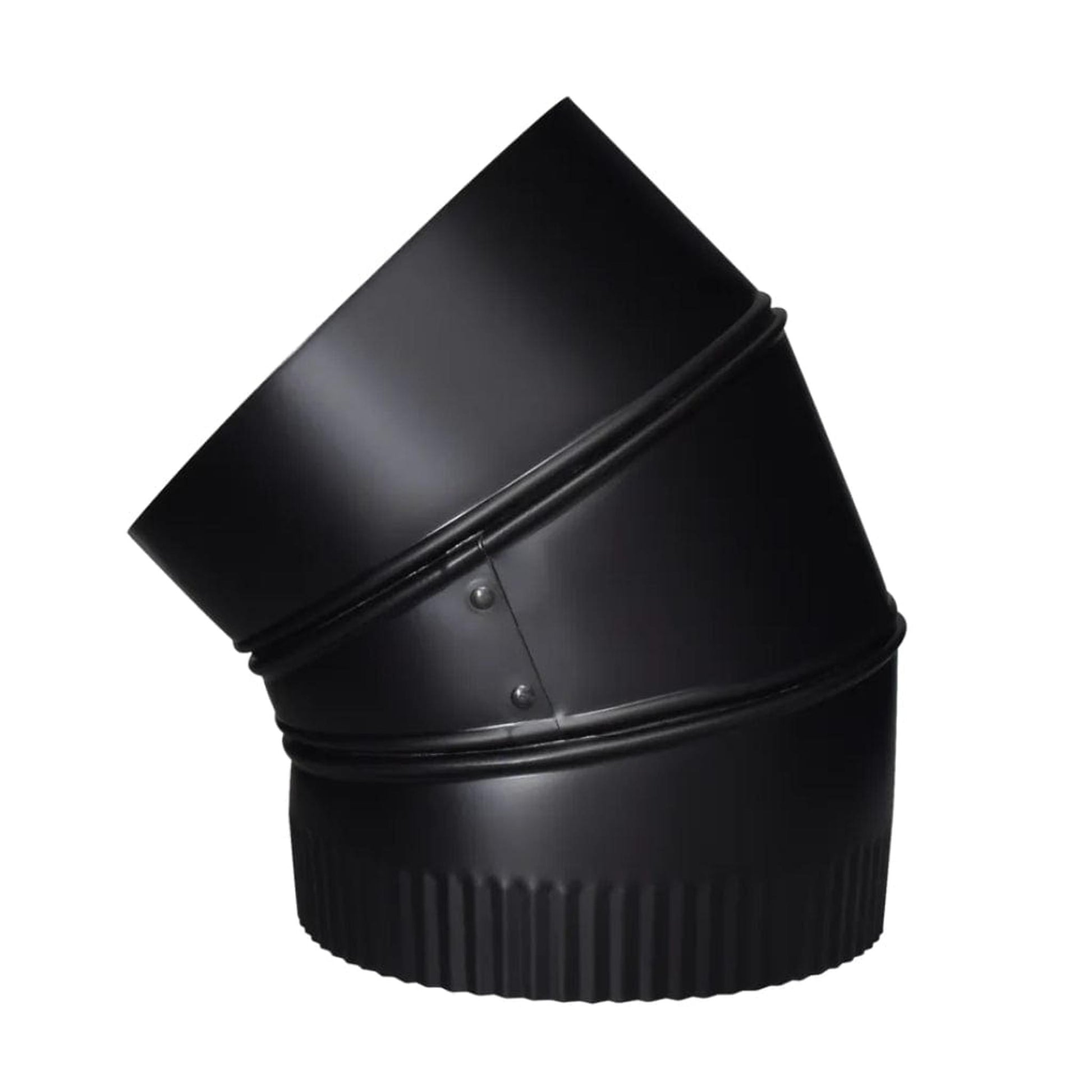

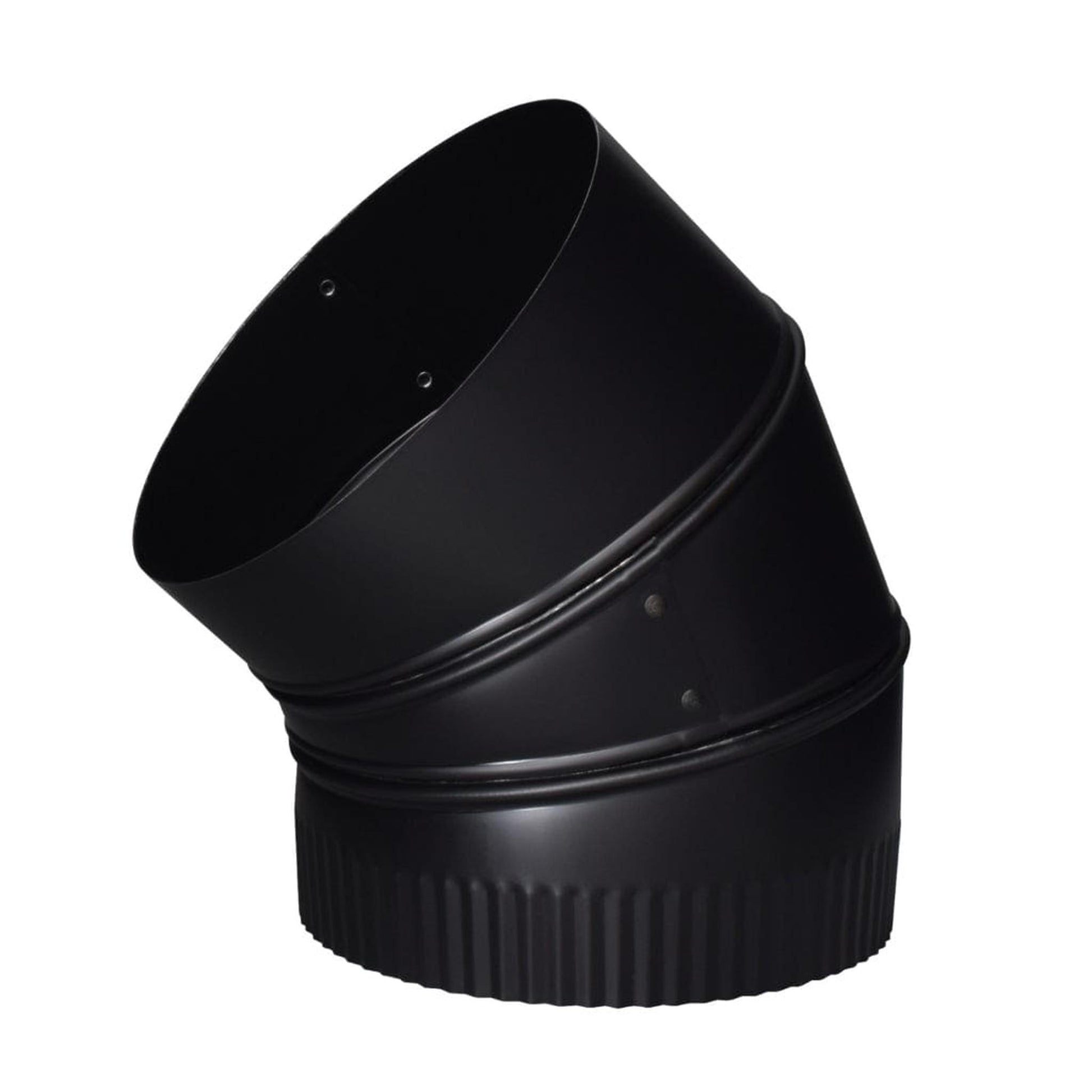

Imperial Black Matt Stove Pipe 0-45 Degree Adjustable Elbow

Outside Diameter: 5"


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Over 40 Years of Quality Manufacturing

We design, manufacture, assemble and distribute over 7000 metal and plastic heating, air conditioning, ventilation, and building products for use in homes and commercial buildings. Maintenance, renovation, or construction - we've got what you need.


Features

  • Used to connect two lengths of flue pipe together
  • Available from 0° to 45°


Specifications

Model BM0007/8/9/10
Product Type 45° Black Matt Adjustable Elbow - 24ga
Outside Diameter
5",6",7",8"


Downloads

Safety Information: See CA Prop 65 Warning for more information.


FAQs & Tips

Why is initial burn crucial before using a wood stove?

INITIAL BURN

The paint on newly bought and installed black matt stove pipes or accessories is not cured. The protective high-temperature paint will melt and peel off if the paint is not cured correctly, per instructions.


Curing occurs during the first burn. Allow the stove pipes and accessories to cure under 475° F heat for 2-3 hours. This procedure will cause a non-toxic odor for the first hours of burning.

Note: We recommend leaving a window open close to the stove area during the paint curing process to allow the burnt smell to escape.


If your wood stove is an airtight model, you may have to leave the stove door open 2 inches to allow the stove to reach a high burn temperature, as airtight stoves burn at lower pipe temperatures than non-airtight stoves.

Note: Do not leave the wood stove unattended while burning with the stove door open.


Imperial Burn Indicator (Magnetic)

Use a burn indicator to determine the burn temperature. Place it on the single-wall stove pipes 18” above the stove.

How to install wood stove pipes, elbows, and accessories?

Creosote vapors condense in the relatively cool chimney flue of a slow-burning fire. As a result, creosote residue accumulates on the flue lining.

---

INSTALL STOVES PIPES, ELBOWS, AND OTHER FITTINGS WITH THE CRIMPED END TOWARD THE APPLIANCE

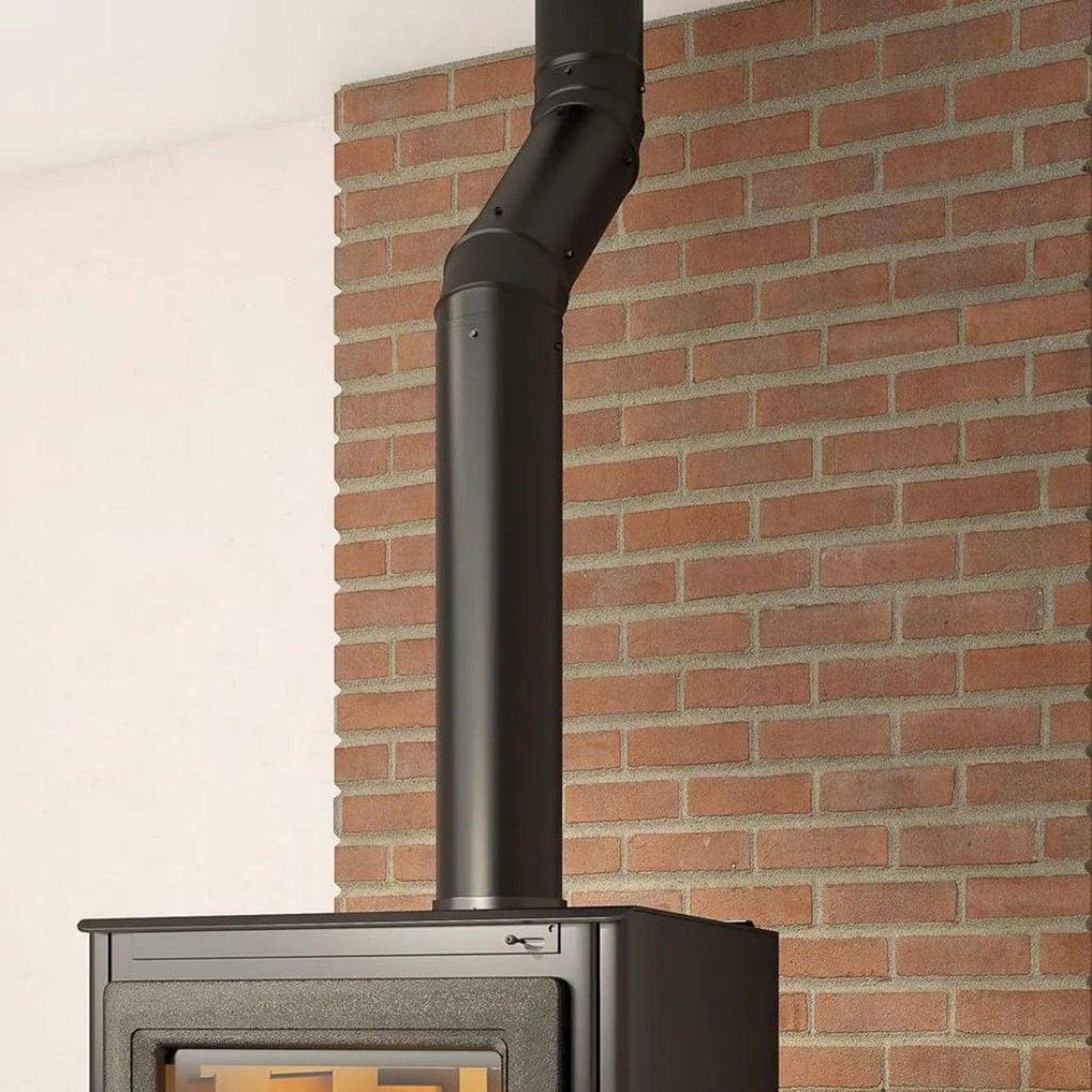

Always insert the stove pipes to the stove collar with the crimped end or male end pointing down. It is necessary to have the stove component’s male end point toward the stove to ensure condensation and creosote travel down only within the pipe to prevent creosote leakage. Connecting pipes this way will result in adequate condensation. It will allow the creosote to flow within the pipe and return to the firebox to be burnt and fully dissipate. See picture.


Exposed creosote is not only unappealing; it is also a fire hazard and a health risk. Avoid creosote leakage by properly installing a stove pipe.

Wood Stove Pipe Components Installation Tips

TIPS TO CONSIDER WHEN INSTALLING WOOD STOVES

Stove Pipe Components

  • 18-in minimum clearance from combustible materials is required
  • 24-gauge, cold-rolled steel construction for durability and lasting performance
  • Black matte paint coating that resists heat, surface scratching, and chipping
  • Paint coating that tolerates maximum continuous operating temperatures of 700° F, with short exposures up to 800° F
  • Crimped male ends on most stove pipe components for snug pipe connections
  • Install crimped end down toward the stove to prevent condensation or creosote leakage
  • Secure stove pipe connections with at least three (3) self-drilling stove pipe screws


Heat Shield and Stove Boards

  • Heat Shields can reduce the clearance between stove pipe and combustible materials by 67%
  • Stove Boards or thermal hearth pads (Type 1 or 2) insulate and shields floors, walls, and ceiling from heat, hot coals, ashes, and soot
  • Stove Boards (Type 2), when used as a wall protector, require 1-inch clearance from walls; use wall spacers
  • Combination of stove boards, stove pipe, or elbow heat shields in any wood stove installation is a standard practice


---
