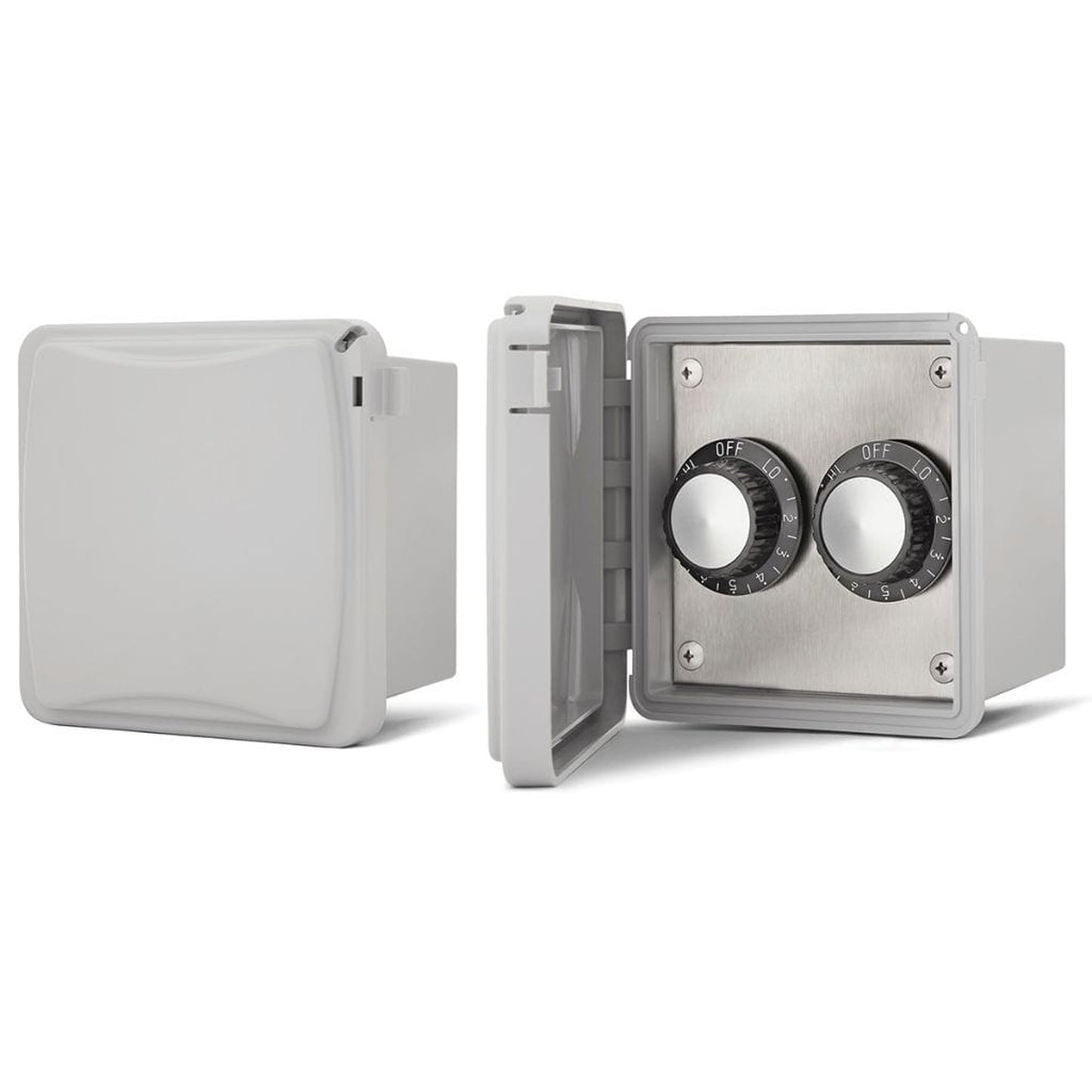

Infratech’s INF Input Regulators offer efficient ease of use at a value-focused price point.
- Designed surface mount for exposed outdoor areas
- Low cost control option for single element heaters up to 3000 watts (maximum 15 amps).
- Not a dimmer – INF gently cycles the heater on/off at regular intervals when not on full power.
- Each heater must have its own INF Input Regulator.
- Regulator Part Numbers listed below are for 240V (also available for 120V).
- This control allows you to turn up or down the intensity of the heater.
- Each dial has a max of 3,000 Watts and max of 15 Amps allowed
- Will work with all styles of heaters
- Controlling each element separately using 2 INF Switches for a WD unit is not recommended.
|Housing Options||Weatherproof Box and Cover|
|Amp per Pole||15|
|Weatherproof Box||4 1/2" h x 4 1/2" w x 2 1/8" d|
|Stainless Steel Plate||4 3/8" h x 4 3/8" w|
|Weatherproof Cover||5 1/2" h x 5 1/2" w x 2 3/4" d (tab on cover extends 1/4")|
|Threaded Knock Out||3/4"|
