Infratech Comfort

14 4710

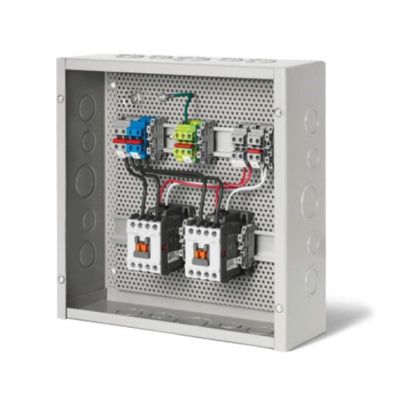

Infratech Comfort Dual Contactor Panel


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Description

The Infratech Contactor Panel adds to Value Control options by integrating timer capabilities. Designed for use with all Infratech heaters.

  • Compatible with Infratechs Duplex Stack Switch and Simple On/Off Switch.
  • Enables integration of timers and other 120 VAC controls, including smart devices.
  • Max 6,000 watts at 240V per contactor.
  • Compact design allows for indoor surface or flushes mount applications.

Infratech’s Contactor Panel with Digital Timer enhances the Value Control options by adding the functionality of timer capabilities to simple on/off switches and duplex switches. The contactor panel is designed for use with all Infratech heaters, single or dual elements.



What are the benefits?

  • Peace of mind in integrating a timer without having to expand your budget on custom dimming panels and controls
  • Ability to mix and match heaters to be controlled by a single switch
  • Enables the integration of timers and other 120 VAC controls, including smart switches.



How does it work?

  • This is a 2-part system that must be ordered a la carte for a complete unit. Panel + Switch = Complete unit.
  • Contactor panel must be installed indoors in a dry well-ventilated space.

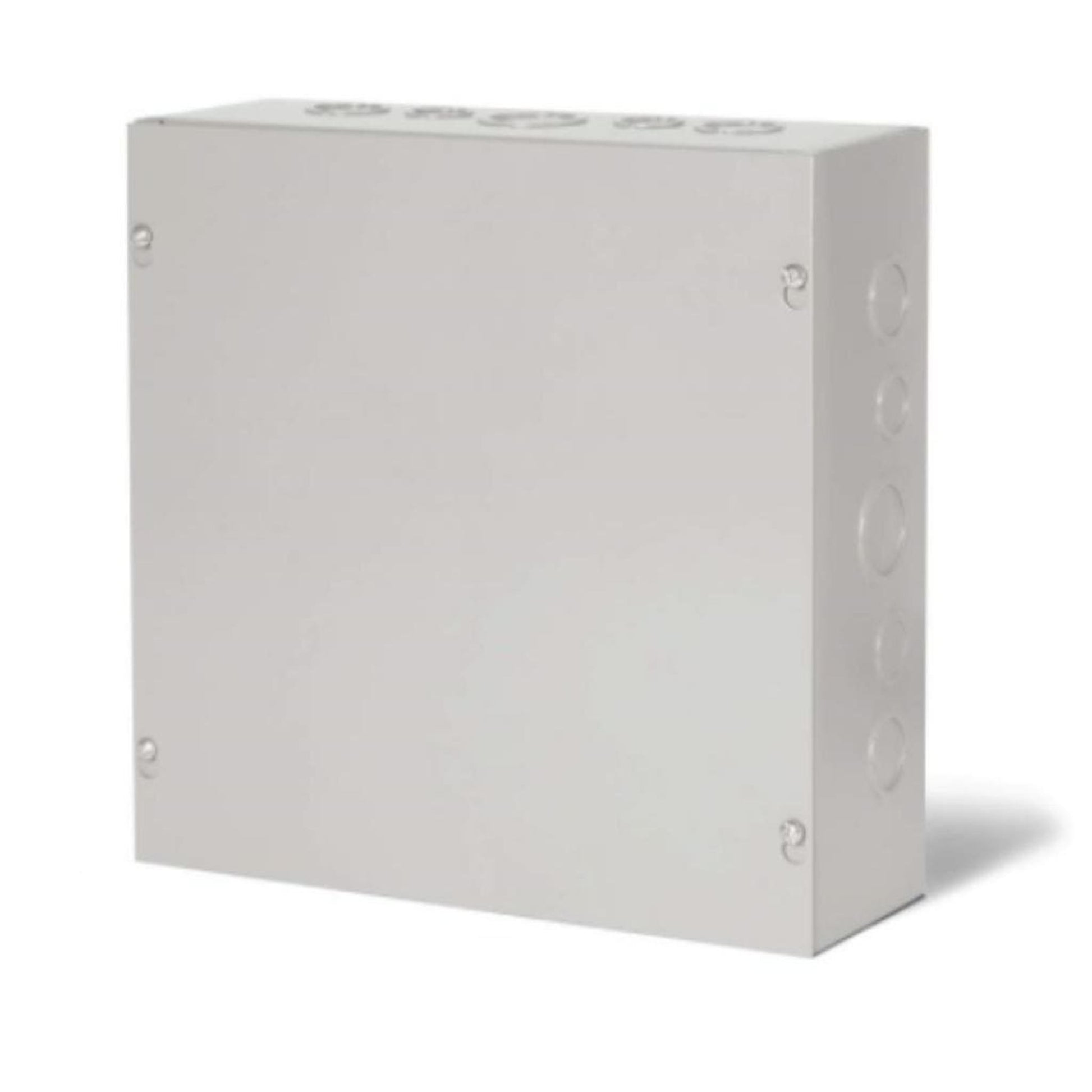

  • Can be surface mounted on the wall – comes with a front cover.
  • Can be recessed into a wall - access door can be purchased separately.
  • Contactor panel can be ordered as a single contractor or a dual contactor panel, and whichever heaters are connected to each contactor will be controlled together.
  • Each contactor in the panel can handle up to 6,000 watts max at 240VAC. Wattages do not need to match, but they cannot exceed 6,000 watts.



  • EX 1: a 4,000-watt Single element Heater and a 2,000-watt single element heater can both be controlled at the same time and operate on a single contactor.

  • EX 2: Four 3,000 watt heaters can be controlled in pairs of two on a dual contactor panel

  • EX 3: You can control a 6,000-watt dual element heater with a dual contactor panel



What's Included?

  • The panel will come with a one-timer per panel.



What's needs to be ordered separately?

  • Switches - Switches are not included; you can order an on/off single or duplex switch from Infratech or you can use your own 3rd party 120V switch.
  • Faceplate - You will need to purchase a faceplate of your choice, the switches above will only include the “guts”
  • Gang Box - You will need to purchase a standard two-gang box, this will house both the switch and the timer like in the photo below.
  • Flush Mount Access Door - If you are recessing the panels into the wall, you will need to purchase the access door separately



Specifications

Watts 12,000 Watts
Material Stainless Steel
