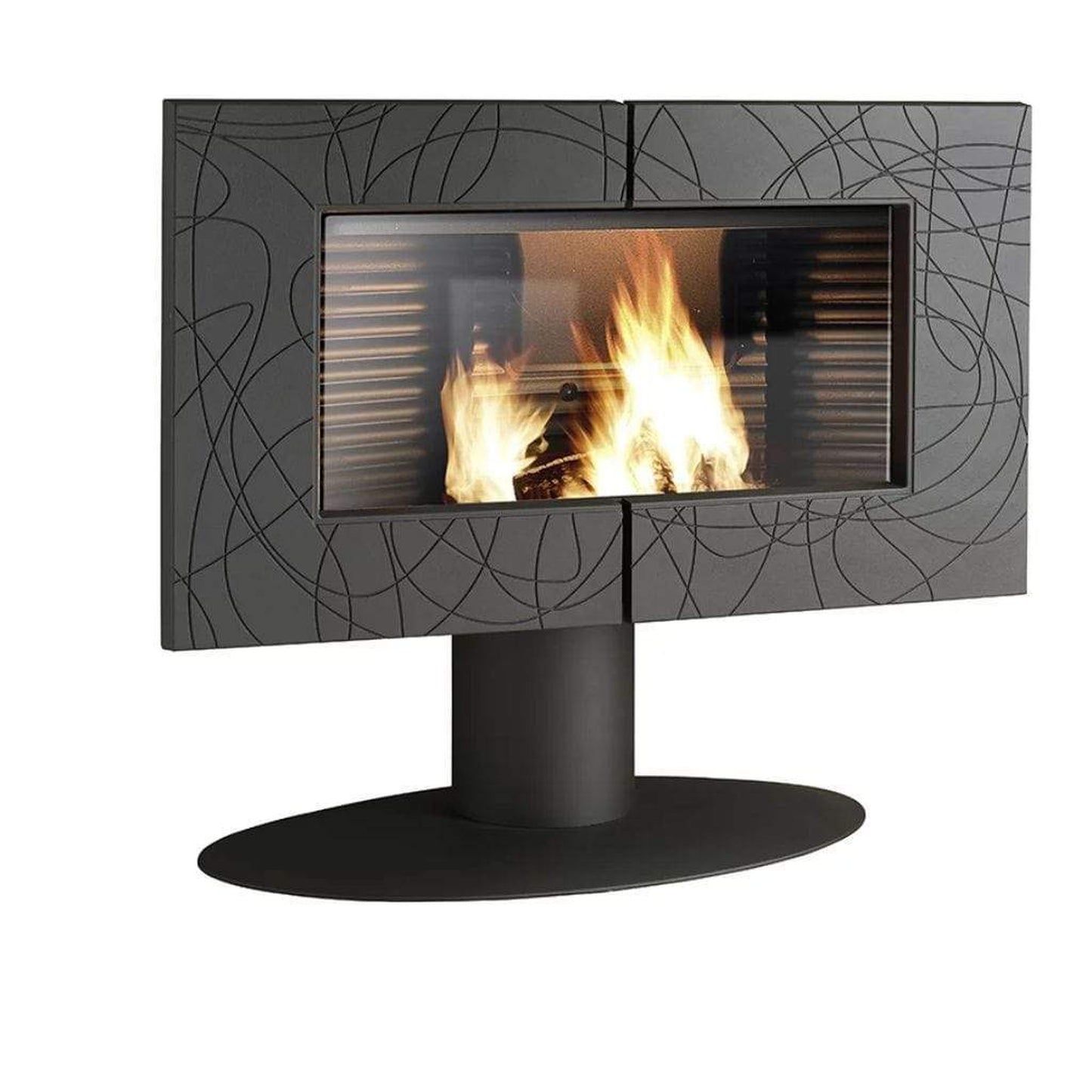

Invicta Symphonia 40" Cast Iron Wood Burning Stove


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Symphonia 40" Cast Iron Stoves

Let Symphonia captivate your senses. The hypnotic dance of the flames is reflected in the design on the doors of this wood-burning stove. Cozy evenings await, lulled by the sound of the crackling fire. An authentic shape that guarantees excellent performance.

Indulge your senses with Symphonia. The hypnotic dance of the flames will extend on the decorative doors of the wood stove. An authentic design which also demonstrates high performances.

Decorative doors bring the Symphonia model 41 inch wood burning Invicta stove to another level. Made of durable cast iron this stove will last, heating your family for years to come.

Made by the French stove manufacturer Invicta in France, the Symphonia delivers 90,000 BTUs of heat and comes with an advanced secondary-combustion system that increases efficiency, resulting in longer burn times.

Features

OPTIMAL POWER
 12 kW
POWER MODULATION
 8 to 18 kW
HEAT VOLUME
 160 - 360 m³
HEATING SURFACE
 65 to 145 m²
GREEN FLAME
 7 stars
EFFICIENCY
 77%
CO RATE
 0.1%
CONCENTRATION OF POWDERS
30 mg/Nm³
PERFORMANCE INDEX
 0.7
COMBUSTILE
 Logs 25, Logs 33, Logs 50 cm
MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY)
71 cm
LOAD
Front
SMOKE EXHAUST
 Top
DIAMETER OF NOZZLE
 180 mm
DIMENSIONS
H 913 x W 1034 x D 491 mm
WEIGHT
199 kg
DESIGN
 Contemporain
MATTER
 Cast Iron
COMPLETION
 Anthracite
CERTIFICATION
EN 13240
GUARANTEE
 5 years

Why this product?

8 hour extended burning

The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

Adjustable secondary air

    Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

    Clean glass

      The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

      Origine France Garantie (Made in France Guarantee)

      The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

      Post-combustion system

        Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

        Technical Elevations



        Optional Accessories

        Stove Shields

          Cold rolled steel panel. High temperature anthracite epoxy paint coating. Sometimes you just can't make it work with the clearances required of your wood stove. That's where this Invicta rear heat shield comes in. This shield provides and extra layer to safety during the use of your appliance.


          Flue Adaptor

          Flue adaptor give you the best venting system possible to get that smoke safely out of your home Invicta makes this 8 inch flue adaptor. This attaches to the flue collar of your Invicta stove and adapts the size of the collar to the stovepipe. Keep your home safe and smoke free.


          Please Note: Do not connect the stove to any hot air distribution system

          Also Note: This appliance must be installed on a non-combustible protector that extends to the front, sides, and back of the appliance.

          Click to see venting products


          venting products

          4" Length DuraBlack Stovetop Adapter - 7DBK-AD
          Use to adapt DuraBlack stovepipe to appliance flue outlets.
          12" Length DuraBlack Single-Wall Black Pipe - 7DBK-12
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          24" Length DuraBlack Single-Wall Black Pipe - 7DBK-24
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          48" Length DuraBlack Single-Wall Black Pipe - 7DBK-48
          Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
          DuraBlack Slip Connector With Trim - 7DBK-SC
          Used to adapt DuraBlack pipe to 6” - 8” Ceiling Support Box, including DuraTech, and DuraPlus. The Slip connector can also be added to 6” - 8” DuraTech finishing collar.
          45-Degree DuraBlack Elbow - 7DBK-E45
          Offsets obstructions as needed. Elbows angles are now adjustable. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
          90-Degree DuraBlack Elbow - 7DBK-E90
          Offset obstructions as needed or to orient the stovepipe horizontally through the wall installation. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
          DVL Double-Wall Black Stovepipe Adapter - 7DVL-AD
          Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
          6" DVL Double-Wall Adjustable Black Stovepipe - 7DVL-6ADJ
          8” clearance to ceilings, including cathedral ceilings. Use to add length to DVL pipe. 6” pipe adds 2”-5” of length.
          29"-46" DVL Double-Wall Black Stovepipe Telescoping Length - 7DVL-46TA
          Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
          40"-68" DVL Double-Wall Black Stovepipe Telescoping Length - 7DVL-68TA
          Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
          6" DVL Double-Wall Black Stovepipe - 7DVL-06
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          12" DVL Double-Wall Black Stovepipe - 7DVL-12
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          18" DVL Double-Wall Black Stovepipe - 7DVL-18
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          24" DVL Double-Wall Black Stovepipe - 7DVL-24
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          48" DVL Double-Wall Black Stovepipe - 7DVL-48
          Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
          45-Degree DVL Double-Wall Black Elbow - 7DVL-E45
          8” clearance to ceilings, including cathedral ceilings. Offsets obstructions as needed. Elbows angles are adjustable.
          90-Degree DVL Double-Wall Black Elbow - 7DVL-E90
          Offsets obstructions as needed. Elbows angles are adjustable. Not recommended for rear exit appliances.
          DVL/DuraBlack Chimney Adapter With Trim - 7DVL-ADT
          Use to connect from double-wall DVL to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation. Provides a strong mechanical connection.
          DBK-DS DuraBlack Damper Section - 7DBK-DS
          Install at, or close to, the stove outlet in-line. 5” pipe section with the damper pre-installed.
          DVL Double-Wall Black Adapter/Damper Section - 7DVL-ADWD
          8” clearance to ceilings, including cathedral ceilings. Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
          12" DVL Double-Wall Adjustable Black Stovepipe - 7DVL-12ADJ
          Use to add length to DVL pipe. 12” pipe adds 2”-11” of length when used with rigid sections of pipe.
          DBK-TC DuraBlack Trim Collar - 7DBK-TC
          Use as a decorative Trim Collar for DuraBlack connection to the chimney.
          DVL/DuraBlack Chimney Adapter - 7DVL-ADC
          Use to connect from double-wall DVL and/or single-wall DuraBlack to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation.

          Downloads

          Invicta Symphonia Stove Catalog

          Invicta Symphonia Stove Installation and Owners Manual

          Invicta Symphonia Stove Technical Specification

          Invicta Symphonia Stove Brochure

          Invicta Symphonia Stove Comparison Chart
