SKU:ETSV80P

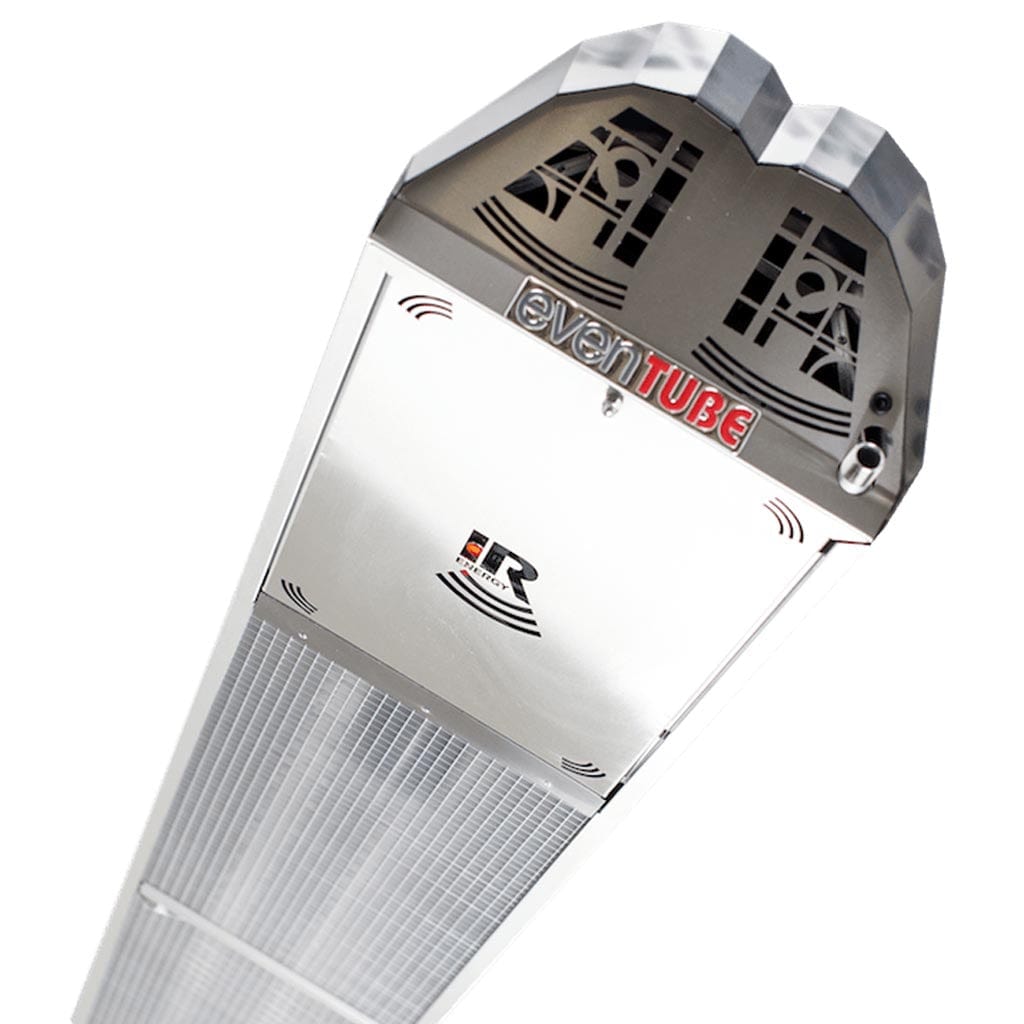

IR Energy evenTUBE 264" Aluminum Two-Stage Overhead Propane Gas Vented Heater
IR Energy evenTUBE 264" Aluminum Two-Stage Overhead Propane Gas Vented Heater
Mount Bracket Kit
Chain/Hanging Kit
Shut-Off Safety Valve
-- Please Select --
No, Thank You
Gas Flex Connector
-- Please Select --
No, Thank You
Two Stage Control Switch
Cube Relay Timer Kit
-- Please Select --
No, Thank You
Vent Adapter
Fresh Air Kit
-- Please Select --
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
The sleekest tube heater on the market today. At less than 7" deep, we deliver a modern, sleek heating solution to our client's outdoor space.
Built to perform safely and dependably. The IR Energy ETS/ETSV gas-fired two-stage heater is the sleekest tube heater in the market at less than 7" deep and delivers a modern, slim heating solution for indoor and outdoor applications
What's Included
- Service Cover
- Burner
- Nuts, Screws & Washers
- Gasket
- Heater Assembly
- Instruction Manual
Not Included (Sold Separately)
- Two-Stage Control Switch
- Wall Mount Kit
- Ceiling Mount Kit
Features
- Superior craftsmanship, and efficiency with a modern, sleek design
- Lowest profile in the industry for series ETS/ETSV
- Dual outputs from 30,000 BTU/hr to 100,000 BTU/hr
- Both indoor and outdoor applications are available
- Available in stainless steel, 316 marine grade stainless, and black providing the best quality in the industry
- Every heater is factory-tested and inspected prior to shipping
- More intense and even heat footprints ranging from 192ft² to 672ft²
- A true two-stage heater
- Wind resistant up to 12mph
- Effective for ceiling heights 9ft to 16ft
- Easy to install, maintenance-free
- Clearance to combustibles as low as 4"
- Up to 50% electrical energy savings with a powerful PSC motor
- Compatible with smart controls
Specifications
| Model | ESTV780P |
| Fuel Type | Propane Gas |
| Size | 17ft / 200.25" W x 6.85" H x 14.06" D |
| Material | Aluminum |
| Color | Silver |
| BTU | LO: 50,000, HI: 80,000 |
| Gas Supply Pressure | NG inlet 14" w.c (max), 5" w.c (min) ng manifold 3.3" w.c. (hi), 1.5" w.c. (low) |
| Inlet Connection | 1/2" female npt. |
| Electric Supply | 120V 60hz, 1 Amp |
| Electrical Cord | 36" with Grounded 3 Prong Plug |
| Control | Two-Stage Switch (Optional) |
| CSA Approved | Indoor/Outdoor Vented |
| Lowest Top Clearance | 4" |
Technical Drawings & Dimensions
Warranty
The manufacturer warrants to the original owner that the product will be free of defects in material and workmanship as described below.
| Components | Warranty Period |
| Burner & Controls | 3 Years |
| Aluminized Heat Exchanger (Tube) | 10 Years |
Warranty Details & Limitations
The Manufacturer’s obligation under this warranty is limited to repair or replacement, F.O.B. its facility, of the defective part. In the case of replacement parts, the warranty period shall be the longer of the original warranty or a period of 12 months from the date of purchase. In no event shall the Manufacturer be liable for incidental expense or consequential damages of any kind.
This warranty does not cover any shipping, installation or other costs incurred in the repair or replacement of the product. No materials will be accepted for return without authorization.
This warranty will not apply if in the judgment of the Manufacturer, the equipment has been improperly installed, unreasonably used, damaged or modified.
This warranty will not apply to damage to the product when used in corrosive atmospheres and in particular atmospheres containing halogenated hydrocarbons. No person is authorized to assume for the Manufacturer any other warranty, obligation or liability.
THE REMEDIES PROVIDED FOR IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES. NO OTHER EXPRESS OR IMPLIED WARRANTIES ARE MADE INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE.
