As elegant as they are efficient, the Lodge Collection wood burning inserts have raised the standard for home heating with their proven, Thermal Fin Technology (TFT™)  This innovative cast-iron heat exchanger delivers the perfect amount of heat. Expansive, durable ceramic glass gives you unobstructed views of the fire and allows for easy heat transfer. A wide array of high-quality, versatile styling options means that Lodge Collection inserts will easily complement any décor.

What's Included

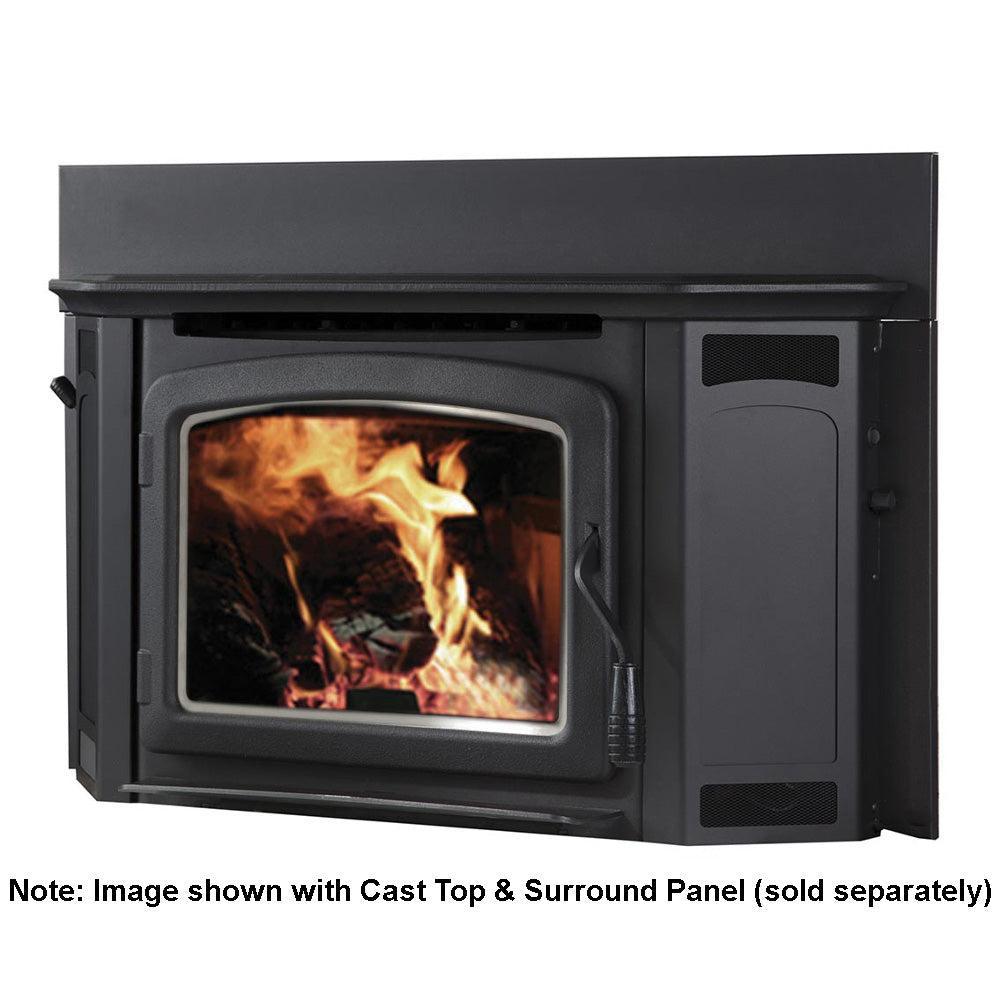

• Montlake 300 Wood Burning Fireplace Insert Assembly

Not Included (sold separately)

• Cast Top And Surround Panel Required To Complete Unit
• Faceplate

• Cast Iron Warming Surface

• Chimney Components

Features

• Spacious 3.0 cubic foot firebox interior accepts up to 21” logs.
• 100,000 BTU’s/hour and heats up to 2,000-3,000 square feet.
• Thermal Fin heat exchanger creates 32% more surface area than a standard insert design resulting in more heat entering the room.
• Air-boost timer automatically adjusts the air intake control making startup and reloading easier.
• Tall opening provides and expansive view of the burning fire.
• Ceramic glass for extra strength and optimum heat transfer.
• Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
• Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
• High-density firebrick retains heat longer, resulting in increased efficiency.
• One-touch control ensures easy operation and comfort.
• Standard 150 CFM variable speed blower quickly moves heat from the insert into your room.
• Choose from several sizes of surround panel kits to match your opening size (1-required)
• Choose between a steel or cast-iron warming top (1-required).
• Optional decorative door trim in Brushed Nickel or Nickel allow customization to your style.
• EPA-certified and Washington State-approved for clean and efficient operation.


Specifications

Technical Drawings

Clearance

* Reduced clearances may be available for A, B, C and D dimensions per NFPA 211 - latest edition, Standard for Chimneys, Fireplaces, Vents and Solid Fuel-Burning Appliances (in Canada CSA B365 - latest edition). See section on “Reduction of Appliance Clearance with Specified Forms of Protection.”
** Side view of optional mantel deflector shown.

(1)(USA) 18” minimum hearth extension on all stoves and inserts as measured from the door opening of the unit. (Canada) 18”(450 mm) minimum hearth extension on all stoves and inserts as measured from the door opening of the unit. Minimum distance of floor protection to the side = 8” (200 mm). This is measured from the sides of the door opening in the USA and from the sides of the insert in Canada.

(2) J = Maximum lintel depth without flue offset or smoke deflector.
Notes: Facing material that projects more than 3/4” (19 mm) from the wall
is considered a mantel or side wall.

Minimum Fireplace Size

*Distance between hearth and the bottom of the appliance

Warranty

Innovative Hearth Products ("IHP") Limited Lifetime Warranty warrants your IronStrike® Brand Wood Burning Stove or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. The Product body, firebox and ceramic glass carry the Limited Lifetime Warranty. Ceramic glass carries the Limited Lifetime Warranty against thermal breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the Limited Lifetime Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components. If repair or replacement is not commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to five years. THERE ARE EXCLUSIONS AND LIMITATIONS to this Limited Lifetime Warranty as described herein.

Coverge Commencement Date: Warranty coverage begins on the date of purchase. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date.
