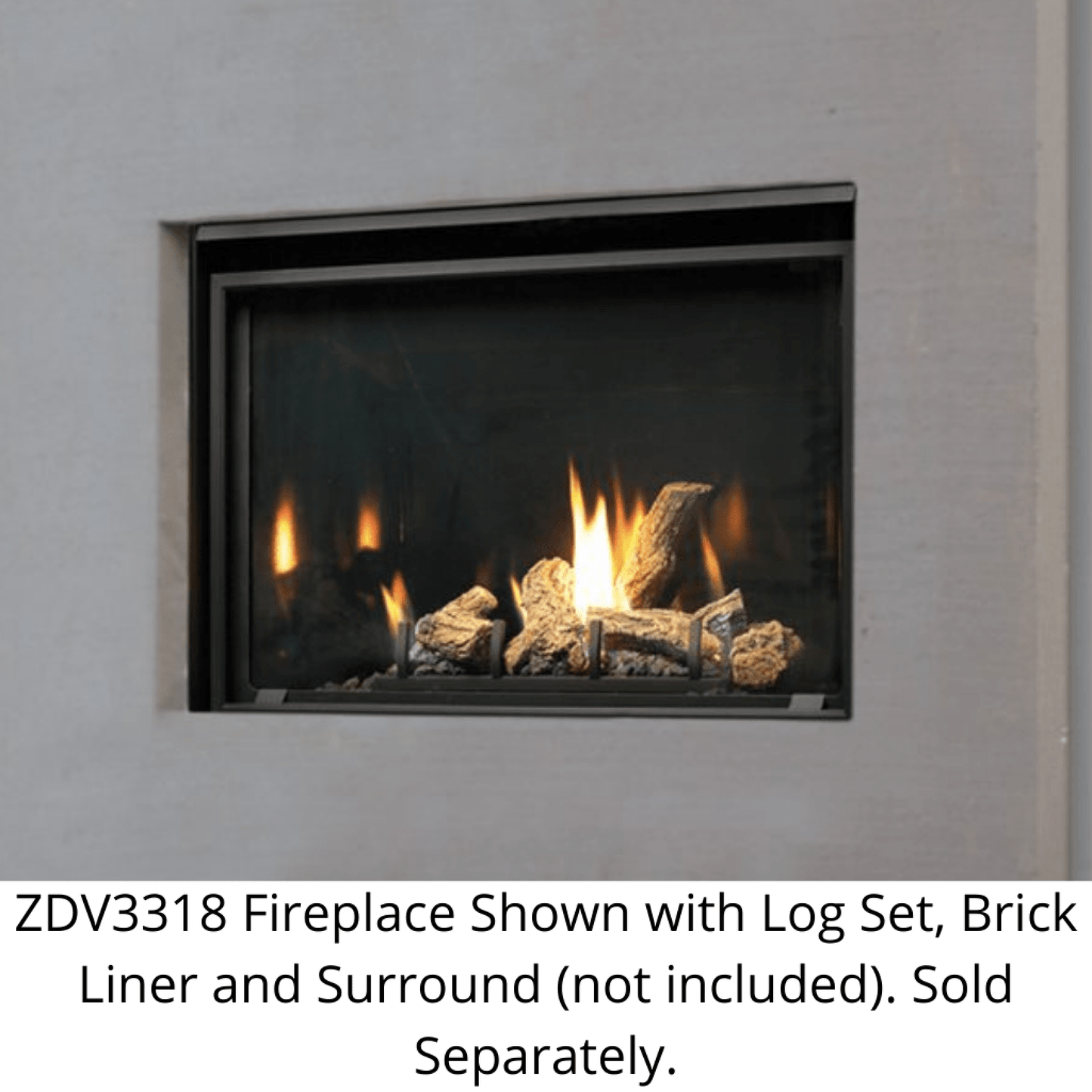

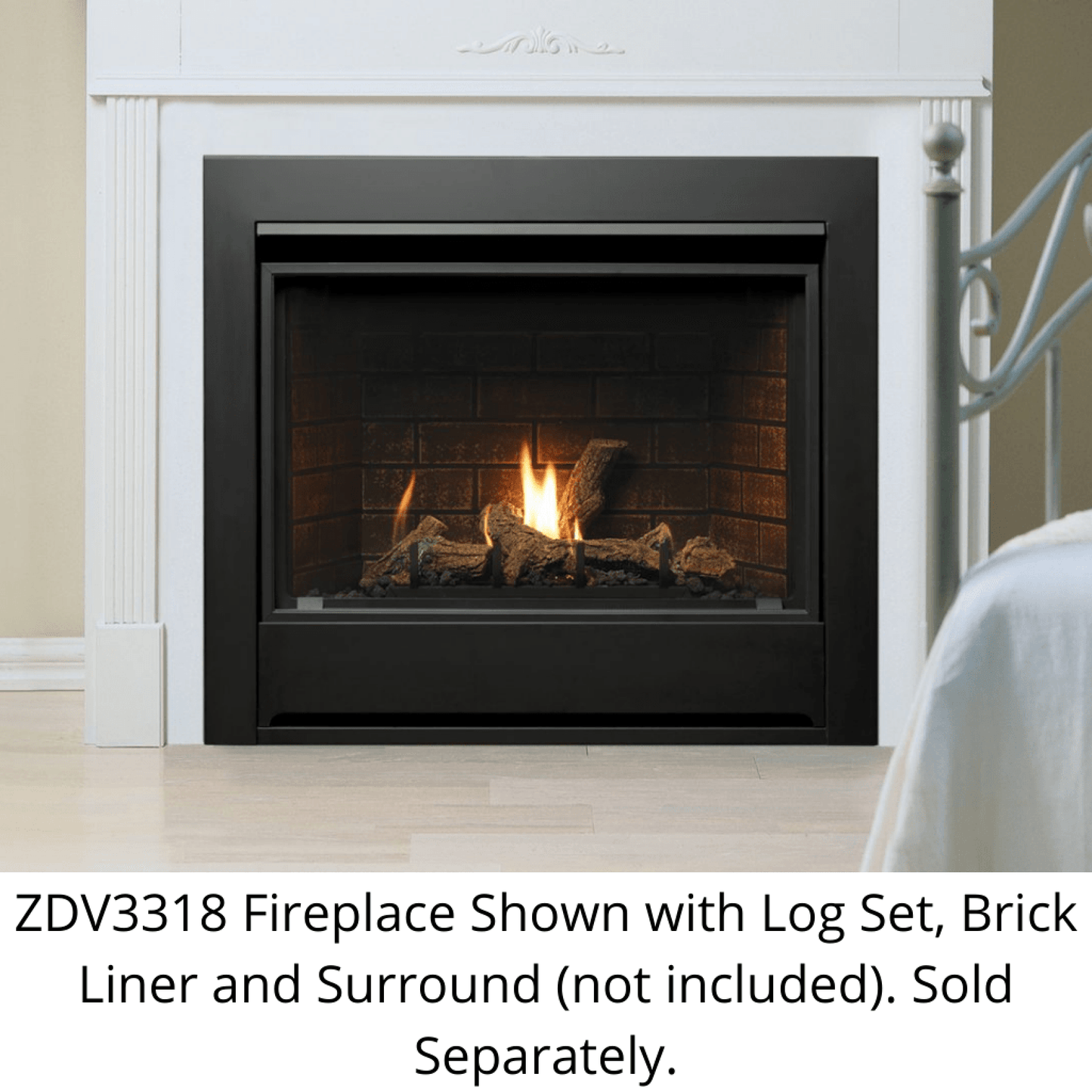

Kingsman 33" ZDV3318 Zero Clearance Direct Vent Gas Fireplace

Kingsman 33" ZDV3318 Zero Clearance Direct Vent Gas Fireplace

Regular price $1,619.00
Regular price $1,943.00 Sale price $1,619.00
Sale Sold out
Fuel Type
Ignition Type

Venting Options

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

Enjoy the elegance and warmth of glowing embers and dancing flames around our traditional oak log set. it's absolute to be the focal point of your home. choose from a variety of decorative options to make your own distinctive appearance and be assured of complete safety, comfort and long-lasting value.

Select from a millivolt or intermittent pilot ignition system. The millivolt valve system doesn't use electricity but features a standing pilot which allows operation during an influence failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance isn't operational.

This fireplace features a fully sealed combustion chamber with no pollution spillage to depreciate the indoor air quality of your home. This quality fireplace allows you to enjoy the wonder of glowing embers and dancing flames and up to 85% maximum efficiency.

This Kingsman Zero-Clearance Direct Vent Millivolt and IPI Gas Fireplace could be a reliable clean-faced heater-rated fireplace featuring a tempered glass front. This fireplace utilizes a highly detailed and sturdy seven-piece split oak log set and includes a reliable standing pilot valve system which ensures operation even without power. With the millivolt/IPI valve, this technique is often paired with a full line of remotes or wall switches and features a high/low flame adjustment come standard. This fireplace comes with a safety barrier screen to forestall accidental contact with the hot glass.

STANDARD FEATURES

  • Color: Black
  • Vent Type: Direct Vent
  • Fireplace Type: Standard Fireplace
  • Fuel Type: Natural Gas, Propane Gas
  • Proprietary burner, with realistic burn
  • Efficiency Rating: 53.4% NG / 51.4% LP
  • BTU Input Ratings: 19,000 NG / 18,000 LP
  • Utilizes a realistic seven piece cast split oak log set
  • Clean face heater rated fireplace with tempered glass front
  • Able to be equipped with a full line of remotes and wall switches
  • Mobile Home, Bedroom and Bed Sitting Room approved
  • Hi/low Millivolt or IPI valve system, will operate during power failures

*Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

PRODUCT SPECIFICATION

Model ZDV3318N/NE
ZDV3318LP/LPE
Fuel Natural Propane
Flue Top
Top
Gas Control Millivolt / IPI Millivolt / IPI
Input Max. 19,000 BTU
18,000 BTU
Input Min. 12,100 BTU
11,900 BTU
FE (p.4.1-02)% 51.72% / 54.25%
55.49% / 57.91%
Flue Sizes
4/7"
4/7"
Glass Size
27 1/2"W x 16" H
27 1/2"W x 16" H
Glass Type Tempered Tempered
Size (WxHxD)
32 3/8"W x 30 1/2"H x 15 3/4"D
32 3/8"W x 30 1/2"H x 15 3/4"D
Viewing Area
25 1/2"W x 14 5/16"H
25 1/2"W x 14 5/16"H
Venting 4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent
4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent
Electronic Ignition
Yes Yes
Certification Heater Heater
Bedroom Approved
Yes Yes

DIMENSIONS

CA Residents: See Prop 65 WARNING

OPTIONAL ACCESSORIES

Click to see Log Set (Required to Complete)


Log Set

Split Oak Log Set (LOGC50)

  • 7-Piece Log Set
  • Completes fireplace installation
  • Highly detailed split oak log set in cast refractory
  • Designed specifically for ZDV3318 series fireplaces
      Click to see Conversion Kit


      Conversion Kit

      Conversion Kit to Propane Millivolt (3318-CKLP)

      • For Millivolt Units only
      • Natural gas to propane
      • Complete with conversion instructions
      • For use with ZDV3318 Direct Vent Gas Fireplace
      • Includes all necessary gas valve and pilot assembly conversion components

      Conversion Kit to Natural Gas Millivolt (3318-CKNG)

      • For Millivolt Units only
      • Propane to natural gas
      • Complete with conversion instructions
      • For use with ZDV3318 Direct Vent Gas Fireplace
      • Includes all necessary gas valve and pilot assembly conversion components

      Conversion Kit to Propane IPI (3318-CKLPI)

      • For IPI Units only
      • Natural gas to propane
      • Complete with conversion instructions
      • For use with ZDV3318 Direct Vent Gas Fireplace
      • Includes all necessary gas valve and pilot assembly conversion components

      Conversion Kit to Natural Gas IPI (3318-CKNGI)

      • For IPI Units only
      • Propane to natural gas
      • Complete with conversion instructions
      • For use with ZDV3318 Direct Vent Gas Fireplace
      • Includes all necessary gas valve and pilot assembly conversion components
          Click to see Grill Kit or Designer Clean View Kit (Required to Complete)


          Grill Kit or Designer Clean View Kit

          Designer Clean View Circulating Kit (Z33CVCK)

          • Color: Black
          • Type: Clean View Kit
          • Required to complete the fireplace
          • Clean view kit provides a modern appearance with no louvers
          • Built-in circulating feature allows heat to transfer into the room
          • Designed for the ZDV3318 series fireplaces

               Grill Kit (VI30GBL)

              • Finish: Black
              • Type: Grill Kit
              • Allows heat to radiate readily into the room
              • Required to complete the installation of the unit
              • Louver kit for ZDV3318 and ZVF33P series fireplaces
              Click to see Liner Kit


              Liner Kit

              Metal Brick Liner (Z3318ML)

              • Color: Brown
              • Type: Liner
              • 3 piece kit with hardware
              • Stamped steel liner in a traditional brick pattern
              • Unique blend of traditional and contemporary design elements
              • Designed for the ZDV3318 series fireplace

                  Porcelain Reflective Panel Liner (Z3318PRL)

                  • Type: Liner
                  • 3 Piece Item
                  • Color: Reflective Black
                  • Installation hardware included
                  • Durable porcelain coated steel finish
                  • Amplifies the flame presentation via reflective qualities
                  • Sleek modern appearance compliments fire glass installations
                  • Designed specifically for ZDV3318 series fireplaces
                  Click to see Fan Kit


                  Fan Kit

                  Variable Wall Mount Speed Control (Z33FK)

                  • Type: Fan Kit
                  • Temperature Sensing
                  • Thermal switch for automatic on/off operation
                  • Variable speed control with built in all off setting
                  • Squirrel cage blower design for quiet and powerful operation
                  • Designed to fit ZDV3318, ZVF24 and ZVF33P series fireplaces
                      Click to see Safety Screen Barrier


                      Safety Screen Barrier

                      Safety Screen Barrier (Z33CSS)

                      • Color: Black
                      • Type: Safety Barrier Screen
                      • Works in place of the original barrier screen if it becomes lost or damaged
                      • Prevents accidental contact with hot fireplace glass and burner trays
                      • Designed specifically for the ZDV3318 series fireplaces
                          Click to see Decorative Surround (For Louvered Units only)


                          Decorative Surround

                          Decorative Black Surround (Z6SBL)

                          • Finish: Black
                          • Type: Decorative Surround
                          • Measures 36 5/8" Wide by 31 3/16" High
                          • Wide perimeter design offers an accent between the fireplace and adjacent wall
                          • Designed to be used with the ZDV3318 and ZVF33P series fireplaces
                              Click to see Log Bits Kit


                              Log Bits Kit

                              Four Piece Log Bits Kit (VLBIT4)

                              • Designed to bolster the look of existing Kingsman log sets
                              • Includes four large log chunks
                              • Easy to install and arrange as desired

                                  Six Piece Log Bits Kit (VLBIT6)

                                  • Designed to bolster the look of existing Kingsman log sets
                                  • Includes six large log chunks
                                  • Easy to install and arrange as desired
                                  Click to see Thermostat


                                  Thermostat



                                  Wall Mount Thermostat- For Millivolt Units (Z2MT)

                                  • Simple on/off millivolt thermostat design
                                  • Easy to use digital control
                                  • Allows convenient operation of gas appliances
                                  • Simple to wire to existing millivolt systems

                                  Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)

                                  • Schedule programmable for desired operation
                                  • Works with Kingsman millivolt appliances
                                  • Easy to read digital LCD display
                                  Click to see Remote Control

                                  Remote Control

                                  On/Off Remote Control for Millivolt/IPI Units (GFRC)

                                  • Simple on/off operation for millivolt appliances
                                  • Allows for the operation of the appliance without manual control
                                  • Included receiver easily mounts within the appliance chassis
                                  • Reliable RF transmitter operation

                                    Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC)

                                    • On/off operation with modulating thermostat control
                                    • Allows for the operation of the appliance without manual control
                                    • Included receiver easily mounts within the appliance chassis
                                    • Reliable RF transmitter operation

                                    Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units
                                    (GTMRCN, GTMRCP, EGTMRCN, EGTMRCP)

                                    • On/off operation with modulating thermostat control
                                    • Allows for the operation of the appliance without manual control
                                    • Included receiver easily mounts within the appliance chassis
                                    • Reliable RF transmitter operation
                                    • Includes high/low modulating motor for natural gas and propane gas fireplaces


                                      Remote Control Heat Shield

                                       Remote Control Heat Shield (DCHS)

                                      • Designed to prolong remote receiver battery life
                                      • Reduces receiver operating temperatures and creates an air blanket
                                      • For all Kingsman millivolt remotes



                                      Click to see venting products


                                      venting products

                                      DuraVent Sloped Flue Stove Pipe Adapter - ZDVDFA
                                      The Dura-vent fireplace adapter is just the thing you would like to keep the fireplace residue from infiltrating your house. With this vent, fresher air is produced throughout the house.
                                      45-Degree DirectVent Pro Elbow - 46DVA-E45, 46DVA-E45B
                                      Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°. Finish: Galvanized & Black.
                                      90-Degree DirectVent Pro Elbow - 46DVA-E90B, 46DVA-E90
                                      Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°. Finish: Galvanized & Black.
                                      4"x6.625" DirectVent Pro Pipe Length

                                      Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional unless specified by the appliance manufacturer. Finish: Galvanized & Black.
                                      4"x6.625" DirectVent Pro Pipe Extension

                                      Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Available in black or galvalume exterior.

                                      4"x6.625" DirectVent Pro Adjustable Pipe

                                      Use of sealant is optional unless specified by the appliance manufacturer. Available in black or galvalume exterior.
                                      DirectVent Pro Wall Strap - 46DVA-WS
                                      Use to support vent pipe. Provides 1” clearance. Recommend installing Wall Straps at 4-foot intervals on vertical runs.
                                      DirectVent Pro Ceiling Firestop - 46DVA-FS
                                      Required for multi-story vertical installations on the second floor and any subsequent floors.
                                      DirectVent Pro Vinyl Sliding Standoff - 46DVA-VSS
                                      Use as a heat shield on structures with vinyl siding, or other temperature-sensitive materials, to help prevent warping and or melting of the material.
                                      DirectVent Pro Attic Insulation Shield - 46DVA-IS
                                      Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Provides 1” clearance to combustibles.
                                      Horizontal Chimney Vent Termination Starter Kit

                                      Round and Square Horizontal Chimney Vent Termination Starter Kit will provide you with the secure and efficient ventilation you need to stay your fireplace functioning well. This vent termination starter kit is 36/60 inches long, and it comes with a wall thimble, all the screws, and a mill pac.
                                      Flex Chimney Vent Kit - 4" Inner Diameter
                                      Flex ventilation material adapts to tight spaces and corners and allows you more freedom with the placement of your stove. 5 / 8 / 20 Foot Length. Spring, Screws, Mill Pac Included. Primarily used as an extension for venting systems.
                                      DirectVent Pro Adjustable Roof Flashing - 46DVA-F6
                                      Use to weatherproof the penetration of vent pipe through the roof. Select roof flashing based on pitch of the roof. For pitches of 0/12 - 6/12. Storm Collar required. Made of galvalume.
                                      DirectVent Pro Steep Roof Flashing - 46DVA-F12
                                      Use to weatherproof the penetration of vent pipe through the roof. Storm Collar required. Made of galvalume.
                                      DirectVent Pro Dead Soft Aluminum Flashings - 46DVA-F6DS
                                      Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 (shown) and 7/12-12/12 styles. Made of malleable dead soft aluminum. Use with metal or tile roofs.
                                      DirectVent Pro Storm Collar - 46DVA-SC
                                      Use to maintain a weather tight resistant seal between the pipe and the flashing.
                                      DirectVent Pro High-Wind Termination Cap - 46DVA-VCH
                                      Available in aluminum. Use for vertical terminations only. For vertical terminations only. Provides improved performance in high wind conditions.
                                      DirectVent Pro Low-Profile Termination Cap - 46DVA-VC
                                      Available in aluminum and stainless steel (S). Use for vertical terminations only. Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance.
                                      DirectVent Pro Wall Thimble - 46DVA-WT
                                      Use with Square Horizontal Cap only. Provides a complete wall-pass-through and firestop. Refer to the appliance manufacturer’s installation instructions for requirements.
                                      DirectVent Pro Square Horizontal Termination Cap - 46DVA-HC
                                      Use for standard and high-wind through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C).
                                      DirectVent Pro Round Horizontal Termination Cap - 46DVA-HRCS
                                      Use for through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Finish: aluminum.
                                      4/7 Horizontal Vent Termination - FDVHT, FDVHSQ

                                      Round/Square Vent Horizontal Termination for 4x7-Inch Venting provides a premium installation component for use with your fireplace.
                                      Universal Safety Cage for Horizontal Termination - FDVHSCU
                                      Universal Safety Cage. Designed for Horizontal Termination. Use with Horizontal Vent Starter Kit.
                                      Horizontal Stucco Shield - FDVHSS
                                      It's designed to protect the stucco siding from heat. Its product adding a direct vent stove to your home, consider the protection necessary for using it safely.
                                      Chimney Vent Snorkel Termination - Z47ST24, Z47ST36
                                      Chimney Vent Snorkel Termination for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. With a variety of styles and high-quality materials. If a vertical rise is necessary on the exterior side of the building.
                                      Convertible Between 15' & 40' Vertical Vent Termination - FDVVT40
                                      It's convertible between 15' and 40' vertical. The convertible function allows for better flexibility and use. Must watch out to follow the proper steps and double-check that the proper parts and accessories are being used.
                                      Vertical Chimney Vent Termination - Z47VT
                                      Direction: Vertical
                                      Type: Vent Termination

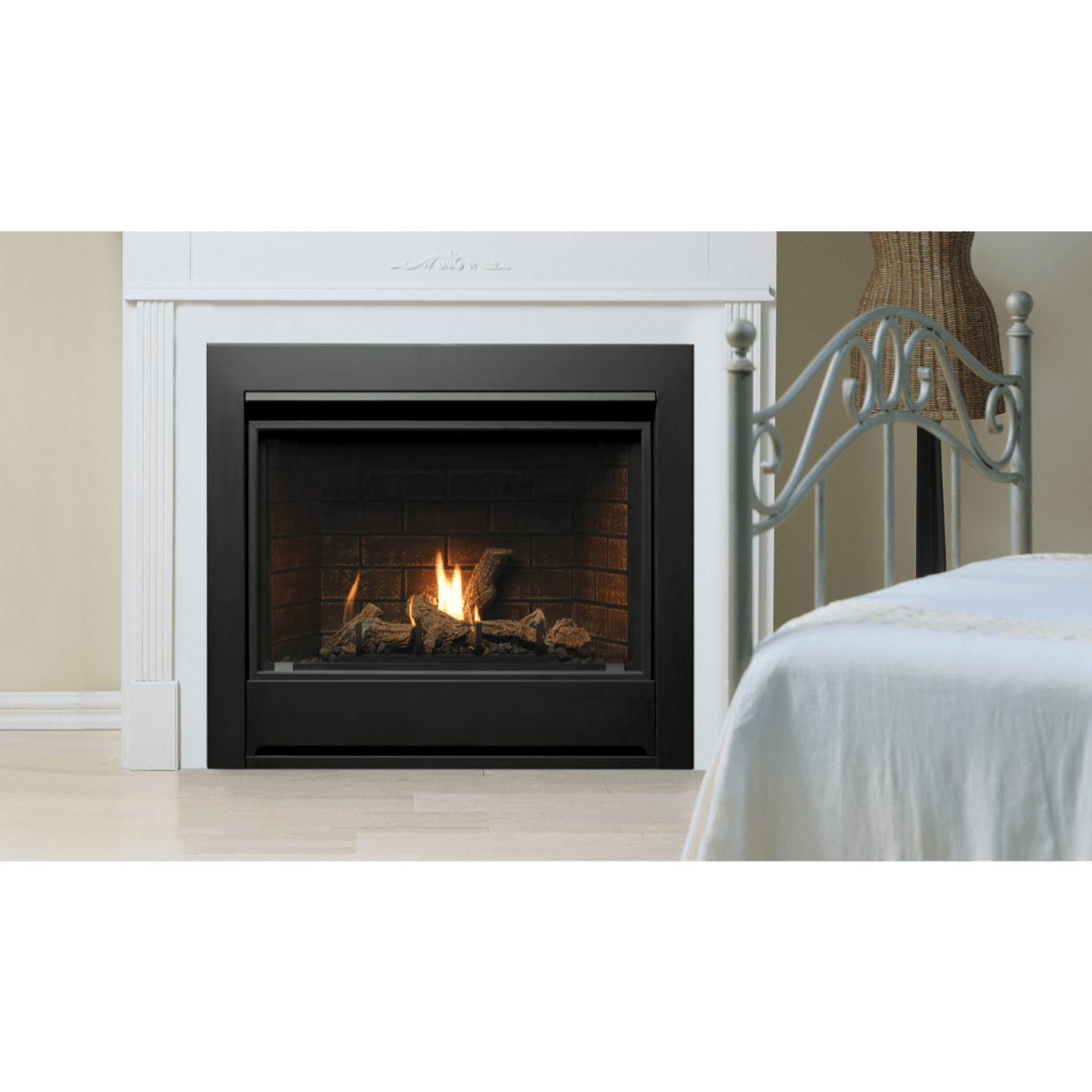

                                      Fireplace type: Zero Clearance direct vent gas
                                      Attic Insulation Shield - ZDVAIS
                                      This shield will protect your attic and roof from the heat that escapes through the chimney. The shield offers 12" and 24" of insulation designed to surround your chimney.
                                      Vertical Chimney Vent Offset Support - ZDVVOS
                                      It'll support your chimney through inclement weather, including heavy rain, snow accumulation, and wind, also as natural wear from gravity over time. The support has been tested for durability and function.
                                      Vertical Chimney Vent Firestop Spacer - ZDVFS
                                      Chimney Vent Firestop Spacer is created out of rugged metal that will not deteriorate within the short term, and it'll make sure that your chimney vent is held at a correct length from any flammable surface nearby, such as the wall.
                                      Chimney Vent Roof Support - ZDVRS
                                      Chimney Vent Roof Support will help your chimney function well through various circumstances: heavy wind, storms with heavy rain, hail, and snow accumulation just to call some.
                                      Wall Thimble for Horizontal Venting - ZDVWT
                                      Horizontal Chimney Vent Wall Thimble for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. This Vent Wall Thimble is durably constructed and tested rigorously to protect your wall and inner material from the hot surface of the ventilation piping.
                                      Heat Deflector Siding Shield - ZDVSS
                                      Siding Heat-Shield for Horizontal Round Chimney Termination will protect your siding from the chance of combustion to the heat. Protect combustible siding from combustion and charring. Made with careful metallic composition for heat tolerance.
                                      Large Return Siding Shield - ZDVSSLR
                                      Siding Heat-Shield for Horizontal Round/Square Chimney Termination will protect your siding from the chance of combustion to the heat.
                                      Roof Flashing with Storm Collar - ZDVAAF, ZDVAF2, ZDVAF3

                                      This storm collar measures 7" in inner diameter. This product has the capability of sealing the vent lengths that protrude from a sloped roof. And also, vertical installations are needed with this product and can be purchased separately.
                                      7" Storm Collar - ZDV7SC
                                      7-Inch Vertical Venting Storm Collar for 4x7-Inch Vertical Venting provides a premium installation component to be used together with your fireplace. This storm collar measures 7 inches in diameter.
                                      3-Feet Insulation Sleeve for Low Enclosures - MDV38IS
                                      If you have a multi-sided direct vent fireplace, you'll need an MDV38IS Insulation Sleeve. This insulation sleeve measures 3 feet and is for low enclosures.
                                      Flex Connector - 4" & 7" Diameter - ZDV4FC, ZDV7FC
                                      The chimney vent is just the thing to stay your belongings free of dirt. This chimney vent is provided with a flex connector that measures 4 or 7 inches in diameter.
                                      Flex Clamp - 4" & 7" Diameter - ZDV4FCL, ZDV7FCL
                                      Flex Clamp provides a premium installation component to be used with your fireplace. This clamp is 4 or 7 inches in diameter.
                                      4" Standoff Spring Spacer - ZDV4SS
                                      Spring standoff spacer is simply the part needed for your chimney vent. This spring spacer measures 4 inches in diameter and has the potential of withstanding years of use. This spacer also will keep its polishing color.

                                      DOWNLOADS

                                      View full details
