Kingsman

IDV34N

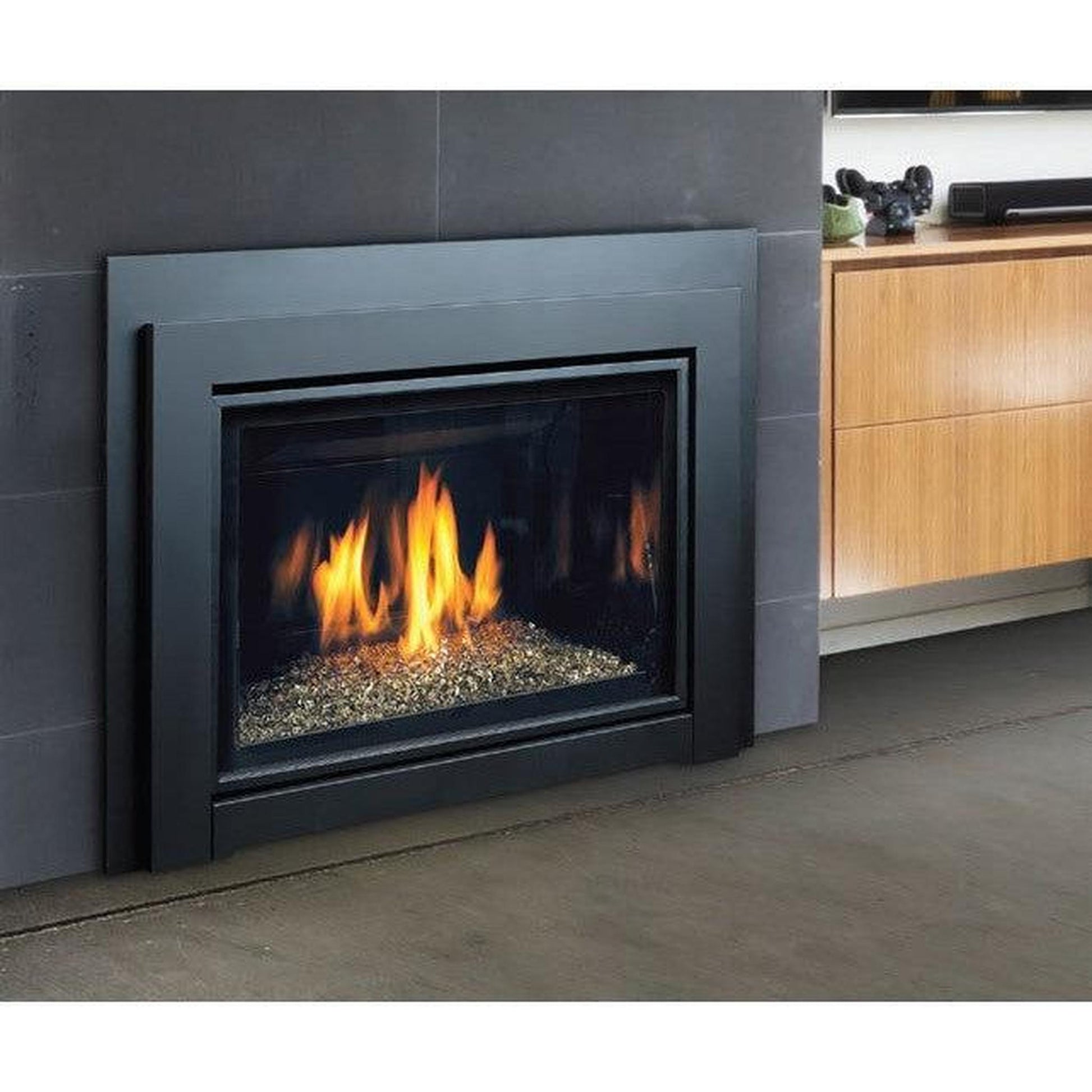

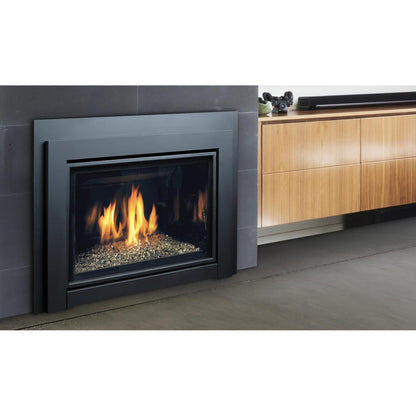

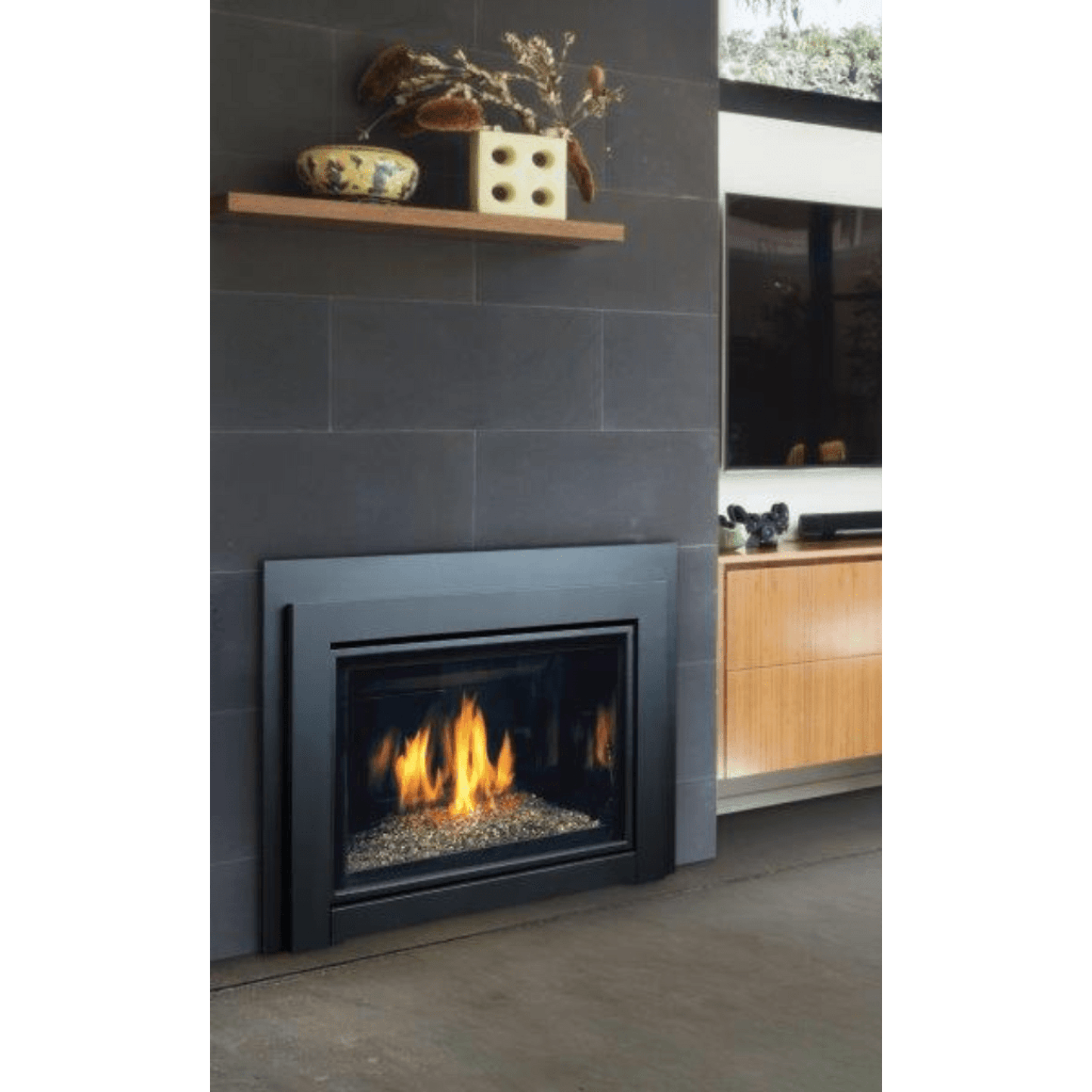

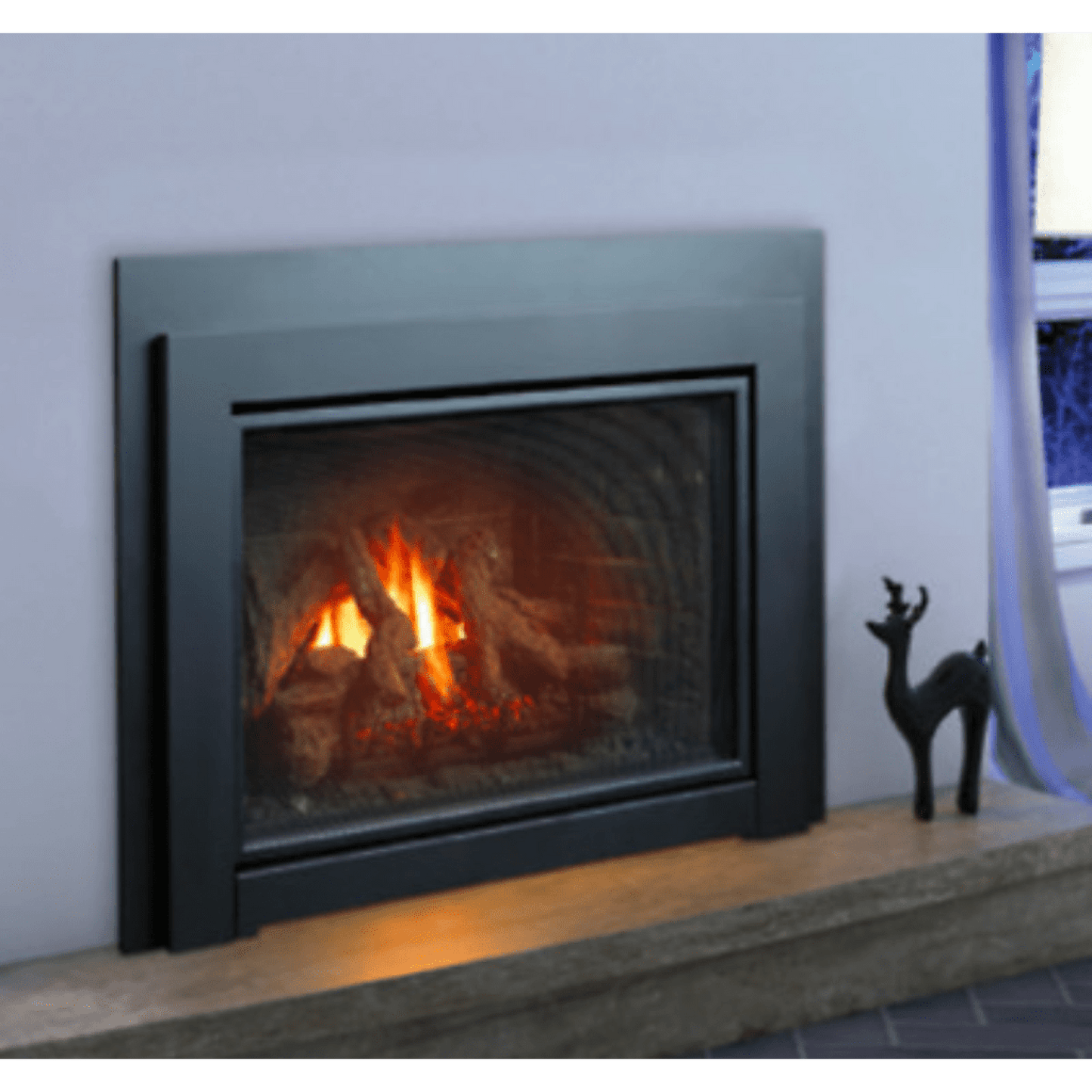

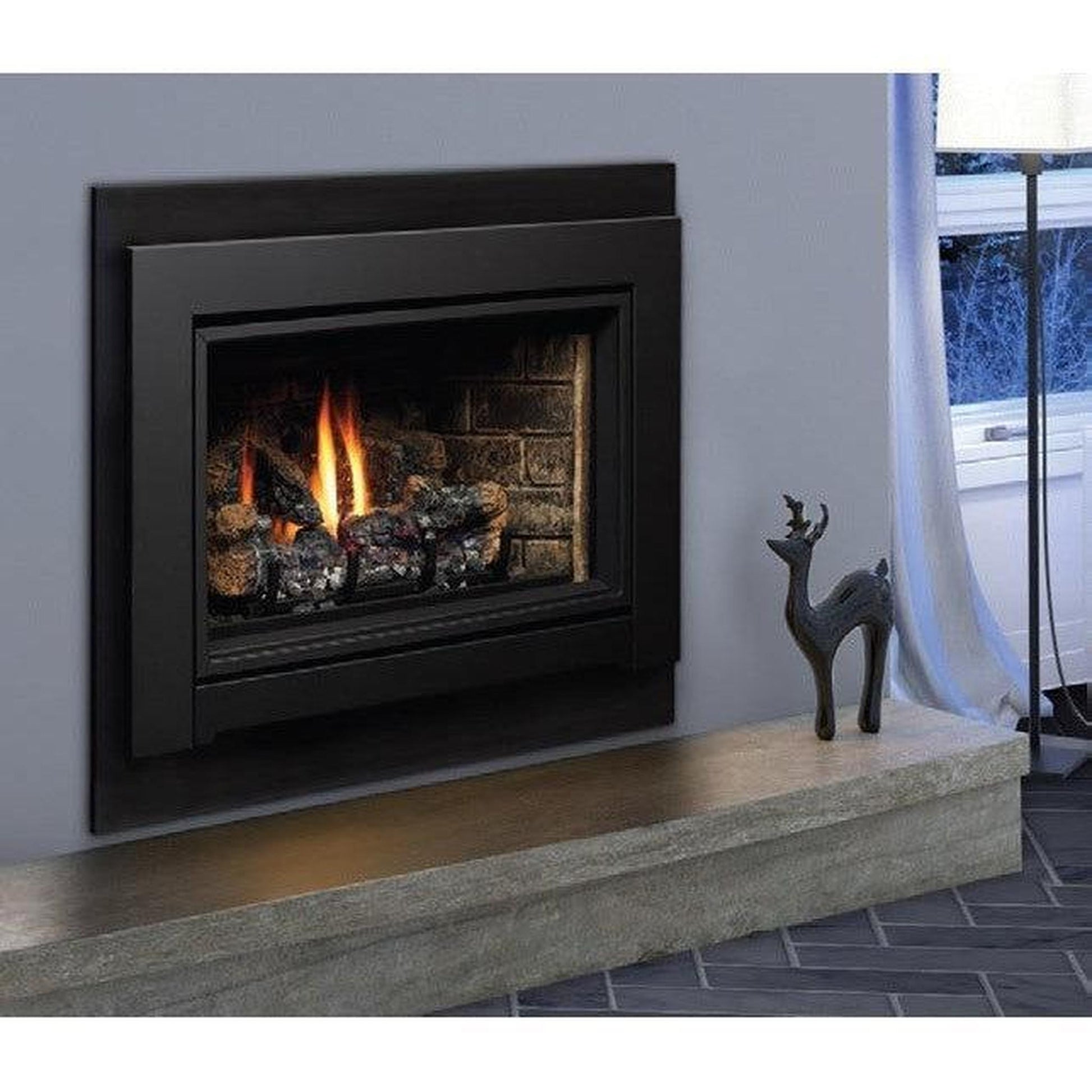

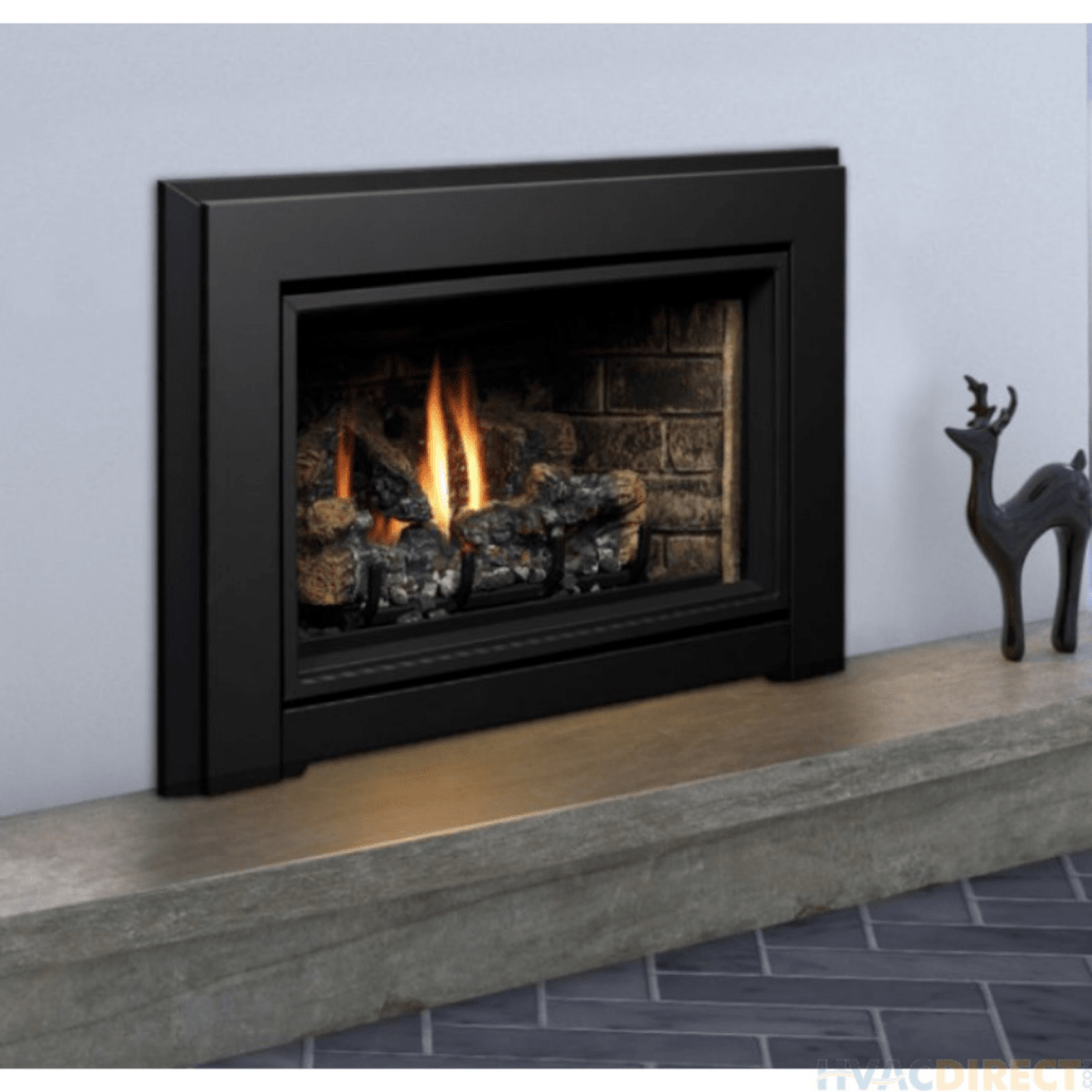

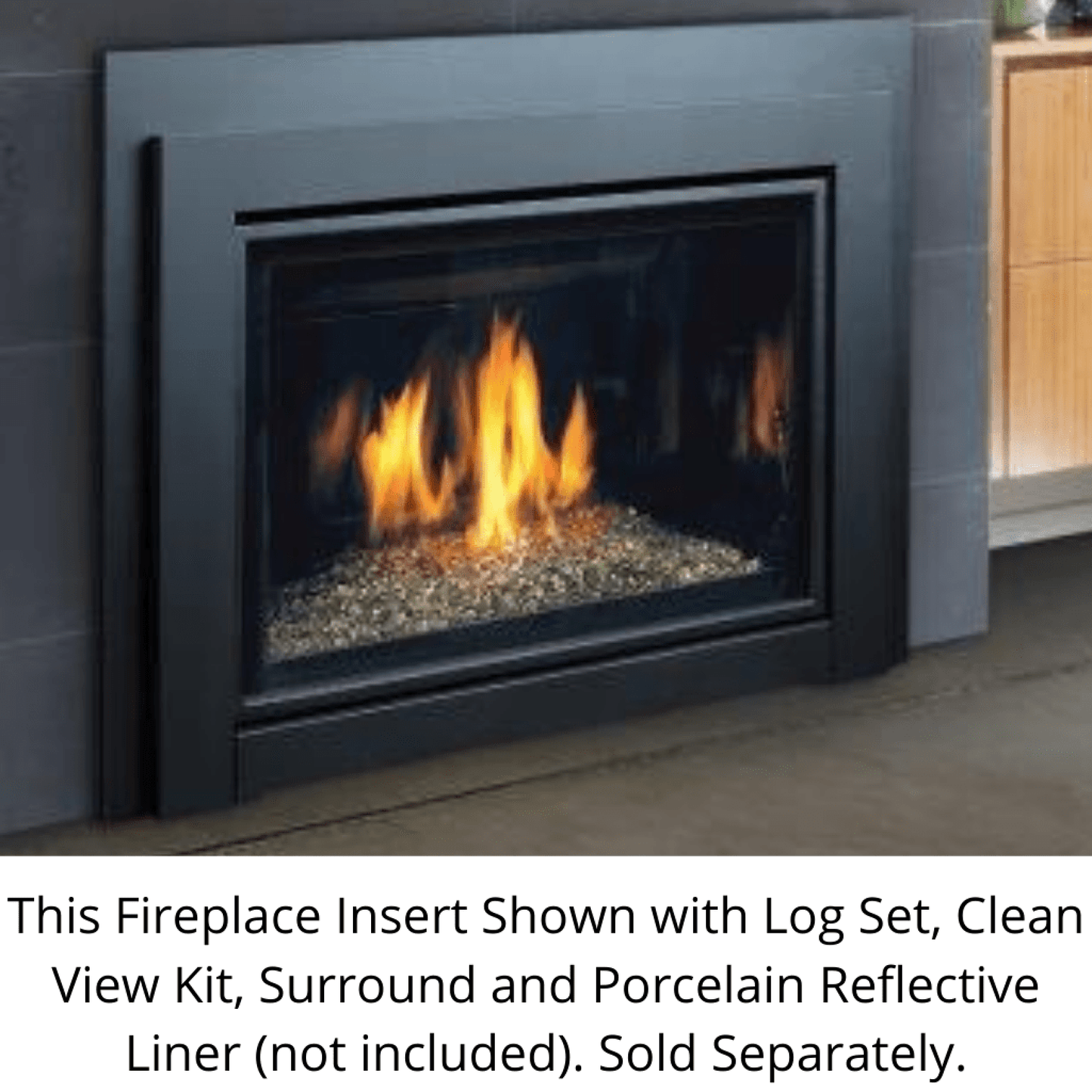

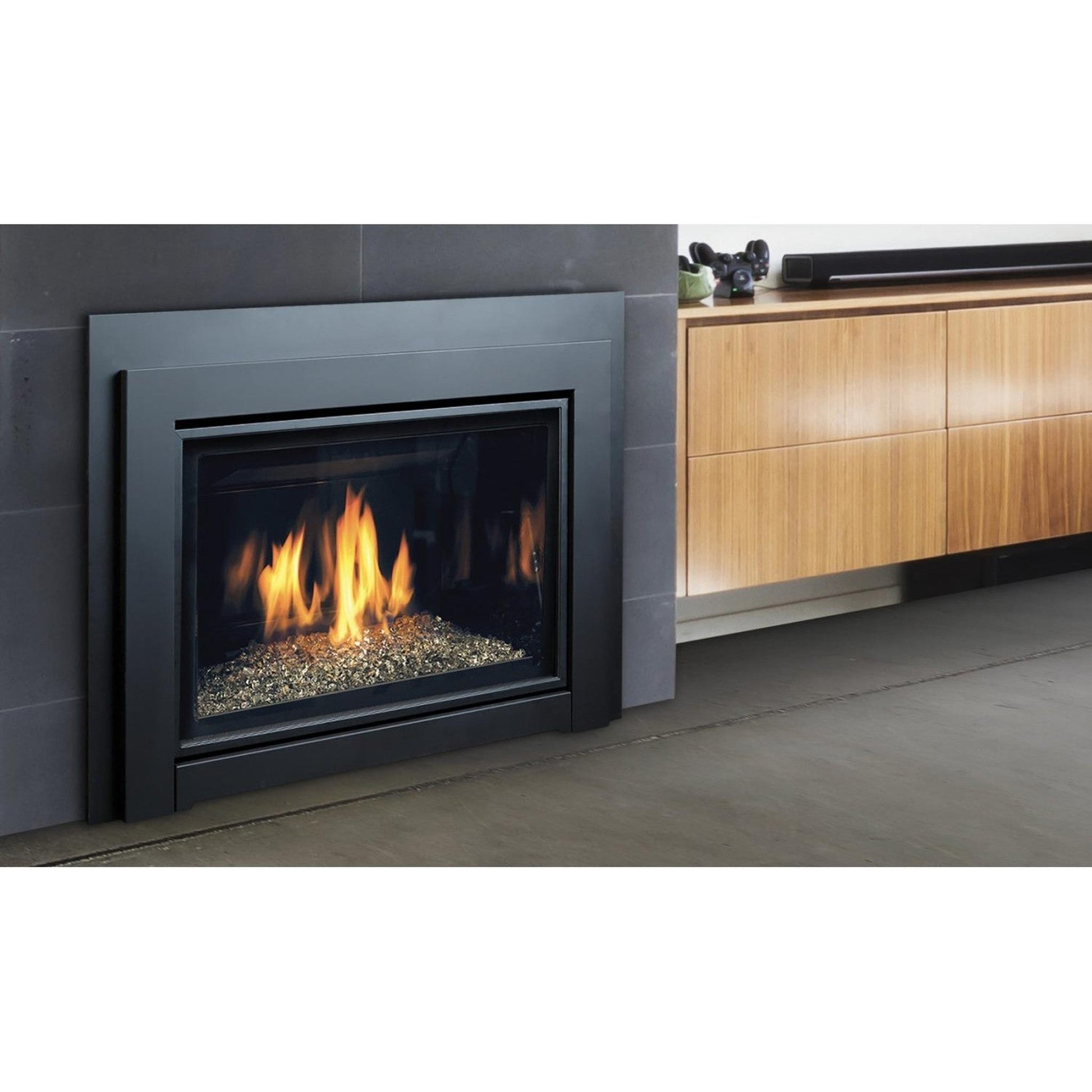

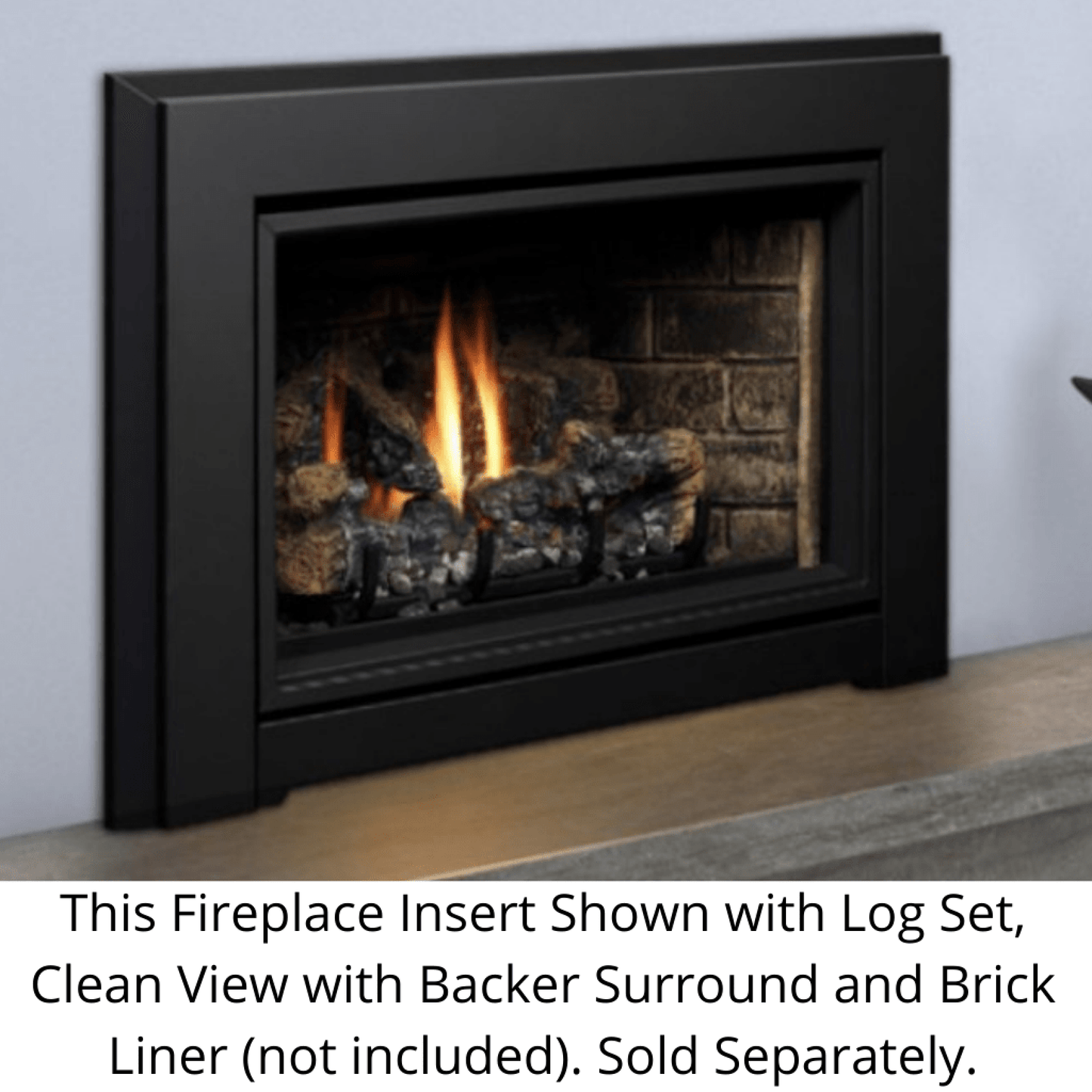

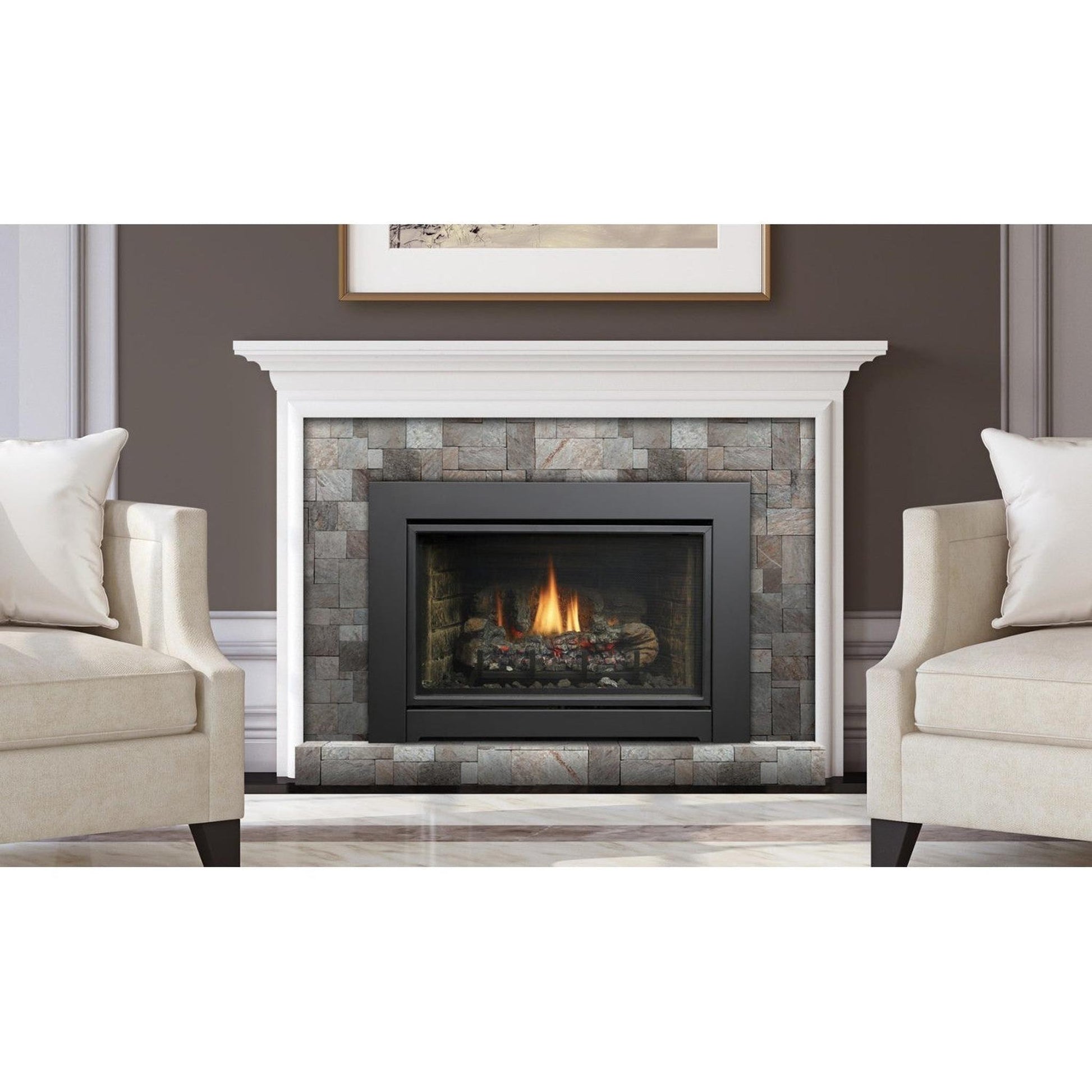

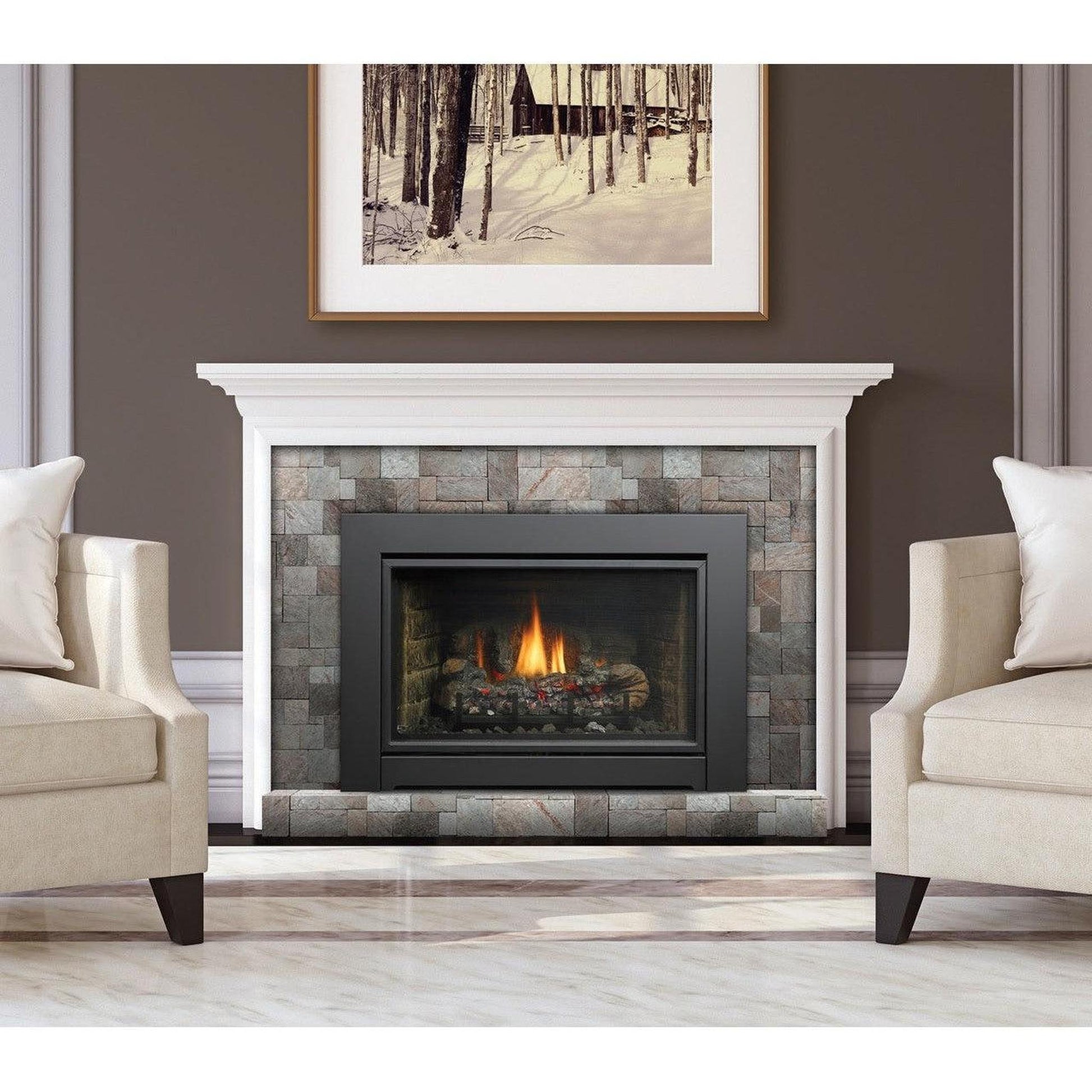

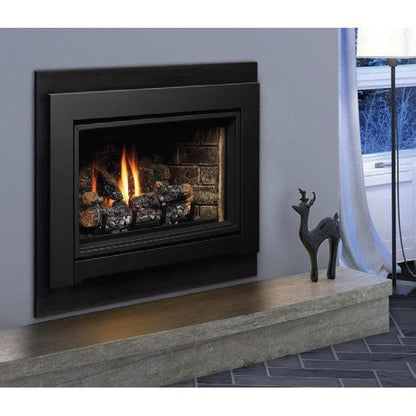

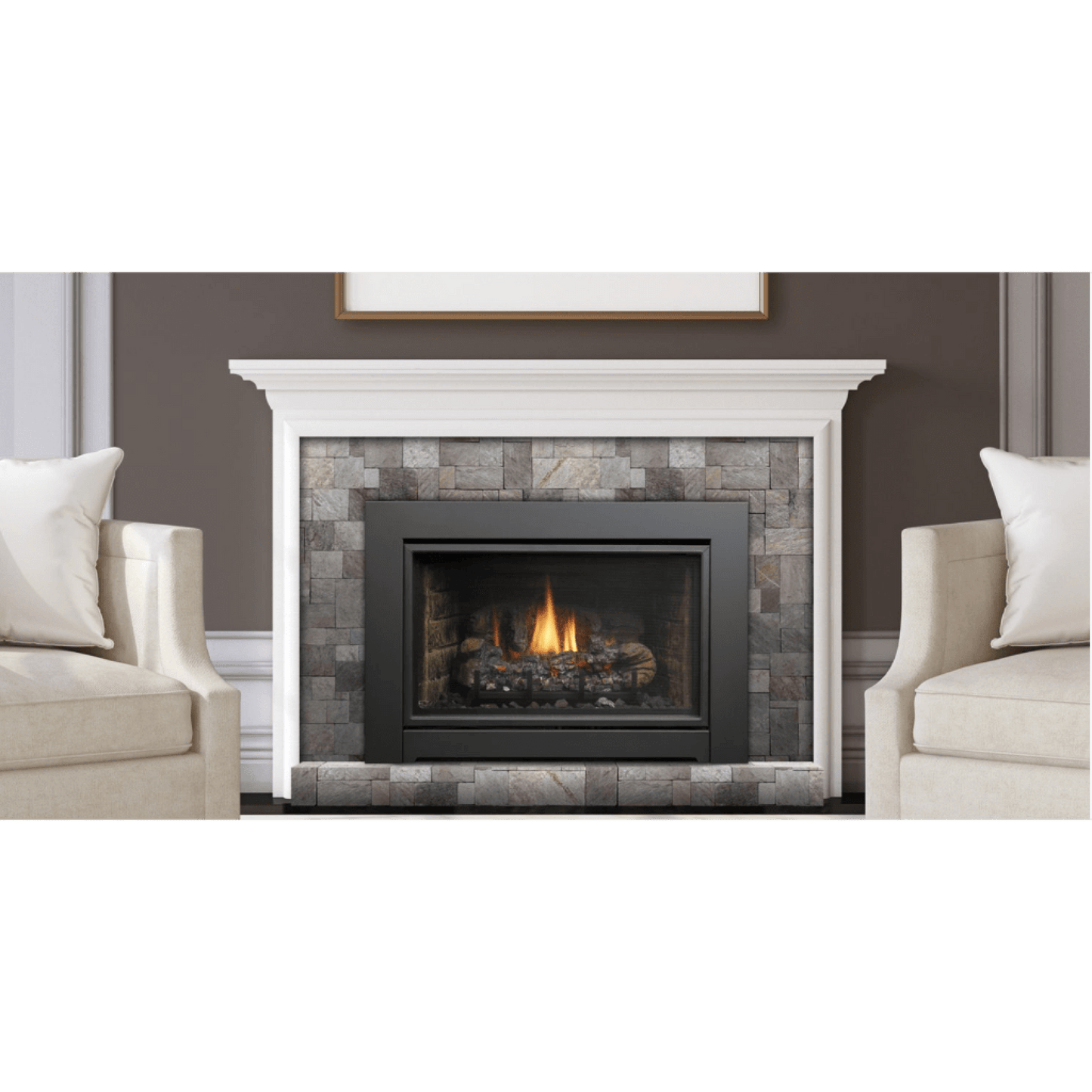

Kingsman 34" IDV34 Direct Vent Gas Fireplace Insert

Fuel Type: Natural Gas
Ignition Type: Millivolt (remote optional)


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

Convert your wood-burning fireplace to gas, for a new standard of warmth, beauty, safety and convenience.

The Kingsman IDV34 Direct Vent Gas Fireplace Insert Millivolt / IPI Pilot is a great addition to any living space. This dual fuel burner comes with glowing embers and is approved to be used during a mobile home, bedroom, or bed-sitting room.

This insert features heavy-duty steel construction to make sure long-term durability, while ceramic glass offers an impressive view of the firebox. A dual burner with glowing embers offers a realistic flame presentation, while a high-quality ignition system allows for easy, safe, and effective ignition of your fire every time. For added comfort, a heat-activated blower with variable speed control offers increased heat circulation for simpler warming capability. Convert your old wood fireplace to the present gas unit and take advantage of increased safety and convenience.

This unit offers an impressive amount of customization to meet the needs of your installation. choose from propane or natural gas options, add an optional liner, choose between manual or intermittent pilot ignitions, and take advantage of one of the standard front options to match your tastes. you'll also select from a split oak log set for a traditional appearance or a more contemporary bronze fire glass burner as your project requires.

STANDARD FEATURES

  • Size: 29 Inches
  • Color: Black
  • Ceramic glass
  • Decorative ash bed
  • On/Off rocker switch

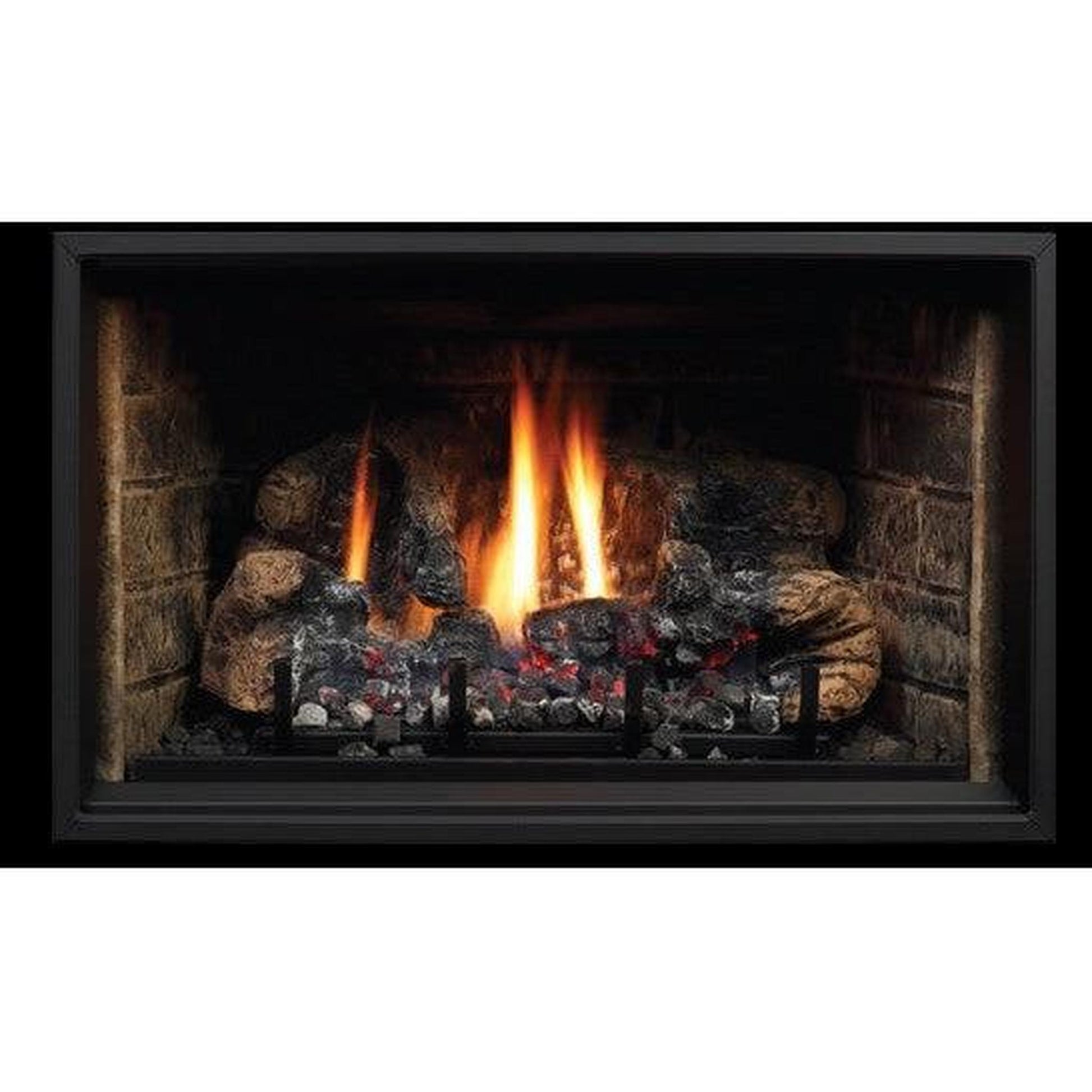

  • Dual burner with glowing embers
  • Your choice of natural gas or propane
  • Bedroom and bed sitting room approval
  • Mobile home, bedroom and bed sitting room approval
  • Product Dimensions: 28 9/16" W x 21 3/8" H x 18 1/4" D
  • Heat activated blower with variable speed control
  • Millivolt or IPI valve system allows operation during power failure with Hi-Low heat and flame adjustment

*Venting Requirements: This unit requires venting pipe with an inner diameter of 3 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

PRODUCT SPECIFICATION

Model IDV34N/NE/NE2
IDV34LP/LPE/LPE2
Fuel Natural Propane
Flue Top Top
Gas Control Millivolt / IPI Millivolt / IPI
Input Max. 31,000 BTU
28,500 BTU
Input Min. 20,900 BTU
23,100 BTU
FE (p.4.1-02)% 62.86% / 64.73%
63.63% / 68.30%
Flue Sizes
3/3"
3/3"
Glass Size
27 1/2" W x 16" H
27 1/2" W x 16" H
Glass Type
Ceramic Ceramic
Size (WxHxD)
28 5/8" W x 21 3/8" H x 18 1/4" D
28 5/8" W x 21 3/8" H x 18 1/4" D
Viewing Area
25 5/8" W x 14 1/8" H
25 5/8" W x 14 1/8" H
Venting
3/3" Flex
3/3" Flex
Electronic Ignition
No Yes
Certification Heater Heater
Bedroom Approved
Yes Yes

DIMENSIONS

INCLUDES

  • Dual Burner with Glowing Embers
  • Ceramic Glass
  • SIT Valve
  • Blower

CA Residents: See Prop 65 WARNING

OPTIONS & ACCESSORIES

Click to see Log Set or Glass Support Platform (Required to Complete)


Log Set

Fiber Split Oak Log Set (LOGF35)

  • Easy to install and service as needed
  • Lightweight ceramic fiber construction
  • Realistic look that mimics the appearance of freshly split logs
  • Designed for IDV34 Insert and FDV350/FVF350 gas stoves


Glass Support Platform

Glass Support Platform with Bronze Decorative Glass (RSP10)

  • Color: Black
  • Includes decorative bronze glass
  • Can be used with other colors of glass media
  • Required for glass media use in the IDV26/34/44 series fireplace inserts
  • Acts as both a glass platform and diffuser for a pleasing flame presentation
Click to see Conversion Kit


Conversion Kit

Conversion Kit to Propane Millivolt (33IDV-CKLP)

  • Gas conversion kit
  • Natural gas to propane
  • Complete with conversion instructions
  • Includes all necessary gas valve and pilot assembly conversion components
  • For millivolt pilot IDV34 fireplace inserts

Conversion Kit to Natural Gas Millivolt (33IDV-CKNG)

  • Gas conversion kit
  • Propane to natural gas
  • Complete with conversion instructions
  • Includes all necessary gas valve and pilot assembly conversion components
  • For millivolt pilot IDV34 fireplace inserts

Conversion Kit to Propane Proflame 1 (33IDV-CKLPI)

  • Gas conversion kit
  • Natural gas to propane
  • Complete with conversion instructions
  • Includes all necessary gas valve and pilot assembly conversion components
  • For IPI Proflame 1 pilot IDV34 fireplace inserts

Conversion Kit to Natural Gas Proflame 1 (33IDV-CKNGI)

  • Gas conversion kit
  • Propane to natural gas
  • Complete with conversion instructions
  • Includes all necessary gas valve and pilot assembly conversion components
  • For IPI Proflame 1 pilot IDV34 fireplace inserts

Conversion Kit to Propane Proflame 2 (33IDV-CKLP2)

  • Gas conversion kit
  • Natural gas to propane
  • Complete with conversion instructions
  • Includes all necessary gas valve and pilot assembly conversion components
  • For IPI Proflame 2 pilot IDV34 fireplace inserts

Conversion Kit to Natural Gas Proflame 2 (33IDV-CKNG2)

  • Gas conversion kit
  • Propane to natural gas
  • Complete with conversion instructions
  • Includes all necessary gas valve and pilot assembly conversion components
  • For IPI Proflame 2 pilot IDV34 fireplace inserts
    Click to see Clean View Kit (Required to Complete)


    Clean View Kit

    Clean View Kit with Safety Screen (I34CV1BL)

    • Color: Black
    • Black finish
    • Clean view kit
    • Required accessory
    • Includes safety screen barrier
    • Designed for use with IDV34 series fireplace inserts

      Clean View Kit with Safety Screen and Large Backer Surround (I34CV6BL)

      • Color: Black
      • Black finish
      • Clean view kit
      • Required accessory
      • Includes backer surround
      • Includes safety screen barrier
      • Covers 37 5/8" W x 26 15/16" H x 2 3/4" D
      • Designed for use with IDV34 fireplace inserts
        Click to see Surrounds


        Surrounds

        Black Surround (I34S3927BL)

        • Color: Black
        • Type: Surround
        • Covers 39" W x 27 5/16" H
        • For use with Clean View Kit with Safety Screen
        • Designed for use with IDV34 series fireplace inserts

          Black Surround Picture Frame (I34SPF4131BL)

          • Color: Black
          • Black surround
          • Picture frame style
          • Covers 41 1/8" W x 31 3/8" H
          • For use with Clean View Kit with Safety Screen
          • Designed for use with IDV34 series fireplace inserts

          Black Universal Surround (I34SU4541BL)

          • Color: Black
          • Type: Universal Surround
          • Covers 45" W x 41" H
          • For use with Clean View Kit with Safety Screen
          • Designed for use with IDV34 series fireplace inserts
            Click to see Riser For Surrounds


            Riser For Surrounds

            Riser For Surround (I34R40)

            • 40" wide
            • Riser for surround
            • Raises coverage height by 2 1/2"
            • For use with Clean View Kit with Safety Screen
            • Designed for use with IDV34 series fireplace inserts

             Riser For Surround (I44R45)

            • 45" wide
            • Riser for surround
            • Raises coverage height by 2 1/2"
            • For use with Clean View Kit with Safety Screen
            • Designed for use with IDV34 / IDV44 series fireplace inserts
            Click to see Liner Kit


            Liner Kit

            3 Piece Refractory Liner (IDV33RL)

            • Color: Brown
            • Installation hardware included
            • Durable cast refractory construction
            • Mimics the look of traditional running courses of brick
            • Designed to add a realistic appearance to the firebox interior
            • Designed specifically for IDV34 Series Fireplace Inserts

            3 Piece Porcelain Reflective Panel Liner (IDV33PRL)

            • Color: Reflective Black
            • Installation hardware included
            • Durable porcelain-coated steel finish
            • Amplifies the flame presentation via reflective qualities
            • Sleek modern appearance compliments fire glass installations
            • Designed specifically for IDV34 Series Fireplace Inserts
            Click to see Thermostat


            Thermostat



            Wall Mount Thermostat- For Millivolt Units (Z2MT)

            • Simple on/off millivolt thermostat design
            • Easy to use digital control
            • Allows convenient operation of gas appliances
            • Simple to wire to existing millivolt systems

            Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)

            • Schedule programmable for desired operation
            • Works with Kingsman millivolt appliances
            • Easy to read digital LCD display
            Click to see Remote Control


            Remote Control

            On/Off Remote Control for Millivolt/IPI Units (GFRC)

            • Simple on/off operation for millivolt appliances
            • Allows for the operation of the appliance without manual control
            • Included receiver easily mounts within the appliance chassis
            • Reliable RF transmitter operation

              Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC)

              • On/off operation with modulating thermostat control
              • Allows for the operation of the appliance without manual control
              • Included receiver easily mounts within the appliance chassis
              • Reliable RF transmitter operation

              Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units
              (GTMRCN, GTMRCP, EGTMRCN, EGTMRCP)

              • On/off operation with modulating thermostat control
              • Allows for the operation of the appliance without manual control
              • Included receiver easily mounts within the appliance chassis
              • Reliable RF transmitter operation
              • Includes high/low modulating motor for natural gas and propane gas fireplaces
              Click to see Venting Components


              Vertical Vent Termination



              Vertical Vent Termination (IDVVT36)

              • Vertical vent termination (3/3")
              • Direct Vent Pipe Vent Termination Kit
              • For use with IDV26 & IDV34 Series Direct Vent Fireplace Insert


                Flex Pipe Kit



                Flex Pipe Kit (IDVFK25)

                • Type: Flex Pipe Kit
                • Direction: Vertical
                • 3 Inch Inner Diameter
                • Kit includes two 3" diameter x 25' liners
                • For use with IDV26 & IDV34 Series Direct Vent Fireplace Insert


                  Block Off Plate



                  Block Off Plate (IDVLCP)

                  • Type: Block Off Plate
                  • Intended for lower chases
                  • Measures 11 3/4" x 14 3/4
                  • Millivolt control collection
                  • For use with IDV26 & IDV34 Series Direct Vent Fireplace Insert


                    Flex Connector



                    Flex Connector (ZDV3FC)

                    • Flexible
                    • Durable
                    • 3 Inch Diameter
                    • Type: Flex Connector
                    • For use with IDV26/34/44 Series Direct Vent Fireplace Insert
