Kingsman

ZVFB3330MAN

Kingsman Vent Free Burner System for ZVF33P Series Fireboxes

Ignition Type: Manual Valve
Fuel Type: Natural Gas


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

The Kingsman Vent Free Natural/Propane gas burner System with Manual/Millivolt Valve for ZVF33P Fireboxes is a fantastic choice for a burner system for your new fireplace installation. This Burner runs exclusively on Natural/Propane Gas and can't be converted, and features Manual/millivolt control over the matchless piezo starter. This millivolt valve means you'll pair your new burner with a variety of wall switches or remotes and control your fireplace's activation with the flip of a switch or the press of a button. This burner does have a manually controlled variable flame, which allows more minute adjustments to the flame height as you've got more control through a manual knob. this technique also includes an Oxygen Depletion Sensor, which deactivates the system if oxygen levels have fallen below a particular point.

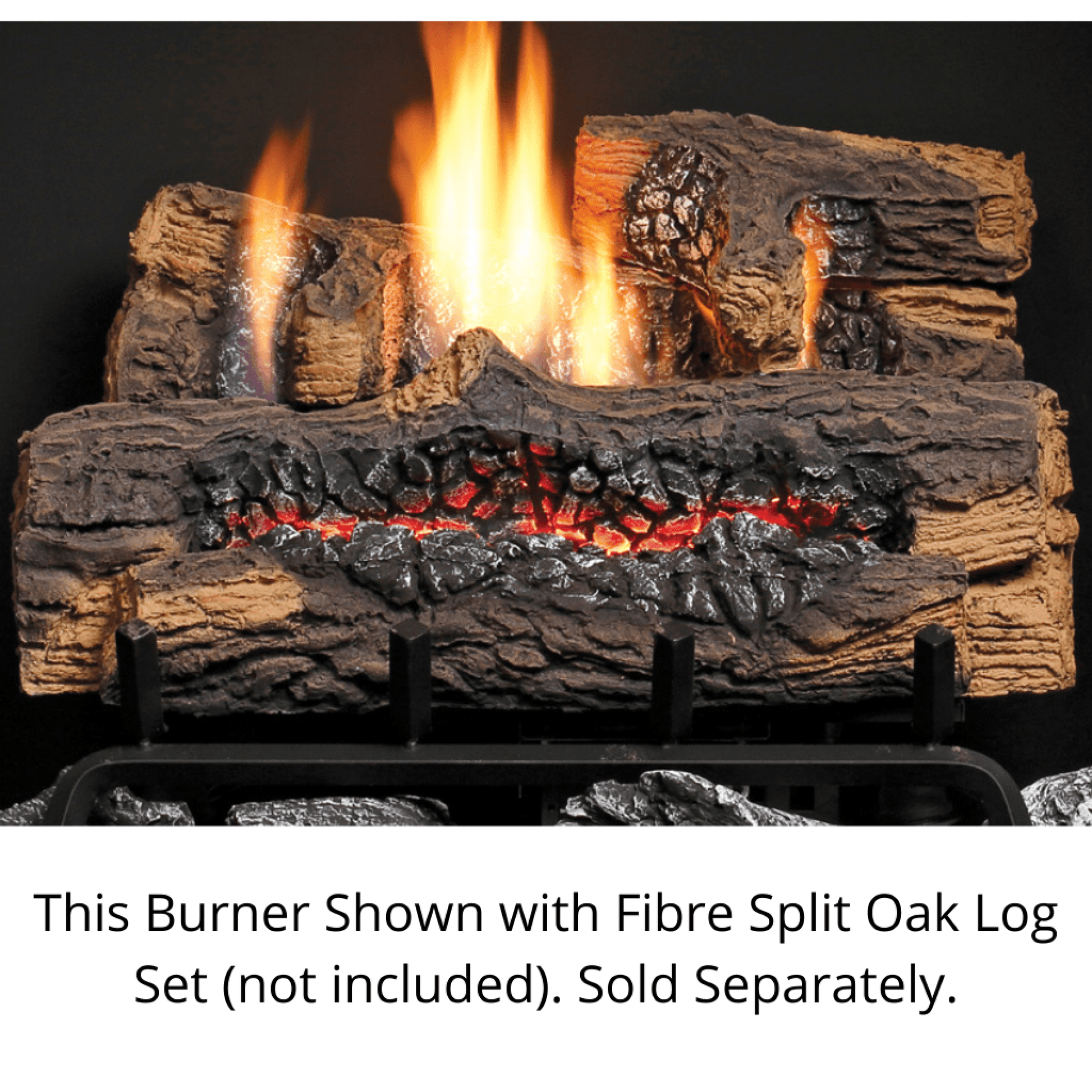

* Please Note: This is for the gas burner only. No logs are included.

STANDARD FEATURES

  • Ignition: Manual Valve, Millivolt Valve
  • Certified to: ANSI Z21.11.2-2007
  • Manually operated variable flame control
  • Wall Switch Control (for Millivolt Systems Only)
  • Vent free burner system includes matchless piezo starter
  • Fuel Type: Natural Gas, Liquid Propane (Not convertible)
  • Inlet gas pressure: 5 1/2 to 7 inches(NG) and 11 inches()LP of W.C.
  • Hi/low Millivolt or manual valve with variable adjustment of flame and BTU
  • An ODS sensor that constantly monitors the room air and provides 100% gas shut off if oxygen is reduces below acceptable levels
  • Designed to fit ZVF33P series fireplaces

PRODUCT SPECIFICATION

Model ZVFB3330MAN ZVFB3330MAP ZVFB3330MVN ZVFB3330MVP
Fuel Natural Propane Natural Propane
Gas Control Manual Manual Millivolt Millivolt
Input Max. 30,000 BTU
30,000 BTU
30,000 BTU
30,000 BTU
Input Min. 13,000 BTU
22,000 BTU
13,000 BTU
22,000 BTU
Glass Type Pull Screen
Pull Screen
Pull Screen
Pull Screen
Actual Width (CVCK)
32 1/2"
32 1/2"
32 1/2"
32 1/2"
Actual Height (CVCK) 30 1/2"
30 1/2"
30 1/2"
30 1/2"
Actual Depth (CVCK) 14"
14"
14"
14"

CA Residents: See Prop 65 WARNING
