Mason-Lite

MFP44-RM

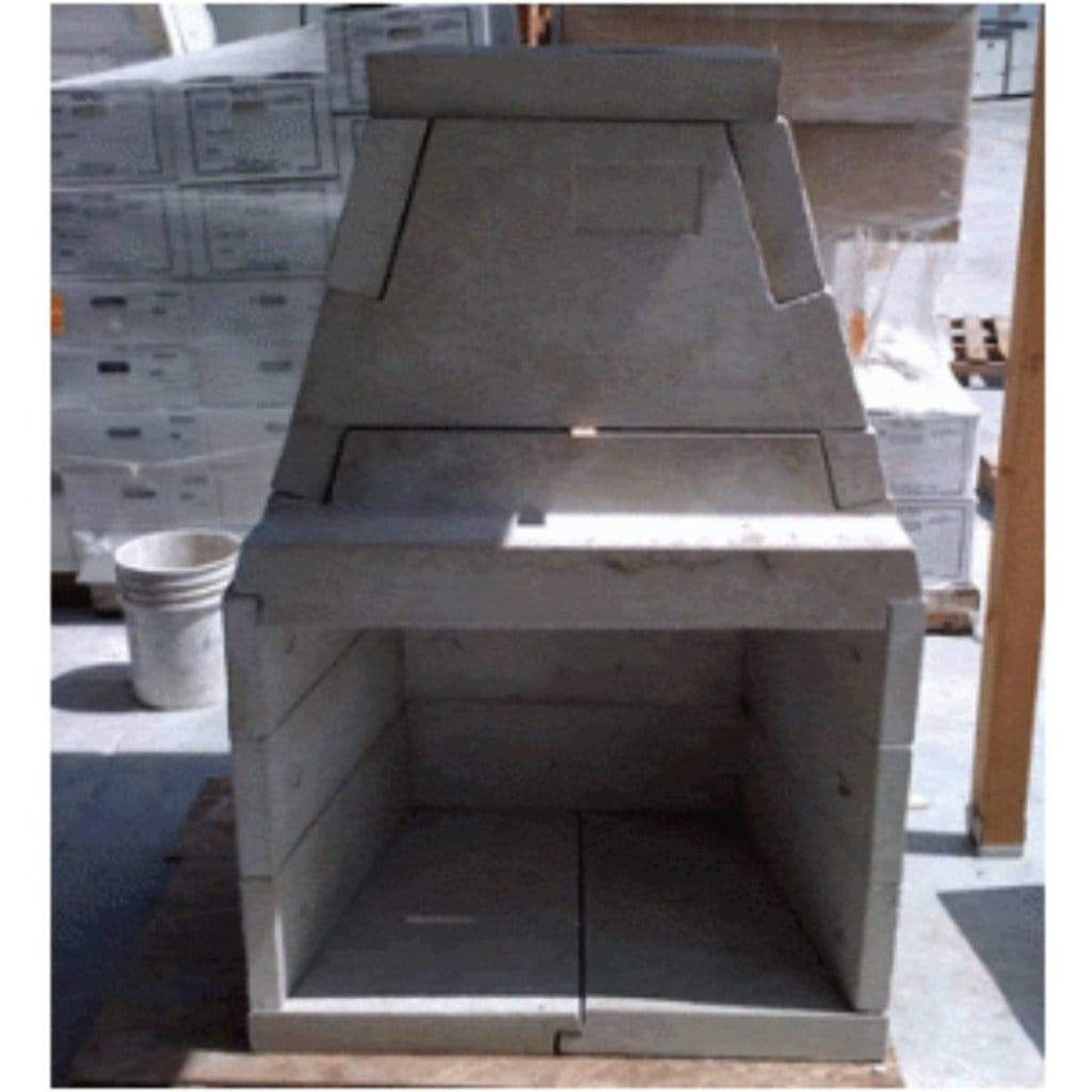

Mason-Lite 44" Pre-Cast Masonry Firebox Kit for 12" Class A UL103 Chimney System with Height Kit


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

Have you ever dreamed of the radiant warmth of a masonry fireplace in your bedroom? Or, do you dream of an outdoor fireplace where you can gather together with friends and loved ones? Dreams can come true with Mason-Lite masonry fireplaces. Our factory-built masonry fireboxes are affordable, easy to handle, and consistent in quality. A masonry fireplace adds luxury and increases the value of your home.

Recreating the tradition of the hearth and the elegance & romance of the flame, Mason-Lite captures the essence of the fireplace masonry artists have been crafting for centuries. And, with a proven history of superior quality, lightweight fireplaces for indoor and outdoor projects, it’s no wonder Mason-Lite is one of the industry leaders of modular concrete fireplaces.

At Mason-Lite, we use the finest aggregate materials available to build our lightweight modular concrete fireplaces. One of the main ingredients is pumice, a natural-fired volcanic rock with tremendous strength.

Its lightweight attributes are second to none, and because of its pre-fired beginnings, pumice retains heat better than any natural aggregate available. The best sources for USA pumice are in the western states, convenient to Mason-Lite’s California-based production facilities. Pumice is formed when gas-rich, frothy magma rapidly cools, creating air pockets that contribute to its remarkable lightweight properties.

Because it is only half the weight and half the cost of traditional masonry fireplaces, Mason-Lite Lightweight Masonry Fireplace Systems help you realize your dream of having a fireplace in your master bedroom, upstairs retreat, or even your outdoor patio, without major building infrastructure reinforcement. The restful flicker and comfortable glow of the fire will provide you with years of treasured memories.

With the help of ICC-ES, Mason-Lite developed the structural testing and performance criteria (AC375) that would comply with the International Building Code (IBC), the International Residential Code (IRC), and the International Fuel Gas Code (IFGC). This allows building officials throughout the US to confirm that Mason-Lite fireplaces meet these stringent codes.

Why Choose Mason-Lite:

Product Features & Benefits

  • Lightweight construction with multiple firebox sizes available.
  • Best fit and finish in the industry.
  • Available for Indoor/outdoor, wood-burning, natural, and propane gas systems.
  • Allowed for multi-story combustible floor installations.
  • Superior thermal efficiencies with the highest resistance strength at 28 days.
  • Complies and tested with UL 127 & UL 103 chimney component standards.
  • Optional herringbone or running bond firebrick panels for easy installation.
  • Heat resistant fire tested up to 1700 Degrees Fahrenheit.
  • Less expensive shipping and handling costs.
  • 50% cheaper than a traditional hand-built masonry fireplace.
  • All kits come complete with Refractory Mortar, Rebar, and T-bar.
  • Limited Lifetime warranty.
  • Made in the U.S.A.



Specifications

Model MFP44-RM
Finished Opening Width 41" (W) x 21.5" (D) x 30.5" (H)
Total Unit Height 62.25"
Footprint 48" x 28"
Flue Diameter - Class A 12" ID
Clearance to Combustibles* (Sides and Back) 2"
Framing Width 52" (W) x 30" (D) x 64.25" (H)
Floor Area(48x28) 9.33 sq. ft.
Fireplace Weight 1954 lbs.
Mortar and Rebar 67 lbs.
Ready Mix 200 lbs.
Metal Chimney weight per foot 10 lbs.
Installation Type Flush Installation / Corner / Internal Wall / Full Projection
Warranty Limited lifetime warranty


Product Inclusions:

Click to see details

Refractory Mortar

Rebar and T-Bar



Optional Accessories

Click to see details

MFP44SHBL Split Herringbone Brick liner

Mason-Lite offers true firebrick panels for quick and easy installation.

Two color options: Standard Buff and Red

MFP44FRBL Full Running Bond Brick liner

Mason-Lite offers true firebrick panels for quick and easy installation.

Two color options: Standard Buff and Red

MFP44SRBL Split Running Bond Brick liner

Mason-Lite offers true firebrick panels for quick and easy installation.

Two color options: Standard Buff and Red

MFPB44 6" Structural Metal Base

Our 6” and 8” bases are used for installations on combustible floors or second story applications.

MFP4-AK Combustion Air Kit

Because homes are being built so tight, many jurisdictions are requiring additional outside air to make up for negative air pressure. For convenience, the kit comes pre-drilled for this application.

MFP-Arc Masonry Arch

The masonry arch kit consists of 2 pieces that can easily be mortared in to give a custom look.

MFP44-HK Height Kit

This Height Kit consists of a rear wall and two side walls that will increase the height opening by 8" from the standard opening (giving a Rumford look). With the new size opening be sure to check the Chimney Size Chart to ensure proper flu size.

12ATGAPD Anchor Plate w/ Damper

Dampers are required for indoor applications. Mason-Lite offers several damper options: metal anchor plate/damper for masonry chimney; cast iron damper (damper blocks included); anchor plate/damper for metal chimney

Premium Chimney Shrouds

Mason Lite’s Decorative steel and copper chimney pots offer an alternative to unsightly factory flue caps and terminations, improving the aesthetics of chimney tops

Air Cooled Chimney System for Masonry Fireplace

Click to see details
Click Here to Shop for Class A UL103 Chimney System


Downloads





Attention: You may need a residential building permit to install a Mason-Lite Fireplace. Consult local jurisdictions before you get started!
