Metal-Fab Sure-Seal Direct Vent 4" x 45 Degree Adapter
Metal-Fab Sure-Seal Direct Vent 4" x 45 Degree Adapter
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Direct vent systems are balanced pressure systems acquiring intake air from outside the dwelling while exhausting combustion gases through the sealed flue. UL 2112 tested and listed, Metal-Fab Direct Vent products are designed for safety, strength, and reliability, generating a product that lasts a lifetime. Precision design and construction of the 430 stainless steel flue eliminate the need for gaskets and reduce leaks, enhancing product dependability and safety. Our innovative male-to-female slip connection design with flared female connections yields a product that is easy to install, reducing cost and installation time.
What's Included
- 4" x 45 Degree Adapter
Features
- Available in 4" and 5" Inner Diameter.
- Stainless steel inner flue, superior to aluminum for high heat applications.
- Unitized construction eliminates field assembly of inner flue and casing.
- Twist connections with SureLock™ provide quick, positive, fastener-free installation on 4X6 components.
- Precision pipe and fittings have been engineered for optimum appliance performance in both horizontal and vertical configurations. Field-applied sealant is not required.
- Laboratory tested and listed with each appliance.
- Wind, rain, and thermal performance-tested for safer, dependable operation.
- All elbows swivel for easy alignment of system components.
- Single multi-adjustable length.
New Technology
The special double-wall construction of Metal-Fab Direct Vent allows direct vent stoves and fireplaces to operate without using air from inside the building. These direct vent appliances draw combustion air in from outdoors through the direct vent system, meaning that warm inside air is not being used to fuel the appliance. The appliance burns efficiently without creating fumes, condensation or smoke in the room.
Better Design, Better Construction
Specifications
| Application | Designed for use only with Direct-Vented gas-fired appliances that comply with “ANSI Z21” Standards. |
| Listings/Standards |
International Building Code NFPA 54 UL 2112 |
| Flue Material | 430 Stainless Steel |
| Casing Material |
Galvanized Steel |
| Inner Diameter | 4" |
| Outer Diameter | 6.5" |
| Degree Angle | 45 Degree |
| Color | Silver |

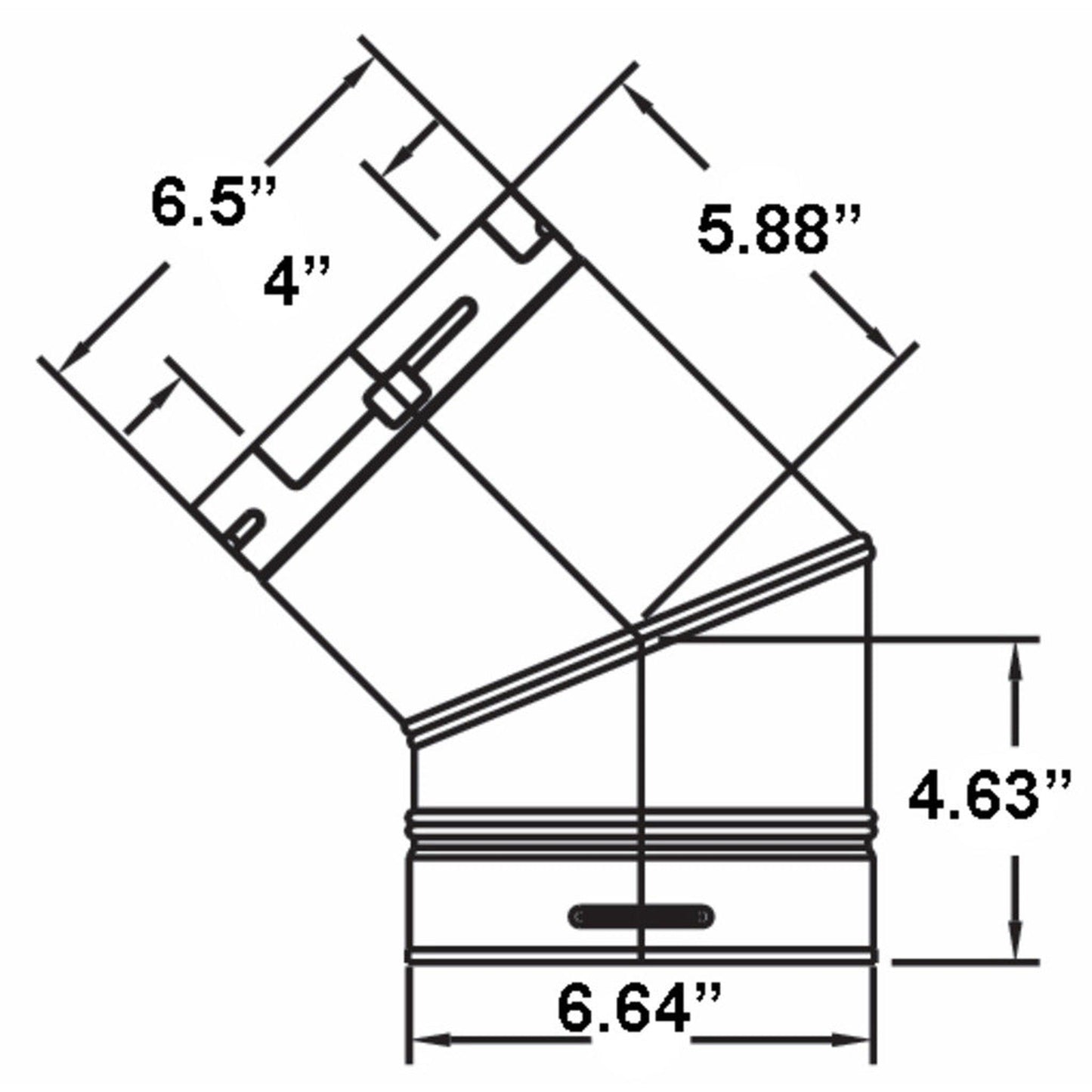

Technical Drawings & Dimensions
Warranty
The Metal-Fab Direct Vent factory-built gas vent system, when installed according to the manufacturer's instructions, as prescribed by Underwriters Laboratories Standard 2112, and when properly and regularly cleaned and maintained as set forth below, is warranted by Metal-Fab Inc. under normal residential use against defects in material or workmanship of the product for parts only for as long as the original consumer owns the venting system. During the first ten years of the warranty, Metal-Fab will provide replacement vent components at no charge. During the balance of the warranty, Metal-Fab will provide replacement vent components at 50% of the current retail price in effect at the time of the warranty claim. The defective part(s) must be returned with all transportation charges prepaid by the owner to the Customer Service Department, Metal-Fab Inc., 3025 May Avenue, Wichita, Kansas 67213. Metal-Fab Inc. will in turn ship the repaired or replacement part to the owner, and freight collect, with the owner to be responsible for all freight charges. This warranty does not cover any labor or other service charges incurred by the owner, or any parts not manufactured by Metal-Fab Inc.
Click to See Complete Warranty Details
It is the OWNER'S RESPONSIBILITY to establish:
- 1. the date of the original installation of the product;
- 2. the name of the original purchaser;
- 3. the name of the installer; and
- 4. that the product was installed according to the manufacturer's instructions.
DISCLAIMERS AND EXCLUSIONS
The following shall be applicable to those products of Metal-Fab Inc. described above:
- 1. The warranty described hereinabove shall be IN LIEU of any other warranty, express or implied. Except as set out hereinabove, there are NO other warranties and any statutory or implied warranty of MERCHANTABILITY or fitness for a particular purpose is EXCLUDED from this transaction and shall not apply.
- 2. The sole and exclusive remedy against Metal-Fab Inc. shall be for the repair or replacement of defective parts as provided hereinabove. NO OTHER REMEDY (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. The sole purpose of the stipulated exclusive remedy provided for herein, shall be the repair and replacement of defective parts in the manner provided hereinabove. This exclusive remedy shall not be deemed to have failed of its essential purpose so long as Metal-Fab Inc. is willing and able to repair or replace defective parts in the prescribed manner.
-
3. The owner shall not be required to deliver a defective part to Metal-Fab Inc. if:
- (a) The part was destroyed as a result of its defect or any defect in any part covered in this warranty; and
- (b) Metal-Fab Inc. is reasonably satisfied that the part was defective at the time of sale.
- 4. The owner acknowledges that no oral statements purporting to be warranties, representations, or guarantees of any kind about any product of Metal-Fab Inc. have been made to the owner by Metal-Fab Inc., by the original purchaser if different from the owner, or by its dealer which in any way expands, alters, or modifies the terms of the warranty set out herein. Any such statements do not constitute warranties, shall not be relied on by the owner, and are not part of the contract of sale. This writing constitutes a complete and exclusive statement of the terms of any warranty, express or implied, of Metal-Fab Inc.
- 5. There is NO WARRANTY for any defective part of a Metal-Fab product which has been removed from its original installation site or which, in the judgment of Metal-Fab Inc., arises from misuse, mishandling, neglect, chimney fire, flood, lightning, corrosive atmosphere, improper installation of the product, improper servicing of the product, unauthorized modification of the product, improper fuel supply to the product, or the failure of the installer to properly install or service the product as is set out in the installation instructions.
Documents & Files
