SKU:SLK0625SWOC
Metal-Fab 6" Diameter x 25' Length Stainless Steel Liner With 5' Single Wall Oval Connector
Metal-Fab 6" Diameter x 25' Length Stainless Steel Liner With 5' Single Wall Oval Connector
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
![](https://cdn.shopify.com/s/files/1/0100/7917/4734/files/DEALER_160x160.jpg?v=1612232580)
Overview
Metal-Fab provides complete and comprehensive venting solutions to the HVAC, Hearth and Plumbing markets. Founded in 1958 on the premise that offering better products and services would be the key to our success.
Metal-Fab continues to operate today as a privately held entity with the same core values that lead to success while creating steady, stable growth over the past six decades.
Customer needs are the highest priority at Metal-Fab that is why every customer receives a unique experience while choosing from a full line of high-quality venting products for commercial, residential and industrial applications.
Cutting-edge manufacturing systems, innovative designs, patent products, unmatched product quality, and a focus for detail have resulted in a leadership position within the industries Metal-Fab serves. Our constant product improvement process and experience in developing and engineer products for safe, efficient appliance operation sets Metal-Fab apart from the competition.
Description
Flexible Stainless Steel Chimney Liners intended for field-installation into new or existing tile-lined or unlined masonry chimneys used for venting natural active Category I gas-fired, Type L oil-fired and solid-fuel residential-type appliances in which maximum continuous flue gas temperatures do not exceed 1000°F. Chimney liners are intended to be installed in accordance to the “Standard for Chimneys, Fireplaces, Vents, and Solid Fuel Burning Appliances,” NFPA 211; “National Fuel Gas Code,” NFPA 54.
Features
- Also available in 35' length.
- Complete product line of individual components and vent kits.
- 6" diameter and 25' length.
- Built with tough 316L stainless steel, yet flexible enough to make tight turns.
- Removable snout tee for easy assembly
- Integral one-piece collar/top plate eliminates the need for a storm collar.
- Insulation available in handy rolls.
- Components for each kit are packaged together in one carton.
- Limited Lifetime Warranty

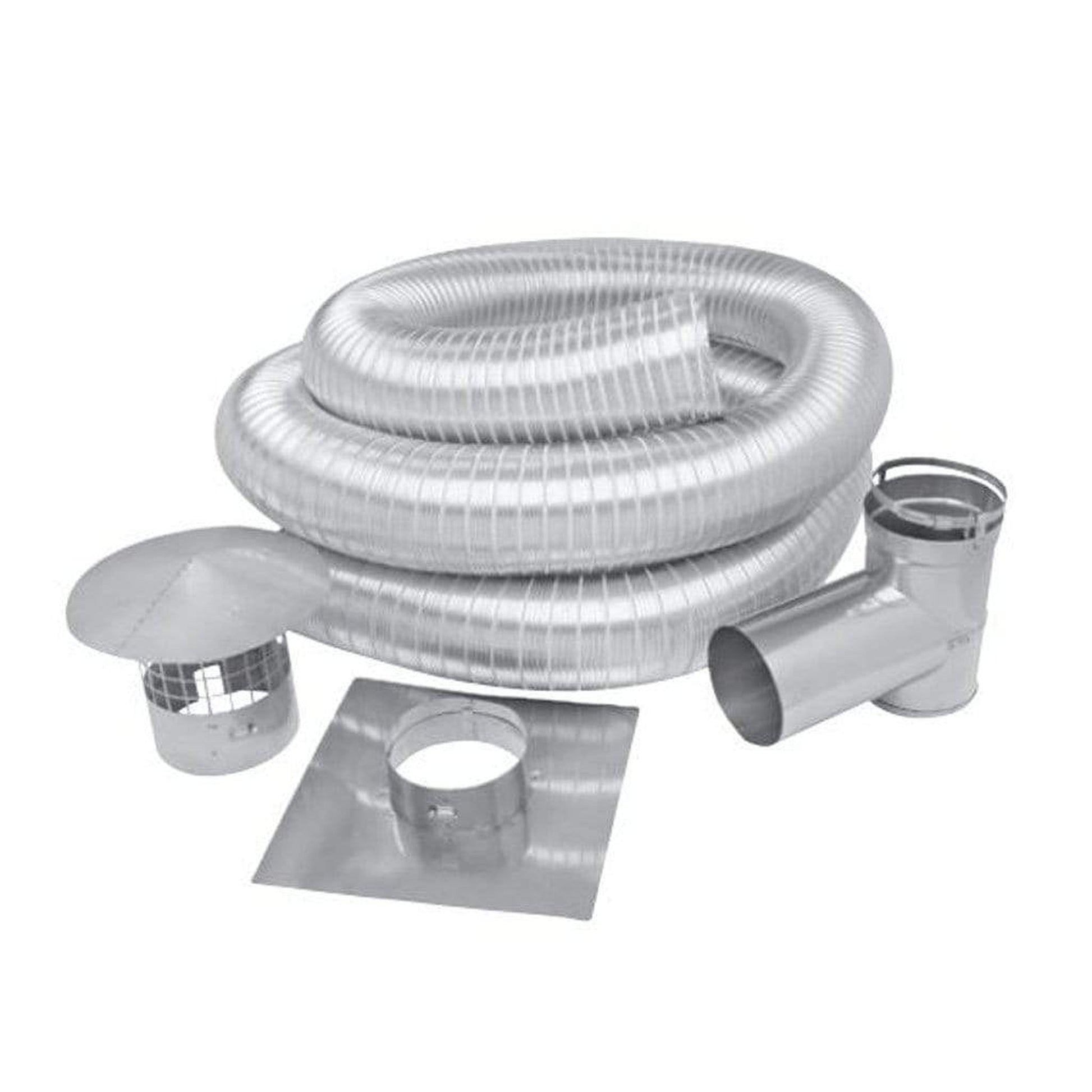

Kit includes:
- Specified Length of Stainless Steel Flex - Last 5’ Ovalized
- Vent Cap
- Top Plate
- Storm Collar
- Single-wall Oval to Round Adapter
- Instructions
Specifications
Application | For use with wood, pellet, coal, oil and gas-fired appliances. |
Listings/Standards | NFPA 211 NFPA 54 UL 1777 ULC – S635 ULC – S636 |
Construction | 316L stainless steel |
Diameters | 6" |
Length | 25' |
Clearances
Clearance from single-wall connectors to combustible material shall be in accordance with NPFA 211 as shown in the table below.
NOTES:
- These clearances apply unless a different clearance is specified by the appliance manufacturer.
- These clearances do not apply if a listed wall penetration system is used.
Clearance between flex liner and masonry and between masonry and combustibles is as shown in the following table:
Downloads
