SKU:LCUF36CR-B

Monessen 36" Lo-Rider LCUF Clean Face Vent Free Firebox with Traditional Refractory Firebrick

Name: Monessen 36" Lo-Rider LCUF Clean Face Vent Free Firebox with Traditional Refractory Firebrick
Brand: Monessen
SKU: LCUF36CR-B
Price: 909.0 USD
Availability: OutOfStock

$909.00

~~$1,091.00~~ $909.00

Sale Sold out

Product variants

Outside Air Kit

Glass Kit

Logs (Required to Complete)

Burners (Required to Complete)

Log Accessories

Mantels

Mantel Base

Brick Panels

Fronts Door (2 required if desired on two sides)

Light Kit

Air Kit

Air Blower

Insulated Flex Duct

Flex Duct for Outside Air

Free Shipping on Orders Over $300
Same-Day Order Processing
Easy Monthly Installments Starting at 0% APR*

Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

LO-RIDER LCUF VENT FREE FIREBOX

For a true masonry look, the Lo-Rider Series features a low profile hearth, so the firebox appears to nearly rest on the floor, providing the tallest fireplace opening and a truly expansive viewing area.

Its name says it all! The flush hearth design of our Lo-Rider vent free firebox mimics the look of a true wood-burning fireplace. Your favorite Monessen vent free log set, hide-away screen pockets, and extra tall opening show off your fireplace in unparalleled style. And, like all of our fireboxes, the Lo-Rider’s design delivers maximum heat to your space, while the ventless zero clearance design gives you the flexibility to install just about anywhere.

The LCUF series of vent free fireboxes from Monessen offers flexibility with 3 sizes - 32, 36, and 42 inches - and the option of circulating or radiant design to suit your requirements perfectly.

Available with your choice of firebrick as well as a range of optional accessories, the LCUF series is easy to incorporate into your design requirements.

A Monessen vent free firebox is the perfect way to display and operate your Monessen vent free log set. While our log sets can be utilized in an existing approved wood-burning fireplace (converted with a gas line), if your home does not already have an existing fireplace, a vent free firebox is an economical way to add a fireplace to your home. Installed in either your wall or a free-standing cabinet, a vent free firebox is simply the metal combustion chamber of a traditional fireplace system, without the log set and engine. You then add the vent free log set (with engine) of your choice to complete it.

Monessen offers one of the most diverse lineups of vent free gas fireboxes available, making it easy to find the right look for your home. Enjoy beautiful flames, excellent heating, and a customized look with the addition of your choice of Monessen log sets.

Because vent-free fireboxes and log sets are designed to be installed and operated without a chimney, flue, or vent, they can be installed in locations in your home where it would be impossible or cost-prohibitive to install a vented fireplace. They provide the most economical installation, only requiring a connection to a gas line.

Monessen vent free fireboxes allow for zero clearance installation, which means they may be installed flush against any combustible surface such as drywall or wood. This gives you added flexibility and helps save installation dollars when deciding where to install your fireplace, whether on an interior or exterior wall. (It is important to remember that the appliance should be sized to fit the area in which it is to be installed and must meet any additional regional or local requirements.

Monessen offers a large selection of vent-free log sets (sold separately) that are a perfect complement to your new fireplace.

FEATURES

Low profile hearth
Includes black hood
CSA design certified
Curtain fire screen
Hide-away screen pockets
Optional outside air kit available
Tallest opening available for a full view of fire
Electrical junction box included for hook up
The 32" accommodates most 18" and 24" vent-free logs
Standard stacked concrete liner provides a true masonry look
Radiant face design with heat circulating air ducts for optional blower
Large selection of field-installed options, including several styles of designer facings

* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

PRODUCT SPECIFICATIONS

Lo-Rider LCUF 36	LCUF36CR-B
Size:	36
Appliance Width:	42"
Appliance Height:	37-1/2"
Appliance Depth¹:	22-3/4"
Hearth Front Width:	33-3/4"
Hearth Front Height:	29-3/4"
Hearth Depth:	15-1/4"
Hearth Rear Width:	25-5/8"
Hearth Rear Height:	28-1/4"
Viewing Area:	36 x 30-3/4"

VENTING SPECIFICATIONS

Vent-free units do not require any venting products

PRODUCT DIMENSIONS

Overall dimensions - 42" W (front) x 37 1/4" H x 22 3/4" D x 30" W (rear)
Rough framing dimensions - 42 3/4" W x 37 3/4" H x 23" D
Minimum hearth dimensions - 33 3/4" W (front) x 29 3/4" H x 15 1/4" D x 25 5/8" W (rear)
Weight - 150 lbs.

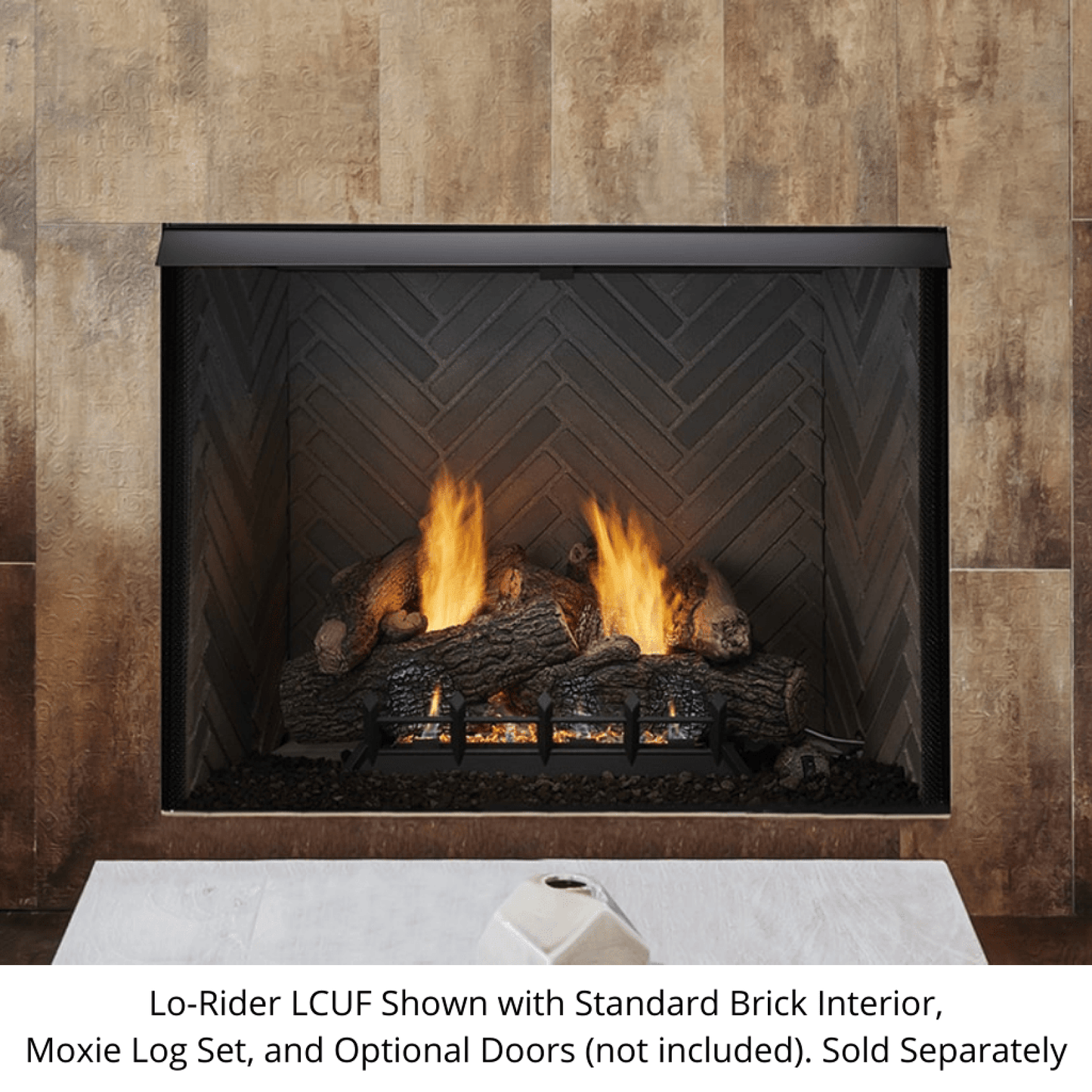

SHOWN WITH

Black Hood (standard)
Stacked Traditional Firebrick Liner (standard)
Black Decorative Doors (optional)
24" Moxie Burncrete Log Set (optional)
24" Glow Getter Burner (optional)
Custom Installation and Surround

CA Residents: See Prop 65 WARNING

CORNER INSTALLATION

FRONT VIEW

MINIMUM HEARTH DIMENSIONS

SIDE VIEW

TOP VIEW

OPTIONS & ACCESSORIES

Burners (Required to Complete)

Click to see Burners

	EYF24PM/EYF24NM/EYF24PV/EYF24NV Monessen popular EYF burner raise for dancing flames. Enjoy dancing, realistic flames with the EYF burner. The available EYF burner produces a fine yellow flame, heavy duty grate assembly adds an authentic touch. FEATURES Fuel Type: NG or LP Ignition Type: Manual Control/Millivolt Control Burner Only: 24" EYF Burner For use with firebox Use with 24" Charred Hickory 5-piece Multi-Log Set, 24" Mountain Oak 5-piece Multi-Log Set and 30" Mountain Oak 5-piece * Please Note: This is for the gas burner only. No logs are included.
	GG24NV/GG24PV Glow Getter burner are available in 18" and 24" sizes, these burners feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES Fuel Type: NG or LP Ignition Type: Millivolt Control Burner Only: 24" Glow Getter Burner For use with firebox Use with 24" Charisma Burncrete Hybrid 8 pc Log Set and 30" Charisma Burncrete Hybrid 8 pc Log Set. Use with 24" Dynamo Burncrete Hybrid 7 pc Log Set and 30" Dynamo Burncrete Hybrid 7 pc Log Set. Use with 24" Moxie Burncrete Hybrid 8 pc Log Set and 30" Moxie Burncrete Hybrid 8 pc Log Set. * Please Note: This is for the gas burner only. No logs are included.
	GG24NIF/GG24PIF Glow Getter burner are available in 18" and 24" sizes, these burners formats. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES Fuel Type: NG or LP Ignition Type: IPI Control Burner Only: 24" Glow Getter Burner For use with firebox Use with 24" Charisma Burncrete Hybrid 8 pc Log Set and 30" Charisma Burncrete Hybrid 8 pc Log Set. Use with 24" Dynamo Burncrete Hybrid 7 pc Log Set and 30" Dynamo Burncrete Hybrid 7 pc Log Set. Use with 24" Moxie Burncrete Hybrid 8 pc Log Set and 30" Moxie Burncrete Hybrid 8 pc Log Set. * Please Note: This is for the gas burner only. No logs are included.
	NB24NV/NB24PV Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas formats and feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES Fuel Type: NG or LP Ignition Type: Millivolt Control Burner Only: 24" Natural Blaze Burner For use with firebox Use with 24" Beachcomber Burncrete refractory 6-piece log set and 30" Beachcomber Burncrete refractory 6-piece log set Use with 24" Berkley Oak fiber ceramic 7-piece log set and 30" Berkley Oak fiber ceramic 7-piece log set Use with 24" Berkley Oak refractory 7-piece log set and 30" Berkley Oak refractory 7-piece log set Use with 24" Highland Oak Refractory 7-piece log set and 30" Highland Oak Refractory 7-piece log set Use with 24" Stony Creek refractory 11-piece log set and 30" Stony Creek refractory 11-piece log set * Please Note: This is for the gas burner only. No logs are included.
	NB24NIF/NB24PIF Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES Fuel Type: NG or LP Ignition Type: IPI Control Burner Only: 24" Natural Blaze Burner For use with firebox Use with 24" Beachcomber Burncrete refractory 6-piece log set and 30" Beachcomber Burncrete refractory 6-piece log set Use with 24" Berkley Oak fiber ceramic 7-piece log set and 30" Berkley Oak fiber ceramic 7-piece log set Use with 24" Berkley Oak refractory 7-piece log set and 30" Berkley Oak refractory 7-piece log set Use with 24" Highland Oak Refractory 7-piece log set and 30" Highland Oak Refractory 7-piece log set Use with 24" Stony Creek refractory 11-piece log set and 30" Stony Creek refractory 11-piece log set * Please Note: This is for the gas burner only. No logs are included.
	PH24PM/PH24NM/PH24PV/PH24NV PH burner are available in 18" and 24" sizes, these burners feature manual control and come in both Natural Gas and Propane. Also available in remote-control ready burners come in both Natural Gas and Propane. Millivolt Control Valve comes with On/Off Switch and Manual Variable Flame Height Control. FEATURES Fuel Type: NG or LP Ignition Type: Manual Control/Millivolt Control Burner Only: 24" PH Burner For use with firebox Use with 24" Mountain Cedar 6-piece Multi-Log Set and 30" Mountain Cedar 6-piece Multi-Log Set * Please Note: This is for the gas burner only. No logs are included.

Logs (Required to Complete)

Click to see Logs

	EYF24-F 24" Charred Hickory Design 4 Piece Ceramic Log Set Detailed log design For use with 24" EYF burner system Ceramic fiber reflects more heat Available in millivolt and manual control Includes volcanic rock Provides radiant heat and a very attractive focal point
	EYF24-R 24" Mountain Oak Design 5 Piece Refractory Log Set For use with 24" EYF burner system Refractory cement for fine detailing Detailed log design Includes volcanic rock Available in millivolt and manual control
	CR24-H 24" Charisma design 8 Piece burncrete hybrid log set For use with 24" Millivolt Control Glow Getter Burner For use with 24" IntelliFire Plus Glow Getter Burner with Remote Control New Burncrete® hybrid technology includes provides sharp detail and glowing logs Exclusive Glow Getter burner technology boasts dancing multi-peak flames and a glowing, active, ember bed Whole log with natural bark detail eight-piece log stack – so authentic its indistinguishable from the real thing Hand-painted details create a true log look Gorgeous colors and beautiful detail complement any décor Available in IntelliFire Plus® or millivolt control No chimney or venting required makes installation fast, easy, and affordable Includes volcanic rock, rock wool embers and ember bed log switch
	DY24-H 24" Dynamo design 7 Piece burncrete hybrid log set For use with 24" Millivolt Control Glow Getter Burner For use with 24" IntelliFire Plus Glow Getter Burner with Remote Control Burncrete® hybrid technology includes provides sharp detail and glowing logs Exclusive Glow Getter burner technology boasts dancing multi-peak flames and a glowing, active, ember bed Stout, authentic-looking log with natural bark detail in a robust seven-piece log stack Hand-painted details create a true log look Gorgeous colors and beautiful detail complement any décor Available in IntelliFire Plus® or millivolt control No chimney or venting required makes installation fast, easy, and affordable Includes volcanic rock, rock wool embers and ember bed log switch
	MX24-H 24" Moxie design 8 Piece burncrete hybrid log set For use with 24" Millivolt Control Glow Getter Burner For use with 24" IntelliFire Plus Glow Getter Burner with Remote Control New Burncrete® hybrid technology includes provides sharp detail and glowing logs Exclusive Glow Getter burner technology boasts dancing multi-peak flames and a glowing, active, ember bed Split oak style nine-piece log stack looks like you chopped it yourself Hand-painted details create the authentic look Gorgeous colors and beautiful detail complement any décor Available in IntelliFire Plus® or millivolt control No chimney or venting required makes installation fast, easy, and affordable Includes volcanic rock, rock wool embers and ember bed log switch
	BC24-R 24" Beachcomber design 6 Piece buncrete refractory log set For use with 24" Millivolt Control Natural Blaze Burner For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control EXCLUSIVE Natural Blaze Technology Available with the IntelliFire Plus® system or millivolt control Cast iron grate standard with burner Volcanic rock, rock wool embers and ember bed log switch
	BO24-F 24" Berkley oak design 7 Piece ceramic fiber log set For use with 24" Millivolt Control Natural Blaze Burner For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control EXCLUSIVE Natural Blaze Technology Available with the IntelliFire Plus® system or millivolt control Low profile design for a true glowing ember look Refractory cement for fine detailing or ceramic fiber to reflect more heat Includes volcanic rock and rock wool embers
	BO24-R 24" Berkley oak design 7 Piece refractory log set For use with 24" Millivolt Control Natural Blaze Burner For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control EXCLUSIVE Natural Blaze Technology Available with the IntelliFire Plus® system or millivolt control Cast iron grate standard with burner Volcanic rock, rock wool embers and ember bed log switch
	HO24-R 24" Highland oak design 7 Piece refractory log set For use with 24" Millivolt Control Natural Blaze Burner For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control EXCLUSIVE Natural Blaze Technology Available with the IntelliFire Plus® system or millivolt control Cast iron grate standard with burner Volcanic rock, rock wool embers and ember bed log switch
	SC24-R 24" Stoney creek design 11 Piece refractory log set For use with 24" Millivolt Control Natural Blaze Burner For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control EXCLUSIVE Natural Blaze Technology Available with the IntelliFire Plus® system or millivolt control Cast iron grate standard with burner Volcanic rock, rock wool embers and ember bed log switch
	PH24R 24" Mountain cedar Design 6 Piece Refractory Log Set For use with 24" PH burner system Refractory cement for fine detailing Available in millivolt and manual control Includes volcanic rock

Log Accessories

Click to see Optional Log Accessories

SC2430EK

The Monessen 24" & 30" Stony Creek Vent Free Gas Log Set features the choice to add the two top log enhancement kit. This enhancement kit is priced reasonably and adds two additional logs to the very top of the stack to make a fuller look that goes well with larger fireplaces. Each log has been made with the utmost take care of a realistic, authentic look that you simply won't find anywhere else.

Size: 24 inch & 30 inch
Unique, hand-painted finish
Designed for use with 24 & 30-inch stony creek gas log sets

Mantels

Click to see Optional Mantels

	B KENWOOD FLUSH MANTEL (AFKDMPB/AFKDAUB) Signature Series Transitional Style Standard wooden flush mantel Enhance your Whole Hearth Design Available in paint-grade primed MDF or unfinished maple B SIZE TECHNICAL SPECIFICATIONS (A) - Opening Width - 48" (B) - Outside Width - 65" (C) - Opening Height - 39 1/2" (D) - Outside Height - 51 3/4" (E) - Top Width - 74 1/2" (F) - Leg Width - 8" (G) - Shelf Depth - 9 3/4" (H) - Leg Depth - 5" * Please Note: This is the Mantel only.
	B KENWOOD 60" OUTSIDE WIDTH FLUSH MANTEL (AFKDMPB60) Signature Series Transitional Style Standard wooden flush mantel Enhance your Whole Hearth Design Available in paint-grade primed MDF B60 SIZE TECHNICAL SPECIFICATIONS (A) - Opening Width - 46" (B) - Outside Width - 60" (C) - Opening Height - 39 1/2" (D) - Outside Height - 51 5/8" (E) - Top Width - 67 1/2" (F) - Leg Width - 5" (G) - Shelf Depth - 8 1/2" (H) - Leg Depth - 4" * Please Note: This is the Mantel only.
	B WESCOTT FLUSH WOOD MANTEL (AFWTMPB) Select Series Transitional Style Standard wooden flush mantel Enhance your Whole Hearth Design Available in paint-grade primed MDF B SIZE TECHNICAL SPECIFICATIONS (A) - Opening Width - 48" (B) - Outside Width - 60" (C) - Opening Height - 39 1/2" (D) - Outside Height - 52 3/4" (E) - Top Width - 66 3/4" (F) - Leg Width - 5 1/2" (G) - Shelf Depth - 7 1/2" (H) - Leg Depth - 2 3/4" * Please Note: This is the Mantel only.
	B RICHLAND FLUSH WOOD MANTEL (AFRDMPB) Select Series Transitional Style Standard wooden flush mantel Enhance your Whole Hearth Design Available in paint-grade primed MDF B SIZE TECHNICAL SPECIFICATIONS (A) - Opening Width - 48" (B) - Outside Width - 60" (C) - Opening Height - 39 1/2" (D) - Outside Height - 51" (E) - Top Width - 68" (F) - Leg Width - 5 1/2" (G) - Shelf Depth - 7 1/2" (H) - Leg Depth - 2 3/4" * Please Note: This is the Mantel only.
	B ROXBOROUGH FLUSH WOOD MANTEL (AFRHMPB/AFRHAUB) Signature Series Traditional Style Standard wooden flush mantel Enhance your Whole Hearth Design Available in paint-grade primed MDF or unfinished maple B SIZE TECHNICAL SPECIFICATIONS (A) - Opening Width - 48" (B) - Outside Width - 60" (C) - Opening Height - 39 1/2" (D) - Outside Height - 52" (E) - Top Width - 68" (F) - Leg Width - 4" (G) - Shelf Depth - 7 1/4" (H) - Leg Depth - 3" * Please Note: This is the Mantel only.

Mantel Base

Click to see Optional Mantel Base

B KENWOOD FLUSH MANTEL BASE (HTKDMPB/HTKDAUB)

Flush wood mantels and base are a great value that create a focal point for all rooms. Each is delivered ready to finish with your choice of paint or stain to perfectly match the personal style and décor of your home.

Signature Series
Transitional Style
Standard wooden flush mantel base
Enhance your Whole Hearth Design
Available in paint-grade primed MDF or unfinished maple

B TECHNICAL SPECIFICATIONS

(A) - Top Width - 69-1/2"
(B) - Bottom Width - 70-1/2"
(C) - Height - 10"
(D) - Top Depth - 11-1/4"
(E) - Bottom Depth - 11-3/4"

Accessories

Click to see Optional Fronts Door
