MCUF36D-R

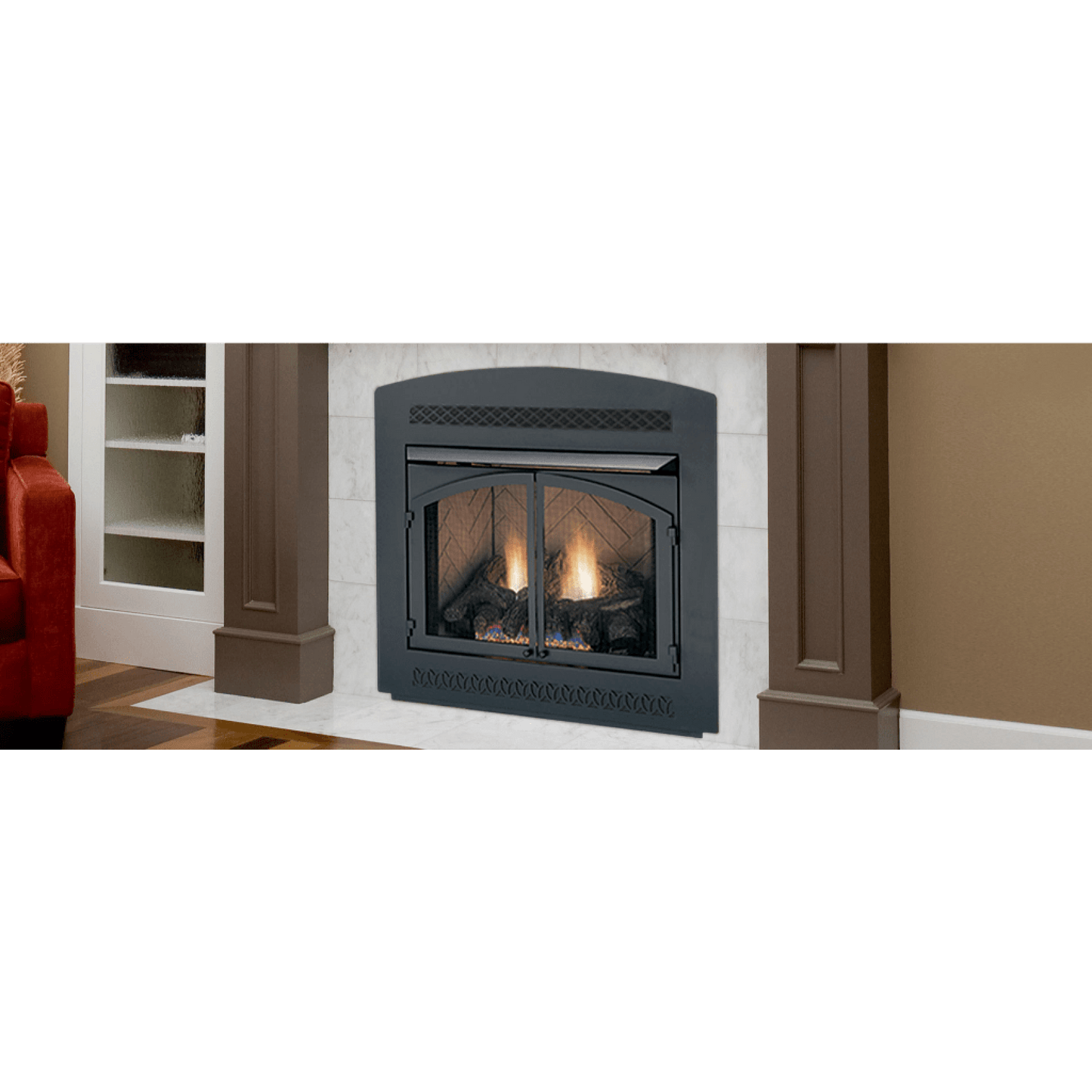

MAGNUM VENT FREE GAS FIREBOXThe Magnum firebox series offers Monessen's trademark angled firebox design coupled with a deep box and tall opening for maximum heating capacity. Finish your fireplace right up to the firebox with the material of your choice and add the log set you love for a perfect custom look.
See how easy it is to incorporate the timeless elegance and satisfying warmth of fire into your home with the vent free firebox series from Monessen.
Our Magnum MCUF series is available in either 36 or 42 inch sizes with your choice of standard 3D ceramic or Herringbone Firebrick. With radiant design and a wide variety of optional accessories, you can frame your fireplace right up to the firebox and finish it with a custom look.

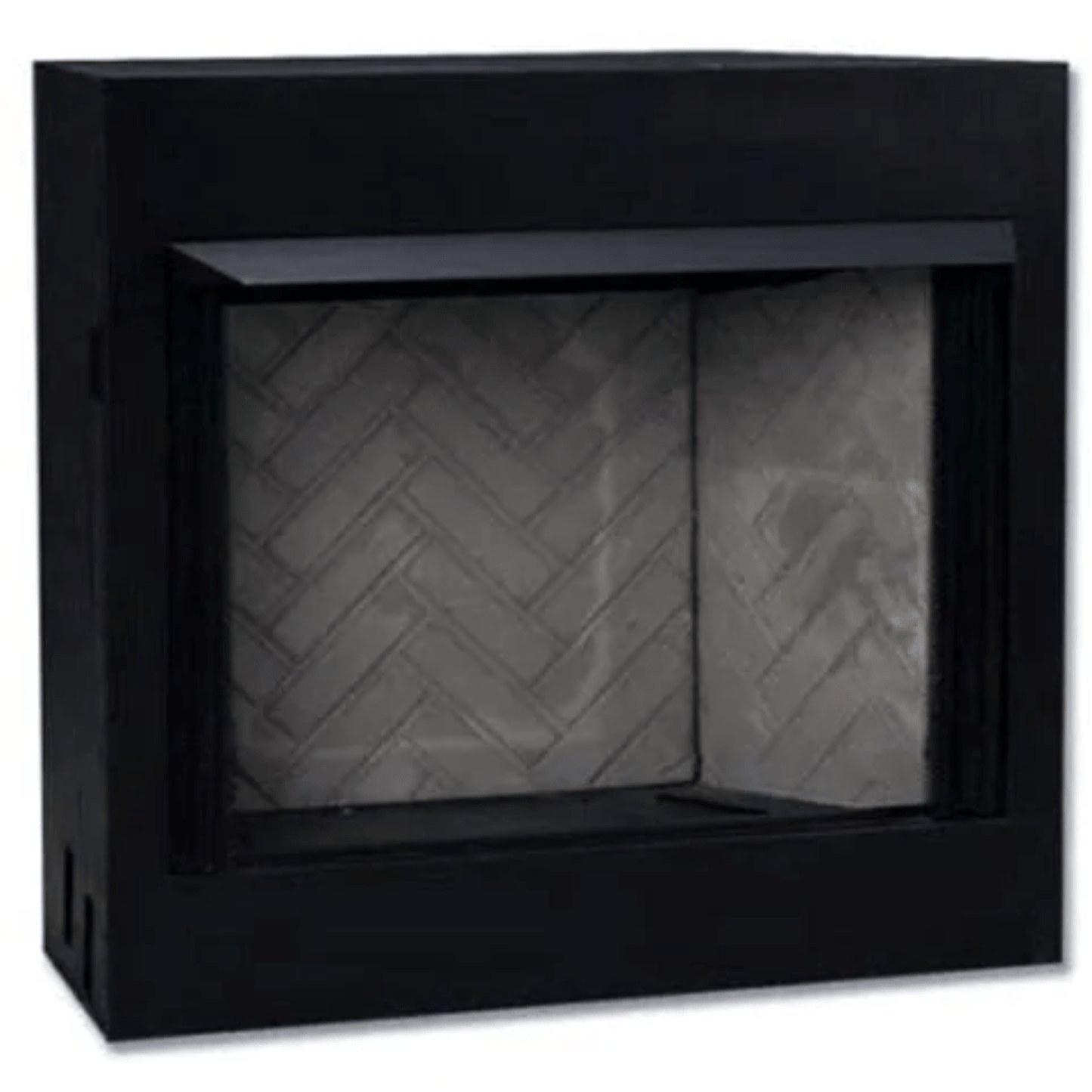

A Monessen vent free firebox is the perfect way to display and operate your Monessen vent free log set. While our log sets can be utilized in an existing approved wood-burning fireplace (converted with a gas line), if your home does not already have an existing fireplace, a vent free firebox is an economical way to add a fireplace to your home. Installed in either your wall or a free-standing cabinet, a vent free firebox is simply the metal combustion chamber of a traditional fireplace system, without the log set and engine. You then add the vent free log set (with engine) of your choice to complete it.
Monessen offers one of the most diverse lineups of vent free gas fireboxes available, making it easy to find the right look for your home. Enjoy beautiful flames, excellent heating, and a customized look with the addition of your choice of Monessen log sets.
Because vent-free fireboxes and log sets are designed to be installed and operated without a chimney, flue, or vent, they can be installed in locations in your home where it would be impossible or cost-prohibitive to install a vented fireplace. They provide the most economical installation, only requiring a connection to a gas line.
Monessen vent free fireboxes allow for zero clearance installation, which means they may be installed flush against any combustible surface such as drywall or wood. This gives you added flexibility and helps save installation dollars when deciding where to install your fireplace, whether on an interior or exterior wall. (It is important to remember that the appliance should be sized to fit the area in which it is to be installed and must meet any additional regional or local requirements.
Monessen offers a large selection of vent-free log sets (sold separately) that are a perfect complement to your new fireplace.
* Please Note: Log sets are not included and must be ordered separately.

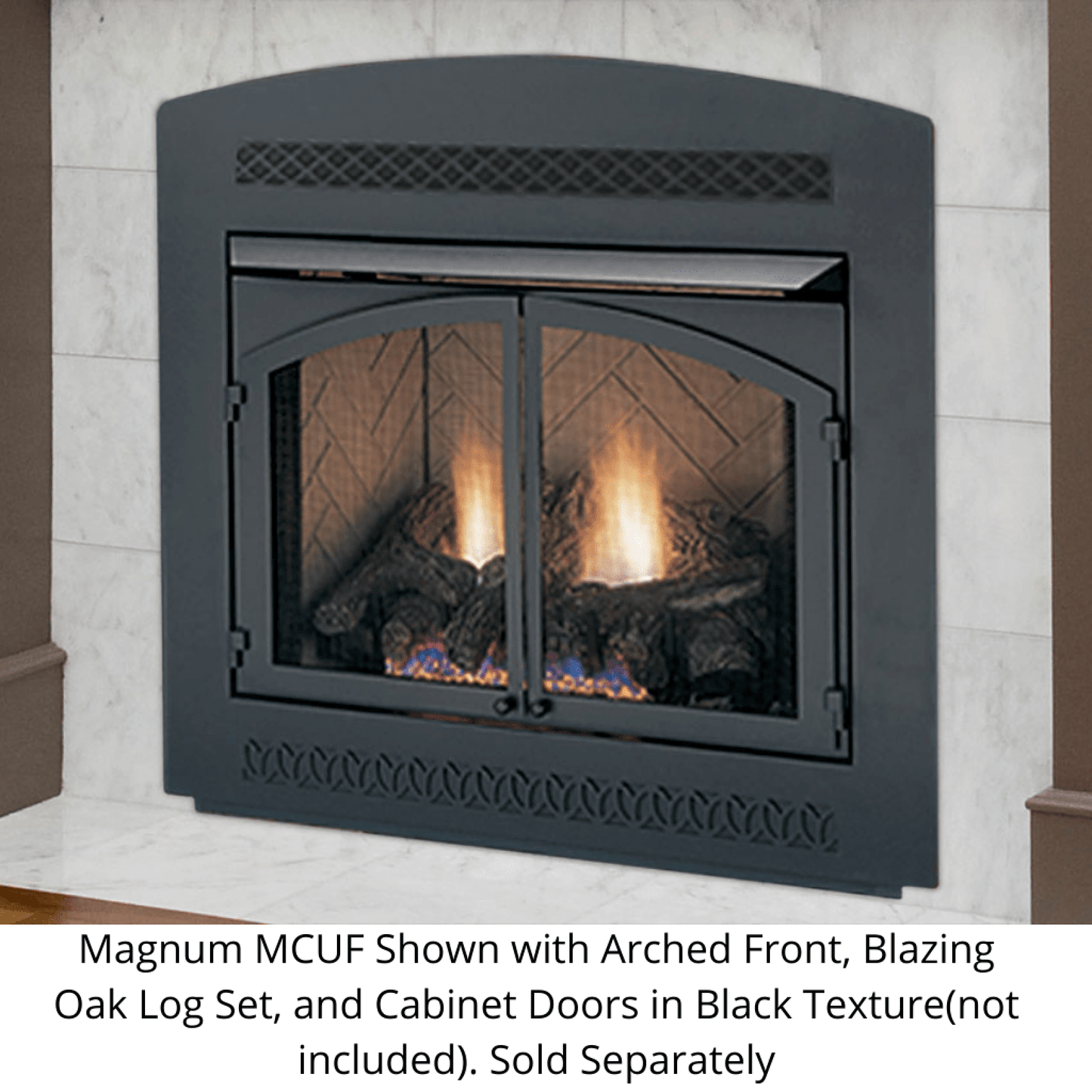

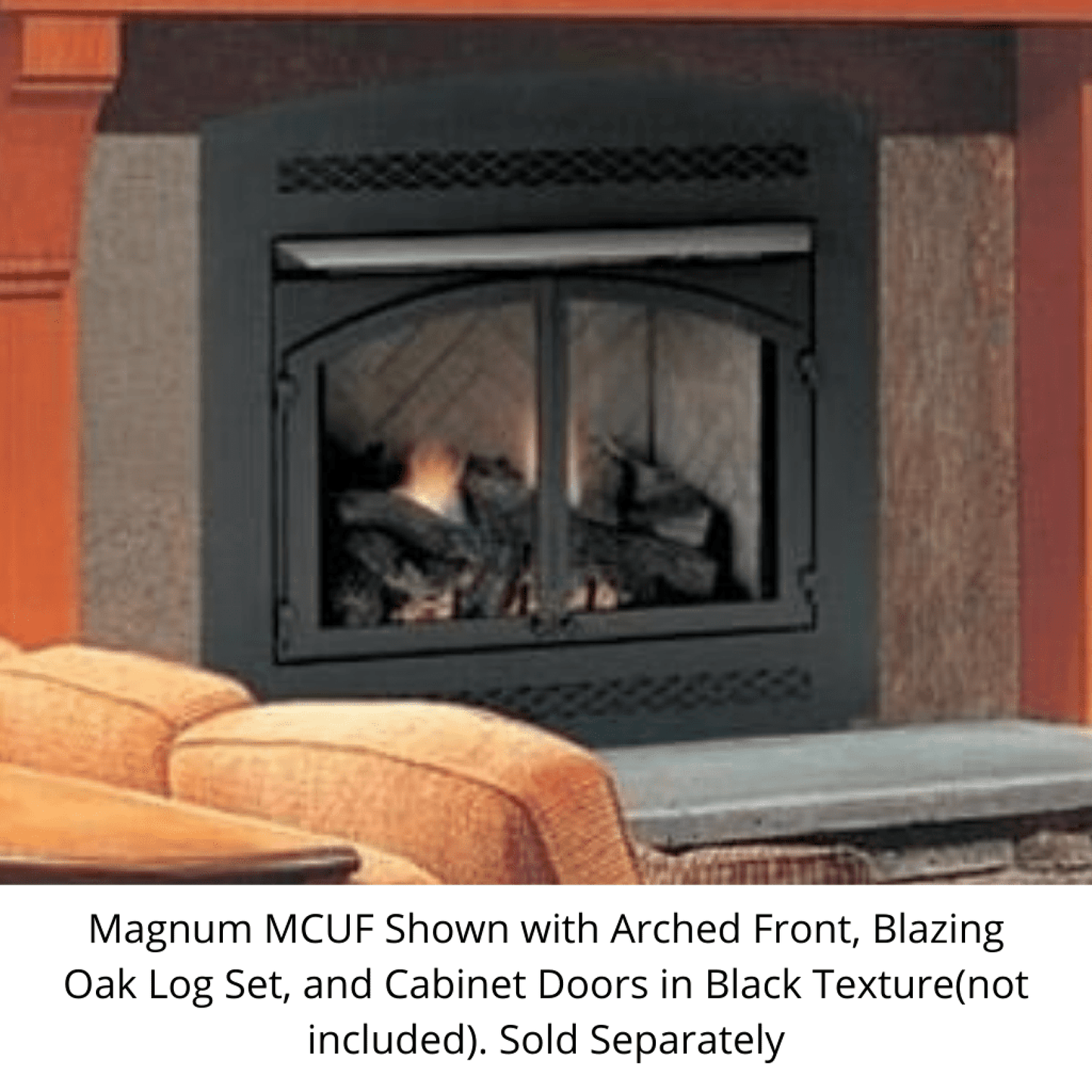

* Please Note: Operable doors and front may be used together or alone.
* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.
| Magnum 36 | MCUF36D-R |
|---|---|
| Size: | 36 |
| Appliance Width: | 41-1/4" |
| Appliance Height: | 37-3/8" |
| Appliance Depth1: | 18-1/4" |
| Appliance Rear Width: | 32" |
| Hearth Front Width: | 32-5/8" |
| Hearth Front Height: | 25" |
| Hearth Depth: | 15" |
| Hearth Rear Width: | 25-3/4" |
| Hearth Rear Height: | 20 1/2" |
| Viewing Area: | 36 x 26-1/4" |
CA Residents: See Prop 65 WARNING
 |
EYF18PM/EYF18NM/EYF18PV/EYF18NV Monessen popular EYF burner raise for dancing flames. Enjoy dancing, realistic flames with the EYF burner. The available EYF burner produces a fine yellow flame, heavy duty grate assembly adds an authentic touch. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
EYF24PM/EYF24NM/EYF24PV/EYF24NV Monessen popular EYF burner raise for dancing flames. Enjoy dancing, realistic flames with the EYF burner. The available EYF burner produces a fine yellow flame, heavy duty grate assembly adds an authentic touch. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
 |
GG18NV/GG18PV Glow Getter burner are available in 18" and 24" sizes, these burners feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
GG18NIF/GG18PIF Glow Getter burner are available in 18" and 24" sizes, these burners formats. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
GG24NV/GG24PV Glow Getter burner are available in 18" and 24" sizes, these burners feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
GG24NIF/GG24PIF Glow Getter burner are available in 18" and 24" sizes, these burners formats. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
 |
NB18NV/NB18PV Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas formats and feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
NB18NIF/NB18PIF Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
NB24NV/NB24PV Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas formats and feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
NB24NIF/NB24PIF Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
 |
PH18PM/PH18NM/PH18PV/PH18NV Monessen popular PH burner raise for dancing flames. Enjoy dancing, realistic flames with the PH burner. The available PH burner produces a fine yellow flame, and the cast iron grating adds a decorative touch. These log sets feature burners with flames in the front and rear, adding warmth and ambience to any room. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
|
PH24PM/PH24NM/PH24PV/PH24NV PH burner are available in 18" and 24" sizes, these burners feature manual control and come in both Natural Gas and Propane. Also available in remote-control ready burners come in both Natural Gas and Propane. Millivolt Control Valve comes with On/Off Switch and Manual Variable Flame Height Control. FEATURES
* Please Note: This is for the gas burner only. No logs are included. |
 |
EYF18-R
|
 |
EYF24-F
|
 |
EYF24-R
|
 |
CR18-H
|
 |
DY18-H
|
 |
MX18-H
|
 |
CR24-H
|
|
DY24-H
|
|
MX24-H
|
 |
BC18-R
|
 |
BO18-F
|
 |
BO18-R
|
 |
HO18-R
|
 |
SC18-R
|
|
BC24-R
|
|
BO24-F
|
|
BO24-R
|
|
HO24-R
|
|
SC24-R
|
 |
PH18R
|
|
PH24R
|
 |
SC18EK The Monessen 18" Stony Creek Vent Free Gas Log Set features the choice to add the two top log enhancement kit. This enhancement kit is priced reasonably and adds two additional logs to the very top of the stack to make a fuller look that goes well with larger fireplaces. Each log has been made with the utmost take care of a realistic, authentic look that you simply won't find anywhere else.
|
|
SC2430EK The Monessen 24" & 30" Stony Creek Vent Free Gas Log Set features the choice to add the two top log enhancement kit. This enhancement kit is priced reasonably and adds two additional logs to the very top of the stack to make a fuller look that goes well with larger fireplaces. Each log has been made with the utmost take care of a realistic, authentic look that you simply won't find anywhere else.
|
 |
BARRINGTON WOOD WALL CABINET (BWC500-U-A/BWC500-DW-A) Pleasing proportions, solid wood moulding and hand-crafted recessed panels give this birch mantel an elegant nuance of design that is sure to make it the focal point of any room. Available in Dark Walnut (shown) and unfinished, this fully adjustable mantel suits a multitude of Monessen units with ease. Your chimney needs a really special addition to form it look incredible. With the Barrington Wood Cabinet, you've got just that needed addition provided to you. Designed to be installed with Vent-Free Fireplace Systems.
Product Dimensions
* Please Note: This is the Cabinet only. |
|
DMC36CDBT
* Please Note: In order to be properly installed, these doors require the separate purchase of the appropriately sized Monessen cabinet door frame Compatible with the following Monessen appliances
|
 |
DMD36CDFBT
* Please Note: In order to be properly installed, these doors require the separate purchase of the appropriately sized Monessen cabinet door frame Compatible with the following Monessen appliances
|
 |
GMD36AFBT
* Please Note: In order to be properly installed, these doors require the separate purchase of the appropriately sized Monessen cabinet door frame Compatible with the following Monessen appliances
|
 |
BLOTMC
Compatible with the following Monessen appliances
|
 |
AK4
Compatible with the following Monessen appliances
|
