OB01700

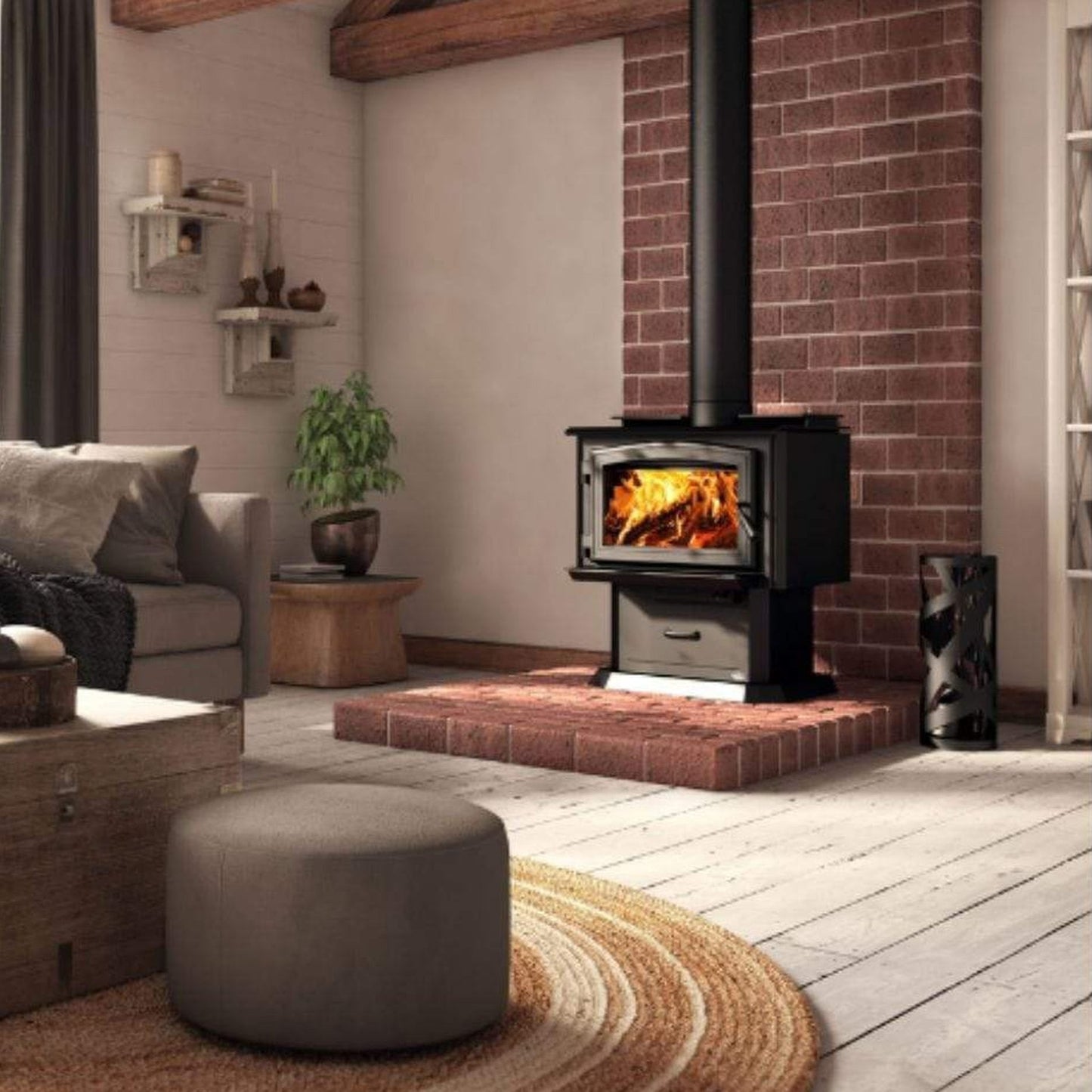

Designed to meet the needs of smaller spaces, the Osburn 1700 combines robustness and elegance to allow you to enjoy your heating experience with confidence. This unit is equipped with high-density bricks, a cast iron door, a built-in ash pan, a top heat deflector that redirects heat to the front of the unit, and side panels to reduce its clearances.
Choose your favorite version by customizing the unit to suit your style: refined door overlays, new leg designs, glass ash lip; significant innovations for the most seasoned experts. Exceeding air quality regulations with emissions as low as 1.26 g/h, the Osburn 1700's efficiency will save you time and money.
Required to complete the wood stove:
| Fuel type : | Dry cordwood | |
| Recommended heating area-ft² : () | 500 - 1,800 | |
| Overall firebox volume : | 1.9 | |
| EPA loading volume-ft³ : | 1.44 | |
| Maximum burn time : (1) | 6 h | |
| Maximum heat output (dry cordwood) : (2) | 65,000 BTU/h (19 kW) | |
| Overall heat output rate < : (2) (3) | 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW) | |
| Average overall efficiency (EPA cribs/Douglas fir) : (3) | N.A. (HHV) (4) | N.A. (LHV) (5) |
| Average overall efficiency (dry cordwood) : (3) | 70 % (HHV) (4) | 75 % (LHV) (5) |
| Optimum efficiency : (6) (7) | 78 % | |
| Average particulate emissions rate : (8) | 1.26 g/h | |
| Average CO : (9) | 58 g/h | |
(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
() Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb./ft³ and 20 lb./ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb./ft³ and 12 lb./ft³. The moisture content is between 19% and 25%.
(3) As measured per CSA B415.1-10 stack loss method.
(4) Higher Heating Value of the fuel.
(5) Lower Heating Value of the fuel.
(6) Performances based on a fuel load prescribed by the standard at 7 lb./ft³ and with a moisture content between 19% and 25%.
(7) Optimum overall efficiency at a specific burn rate (LHV).
(8) This appliance is officially tested and certified by an independent agency.
(9) Carbon monoxide.
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 18" |
| Log positioning | Over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 331 lb. (150 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 15 3/4" x 9 3/8" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 30 3/8" |
| Overall dimension (Width) | 24 7/8" |
| Overall dimension (Depth) | 23 1/4" |
| Door opening – dimension (Height) | 8 3/4" |
| Door opening - dimension (Width) | 17 1/4" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 19 5/8" |
| Firebox – dimension (Depth) | 13 1/2" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
|
BTU |
65,000 BTU |
|
Heating Capacity |
500-1,800 sq. ft. |
|
Firebox Size |
1.9 cu ft. |
|
Log Length |
up to 18” |
|
Flue Pipe Diameter |
6” |
|
Weight |
331 lbs. |
|
Width |
24 7/8” |
|
Depth |
23 1/4” |
|
Height |
30 ⅜” |
|
Height with Legs |
29” |
|
Mobile Home Approved |
Yes |
|
1700 Wood Stove with Black Door Overlayand Black Cast Iron Traditional Legs with Ash Drawer |
|
|

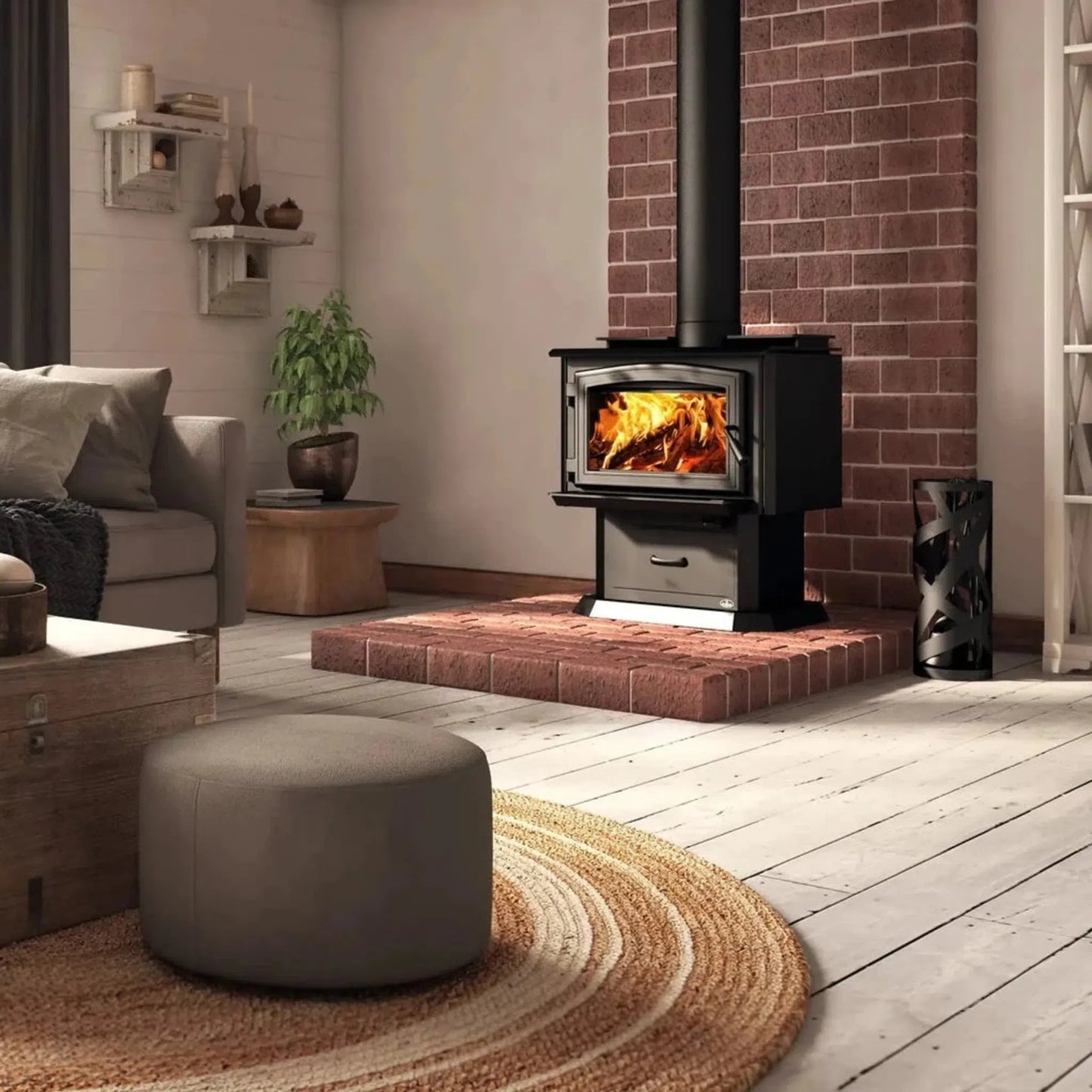

1700 Wood Stove with Black Door Overlay and Pedestal with Ash Drawer |
|
| 1700 Wood Stove with Black Door Overlay and Black Cast Iron Straight Legs with Ash Drawer |
|
| 1700 Wood Stove with Black Door Overlay and Brushed Nickel Cast Iron Traditional Legs with Ash Drawer |
|
| 1700 Wood Stove with Black Door Overlay and Brushed Nickel Cast Iron Straight Legs with Ash Drawer |
|
| 1700 Wood Stove with Brushed Nickel Door Overlay and Black Cast Iron Traditional Legs with Ash Drawer |
|
| 1700 Wood Stove with Brushed Nickel Door Overlay and Pedestal with Ash Drawer |
|
| 1700 Wood Stove with Brushed Nickel Door Overlay and Black Cast Iron Straight Legs with Ash Drawer |
|
| 1700 Wood Stove with Brushed Nickel Door Overlay and Brushed Nickel Cast Iron Traditional Legs with Ash Drawer |
|
| 1700 Wood Stove with Brushed Nickel Door Overlay and Brushed Nickel Cast Iron Straight Legs with Ash Drawer |
|
*NOTE: Shown with required door overlay and pedestal or leg kit (not included). The door overlay and pedestal or leg kit must be purchased to complete this unit.
|
130 cfm Blower with Variable Speed Control (Thermodisc Included) --- provide mechanical convection of heat to the room |
 |
|
5" Fresh Air Intake Kit for Wood Stove on Legs --- enable outside combustion air to feed into your appliance making the fireplace more efficient |
 |
|
5" Fresh Air Intake Kit for Wood Stove on Pedestal --- allows outside combustion air to be supplied to the stove |
 |
|
5" X 4' Insulated Flex Pipe for Fresh Air Intake Kit --- consists of a 4 ft. length of 5 in. diameter flexible insulated pipe, fits on fresh air kit adaptor |
 |
|
Glass Ash Lip --- keeps the stove's surrounding area clean |
 |
|
Rigid Firescreen --- enhances crackle of your fire |
 |
|
