Osburn 2000 Wood Insert with 5.5" x 25' Forever Flex Liner Kit

Osburn 2000 Wood Insert with 5.5" x 25' Forever Flex Liner Kit

Regular price $3,179.00
Regular price Sale price $3,179.00
Sale Sold out

Door Overlay - Required

-- Please Select --

No, Thank You

Faceplate - Required

-- Please Select --

No, Thank You

Faceplate Trim Kit - Required

-- Please Select --

No, Thank You

Options/Accessories

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Osburn products are made to order. The estimated lead time is 12-18 weeks.

Overview

The new standard lowering the fine particulate emission threshold will be conquered by the recent certification of the Osburn 2000 wood-burning stove. This revamped version now offers an incredibly low average particulate emissions rate of only 1.54 g/h, maximum heat output of 75,000 BTU/h, and 77% optimum efficiency. This insert still has a 2.4 ft3 combustion chamber and a 144-CFM ultra-quiet variable speed fan that is strategically positioned to redistribute heat throughout the room.

Designed to receive an optional faceplate that can cover a masonry hearth up to 32 inches (81 cm) high and 50 inches (127 cm) wide. A steel door overlay is available in black or brushed nickel as well as faceplate trims. Look no further, treat yourself to Osburn's legendary quality!

Required to complete the woodstove:

  • Faceplate
  • Faceplate Trim
  • Door Overlay

Included items: one Osburn 2000 wood insert (OB02016), one connector with Forever Flex 5.5"Ø x 25' flexible liner, one 13" x 13" top plate, and one chimney cap with screen, entirely made of stainless steel.

      Appliance Performance
      Fuel type : Dry cordwood
      Recommended heating area-ft² : () 500 - 2,100
      Overall firebox volume : 2.4
      EPA loading volume-ft³ : 2.02
      Maximum burn time : () 8 h
      Maximum heat output (dry cordwood) : (2) 75,000 BTU/h (22.0 kW)
      Overall heat output rate < : (2) (3) 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
      Average overall efficiency (EPA cribs/Douglas fir) : (3) N.A (HHV) (4) N.A (LHV) (5)
      Average overall efficiency (dry cordwood) : (3) 69 % (HHV) (4) 74 % (LHV) (5)
      Optimum efficiency : (6) (7) 77 %
      Average particulate emissions rate : (8) 1.54 g/h
      Average CO : (9) 89.4 g/h

      (1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

      (2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb./ft³ and 20 lb./ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb./ft³ and 12 lb./ft³. The moisture content is between 19% and 25%.

      (3) As measured per CSA B415.1-10 stack loss method.

      (4) Higher Heating Value of the fuel.

      (5) Lower Heating Value of the fuel.

      (6) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

      (7) Optimum overall efficiency at a specific burn rate (LHV).

      (8) This appliance is officially tested and certified by an independent agency.

      (9) Carbon monoxide.

      General Features
      Combustion technology Non-catalytic
      High-efficiency certified appliance Yes, EPA 2020 approved
      Maximum log length 20"
      Log positioning Over width
      Chimney diameter 6"
      Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
      Baffle type C-Cast
      Approved for a mobile home installation No
      Shipping Weight 407 lb. (185 kg)
      Door type Single, glass with cast iron frame
      Glass type Ceramic glass
      Glass surface – dimensions (Width X Height) 17 1/8" X 10 1/4"
      Glass air-wash system Yes
      Premium quality blower included (CFM) 120
      Overall dimension (Height) 23 1/8"
      Overall dimension (Width) 28 3/8"
      Overall dimension (Depth) 26 3/8"
      Door opening – dimension (Height) 9"
      Door opening - dimension (Width) 17 1/2"
      Firebox – dimension (Height) 11 7/8"
      Firebox – dimension (Width) 21"
      Firebox – dimension (Depth) 16 3/4"
      Firebox lined with refractory bricks for better heat distribution Yes
      Stainless-steel secondary-air system improving gas combustion Yes
      Adjustable threaded legs Yes
      Steel thickness – body 3/16"
      Steel thickness – top 5/16"
      Fireplace opening – minimum (Height) 23 3/8"
      Fireplace opening – minimum (Width) 28 7/8"
      Fireplace opening – minimum (Depth) 15 3/4"
      USA standard (emissions) Comply with EPA 2020
      Canadian Standard (emissions) CSA B415.1-10
      USA standard (safety) UL 1482, UL 737
      Canadian standard (safety) ULC S628
      Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
      Warranty Limited lifetime
      Minimum clearances to combustibles*
      (Data expressed in inches. 1 inch = 25.4 mm)
      Canada United-States
      Clearance – top (measured from the platform on which the appliance is installed)** 84" 84"
      Clearance – combustible side mantle to unit 9" 9"
      Clearance – combustible top mantle to unit 27" 27"
      Clearance – combustible sidewall to unit 16" 16"
      Clearance – minimum floor protection in front of the appliance 18'' 16''
      Clearance – top shelf to unit 27" 27"

      * The information is given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogs, flyers, magazines, and/or websites).

      ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

      Specifications

      BTU

      75,000 BTU

      Heating Capacity

      500-2,100 sq ft

      Firebox Size

      2.4 cu ft

      Log Length

      up to 20”

      Flue Pipe Diameter

      6”

      Weight

      407 lbs

      Width

      28 7/8”

      Depth

      26 3/8”

      Height

      23 3/8”

      Minimum Opening-Width

      28 7/8”

      Minimum Opening-Depth

      15 3/4”

      Minimum Opening-Height

      23 3/8”


      Configuration

      2000 Wood Insert with Large Faceplate, Brushed Nickel Faceplate Trims and Brushed Nickel Door Overlay

      2000 Wood Insert with Large Faceplate, Black Faceplate Trims, and Brushed Nickel Door Overlay

      2000 Wood Insert with Regular Faceplate, Brushed Nickel Faceplate Trims and Brushed Nickel Door Overlay

      2000 Wood Insert with Regular Faceplate, Black Faceplate Trims, and Brushed Nickel Door Overlay

      2000 Wood Insert with Large Faceplate, Brushed Nickel Faceplate Trims, and Black Door Overlay

      2000 Wood Insert with Large Faceplate, Black Faceplate Trims, and Black Door Overlay

      2000 Wood Insert with Regular Faceplate, Brushed Nickel Faceplate Trims, and Black Door Overlay

      2000 Wood Insert with Regular Faceplate, Black Faceplate Trims, and Black Door Overlay

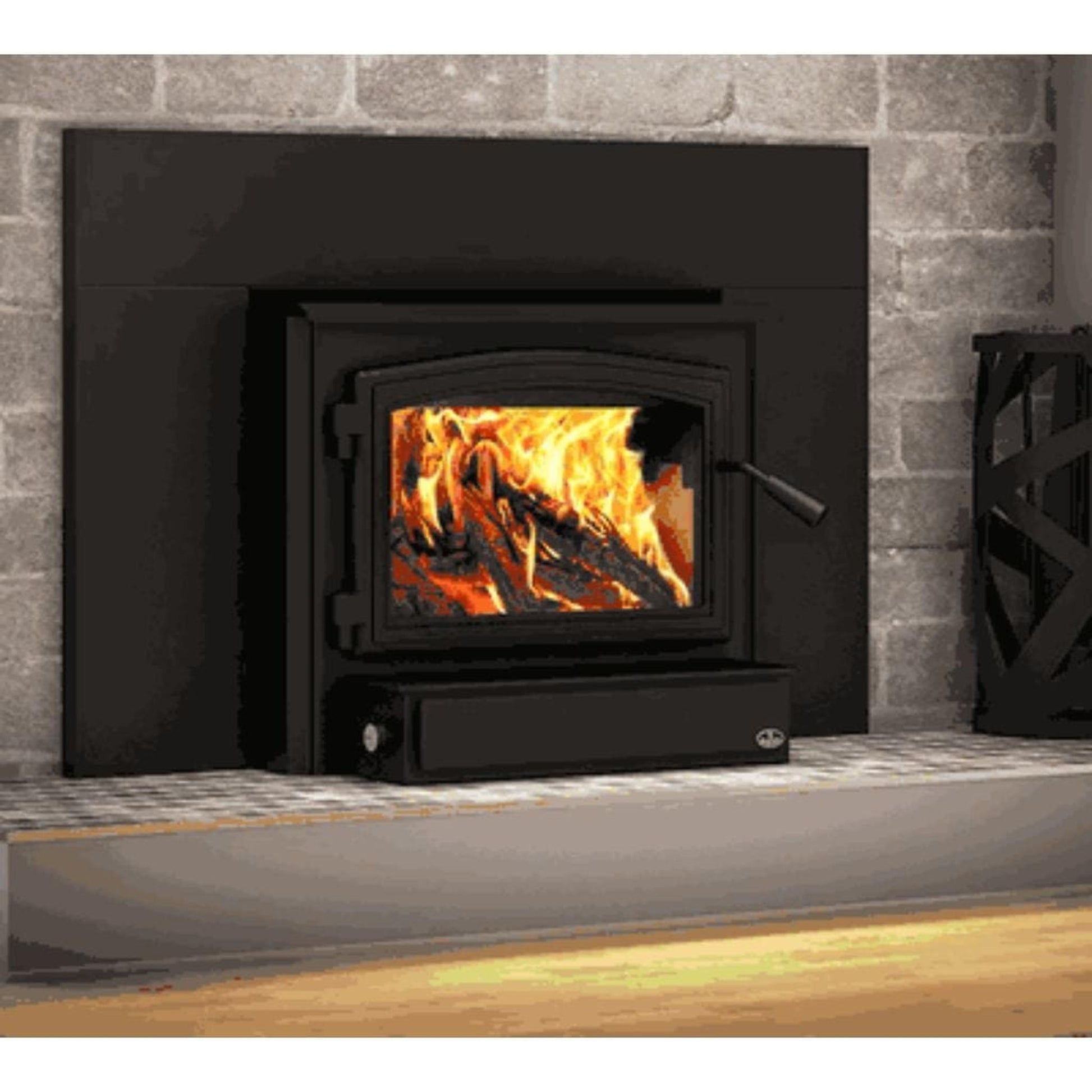

      *NOTE: Shown with required faceplate, faceplate trim, and door overlay (not included). The faceplate, faceplate trim, and door overlay must be purchased to complete this unit.

      Options

      Click to see options

      32'' X 50'' Cuttable Faceplate (18 gauges)

      --- bridges the gap between the fireplace insert and fireplace perimeter

      5" Fresh Air Intake Kit

      --- recommended to reduce or eliminate negative pressure problems

      5'' Fresh Air Intake Register with Airtight Damper

      --- allows outside combustion air to feed the appliance

      7 3/16" X 26" Heat Shield for Surround/Shelf

      --- diverts heat around combustible mantel shelves and surrounds

      Offset Liner Adaptor

      --- allows your flexible liner to be offset to the rear of an insert outlet.


      Accessories

      Click to see accessories

      Adhesives, Gaskets and Insulation

      High Temperature Red Silicone (300 ml - 10.1 fl.oz.)

      High Temperature Clear Silicone (300 ml - 10.1 fl.oz.)

      Paint

      Metallic Black Stove Paint – 342g (12oz) Aerosol

      --- adheres well and dries quickly and retains color well over time

      Metallic Black Stove Paint – 85g (3oz) Aerosol

      --- help keep your stove looking its best.

      Maintenance Products

      Ash Vacuum Cleaner

      --- designed almost exclusively for ash collection

      6" Round Brush with Polypropylene Bristles (3/8" NPT)

      --- efficiently cleans chimneys and convenient loop for hanging

      Pull Ring (3/8" NPT)

      --- securely connects to brushes and give you that extra safety while you use your chimney rod

      Kevlar Thread Wood Stove And Fireplace Gloves

      --- gloves are recommended for a safe and clean use with any type of wood-burning appliance.

      19" Kevlar Thread Sewn Fireplace Gloves

      --- cover the entire forearm to protect against heat sources

      Dry Cleaning Pad

      --- easily cleans the soot from glass without water

      Wood Appliance Glass Cleaner (500ml - 16.9fl.oz.)

      --- recommended for cleaning the glass of any type of wood-burning appliance

      Meters

      Digital Moisture Reader

      --- accurately measures moisture content in wood logs. Wood should be below 20% humidy content

      Fire Starters

      Sachet Pouches Fire Starter

      Wood and Paraffin Fire Starter Cubes

      --- safe, odorless, soot less, strong burning; can be stored indefinitely and does not dry out

      Fire Lighting Gel (500ml – 16fl.oz.)

      --- allows you to start wood, oil, and pellet fires quickly and easily
