OB02016
The new standard lowering the fine particulate emission threshold will be conquered by the recent certification of the Osburn 2000 wood-burning stove. This revamped version now offers an incredibly low average particulate emissions rate of only 1.54 g/h, maximum heat output of 75,000 BTU/h, and 77% optimum efficiency. This insert still has a 2.4 ft3 combustion chamber and a 144-CFM ultra-quiet variable speed fan that is strategically positioned to redistribute heat throughout the room.
Designed to receive an optional faceplate that can cover a masonry hearth up to 32 inches (81 cm) high and 50 inches (127 cm) wide. A steel door overlay is available in black or brushed nickel as well as faceplate trims. Look no further, treat yourself to Osburn's legendary quality!
Required to complete the woodstove:
(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
() Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb./ft³ and 20 lb./ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb./ft³ and 12 lb./ft³. The moisture content is between 19% and 25%.
(3) As measured per CSA B415.1-10 stack loss method.
(4) Higher Heating Value of the fuel.
(5) Lower Heating Value of the fuel.
(6) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
(7) Optimum overall efficiency at a specific burn rate (LHV).
(8) This appliance is officially tested and certified by an independent agency.
(9) Carbon monoxide.
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Over width |
| Chimney diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Baffle type | C-Cast |
| Approved for a mobile home installation | No |
| Shipping Weight | 407 lb. (185 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 17 1/8" X 10 1/4" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 120 |
| Overall dimension (Height) | 23 1/8" |
| Overall dimension (Width) | 28 3/8" |
| Overall dimension (Depth) | 26 3/8" |
| Door opening – dimension (Height) | 9" |
| Door opening - dimension (Width) | 17 1/2" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16 3/4" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| Fireplace opening – minimum (Height) | 23 3/8" |
| Fireplace opening – minimum (Width) | 28 7/8" |
| Fireplace opening – minimum (Depth) | 15 3/4" |
| USA standard (emissions) | Comply with EPA 2020 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
|
Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) |
||
| Canada | United-States | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
| Clearance – combustible side mantle to unit | 9" | 9" |
| Clearance – combustible top mantle to unit | 27" | 27" |
| Clearance – combustible sidewall to unit | 16" | 16" |
| Clearance – minimum floor protection in front of the appliance | 18'' | 16'' |
| Clearance – top shelf to unit | 27" | 27" |
|
* The information is given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogs, flyers, magazines, and/or websites). |
||
|
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
||
|
BTU |
75,000 BTU |
|
Heating Capacity |
500-2,100 sq ft |
|
Firebox Size |
2.4 cu ft |
|
Log Length |
up to 20” |
|
Flue Pipe Diameter |
6” |
|
Weight |
407 lbs |
|
Width |
28 7/8” |
|
Depth |
26 3/8” |
|
Height |
23 3/8” |
|
Minimum Opening-Width |
28 7/8” |
|
Minimum Opening-Depth |
15 3/4” |
|
Minimum Opening-Height |
23 3/8” |
|
2000 Wood Insert with Large Faceplate, Brushed Nickel Faceplate Trims, and Brushed Nickel Door Overlay |
|
|
2000 Wood Insert with Large Faceplate, Black Faceplate Trims, and Brushed Nickel Door Overlay |
|
|
2000 Wood Insert with Regular Faceplate, Brushed Nickel Faceplate Trims, and Brushed Nickel Door Overlay |
|
|
2000 Wood Insert with Regular Faceplate, Black Faceplate Trims, and Brushed Nickel Door Overlay |
|
|
2000 Wood Insert with Large Faceplate, Brushed Nickel Faceplate Trims, and Black Door Overlay |
|
|

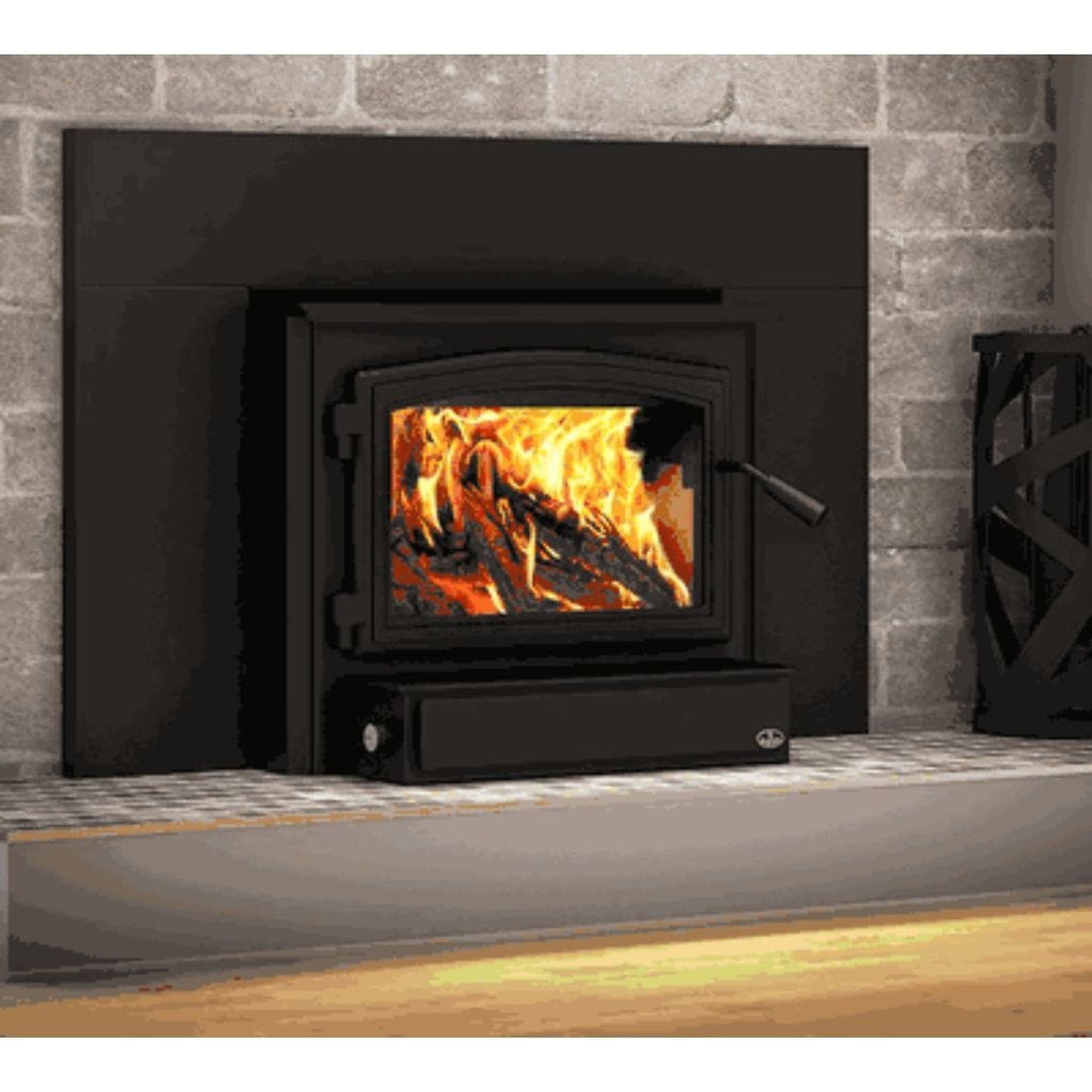

2000 Wood Insert with Large Faceplate, Black Faceplate Trims, and Black Door Overlay |
|
|
2000 Wood Insert with Regular Faceplate, Brushed Nickel Faceplate Trims, and Black Door Overlay |
|
|
2000 Wood Insert with Regular Faceplate, Black Faceplate Trims, and Black Door Overlay |
|
*NOTE: Shown with required faceplate, faceplate trim, and door overlay (not included). The faceplate, faceplate trim, and door overlay must be purchased to complete this unit.
|
32'' X 50'' Cuttable Faceplate (18 gauges) --- bridges the gap between the fireplace insert and fireplace perimeter |
 |
|
5" Fresh Air Intake Kit --- recommended to reduce or eliminate negative pressure problems |
 |
|
5'' Fresh Air Intake Register with Airtight Damper --- allows outside combustion air to feed the appliance |
 |
|
7 3/16" X 26" Heat Shield for Surround/Shelf --- diverts heat around combustible mantel shelves and surrounds |
 |
|
Offset Liner Adaptor --- allows your flexible liner to be offset to the rear of an insert outlet. |
 |
|
