Rasmussen

DF-CF18-HFG-N

Rasmussen 18" Double Face Custom Embers Pan Burner with Grate, 16" Deep

Fuel Type: Natural Gas
Control System: Match Lit


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The Double Face Custom Embers Burner combines the full, realistic flame of the CS with the larger ember bed of the FX. The ramped pan is height adjustable for added versatility. The logs reside inside the burner on the Grate.

  • Available in 5 Sizes: 15"18", 20", 24", & 30"
  • Can be used with either Natural Gas or Propane
  • Can be used for 18" Gas logs
  • Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
  • Certification: ANSI-Z2184
Valve
Natural Gas BTU:
Propane BTU:
Match Lit
60,000
N/A
Manual Safety Pilot
60,000
45,000
Remote Ready
60,000
45,000
Variable Remote
60,000
45,000
Variable Electronic Ignition
60,000
45,000
Millivolt w/Valve Vanisher
60,000
45,000
Manual Valve w/Valve Vanisher
60,000
45,000
Millivolt Remote Ready
60,000
45,000

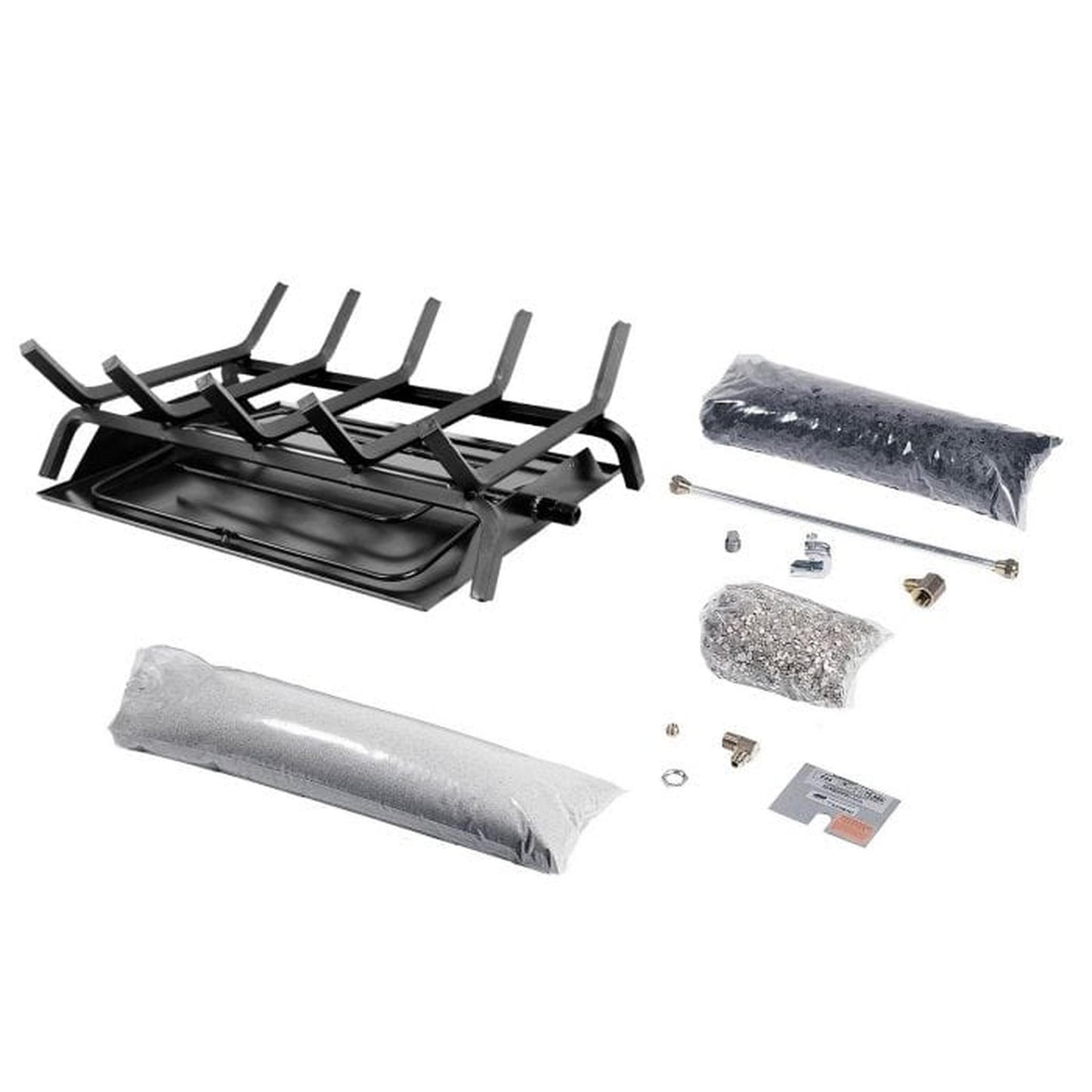

  Burner Kits Includes: Burner, Grate, Sand or Volcanic Ash, Ember Magic, Flexible SS Non-Whistling Connector Kit, Damper Clamp, Instructions.

NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.

Minimum Fireplace Dimensions

 Match Lit
 Front Width 24"
Rear Width 18"
Depth 18"
Standing Pilot
Front Width 30"
Rear Width 21"
Depth 15"
Valve Vanisher
Front Width 28 1/8"
Rear Width 19"
Depth 15"
