SKU:DF-AFB20-SE-B-N

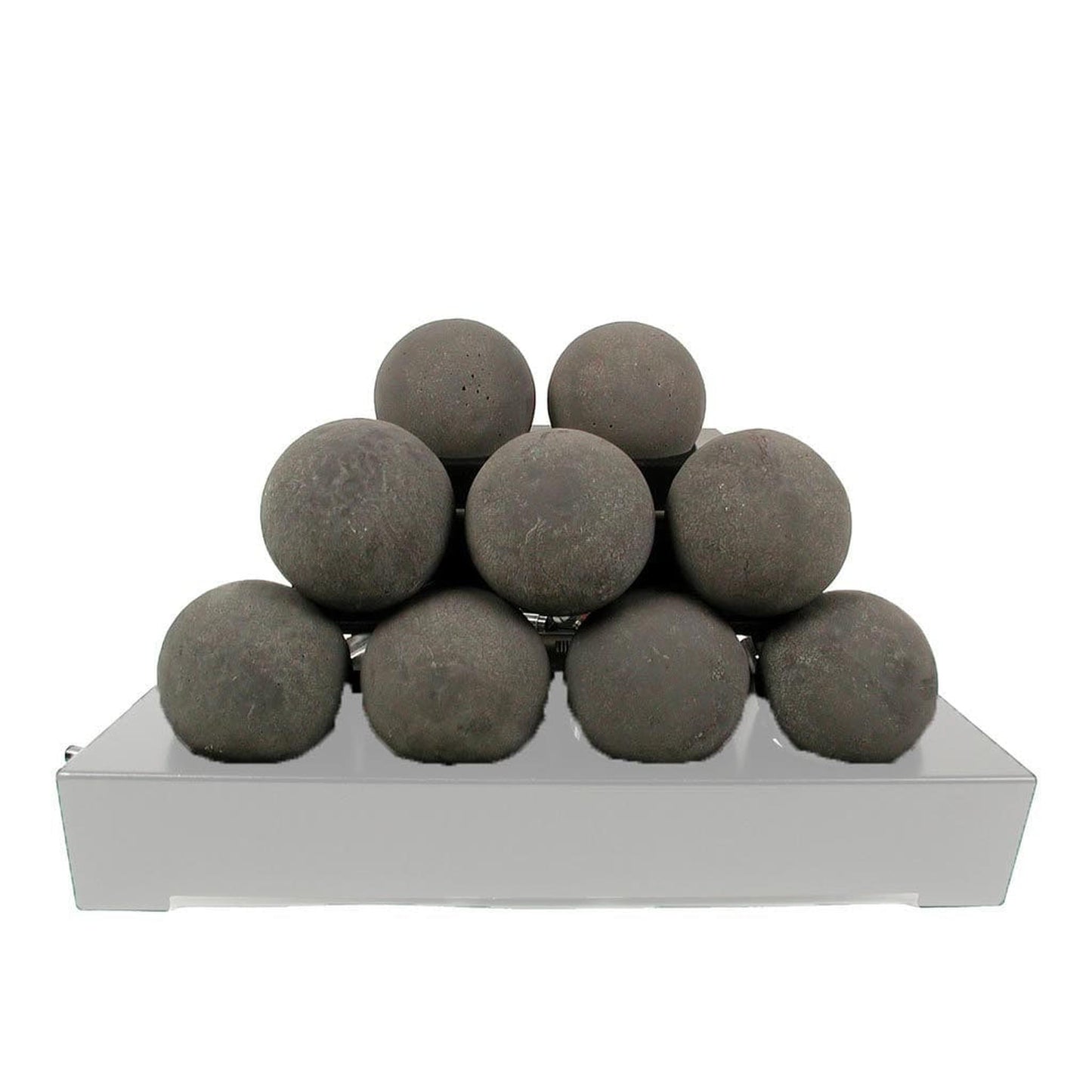

Rasmussen 20" Alterna Vent-Free FireBalls Double-Face Burner for FireBalls DF-AFB20

Rasmussen 20" Alterna Vent-Free FireBalls Double-Face Burner for FireBalls DF-AFB20

Regular price $1,020.00
Regular price Sale price $1,020.00
Sale Sold out
Fuel Type
Control System
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Descriptions

FireBalls are the modern alternative to the traditional log set for the fireplace. Rasmussen FireBalls offer a contemporary look that compliments most fireplaces. Fireballs come in 7 colors, including natural, the color of the concrete, 3 dark colors, and 3 lighter colors, with some more exotic colors like adobe red and beige. The ventless fireball set is simple, elegant, and can be used in most fire enclosures.

  • Available 3 sizes 20", 24" and 30"
  • 4-inch Diameter Spheres made from the same high-heat refractory concrete as our gas logs
  • Choice of 7 Colors
  • Uses either Natural Gas or Propane
  • 3 Lighting Control Choices
  • Dual Certification: ANSI Z21.11.2 and ANSI Z21.60
  • 30,000 BTU/hr Maximum inputs
  • Double-Face Burner

*Notes:

  • Remote Control is not included with the Remote Ready Burner and should be ordered separately.
  • RE & EI include the Hand-held Remote Transmitter
  • FireBalls DF-AFB20 is not included with this burner should be ordered separately
    Valve
    Maximum BTU:
     Manual "EASY" Control
    30,000
    Remote Ready "EASY" Control
    30,000
    Variable Flame Wireless Remote "EASY" Control
    30,000
    Millivolt Remote Ready Control
    30,000
     Electronic Ignition Remote 30,000
    *Burner kits includes: Assembled burner/grate/safety control, Oxygen Depletion Sensor (ODS) pilot, connector and fitting, damper clamp. Available in either Stainless Steel or Black Chassis

    Minimum Fireplace Dimensions

    Set Size Front Width Rear Width Depth Height
    20" 26"
    20"
    11" 16"
    24" 30"
    24"
    11" 16"
    30" 36" 30" 11" 16"

    Limited Lifetime Warranty

    RASMUSSEN IRON WORKS INC, 12028 E. Philadelphia Street, Whittier California, U.S.A., warrants this Gas Log Set and accessories against defects in materials and workmanship, and suitable for a particular purpose, for a period of:

     Log Castings All logs are guaranteed against crumbling in the original installation for the lifetime of the initial purchaser.
    Burner & Grate 2 Years from date of purchase.
    Safety Control and Pilot
    Pilots and Safety Controls are covered by a warranty of the original manufacturer only.

     Options and Accessories

    Click to see Remote Control and Switching Accessories

    SR-2R Wireless Hand-held Transmitter with simple ON/OFF function

    This remote turns the fireplace on or off at the push of a button. Works with "EASY" control systems as their remote control.
    • For "RPK3E" and "SE" Remote Ready EASY Controls Includes battery
    • Remote works up to 20 feet away

    THR-2R Remote Control (Thermostat & On/Off) for RPK3E & SE Systems

    This remote turns the fireplace on or off at the push of a button, but also has thermostat function. Works with "EASY" control systems as their remote control.
    • Only for use with Rasmussen "EASY" Control systems with latching solenoid, such as all "SE" and "RPK3E" controls
    • Batteries included
    • Works up to 20 feet away

    TS-2R Wireless Wall Thermostat Control

    The wall thermostat turns the fireplace on until the air temperature in the room reaches a certain point, then it shuts off. Works with "EASY" control systems as their remote control.
    • Turns the fireplace on until it reaches a certain temperature in the room
    • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
    • Works up to 20 feet away
    • Includes batteries
    • Receiver not included

    WS-2R Wireless Wall Switch

    The wall switch turns the fireplace on or off at the push of a button. Works with "EASY" control systems as their remote control.
    • On/off rocker switch, similar to a light switch, which turns the fireplace on or off at the push of a button
    • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
    • Works up to 20 feet away
    • Includes batteries
    • Receiver not included

    WT-2R Wireless 30/60/120 minute Wall Timer

    The wall timer turns the fireplace on until the specified time is reached, then it shuts off. This can help save gas or keep a room from getting too warm. Works with "EASY" control systems as their remote control.
    • Turns the fireplace on for a certain amount of time, after which it automatically shuts off
    • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
    • Works up to 20 feet away
    • Includes batteries
    • Receiver not included

    THR-MV1 Wireless Remote Control (Thermostat & On/Off) for Millivolt & EIS

    • Provides ON/OFF control with Thermostat and Countdown Timer features
    • Use with Millivolt controls: S, RPK1, RPK3, & VMV
    • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
    • Works up to 20 feet away
    • Includes both Transmitter & Receiver
    • Batteries included

    SR-MV1 Wireless On/Off Remote Control for Millivolt & EIS

    • Provides ON/OFF control
    • Use with Millivolt controls: S, RPK1, RPK3, & VMV
    • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
    • Works up to 20 feet away
    • Includes both Transmitter & Receiver
    • Batteries included

    WS-MV1 Wireless Wall Switch Remote Control for Millivolt & EIS

    • Provides ON/OFF control
    • Use with Millivolt controls: S, RPK1, RPK3, & VMV
    • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
    • Works up to 20 feet away
    • Includes both Transmitter & Receiver
    • Batteries included

    WT-MV1 Wireless Wall Timer Remote Control for Millivolt & EIS

    • Provides timed control in 30/60/120 minute increments
    • Use with Millivolt controls: S, RPK1, RPK3, & VMV
    • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
    • Works up to 20 feet away
    • Includes both Transmitter & Receiver
    • Batteries included

    Click to see DF-AFB20 Fireballs

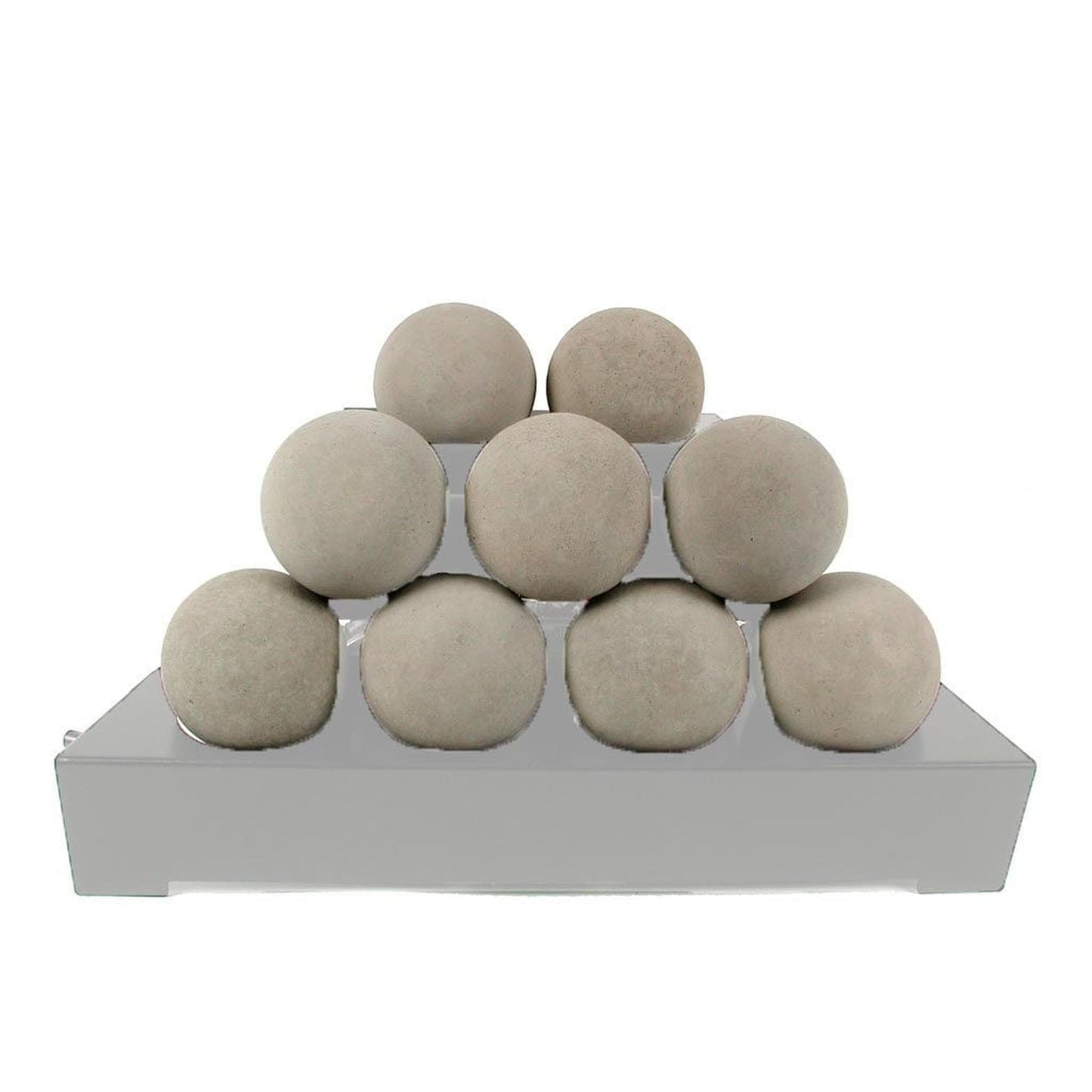

    Beige Fireballs

    • Can be used with either Natural Gas or Propane
    • 9 Pieces
    • FireBalls only

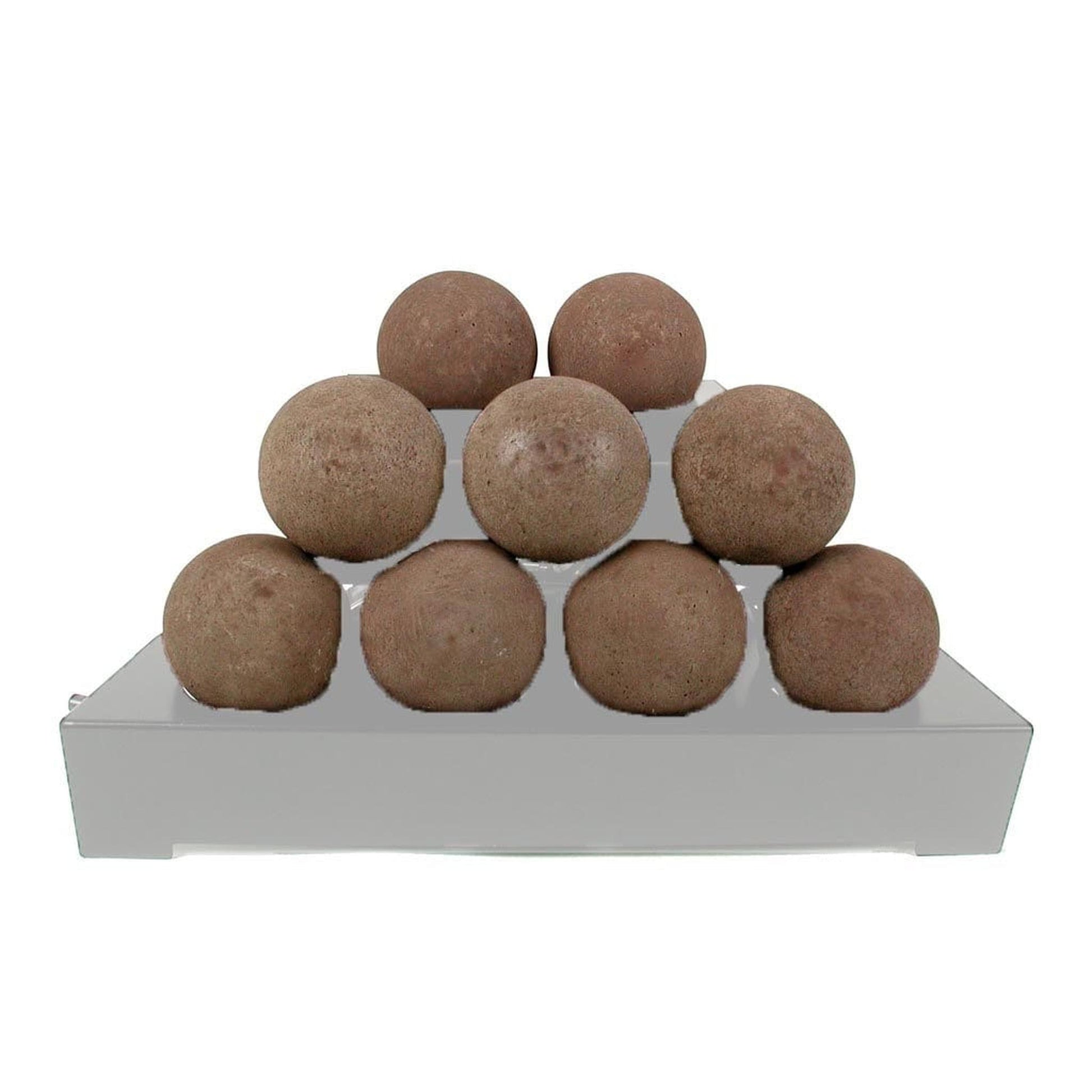

    Brown Fireballs

    • Can be used with either Natural Gas or Propane
    • 9 Pieces
    • FireBalls only

    Black Fireballs

    • Can be used with either Natural Gas or Propane
    • 9 Pieces
    • Fireballs only

    Dark Gray Fireballs

    • Can be used with either Natural Gas or Propane
    • 9 Pieces
    • Fireballs only

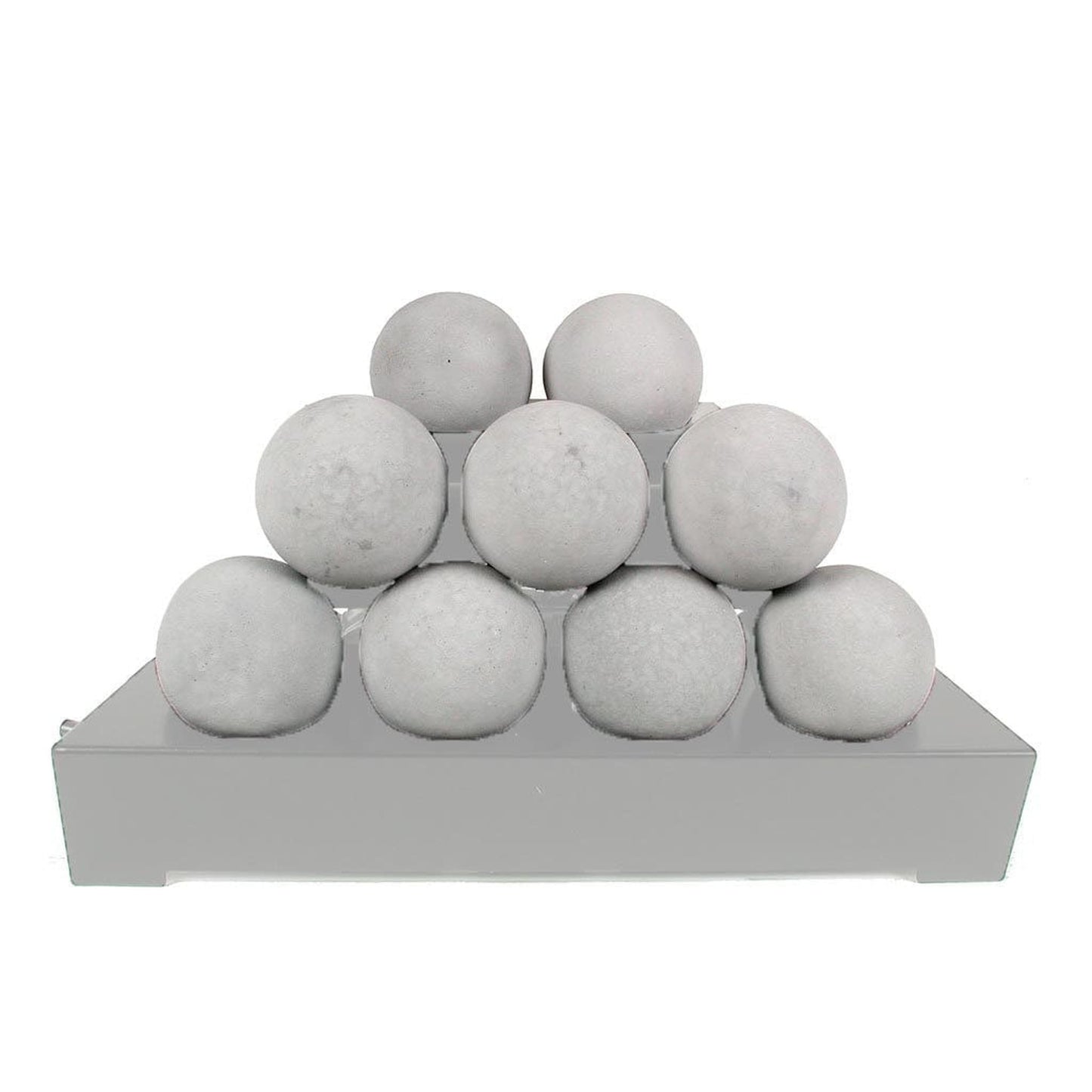

    Light Gray Fireballs

    • Can be used with either Natural Gas or Propane
    • 9 Pieces
    • Fireballs only

     Natural Fireballs

    • Can be used with either Natural Gas or Propane
    • 9 Pieces
    • Fireballs only

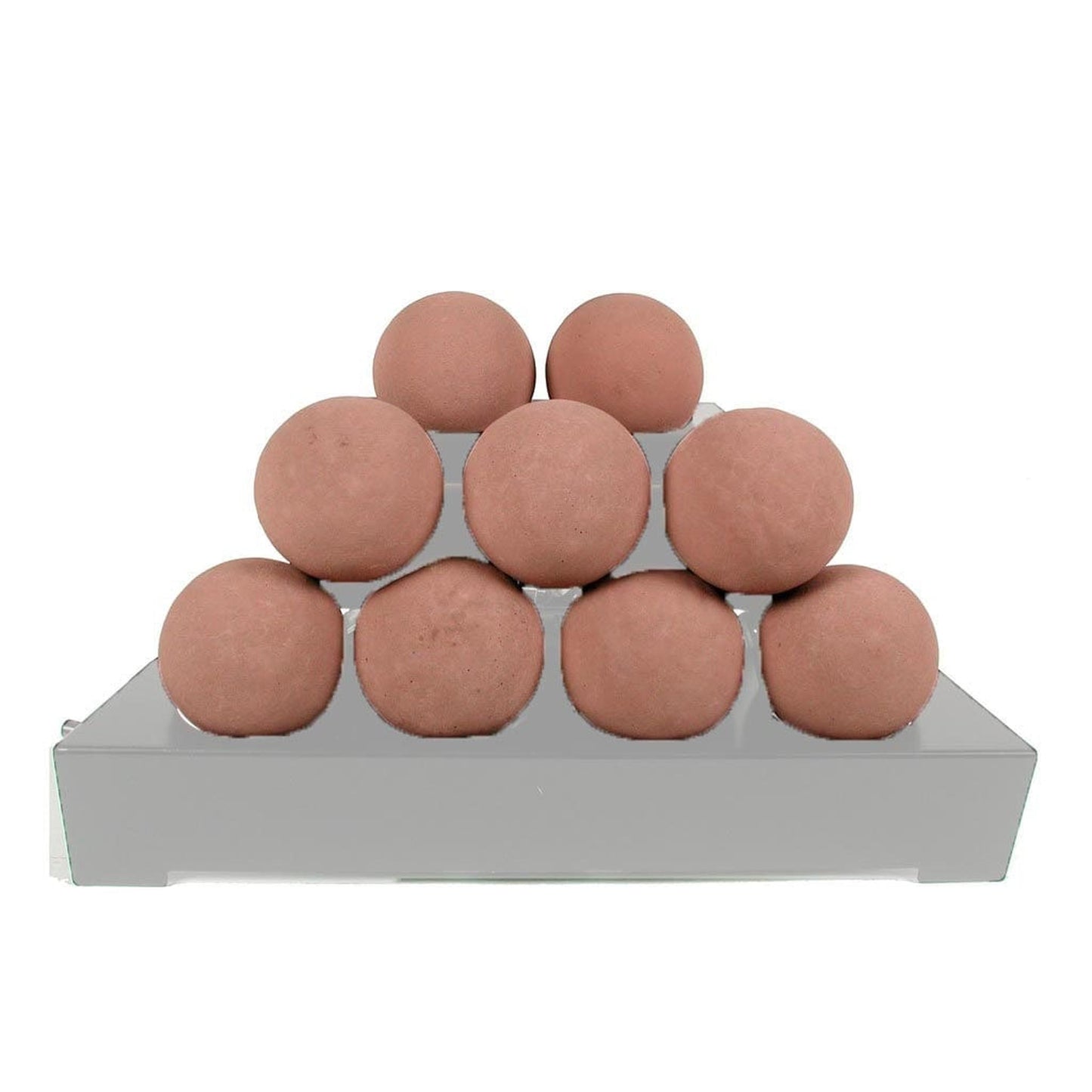

    Adobe Red Fireballs

    • Can be used with either Natural Gas or Propane
    • 9 Pieces
    • Fireballs only

    Downloads
