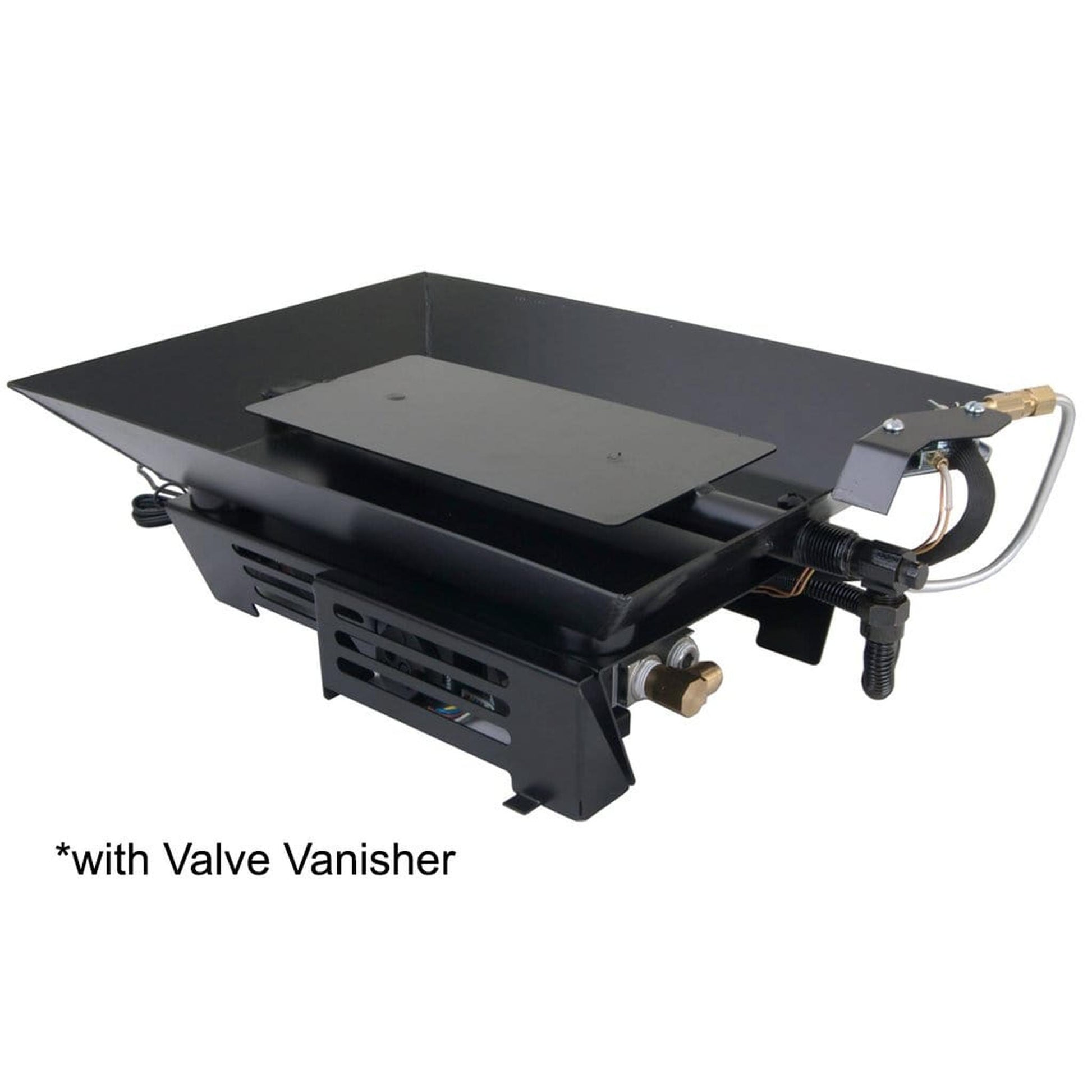

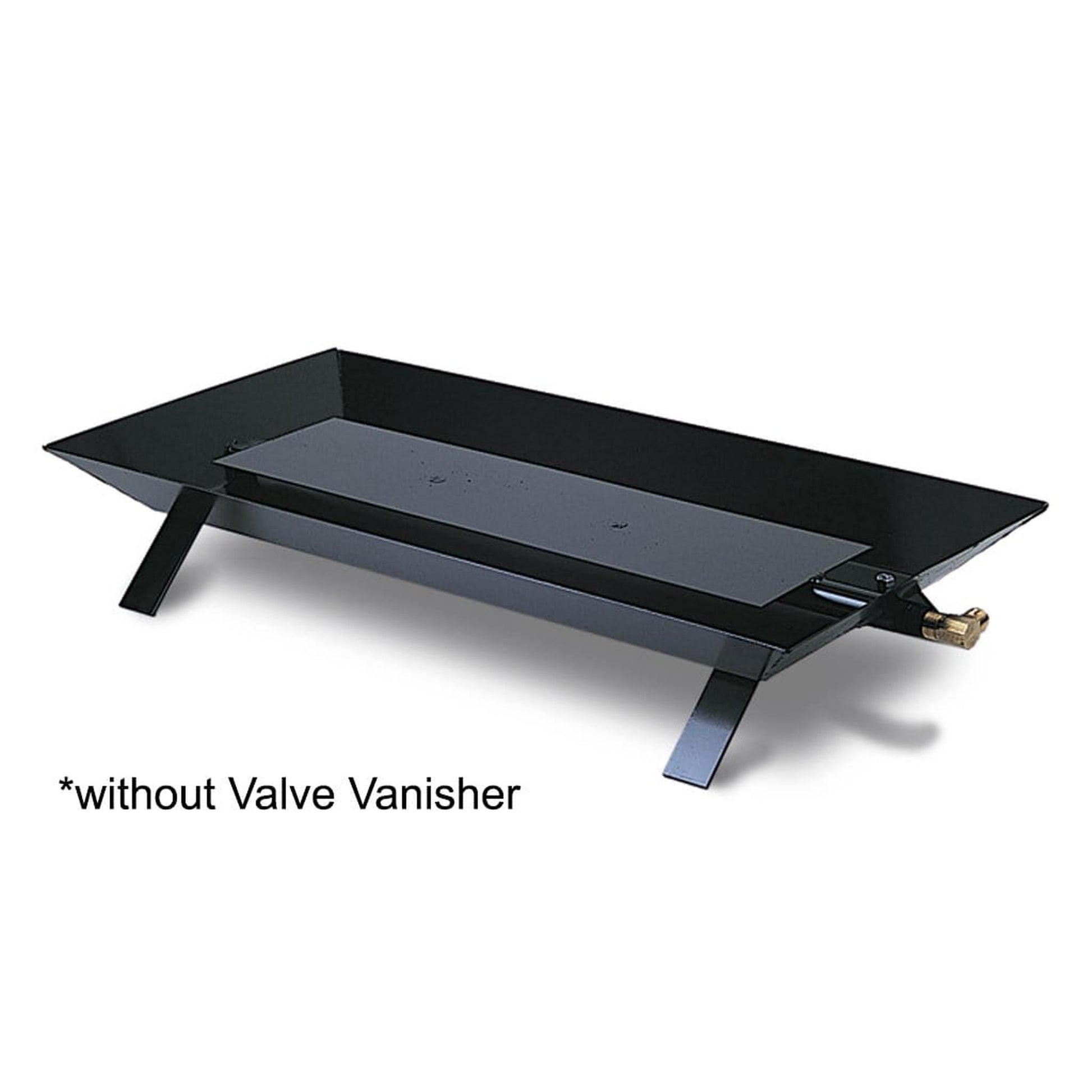

Rasmussen 27" Custom Pan Vented Burner with Strap Legs, 16" Deep

Rasmussen 27" Custom Pan Vented Burner with Strap Legs, 16" Deep

Regular price $500.00
Regular price Sale price $500.00
Sale Sold out
Fuel Type
Control System
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Descriptions

The CS Burner is the original pan tube burner, which can be used with legs for a clean look or without legs for a pit fire look. The CS Burner may also be used in See-Through fireplaces with Double Face logs. The logs reside inside the burner on the pan filler – no grate is to be used with the CS Burner.

  • Available in 8 Sizes: 27", 30", 33", 36", 42", 48", 54", 60"
  • Can be used with either Natural Gas or Propane
  • Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
  • Certification: RIW
Valve
Natural Gas BTU:
Propane BTU:
Match Lit
100,000
N/A
Manual Safety Pilot
100,000
60,000
Remote Ready
100,000
60,000
Variable Remote
100,000
60,000
Variable Electronic Ignition w/Valve Vinisher
110,000
60,000
Millivolt w/Valve Vanisher
85,000
65,000
Manual Valve w/Valve Vanisher
85,000
65,000
Millivolt Remote Ready
100,000
60,000

Hearth Kits Includes: Pan Filler, Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.

Minimum Fireplace Dimensions

 Match Lit
 Front Width 33"
Rear Width 28"
Depth 18"
Standing Pilot
Front Width 39"
Rear Width 31"
Depth 18"
Valve Vanisher
Front Width 31"
Rear Width 31"
Depth 18"
