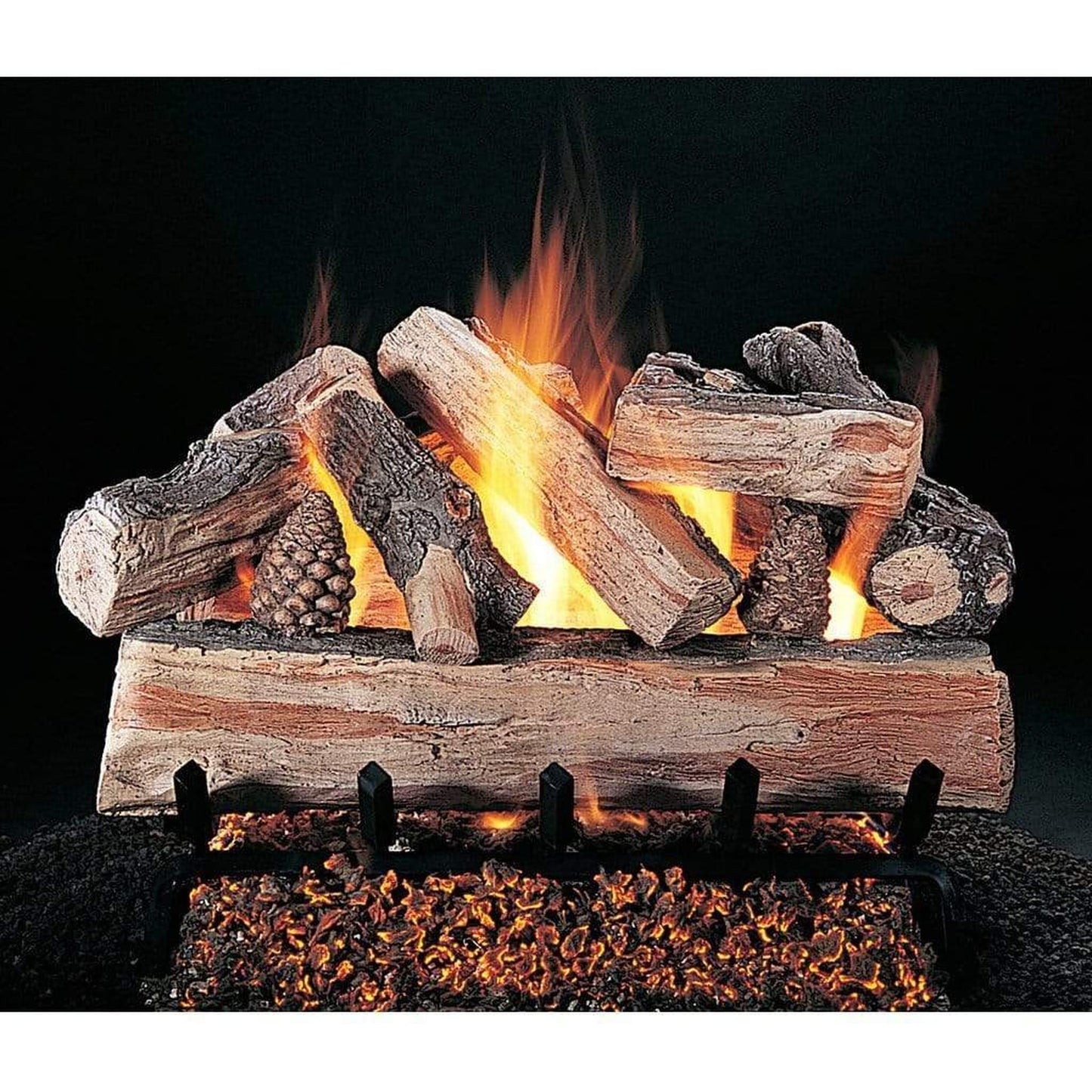

• Rasmussen 30" Double Face CrossFire Vented Gas Log
1 1

DF-XF30

Rasmussen 30" Double Face CrossFire Vented Gas Log

Rasmussen 30" Double Face CrossFire Vented Gas Log

$784.00
$784.00
Sale Sold out

Burner Kits

-- Please Select --

No, Thank You

Remote Control for Remote Ready Safety Pilot

-- Please Select --

No, Thank You

Remote Control for Millivolt Remote Ready

-- Please Select --

No, Thank You

Ceramic Log House for SE, RE and Millivolt

Accessories for Variable Electronic Ignition

Other Accessories
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Description

Double Face for see-through fireplaces. Reversible Bark/Split Logs and pine cones. Two straight one-piece front logs provide a similar appearance from both sides. A larger scale is good for masonry and larger factory-built fireplaces. Rasmussen uses real pieces of wood to develop our log patterns and a painstaking molding process to reproduce the finest detail. Rasmussen uses high-heat resistant, high-alumina refractory cement with a maximum temperature rating of over 2300 degrees F, lightweight expanded clay aggregates, and rigid steel rod reinforcing for strength and durability. All of Rasmussen’s logs are hand-colored with a multi-step (up to six colors) process utilizing environmentally-friendly non-paint-based ceramic colorations, which remain colorfast under fire, and which do not create any odor when burned.

Product Specifications

  • Available in 18", 21", 24", 30"
  • Log Set Type: Vented Indoor
  • Fireplace Type: Standard
  • Fuel Type: Natural Gas | Propane
  • Log Set Width: 30 Inch
  • Material: Steel Rod Reinforced Refractory Ceramic
  • Compatible with Burner Type: DF, CS

*Notes:

  • Burner System is not included with the log set and should be ordered separately.
  • Remote Control is not included with the Remote Ready Burner and should be ordered separately.
Specification Sheet
Double Face Logs
Set Size Model # Weight
(lbs)		 # of Logs in Set
18"
 DF-XF18 49 9
21"
 DF_XF21
 66 11
24" DF-XF24
 77 11
30" DF_XF30
 91 12



Minimum Fireplace Sizing Requirements (Match Lit)

Log Set Size Front Rear Depth Height
15" 21" 15" 15" 16"
18" 24" 18" 15" 16"
24" 30"
 24"
 15"
 16"
30" 36" 30"
 15"
 16"

*Click to see Guidelines for selecting the proper set size for your Fireplace

Burner Kits Includes: Pan Filler (Sand for Natural Gas or Volcanic Ash for Propane), Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

Limited Lifetime Warranty

RASMUSSEN IRON WORKS INC, 12028 E. Philadelphia Street, Whittier California, U.S.A., warrants this Gas Log Set and accessories against defects in materials and workmanship, and suitable for a particular purpose, for a period of:

 Home (Non-Commercial use):
 Log Castings All logs are guaranteed against crumbling in the original installation for the lifetime of the initial purchaser.
Burner & Grate 2 Years from date of purchase.
Safety Control and Pilot
Pilots and Safety Controls are covered by a warranty of the original manufacturer only.
 Commercial Use:
All Components  1 year from date of purchase


 Options and Accessories

Click to see Burner Kits

DF Custom Embers Pan Burner with Grate

The DF-CF burner and parallel grate are used with Double Face logs in see-through fireplaces. The DF-CF burner provides a full main flame with large glowing ember beds on both sides. The single pan design provides positive gas ignition.

Max BTU: Natural Gas 90,000 | Propane 70,000

Click to see Remote Control and Switching Accessories

SR-2R Wireless Hand-held Transmitter with simple ON/OFF function

This remote turns the fireplace on or off at the push of a button. Works with "EASY" control systems as their remote control.
  • For "RPK3E" and "SE" Remote Ready EASY Controls Includes battery
  • Remote works up to 20 feet away

THR-2R Remote Control (Thermostat & On/Off) for RPK3E & SE Systems

This remote turns the fireplace on or off at the push of a button, but also has thermostat function. Works with "EASY" control systems as their remote control.
  • Only for use with Rasmussen "EASY" Control systems with latching solenoid, such as all "SE" and "RPK3E" controls
  • Batteries included
  • Works up to 20 feet away

TS-2R Wireless Wall Thermostat Control

The wall thermostat turns the fireplace on until the air temperature in the room reaches a certain point, then it shuts off. Works with "EASY" control systems as their remote control.
  • Turns the fireplace on until it reaches a certain temperature in the room
  • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
  • Works up to 20 feet away
  • Includes batteries
  • Receiver not included

WS-2R Wireless Wall Switch

The wall switch turns the fireplace on or off at the push of a button. Works with "EASY" control systems as their remote control.
  • On/off rocker switch, similar to a light switch, which turns the fireplace on or off at the push of a button
  • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
  • Works up to 20 feet away
  • Includes batteries
  • Receiver not included

WT-2R Wireless 30/60/120 minute Wall Timer

The wall timer turns the fireplace on until the specified time is reached, then it shuts off. This can help save gas or keep a room from getting too warm. Works with "EASY" control systems as their remote control.
  • Turns the fireplace on for a certain amount of time, after which it automatically shuts off
  • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
  • Works up to 20 feet away
  • Includes batteries
  • Receiver not included

THR-MV1 Wireless Remote Control (Thermostat & On/Off) for Millivolt & EIS

  • Provides ON/OFF control with Thermostat and Countdown Timer features
  • Use with Millivolt controls: S, RPK1, RPK3, & VMV
  • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
  • Works up to 20 feet away
  • Includes both Transmitter & Receiver
  • Batteries included

SR-MV1 Wireless On/Off Remote Control for Millivolt & EIS

  • Provides ON/OFF control
  • Use with Millivolt controls: S, RPK1, RPK3, & VMV
  • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
  • Works up to 20 feet away
  • Includes both Transmitter & Receiver
  • Batteries included

WS-MV1 Wireless Wall Switch Remote Control for Millivolt & EIS

  • Provides ON/OFF control
  • Use with Millivolt controls: S, RPK1, RPK3, & VMV
  • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
  • Works up to 20 feet away
  • Includes both Transmitter & Receiver
  • Batteries included

WT-MV1 Wireless Wall Timer Remote Control for Millivolt & EIS

  • Provides timed control in 30/60/120 minute increments
  • Use with Millivolt controls: S, RPK1, RPK3, & VMV
  • Use with EIS-N135, EIS-N200, EIS-N350, EIS-N720, EIS-P200, & EIS-P350
  • Works up to 20 feet away
  • Includes both Transmitter & Receiver
  • Batteries included

TS-1 Wired Wall Thermostat

  • Turns the fireplace on until a certain temperature is reached, then it shuts off
  • The wire is 20 foot long for freedom of placement in most rooms

WS-1 Wired Wall Switch

  • Turns the fireplace on or off with the flick of a switch
  • The wire is 20 foot long for freedom of placement in most rooms

WT-1 Wired Wall Timer

  • Works for up to 60 minutes
  • The wire is 20 foot long for freedom of placement in most rooms

RH2 Ceramic Log House for "SE", "RE" and Millivolt receivers

This log shaped ceramic box blends in with most Rasmussen gas log sets. Helps to keep heat off of the remote receiver and helps mask the appearance of some electronic components. This receiver housing should still be installed near the edge of the firebox or outside it as far away from the heat as possible.
  • Helps protect the receiver from heat
  • Made from the same materials as our gas logs

RH3 Ceramic House for Remote Receivers

Smooth-sided for Alterna Contemporary sets, like FireBalls, FireStones, FireShapes, and FireGlitter. Also good For CoalFire (Black color). Helps to keep heat off of the remote receiver and helps blend some of the electronic components in with contemporary Rasmussen fireplace sets. This receiver housing should still be installed near the edge of the firebox or outside it as far away from the heat as possible.
  • Helps protect the receiver from heat
  • Made from the same materials as our gas logs
  • Choice of 7 colors

Click to see Other Accessories

GV60-WMB Wall Mounting Bracket for VEI Handheld Transmitters

Wall Mounting Bracket for VEI Handheld Transmitters

GV60-WS1 Wired Wall Switch with Variable Flame Height Control for VEI

Wired Wall Switch with Variable Flame Height Control for VEI. Includes 26-feet of wires
