Rasmussen

PH54

Rasmussen 54" TimberFire Vented Gas Log


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.


Description

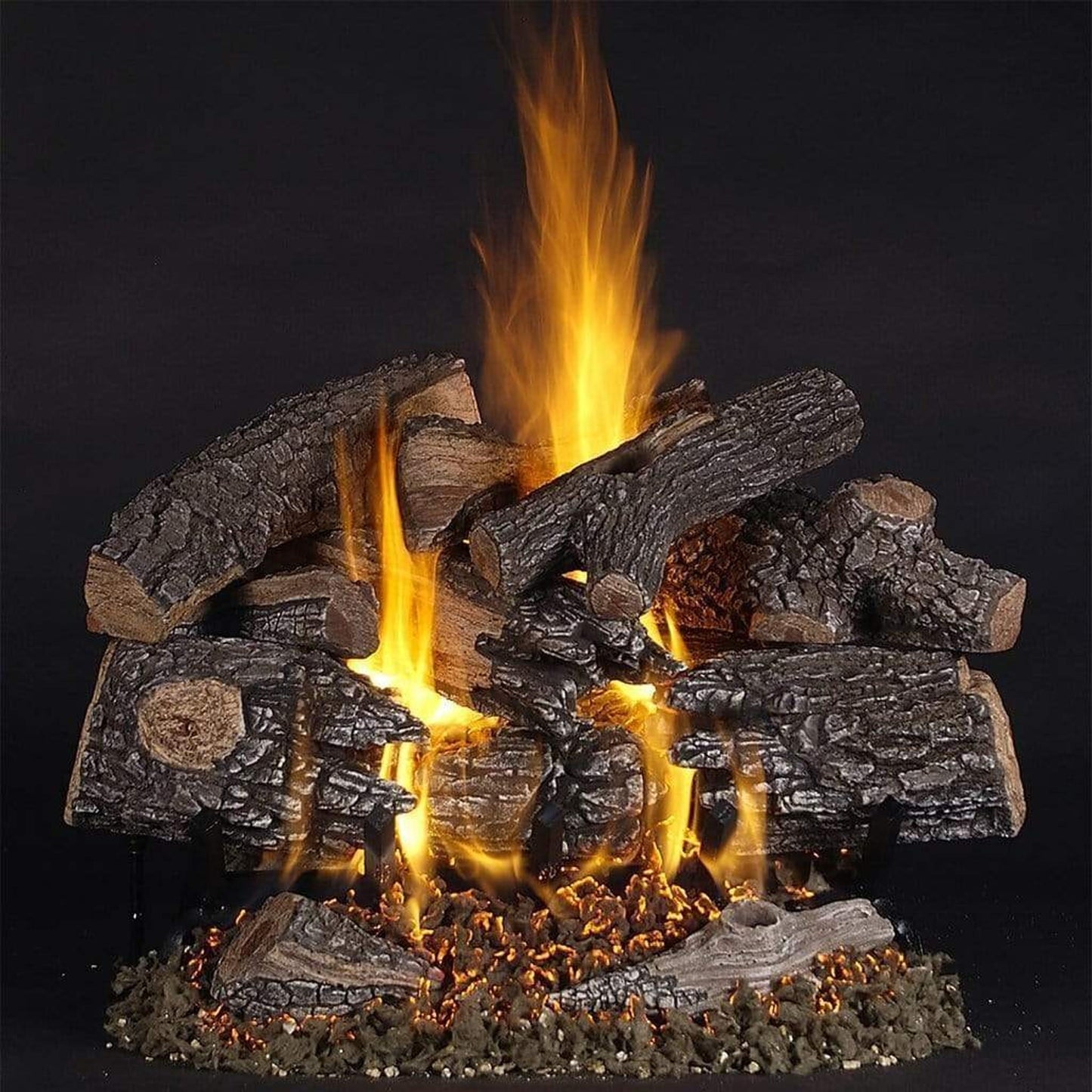

The TimberFire vented gas log set utilizes a large front log with multiple splits and many supporting logs and chunks. This gas log set uses multiple smaller logs, twigs, and pine cones, forming a wide tepee shape over a straight one-piece front log and rear log. Rasmussen uses real pieces of wood to develop our log patterns and a painstaking molding process to reproduce the finest detail. Rasmussen uses high-heat-resistant cement with a maximum temperature rating of over 2300 degrees F with rigid steel rod reinforcement for strength and durability. All of Rasmussen’s gas logs are hand-colored with ceramic staining which does not fade under fire.

Product Specifications

  • Available in 18, 24, 24X, 30, 30X, 36, 42, 48, 54, 60, 66, 72, 84, 96
  • Log Set Type: Vented Indoor
  • Fireplace Type: Standard
  • Fuel Type: Natural Gas | Propane
  • Log Set Width: 54 Inch
  • Material: Steel Rod Reinforced Refractory Ceramic
  • Compatible with Burner Type:  LD

*Notes:

  • Burner System is not included with the log set and should be ordered separately.
  • Remote Control is not included with the Remote Ready Burner and should be ordered separately.
Specification Sheet
Single Face Logs
Set Size Model # Weight
(lbs)
# of Logs in Set
18" PH18 50 10
24" PH24 82
12
24X" PH24X 70
10
30" PH30 102 12
30X" PH30X 95 10
36" PH36 195 14
42" PH42 213 15
48" PH48 260 18
54" PH54 265 19
60" PH60 320 24
66" PH66 330 25
72" PH72 400 29
84" PH84 450 35
96" PH96 500 38

  Note: PH30X through PH96 logs do not include a rear log due to the design of the LD Burner.

Minimum Fireplace Sizing Requirements (Match Lit)

Log Set Size Front Rear Depth Height
18" 30" 21" 14" 16"
24" 36"
27"
18"
16"
30" 42" 33"
18"
16"

*Click to see Guidelines for selecting the proper set size for your Fireplace

Burner Kits Includes: Pan Filler (Sand for Natural Gas or Volcanic Ash for Propane), Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

Limited Lifetime Warranty

RASMUSSEN IRON WORKS INC, 12028 E. Philadelphia Street, Whittier California, U.S.A., warrants this Gas Log Set and accessories against defects in materials and workmanship, and suitable for a particular purpose, for a period of:

 Home (Non-Commercial use):
 Log Castings All logs are guaranteed against crumbling in the original installation for the lifetime of the initial purchaser.
Burner & Grate 2 Years from date of purchase.
Safety Control and Pilot
Pilots and Safety Controls are covered by a warranty of the original manufacturer only.
 Commercial Use:
All Components  1 year from date of purchase


 Options and Accessories

Click to see Burner Kits

LD Multi-Burner/Grate

The LC & LD Burner features multi-tiered burners integrated with the log grate. Designed for use with TimberFire, and can be used with any Evening Series log sets

BTU: 190,000 NG, 175,000 LP


Click to see Remote Control and Switching Accessories

SR-2R Wireless Hand-held Transmitter with simple ON/OFF function

This remote turns the fireplace on or off at the push of a button. Works with "EASY" control systems as their remote control.
  • For "RPK3E" and "SE" Remote Ready EASY Controls Includes battery
  • Remote works up to 20 feet away

THR-2R Remote Control (Thermostat & On/Off) for RPK3E & SE Systems

This remote turns the fireplace on or off at the push of a button, but also has thermostat function. Works with "EASY" control systems as their remote control.
  • Only for use with Rasmussen "EASY" Control systems with latching solenoid, such as all "SE" and "RPK3E" controls
  • Batteries included
  • Works up to 20 feet away

TS-2R Wireless Wall Thermostat Control

The wall thermostat turns the fireplace on until the air temperature in the room reaches a certain point, then it shuts off. Works with "EASY" control systems as their remote control.
  • Turns the fireplace on until it reaches a certain temperature in the room
  • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
  • Works up to 20 feet away
  • Includes batteries
  • Receiver not included

WS-2R Wireless Wall Switch

The wall switch turns the fireplace on or off at the push of a button. Works with "EASY" control systems as their remote control.
  • On/off rocker switch, similar to a light switch, which turns the fireplace on or off at the push of a button
  • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
  • Works up to 20 feet away
  • Includes batteries
  • Receiver not included

WT-2R Wireless 30/60/120 minute Wall Timer

The wall timer turns the fireplace on until the specified time is reached, then it shuts off. This can help save gas or keep a room from getting too warm. Works with "EASY" control systems as their remote control.
  • Turns the fireplace on for a certain amount of time, after which it automatically shuts off
  • For Rasmussen RPK3E and 'SE' 'EASY' models with Latching Solenoid
  • Works up to 20 feet away
  • Includes batteries
  • Receiver not included

RH2 Ceramic Log House for "SE", "RE" and Millivolt receivers

This log shaped ceramic box blends in with most Rasmussen gas log sets. Helps to keep heat off of the remote receiver and helps mask the appearance of some electronic components. This receiver housing should still be installed near the edge of the firebox or outside it as far away from the heat as possible.
  • Helps protect the receiver from heat
  • Made from the same materials as our gas logs

RH3 Ceramic House for Remote Receivers

Smooth-sided for Alterna Contemporary sets, like FireBalls, FireStones, FireShapes, and FireGlitter. Also good For CoalFire (Black color). Helps to keep heat off of the remote receiver and helps blend some of the electronic components in with contemporary Rasmussen fireplace sets. This receiver housing should still be installed near the edge of the firebox or outside it as far away from the heat as possible.
  • Helps protect the receiver from heat
  • Made from the same materials as our gas logs
  • Choice of 7 colors

Click to see Other Accessories

GV60-WMB Wall Mounting Bracket for VEI Handheld Transmitters

Wall Mounting Bracket for VEI Handheld Transmitters

GV60-WS1 Wired Wall Switch with Variable Flame Height Control for VEI

Wired Wall Switch with Variable Flame Height Control for VEI. Includes 26-feet of wires
