SKU:VPS100-AA1

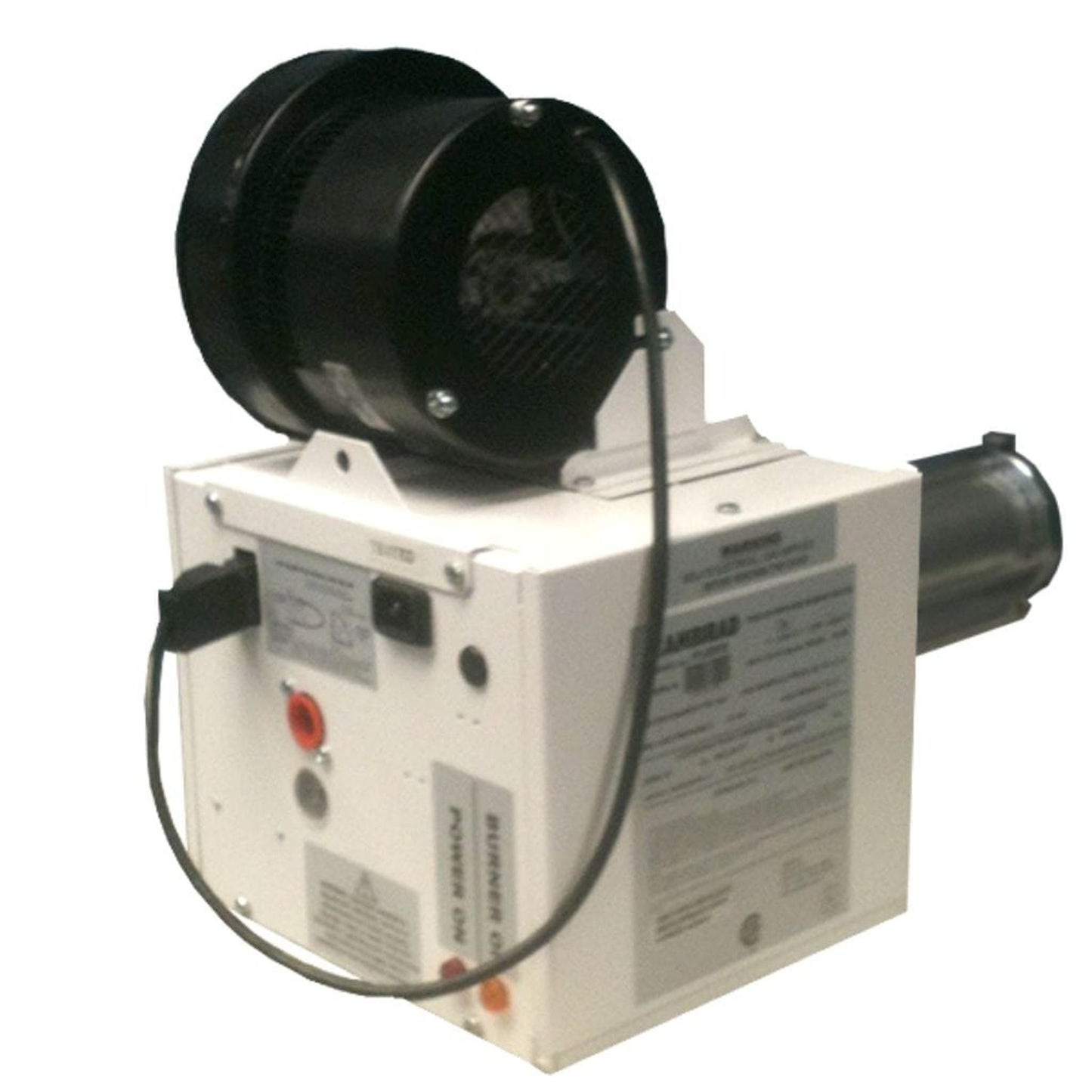

Reznor VPS100 Gas-Fired Radiant Indoor Heater - Burner Box Only
Reznor VPS100 Gas-Fired Radiant Indoor Heater - Burner Box Only
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Overview
Reznor HVAC has 130 years of experience manufacturing a wide range of industry-leading industrial and commercial HVAC products. Reznor built its reputation by providing reliable, high-quality heating, ventilation and cooling systems.
Since its founding in 1888, Reznor has remained at the forefront of HVAC technology. Reznor is a global leader thanks to its innovative, extended range of gas-fired unit heaters, air handlers, condensers and rooftop units.
Descriptions
Reznor's VPS is a positive-pressure heating system. Units are available with a Calcoat® combustion chamber tube and rolled steel heat exchanger tubes. Reznor radiant heating is among the most environmentally friendly heating solutions on the market, greatly assisting industry and commerce in improving their overall energy performance and making a significant contribution to achieving compliance with the LEED green building rating system.
Features
The VP series of tubular radiant heaters are available in BTUH inputs ranging from 60,000 to 200,000 and in system lengths from 20 to 80 feet (see the following pages for BTUH/system length combinations). Heaters are available for use with natural gas or optional propane gas. Tubular radiant heaters are engineered to provide quiet, reliable, energy-efficient, and comfortable heating for both spot and space applications.
- Natural Gas operation
- Full input rate for elevations up to 2,000 ft.
- 115/1/60 supply voltage
- Single-stage combination gas valve
- Pre-purge and post-purge
- Diagnostic indicator lights
- Operation indicator lights
- Calcoat combustion chamber and rolled steel heat exchanger tubes
- Aluminized Steel Reflectors
- Multi-try direct ignition with soft lockout
Specifications
| Model | VPS100 |
| Product Type | Unit Heater |
| Fuel Type | Natural Gas or Propane |
| Installation Type | Ceiling Mount |
| Heating Capacity | 65,000 to 100,000 BTU/H |
| Ignition | Electronic Program Startup with Spark Ignition |
| Gas Connection | 1/2" N.P.T |
| Voltage |
115V/1/60 |
| Wattage | 19,000 to 29,000 |
Minimum and Recommended Mounting Heights
| Model | Standard | Angled | ||
| Minimum | Recommended | Minimum | Recommended | |
| ft/m | ft/m | ft/m | ft/m | |
| VPS100 | 14/4.3 | 16/4.9 | 12/3.7 | 13/4 |
The UDX can be used in many markets including:
- Retail
- Showrooms
- Workshops
- Schools
- Exhibition Halls
- Hospital/Medical
- Sports Facilities
- Water Treatment
- Transportation Terminals
- Industrial Manufacturing
- Warehouse/Distribution
- Food & Beverage
- Residential
Warranty
Reznor warrants to the original owner-user that this product will be free from defects in material and workmanship. This warranty is limited to twelve (12) months from the date of original installation, whether or not actual use begins on that date, or eighteen (18) months from date of shipment, whichever occurs first.
Downloads
Safety Information: See CA Prop 65 Warning
