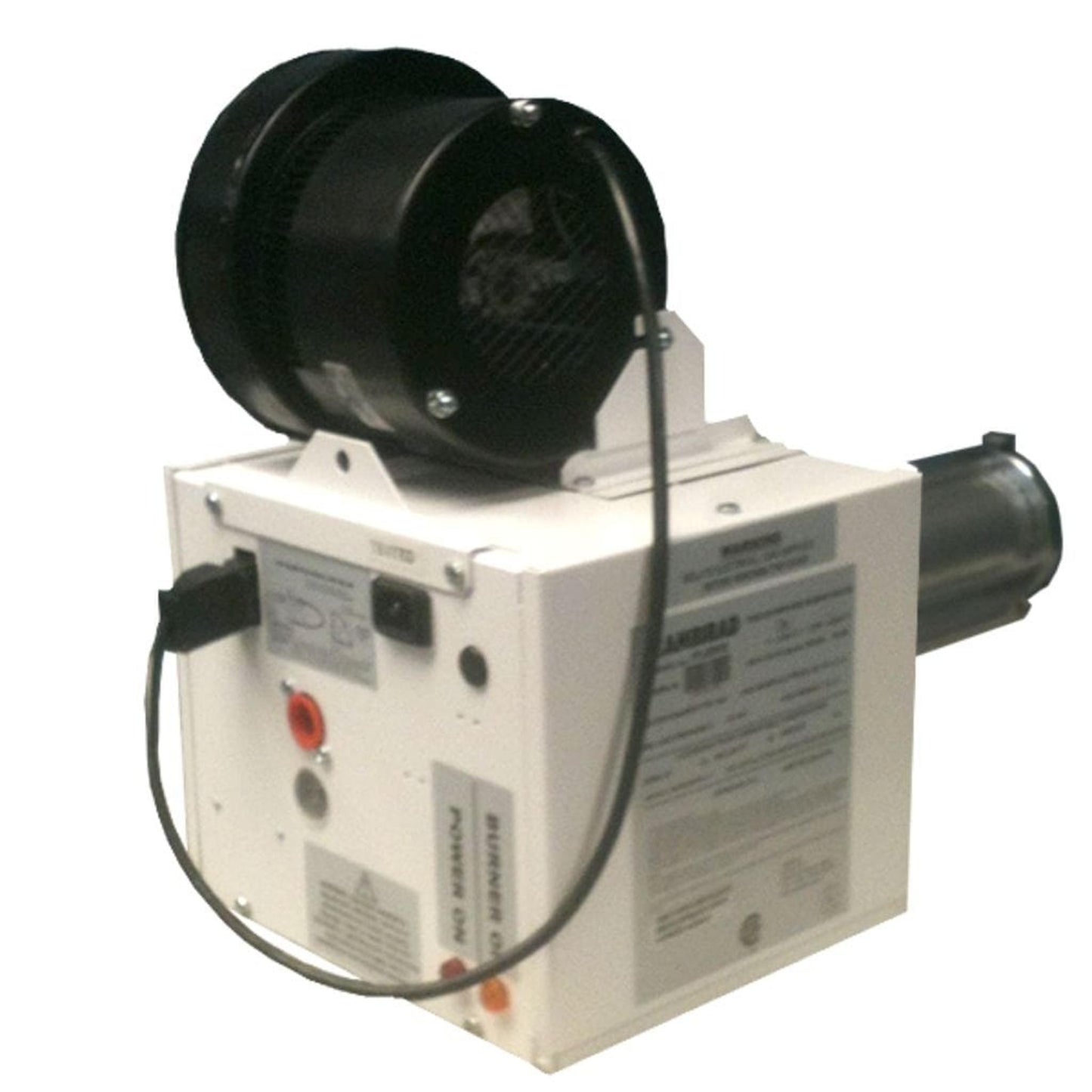

Reznor VPS60 Gas-Fired Radiant Indoor Heater - Burner Box Only

Fuel Type: Natural Gas/Factory Installed

Estimated Arrival: Between and . (To All Contiguous States)

✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.


Reznor HVAC has 130 years of experience manufacturing a wide range of industry-leading industrial and commercial HVAC products. Reznor built its reputation by providing reliable, high-quality heating, ventilation and cooling systems.

Since its founding in 1888, Reznor has remained at the forefront of HVAC technology. Reznor is a global leader thanks to its innovative, extended range of gas-fired unit heaters, air handlers, condensers and rooftop units.



Reznor's VPS is a positive-pressure heating system. Units are available with a Calcoat® combustion chamber tube and rolled steel heat exchanger tubes. Reznor radiant heating is among the most environmentally friendly heating solutions on the market, greatly assisting industry and commerce in improving their overall energy performance and making a significant contribution to achieving compliance with the LEED green building rating system.



The VP series of tubular radiant heaters are available in BTUH inputs ranging from 60,000 to 200,000 and in system lengths from 20 to 80 feet (see the following pages for BTUH/system length combinations). Heaters are available for use with natural gas or optional propane gas. Tubular radiant heaters are engineered to provide quiet, reliable, energy-efficient, and comfortable heating for both spot and space applications.

  • Natural Gas operation
  • Full input rate for elevations up to 2,000 ft.
  • 115/1/60 supply voltage
  • Single-stage combination gas valve
  • Pre-purge and post-purge
  • Diagnostic indicator lights
  • Operation indicator lights
  • Calcoat combustion chamber and rolled steel heat exchanger tubes
  • Aluminized Steel Reflectors
  • Multi-try direct ignition with soft lockout



Model VPS60
Product Type Unit Heater
Fuel Type Natural Gas or Propane
Installation Type Ceiling Mount
Heating Capacity 45,000 to 60,000 BTU/H
Ignition Electronic Program Startup with Spark Ignition
Gas Connection 1/2" N.P.T
Wattage 13,000 to 18,000


Minimum and Recommended Mounting Heights

 Model Standard Angled
Minimum Recommended Minimum Recommended
ft/m ft/m ft/m ft/m
VPS60 12/3.7 14/4.3 10/3 11/3.4


The UDX can be used in many markets including:

  • Retail
  • Showrooms
  • Workshops
  • Schools
  • Exhibition Halls
  • Hospital/Medical
  • Sports Facilities
  • Water Treatment
  • Transportation Terminals
  • Industrial Manufacturing
  • Warehouse/Distribution
  • Food & Beverage
  • Residential



Reznor warrants to the original owner-user that this product will be free from defects in material and workmanship. This warranty is limited to twelve (12) months from the date of original installation, whether or not actual use begins on that date, or eighteen (18) months from date of shipment, whichever occurs first.



 Safety Information: See CA Prop 65 Warning
