Schwank

JL-0776-XX

Schwank Zone Transformers 24VAC For Gas Heaters

Number of Heaters: 1 Heater


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

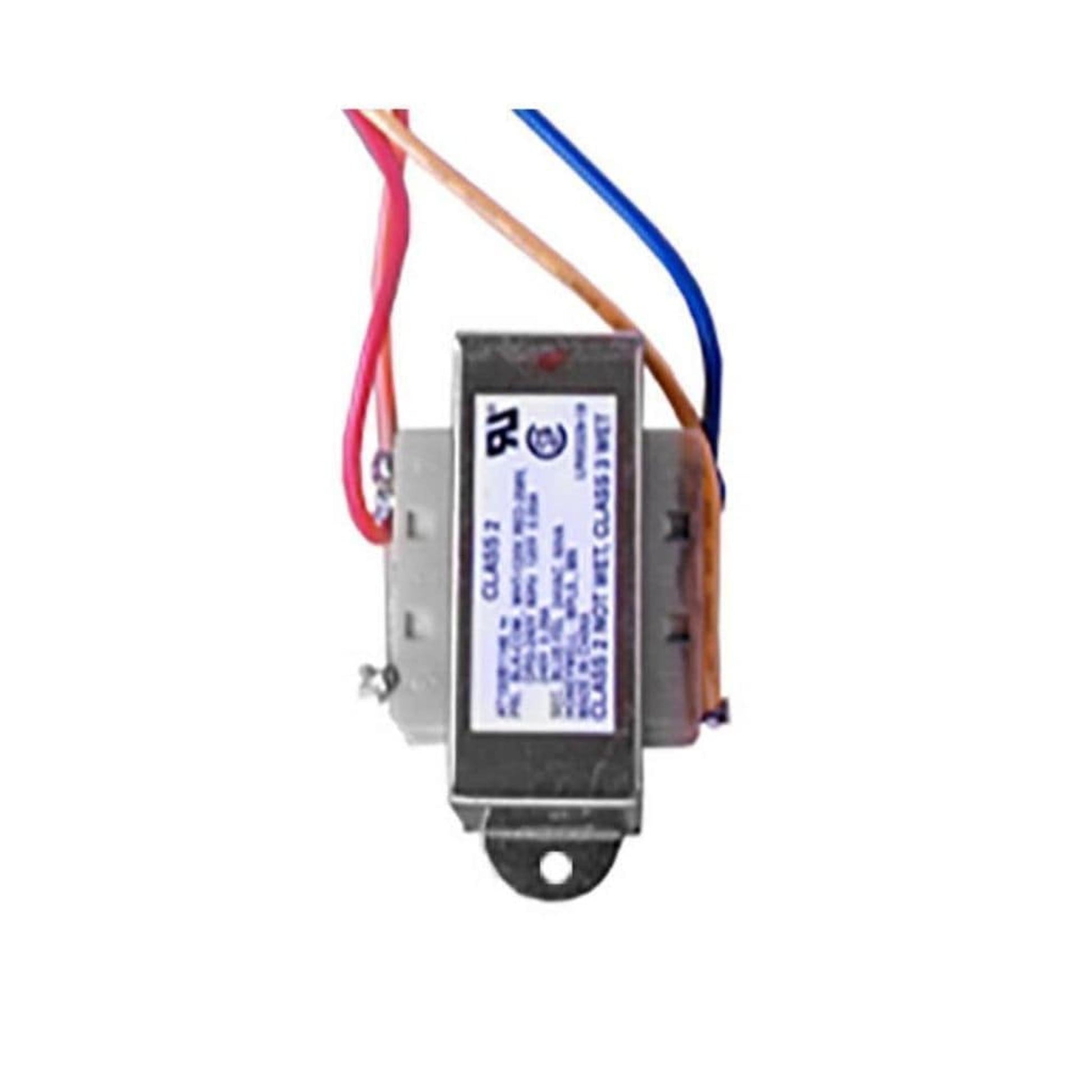

Schwank Zone Transformers are used together with control options for bistroSchwank or supremeSchwank heaters. This transformer powers wireless receivers and the central control panel that are used to control your heaters. 40, 100, 150, 200, 250, a single heater, one 40 VA transformer is enough. In a zone with multiple heaters, use a transformer sized at 40 VA for the first heater and 20 VA per each additional heater. One transformer per zone is required.

24V TRANSFORMERS:

SIZE HEATER QTY   SKU
40 VA Transformer 1 4″x 4″ Electrical Box Mount JL-0776-XX
100 VA Transformer Up to 4 Closed Type JL-0778-XX
150 VA Transformer Up to 6 Closed Type JL-0779-XX
200 VA Transformer Up to 9 Closed Type JL-0780-XX
250 VA Transformer Up to 11 Closed Type JL-0781-XX
350 VA Transformer Up to 16 Closed Type JL-0781-AA

KEY FEATURES:

  • 24V transformer for your zone control needs
  • Available in 40, 100, 150, 200, 250, and 350 VA
  • One transformer per zone required
  • Made in USA
