SKU:TOP-500EIS-100-12-H
The Outdoor Plus Smart Weather Electronic Ignition System
The Outdoor Plus Smart Weather Electronic Ignition System
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

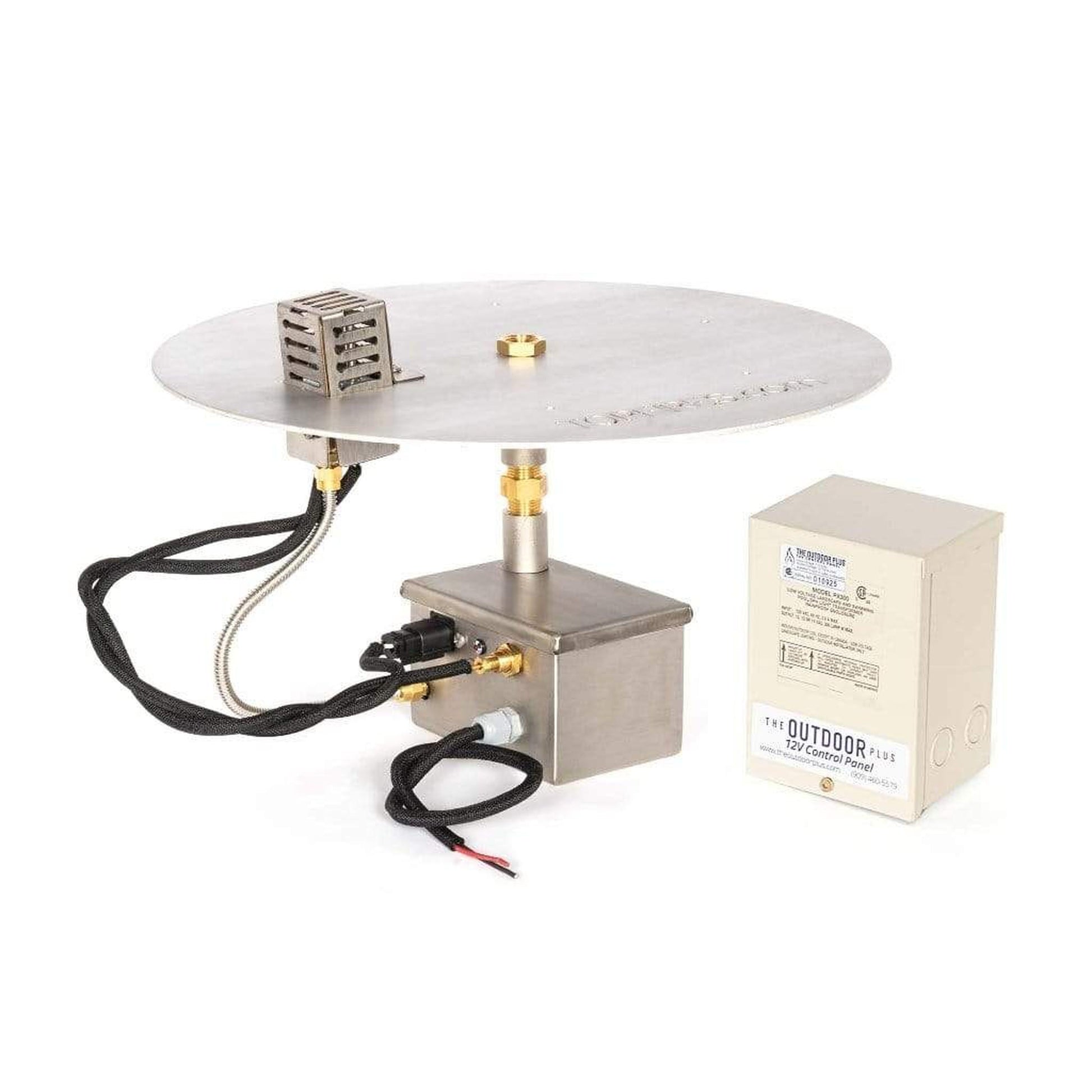

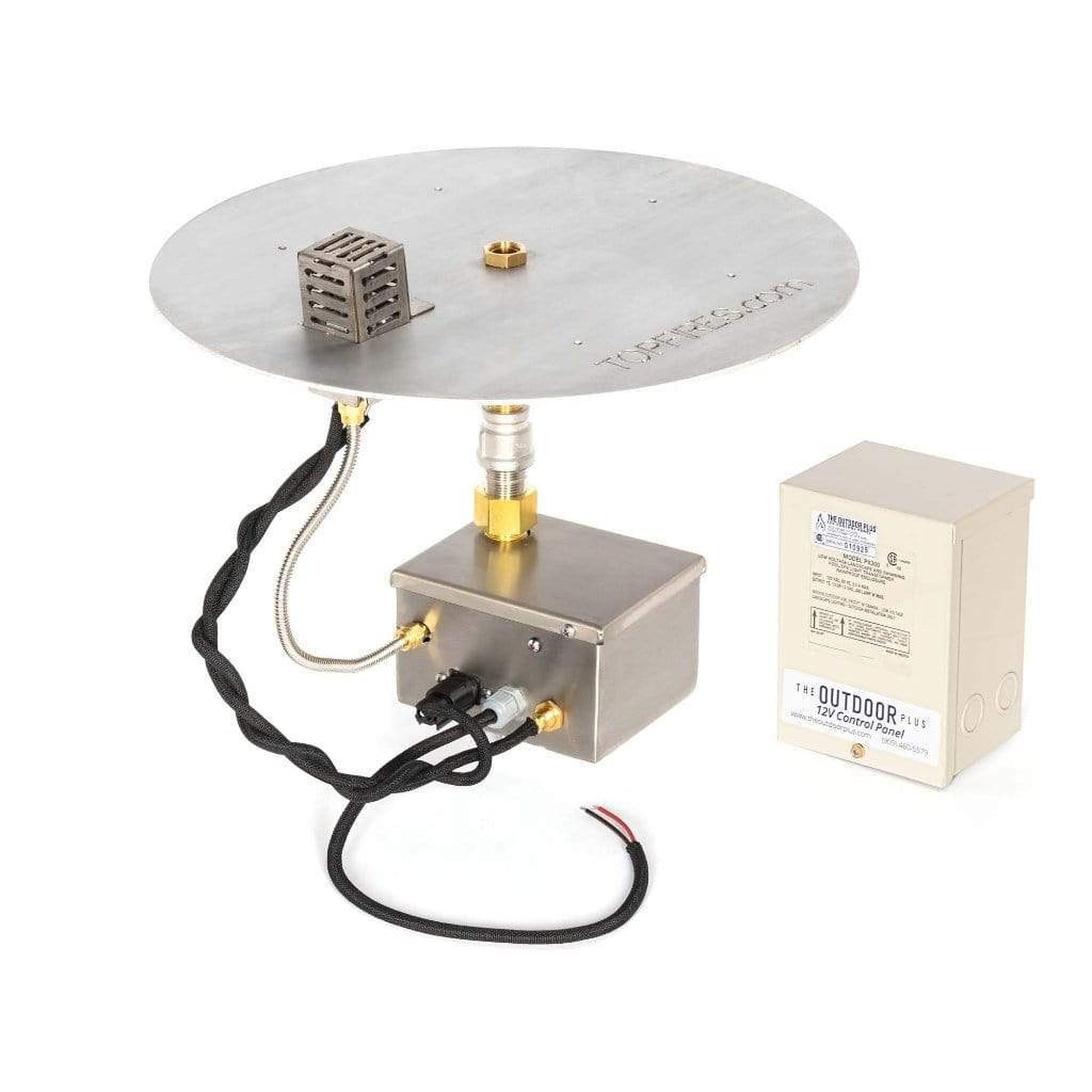

The Smart Weather Electronic Ignition System (SWEIS) is an automated ignition system for any fire pit and fire bowl. We offer 3 different output options to make sure you have the right unit for your fire feature, regardless of the size. The SWEIS is offered in either 12V or 110V Plug & Play options to accommodate different kinds of installations. Each unit comes with a 1 Year Limited Warranty.
Our pilots use a hot surface igniter (HSI) for pilot ignition and a thermocouple flame sensor to ensure the feature is lit properly and stops the gas flow if the flame is ever blown out. The electronic valve is rated for temperatures between -20°F - 175°F (-28°C - 80°C). The valve enclosure includes an LED diagnostic light to indicate proper operation and to help ease troubleshooting
FEATURES
-
Weather Tested: Proven to operate properly in mild wind, rain & snow.
-
1 Year Limited Warranty: Covers all components of the Electronic Ignition System
-
Compact Construction: The small construction allows it to be installed in tight spaces.
-
12 Volts or 110 Volts: Different types of electricity for different kinds of applications. 12V is required for installations near pools, spas & other bodies of water
-

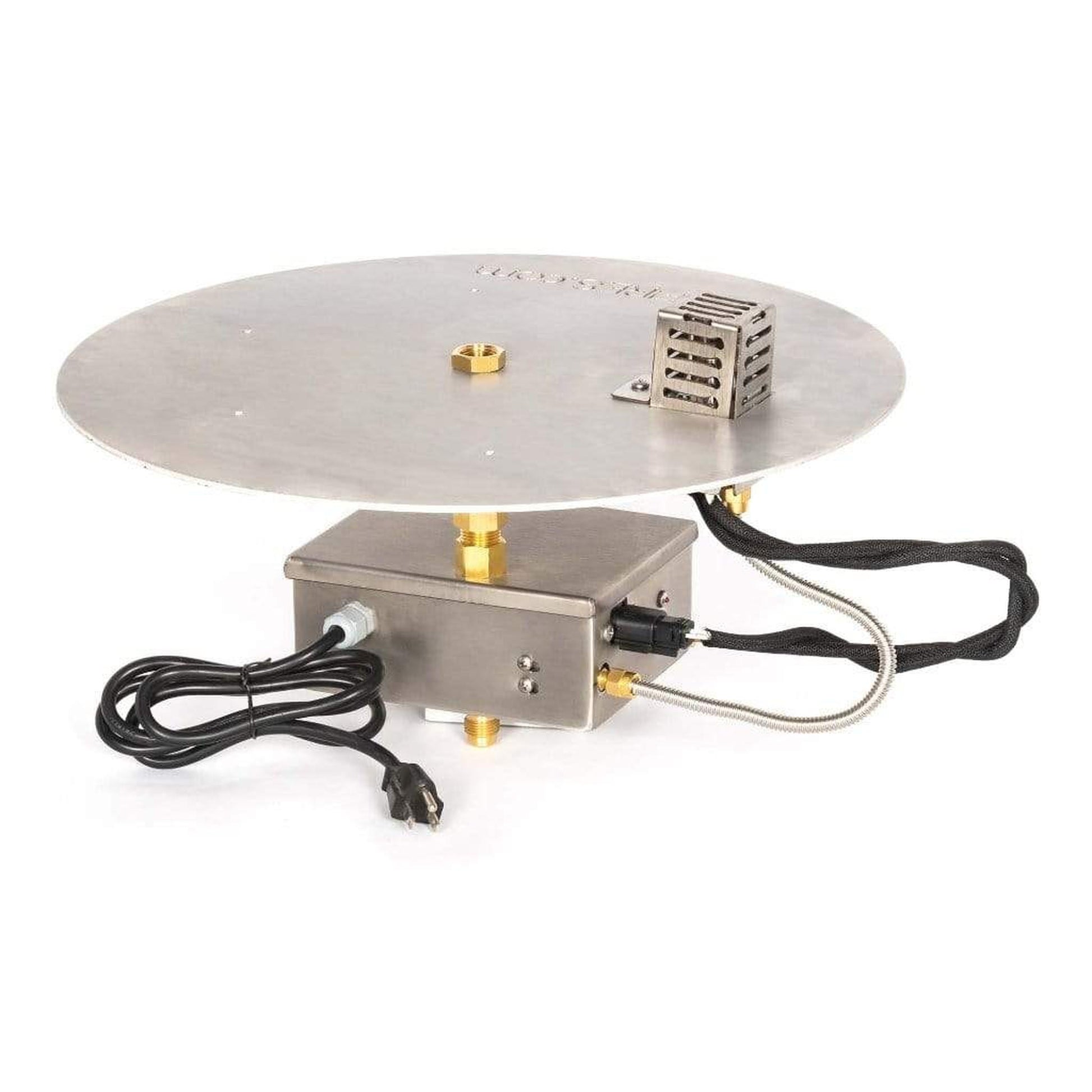

110V Plug & Play System: The three-prong plug speeds up installation and only requires a weather-protected GFCI socket with a light switch
-
Works with LP or NG: Smart Weather Electronic Ignition System is compatible with both Natural Gas and Liquid Propane (Portable LP Tank or Hard-Line LP are both okay!)
-
Safety is T.O.P's Goal: The SWEIS is tested to withstand winds up to 55mph. If the flame is blown out, the unit will automatically reignite. The unit will shut off automatically in unsafe, severe rain & wind conditions.
-
Functions with: On/Off Switches, Remote Control, Pool Remote, Smart Home System, Electric Timers, and Emergency Stop Buttons (NOT INCLUDED)
PRODUCT SPECIFICATION
MINI CAPACITY
| Capacity | MINI-12V |
MINI-110V |
| Model | TOP-500EIS-100-12 | TOP-500EIS-100-110 |
| Maximum Gas Output | 90K BTU/hr | 90K BTU/hr |
| Electrical Rating | 12VAC | 110VAC |
| Width | 4" | 7" |
| Height | 4" | 3" |
| Length | 4.75" | 5.5" |
| Flame / Heat Sense: | Thermopile | Thermopile |
| Ignition Source: | Pilot | Pilot |
| Ignition Type: | Hot Surface Ignition (Glow Plug) | Hot Surface Ignition (Glow Plug) |
| Inlet / Outlet Size: | ½” FIP | ½” FIP |
| Inlet Gas Pressure Limit: | ½ PSI | ½ PSI |
STANDARD CAPACITY
| Capacity | STANDARD-12V | STANDARD-110V |
| Model | TOP-500EIS-200-12 | TOP-500EIS-200-110 |
| Maximum Gas Output | 210K BTU/hr | 210K BTU/hr |
| Electrical Rating | 12VAC | 110VAC |
| Width | 4" | 7.5" |
| Height | 4" | 3" |
| Length | 5.5" |
5.75" |
| Flame / Heat Sense: | Thermopile | Thermopile |
| Ignition Source: | Pilot | Pilot |
| Ignition Type: | Hot Surface Ignition (Glow Plug) | Hot Surface Ignition (Glow Plug) |
| Inlet / Outlet Size: | ½” FIP | ½” FIP |
| Inlet Gas Pressure Limit: | ½ PSI | ½ PSI |
HIGH CAPACITY
| Capacity | HIGH-12V | HIGH-110V |
| Model | TOP-500EIS-300-12 | TOP-500EIS-300-110 |
| Maximum Gas Output | 510K BTU/hr | 510K BTU/hr |
| Electrical Rating | 12VAC | 110VAC |
| Width | 5" | 3.75" |
| Height | 5" | 7.25" |
| Length | 6" |
6" |
| Flame / Heat Sense: | Thermopile | Thermopile |
| Ignition Source: | Pilot | Pilot |
| Ignition Type: | Hot Surface Ignition (Glow Plug) | Hot Surface Ignition (Glow Plug) |
| Inlet / Outlet Size: | ½” FIP | ½” FIP |
| Inlet Gas Pressure Limit: | ½ PSI | ½ PSI |
CA Residents: See Prop 65 WARNING
INCLUDES
-
12V: Electronic Valve, Pilot Igniter, 12VAC Transformer, & Installation Manual
- 110V: Electronic Valve with a 3-Prong Plug and a Pilot Igniter & Installation Manual
