SKU:12021

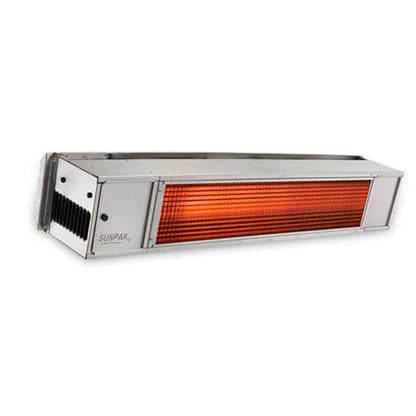

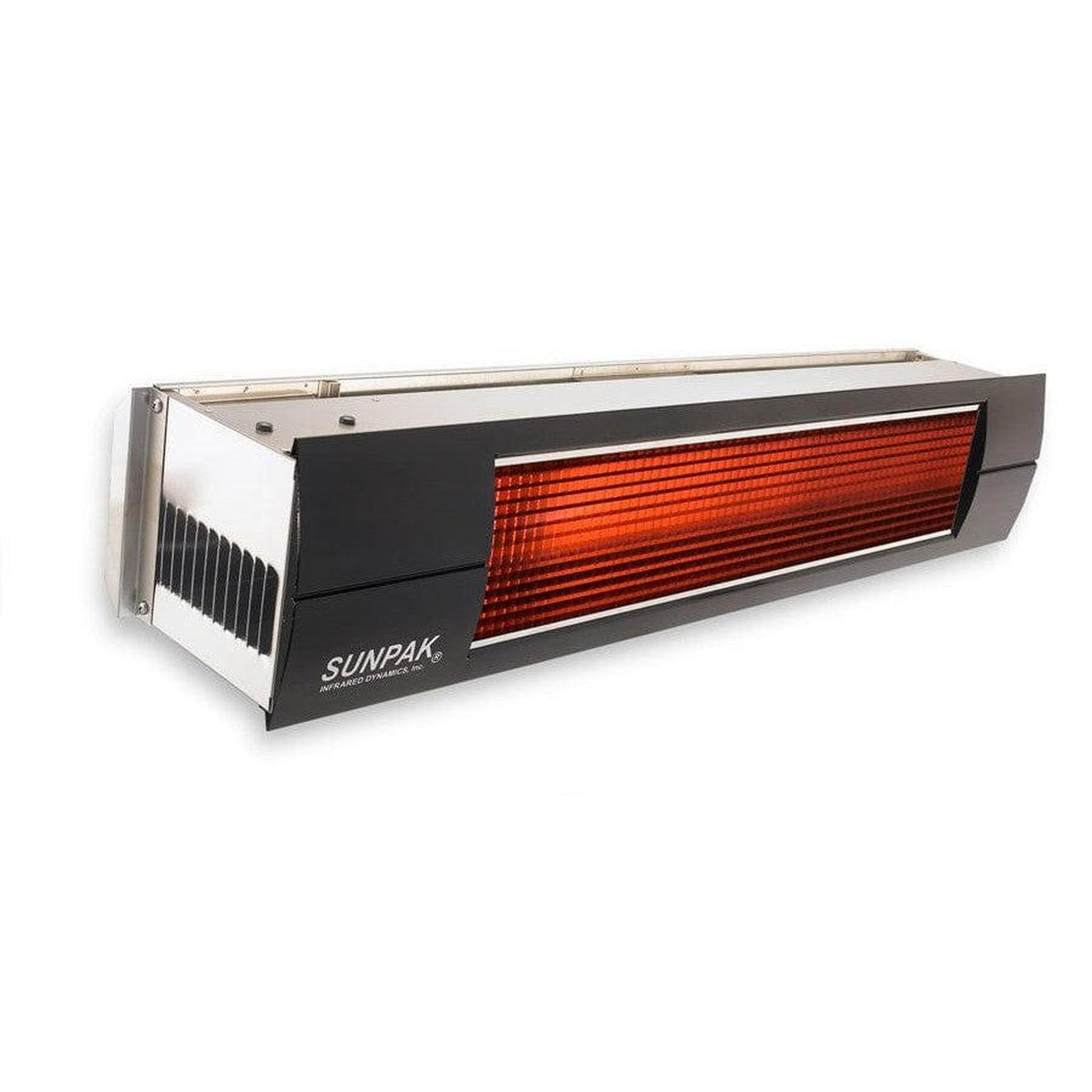

Sunpak S34 TSR 48" Stainless Steel Natural Gas Two Stage Remote Outdoor Infrared Heater

$3,465.00

~~$3,465.00~~ $3,465.00

Sale Sold out

Product variants

Face Trim Kit

Wall Timer

Estimated Delivery Date: Between December 25th and December 31st to all states excl. Alaska & Hawaii if ordered in the next 24 hours 00 minutes 00 seconds.

Free Shipping on Orders Over $400
Same-Day Order Processing
Easy Monthly Installments Starting at 0% APR*

Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

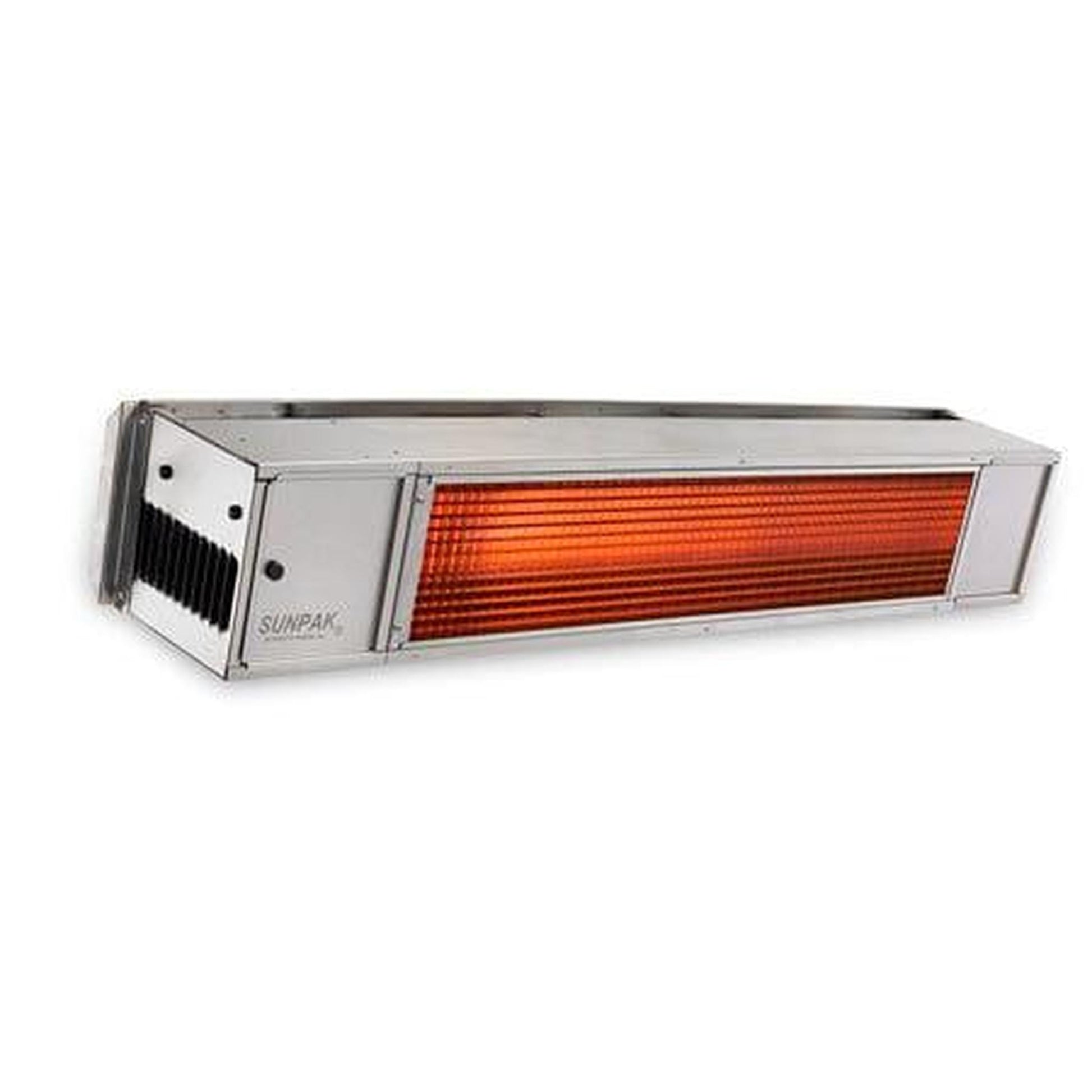

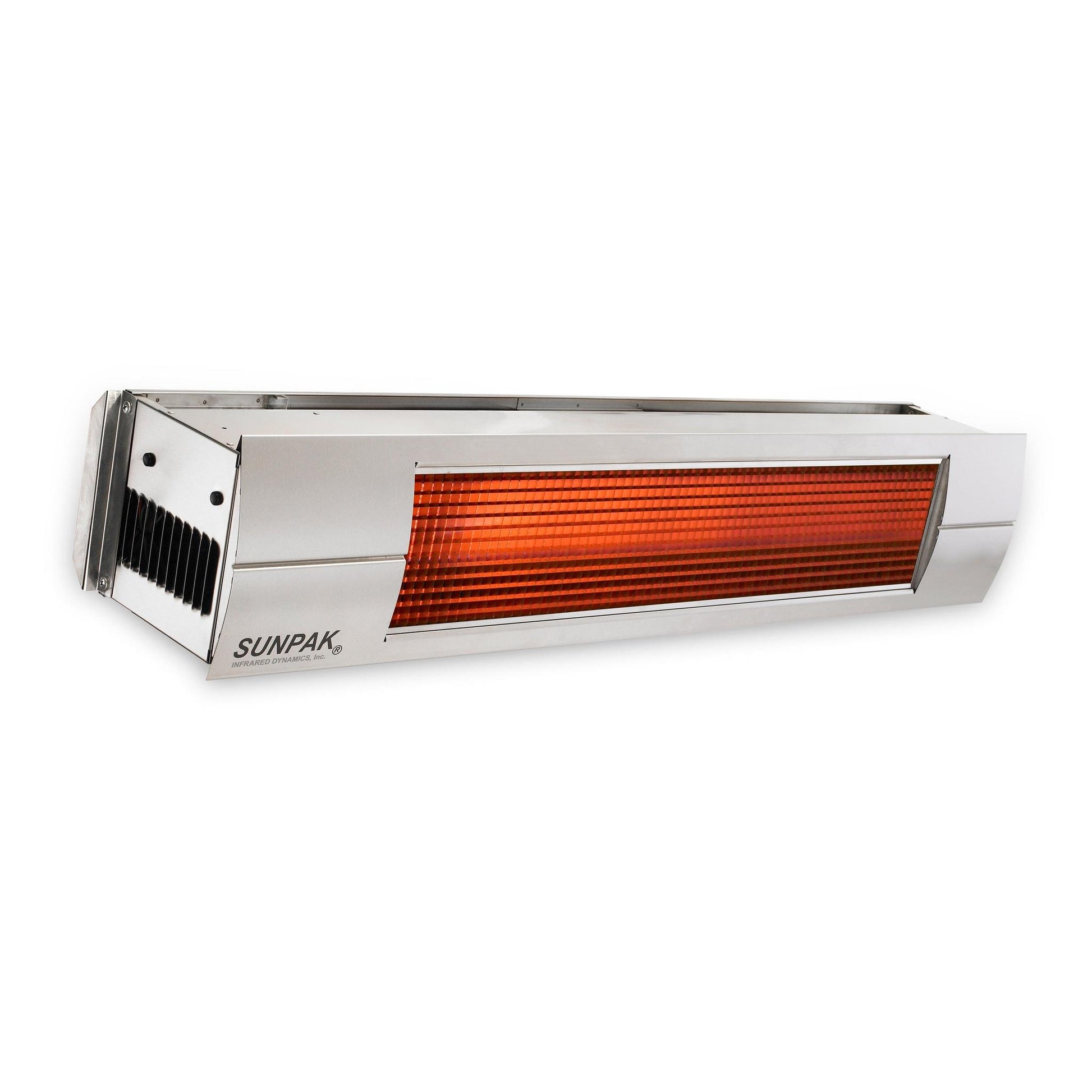

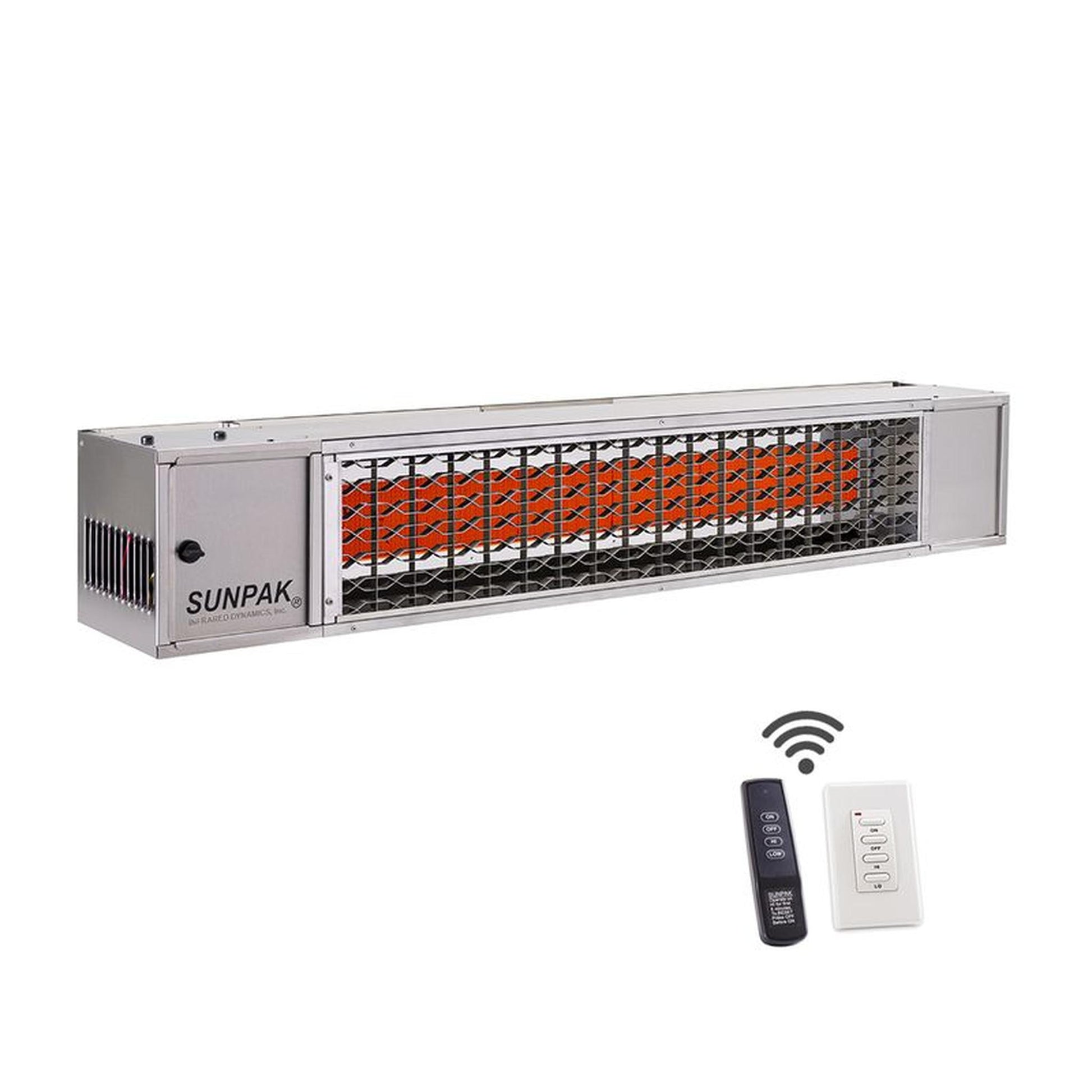

The Sunpak S34 TSR is an outdoor gas-fired infrared heater which is operated with a wireless remote control. The heater can be operated at a High setting with an input of 34,000 BTU/Hr or at a LOW setting of 25,000 BTU/Hr. Each heater comes with wireless operating remote controls that are pre-programmed for that heater. The number located on the louvered end of the heater corresponds to the number on the remote control. Should the original remote control become lost, additional remote controls can be purchased. However, the heater will need to be reprogrammed for the new remote control.

The Sunpak S34-TSR should always be started up and operated on the HIGH mode for the first 5 minutes to allow the heater to warm up. Starting up the heater on the LOW mode before the heater is warmed up may cause the heater to shut down prematurely. To correct this situation press the OFF button followed by the ON button and the HI button. Always PRESS the button for at least 1 second to allow proper transmission of the remote signal.

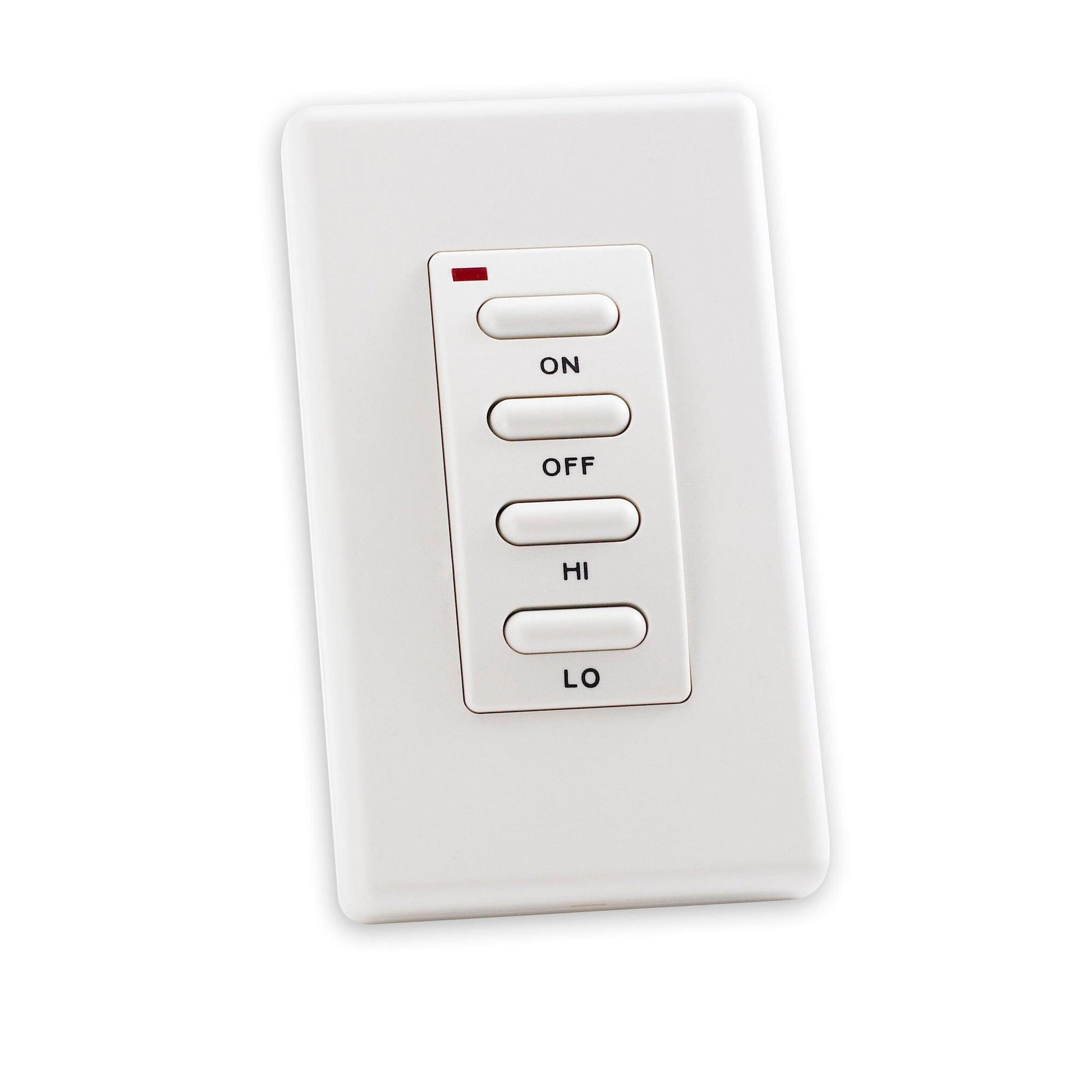

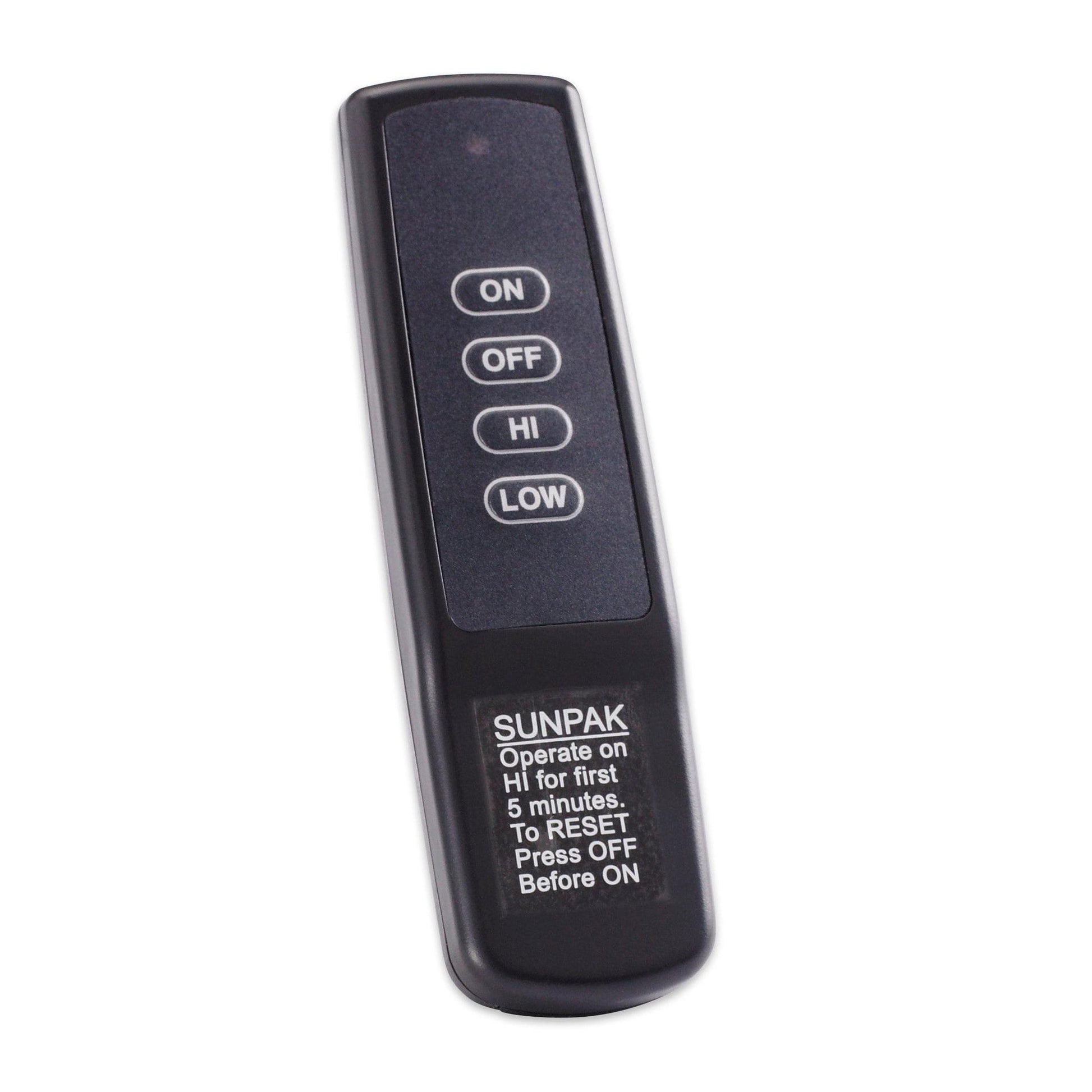

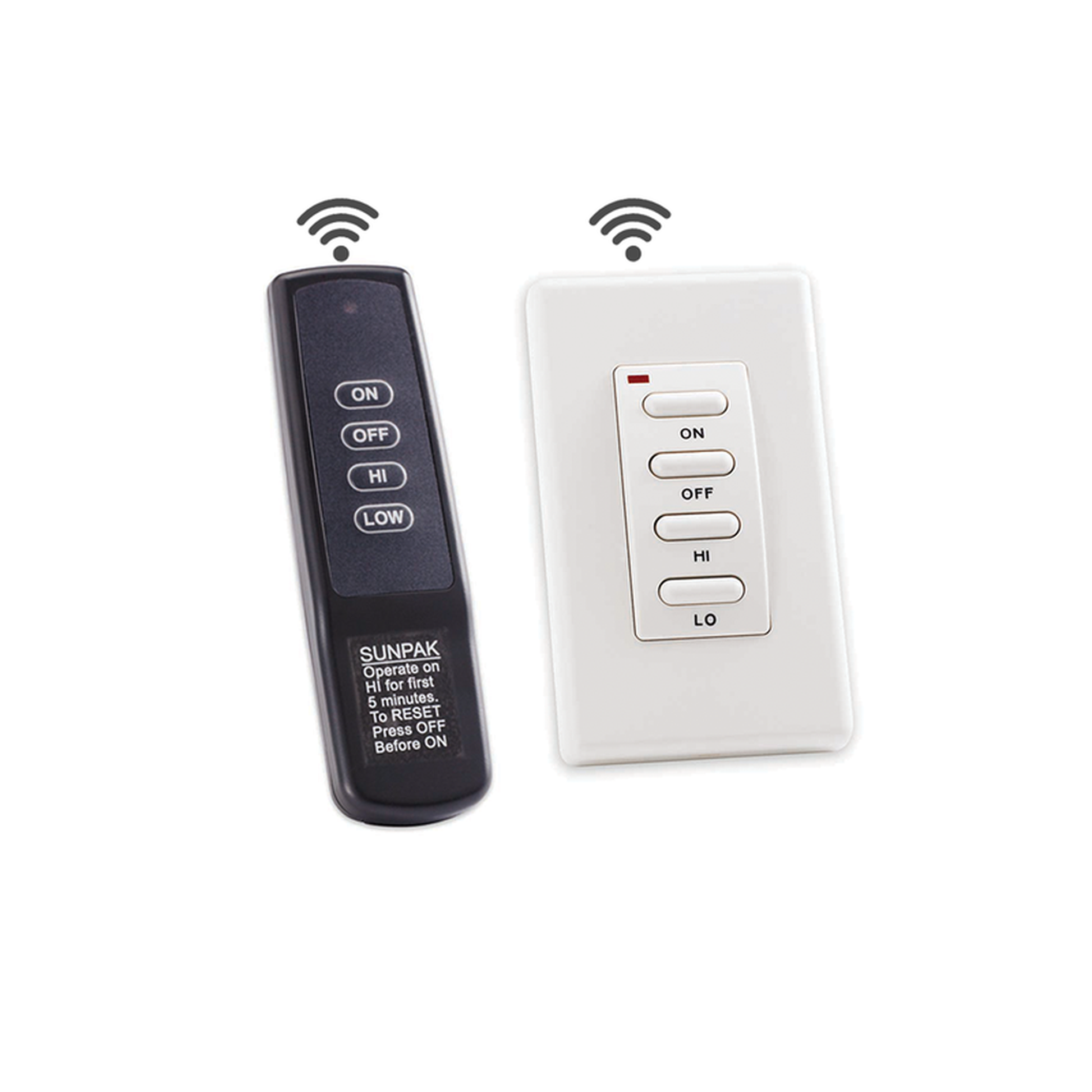

Although these heaters are designed for outdoor installation and use, it is important that the wireless remote control(s) be protected from the weather. Should the remote control become wet, it may be necessary to replace the control. Keep controls out of reach of children. Each control has four buttons (ON OFF HI LOW). The remote controls are powered by batteries. The remote control has an approximate 25 foot line of sight range. Weak batteries can limit the effective range of operation.

What's Included

Infrared Heater
Mounting Kit

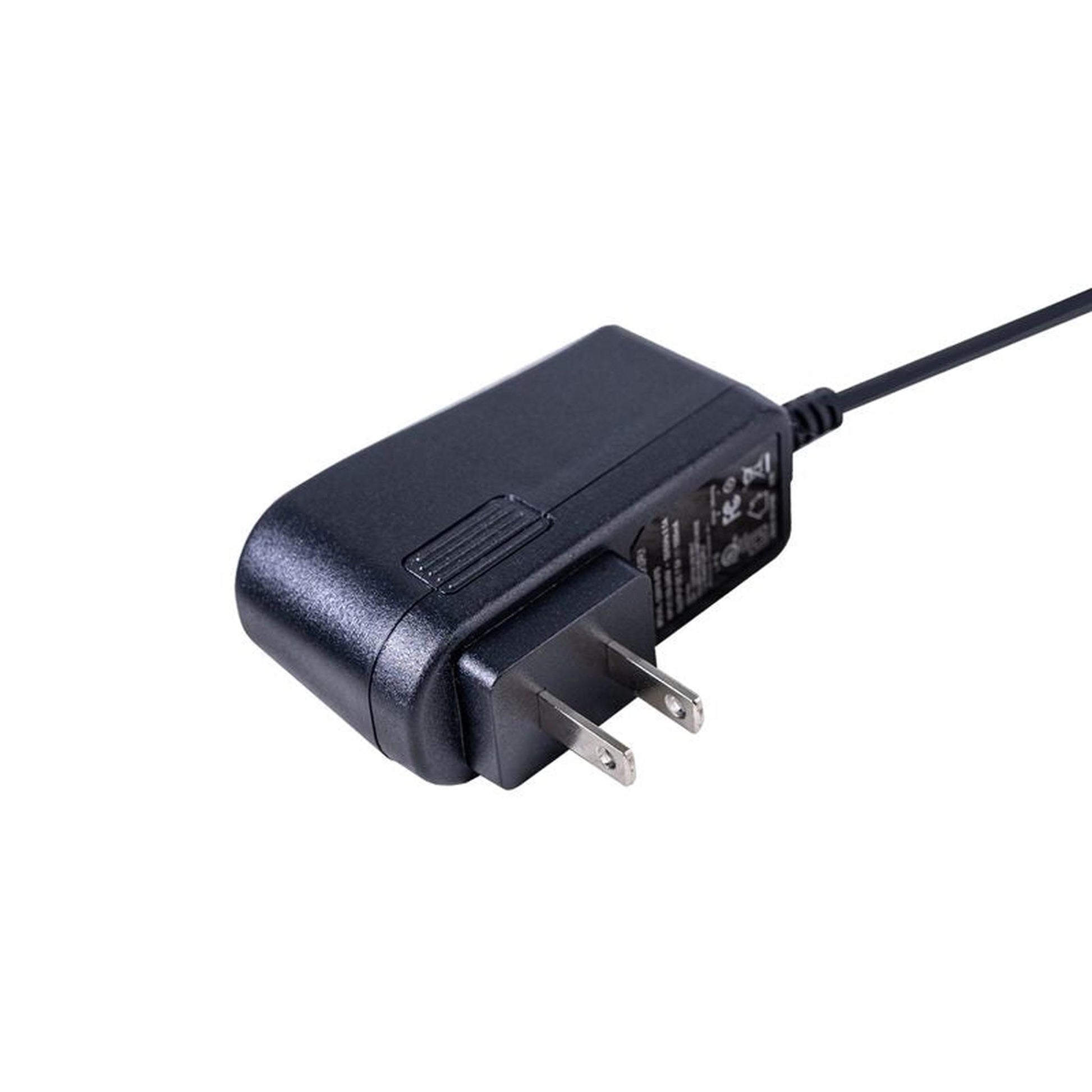

Power Adapter

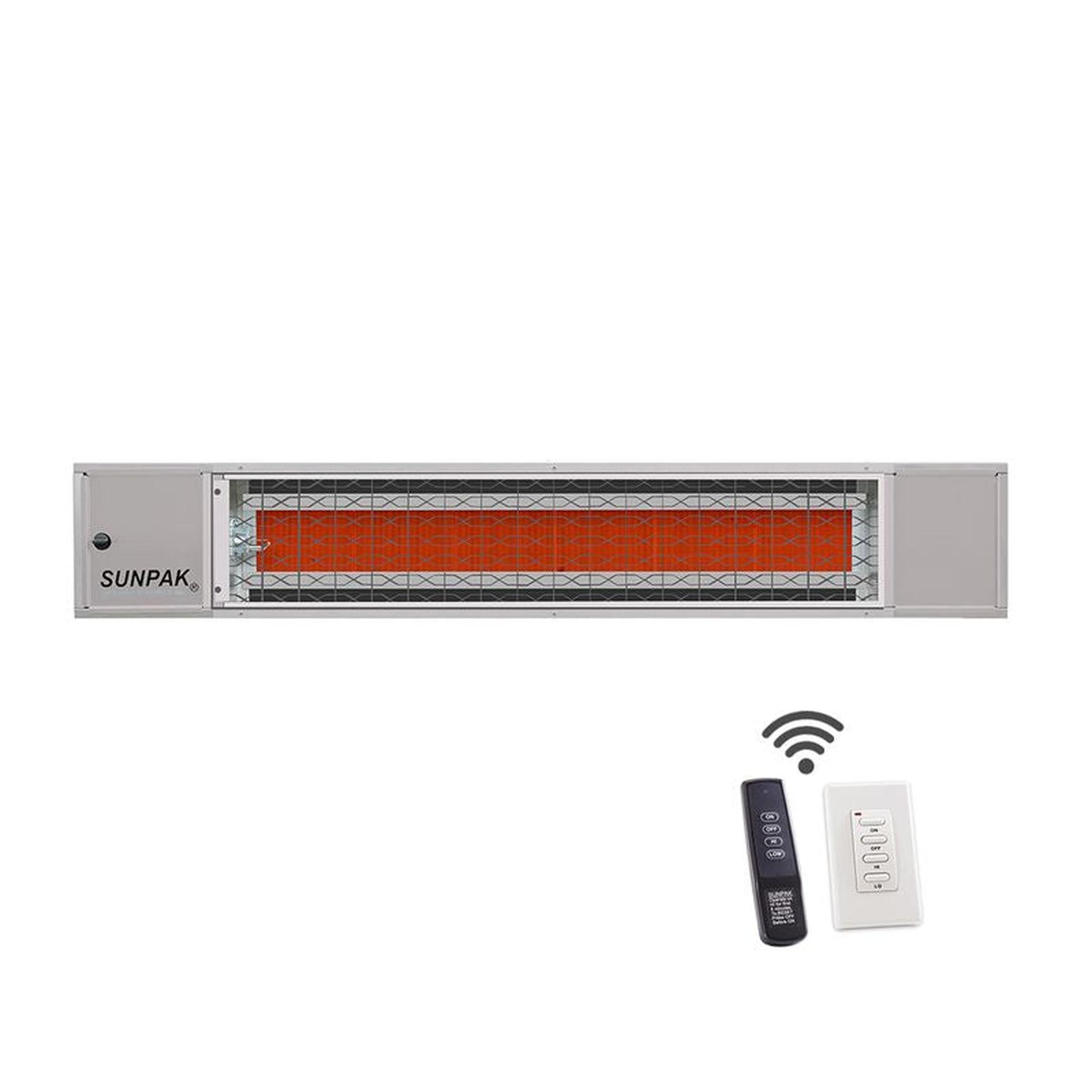

Wireless Handheld & Wall Remotes
User Manual
Installation Instruction

Not Included (Sold Separately)

Face Trim Kit
Wireless Timer

Features

Available in black or stainless steel for a sleek, modern look.
Adjustable heat output from 25,000 to 34,000 BTU.
Compact 8" x 8" x 48" design for versatile placement.
Runs on natural gas or liquid propane for flexibility.
Heats up to a 12' x 12' area for cozy outdoor comfort.
Recommended for Commercial and Residential Installation
Programmable up to 3 controls
Rain Protected
CSA Design Certified
Made in the USA

Specifications

Part Number	S34-TSR SST
BTU Output	25,000 – 34,000 Btu/hr
Fuel Type	Natural Gas
Electrical	7.5V DC
Dimensions	8"x8"x48"
Heat Coverage	12'X12'
Minimum Inlet Gas Pressure (NG)	6.0” W.C

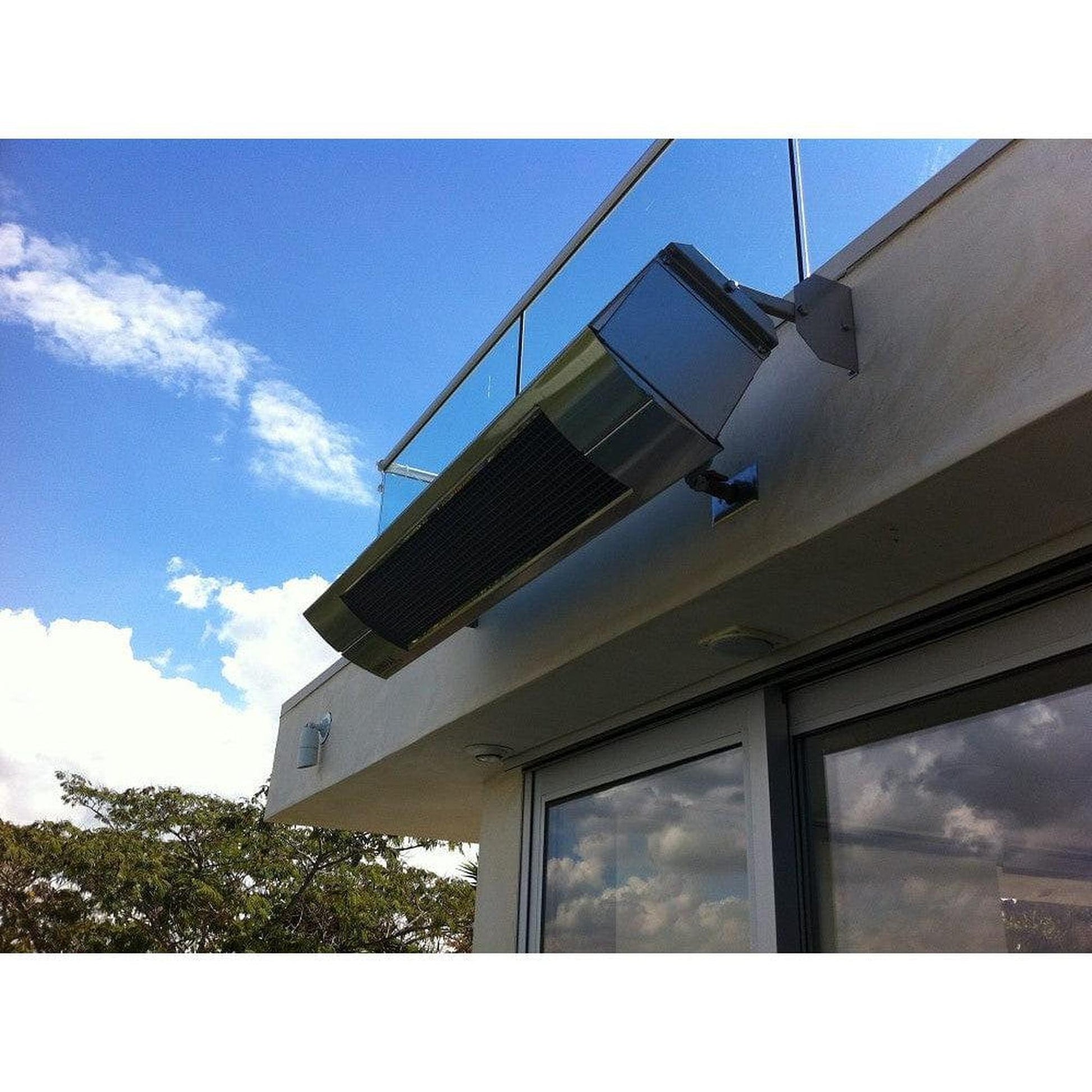

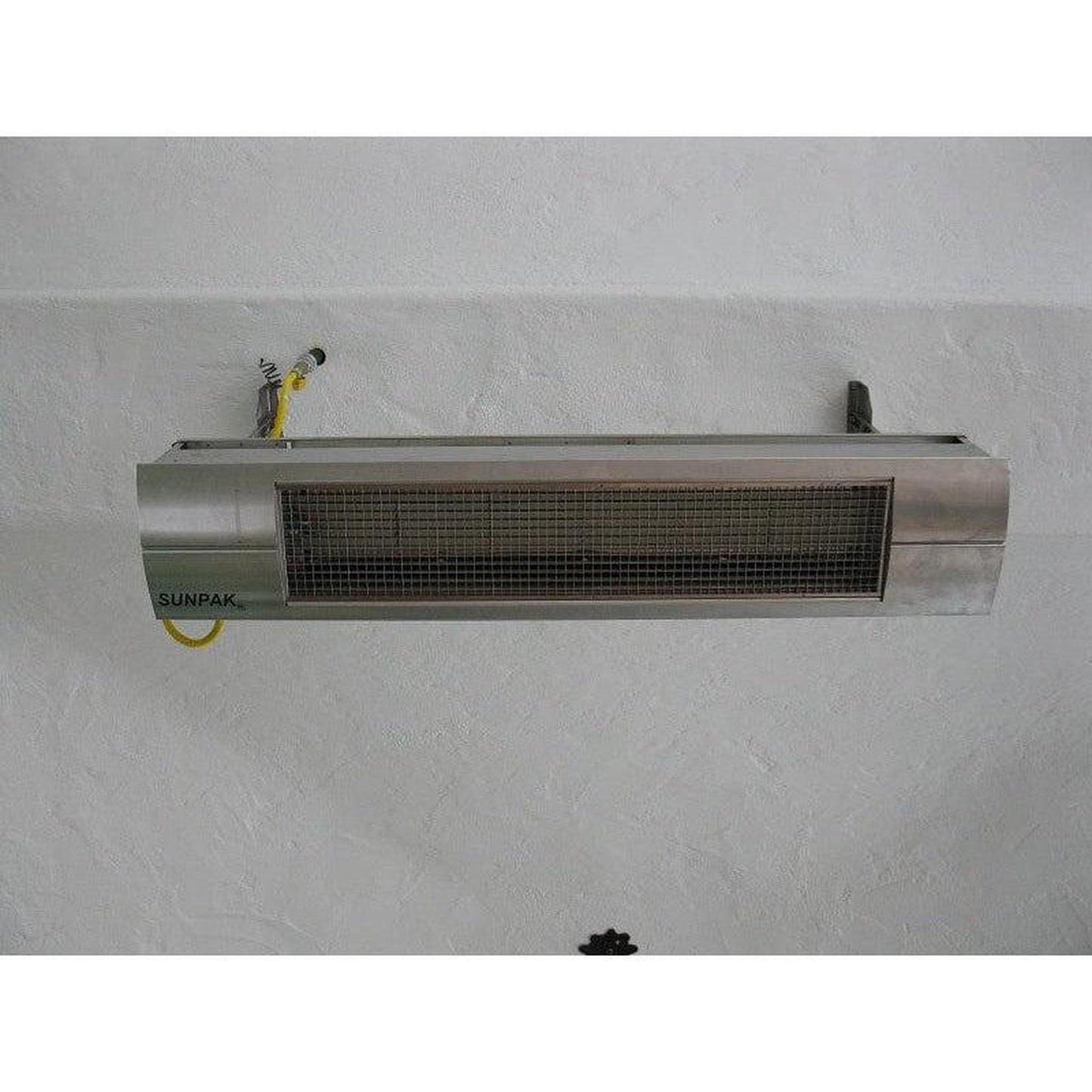

Typical Mounting Height Horizontal	8'-9'
Typical Mounting Height 30°	7'-8'
Ignition	Electronic Ignition
Color	Stainless Steel
Control	Wireless Remote

Dimensions

Warranty

Warranty One Year / Parts Only

Documents & Files

Frequently Asked Questions

Which mounting kit is needed?

Item No. 12006 SP Mounting Kit Black
Item No. 12006-6 SP Mounting Kit Stainless Steel

The mounting kits are universal between all Sunpak models.

Is the TSR a good choice for Restaurant use?

Generally no. We’ve found that having to deal with separate remote controls for each heater can be an issue with the wait staff. The TSH model is a better choice for restaurant use. Contact us is you need more information on this.

Can the heater be used without a remote? Can I use a thermostat?

One of the limitations of the TSR is that it can only be controlled with a remote. There is no way to wire the heater to be turned on/off manually from any other kind of switch.

What about a thermostat? Not possible. Only wireless switches can be used with the TSR model. Also, Infrared energy passes through the air and heats people and objects directly. Since thermostats measure air temperature they won’t work outside.

How many heaters do I need?

As a general rule of thumb, each Sunpak heater will heat approx. 10 x 10 ft of area. A 10 x 20 ft patio would use two heaters. Remember that with infrared, the heater will only heat things it can shine on. Heaters should be positioned so they “shine” where the people will be.

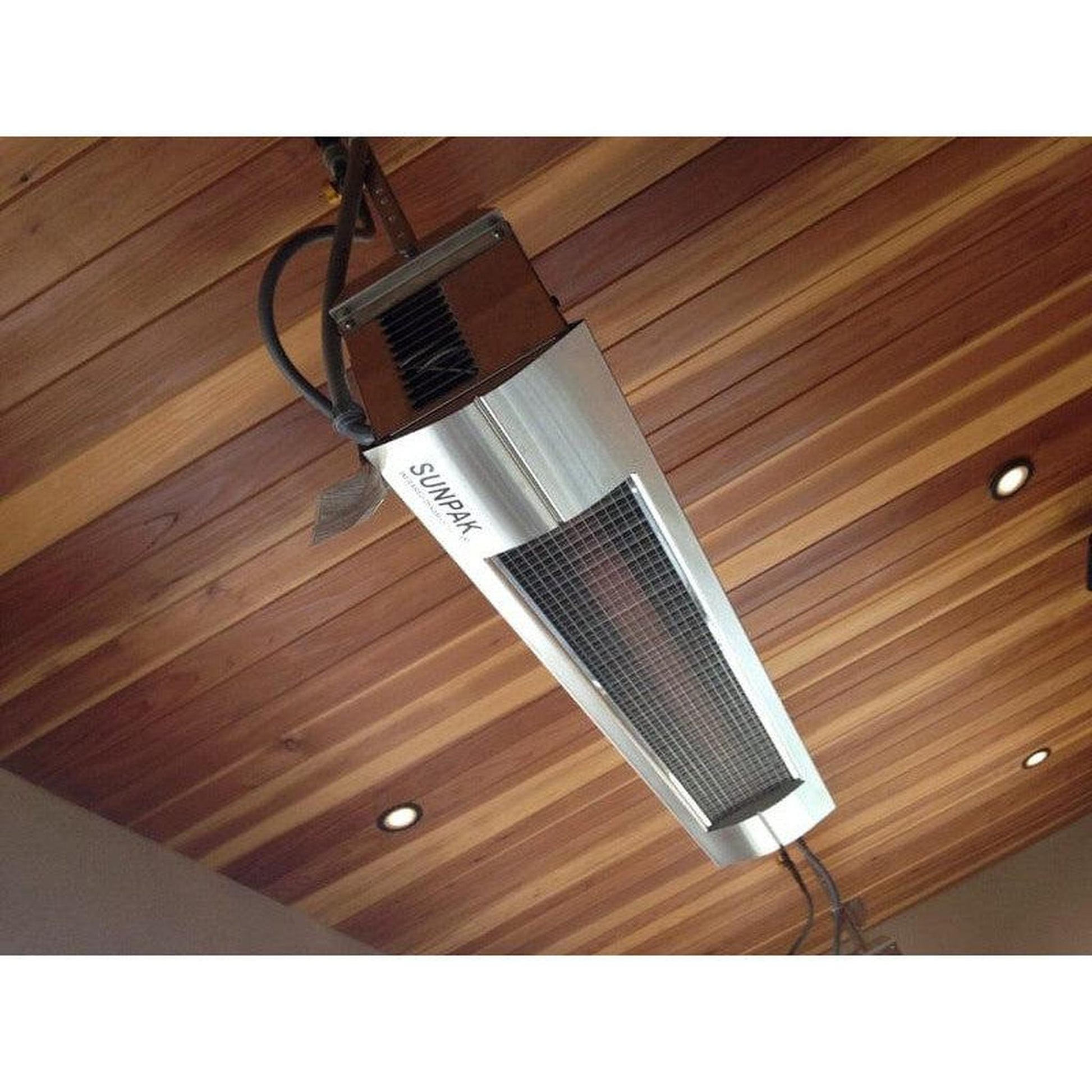

What is the recommended mounting height for a Sunpak Heater?

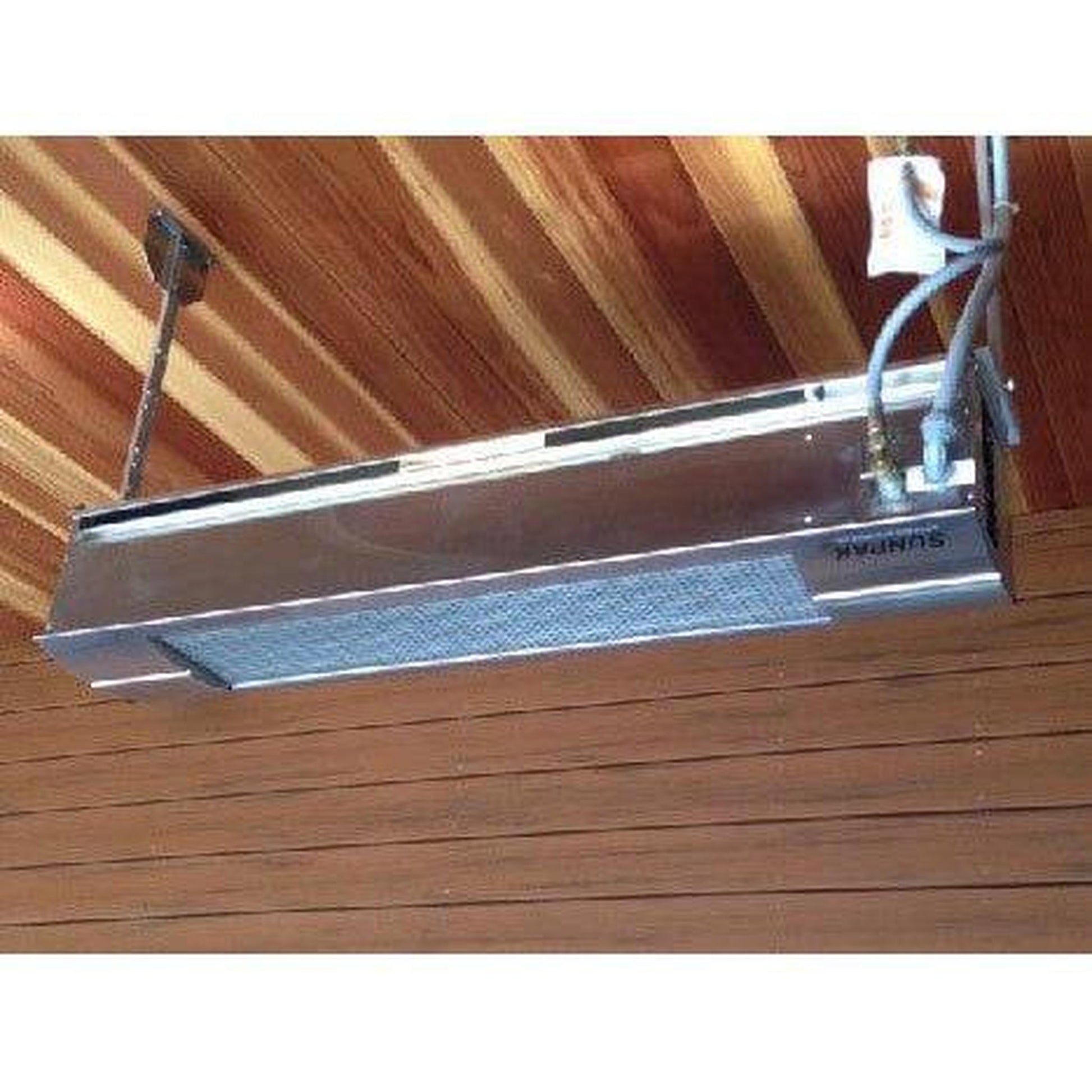

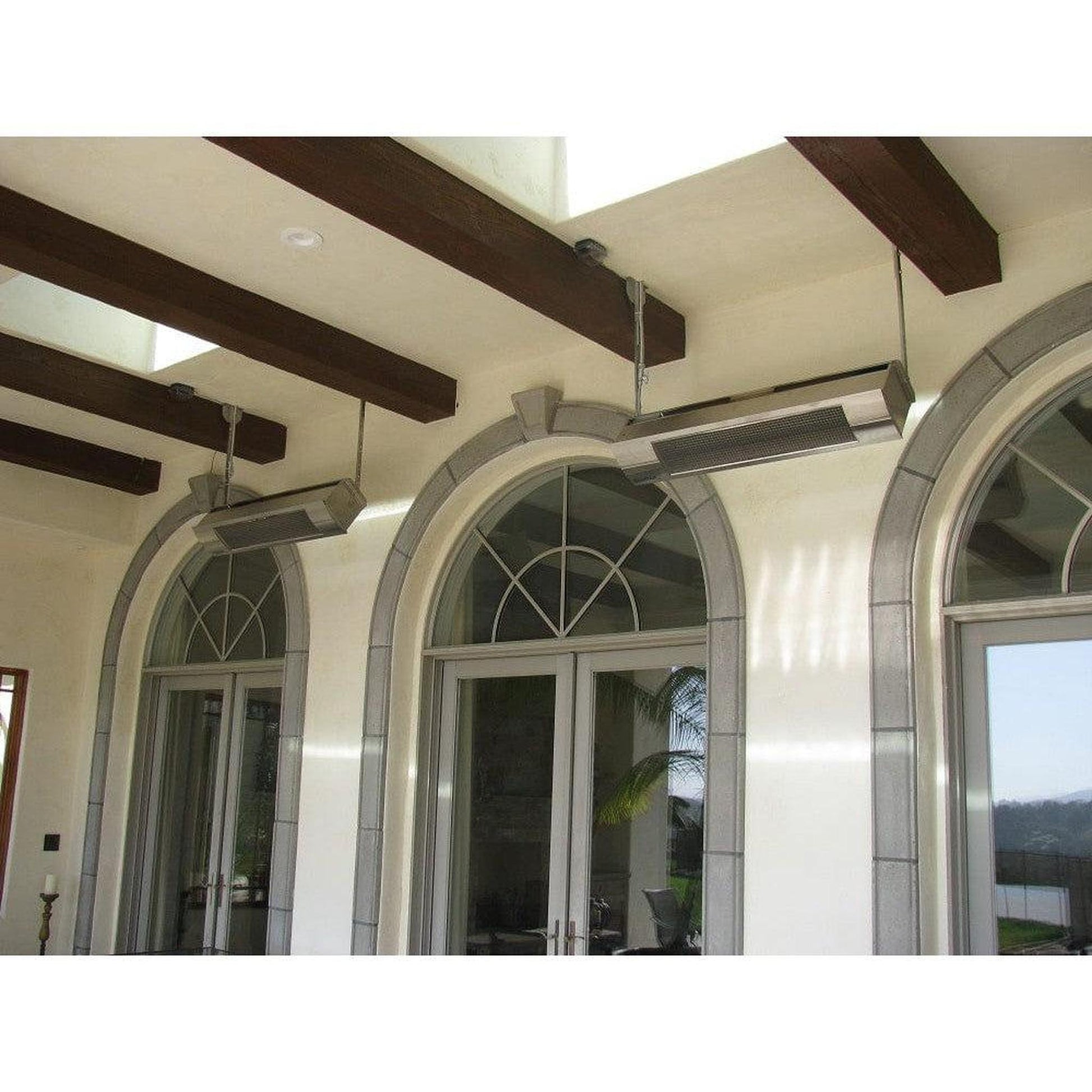

Heaters mounted between 8-9 ft from the floor seem to hit the “sweet spot”. 7ft is considered the minimum. Anything below this becomes a safety issue and will most likely be too intense to stand under. Heaters mounted over 10ft are less effective.

What is the lowest ceiling height that a Sunpak TSR can still be installed under?

Recommended ceiling height: 10 ft 6 in

Minimum ceiling height: 9 ft

With a 9 ft ceiling the TSR (0° angle) will be just 7 ft from the floor. In reality this is probably too low. In all but the coldest situations, the heater will be too hot. At 30° angle the TSR will need a 9 ft 5″ min ceiling height to account for the 18″ required top clearance.

If you have questions about this please contact us.
