SunStar 26" StarGlo SG Series Vent Free Ceramic Infrared Gas Heater - 120,000 BTU

SunStar 26" StarGlo SG Series Vent Free Ceramic Infrared Gas Heater - 120,000 BTU

Regular price $776.00
Regular price Sale price $776.00
Sale Sold out

Radiant Safety Screen

-- Please Select --

SunStar Radiant Safety Screen for SG10 and SG12 Infrared Ceramic Heaters

No, Thank You

Gas Supplies Accessories

-- Please Select --

SunStar 36" Flexible Gas Connector For Ceramic & Tube Heaters

SunStar Gas Line Pressure Regulator Up To 2 PSIG for Infrared Heaters

SunStar Gas Line Pressure Regulator Above 2 PSIG for Infrared Heaters

No, Thank You

12" Chain Kit

-- Please Select --

SunStar 12' Chain Kit for All Ceramic Heaters

No, Thank You

Manual Cutoff Valve

-- Please Select --

SunStar Manual Cutoff Valve For Infrared Tube Heaters

No, Thank You

Parabolic Reflector Extension

-- Please Select --

SunStar Parabolic Reflector Extension for SG10 and SG12 Infrared Ceramic Heaters

No, Thank You

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Ceramic Infrared Heating is the answer for spot or area heating and for total building heating needs. It is also ideal for the replacement of existing ceramic heaters.

SunStar Ceramic Heaters heat like the sun by transferring radiant heat energy directly into the area to be heated and creating a warm comfort zone at the floor level. This extremely efficient method of heating can result in fuel savings of between 30% and 50% when compared to forced air convection heating.

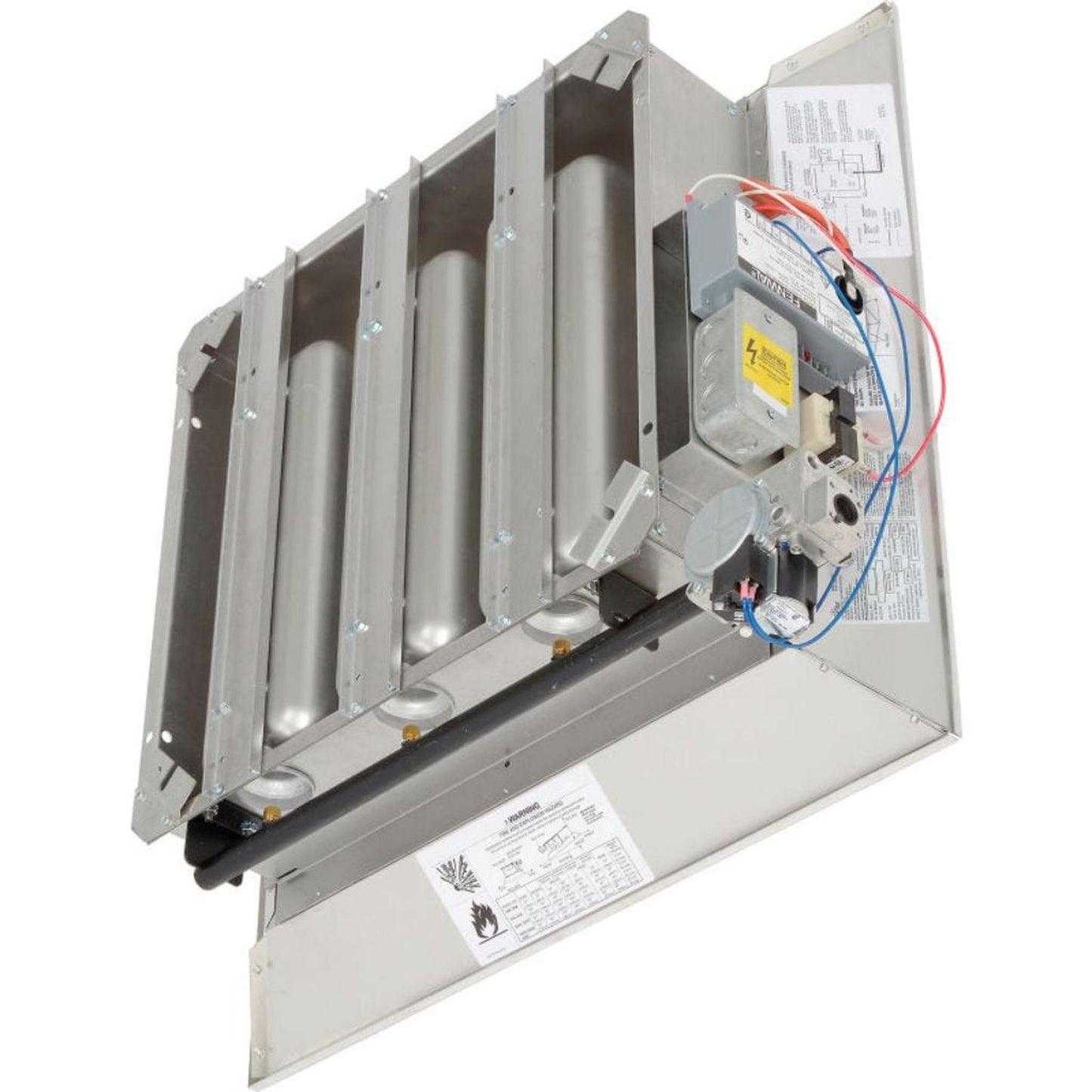

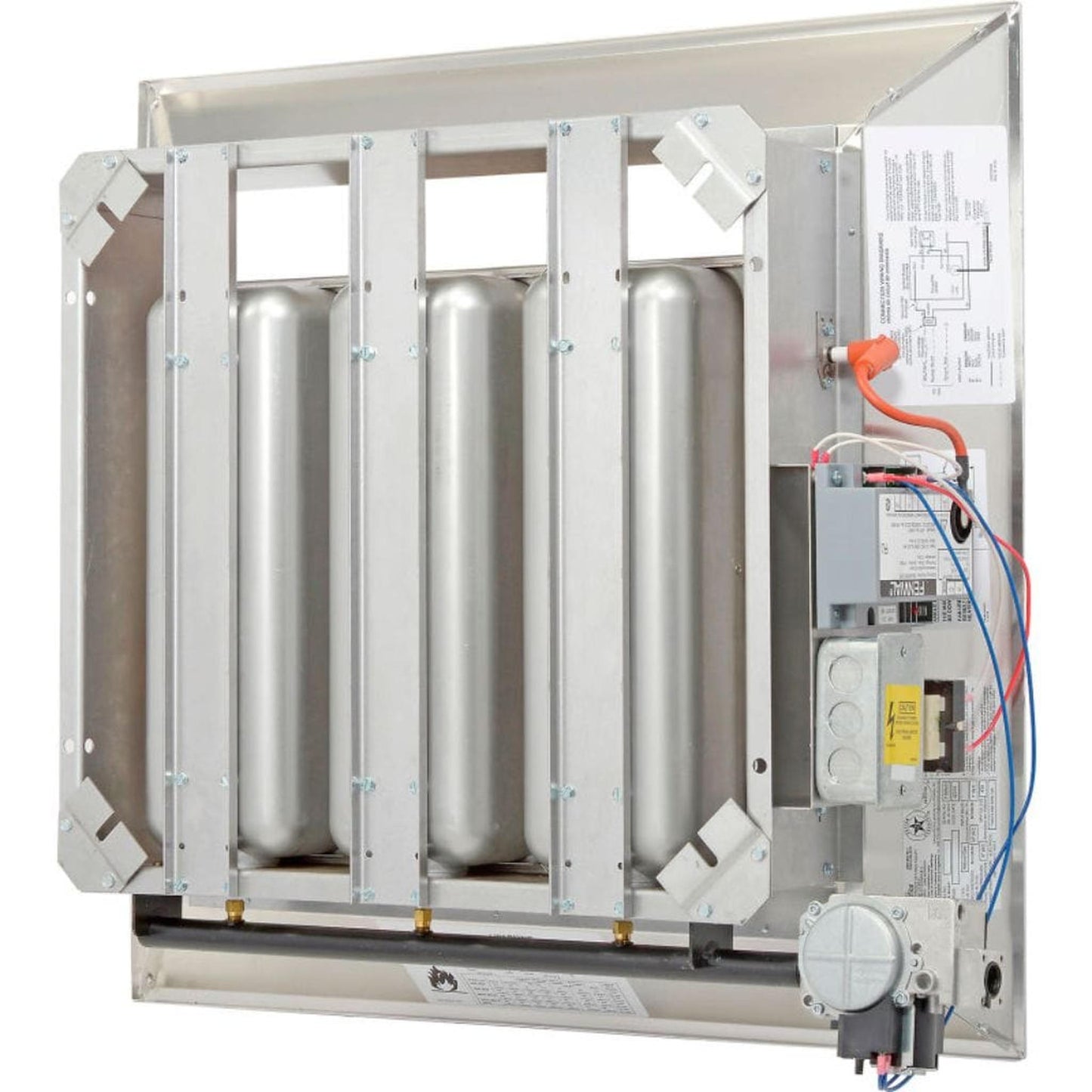

Ideal for spot heating large areas. Dimpled tile assembly offers increased radiant efficiency. Made with corrosion resistant aluminized steel. Aluminum reflectors maximize radiant output. Millivolt Standing Pilot Heaters do not require electrical power and operate with 100% gas shut-off safety control. Allows horizontal or angle mounting. Includes protective radiant screen. CSA certified.

Features:

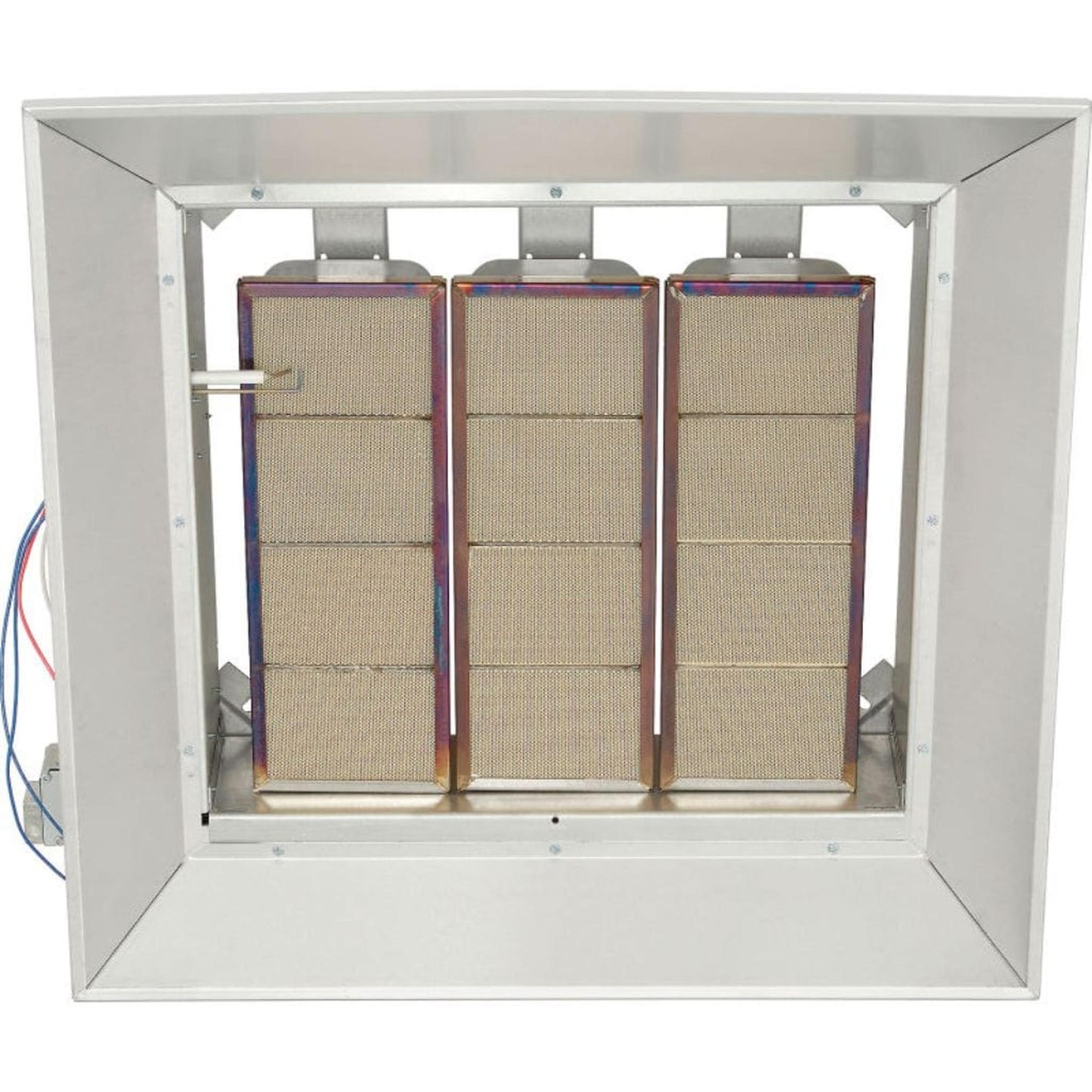

  • Dimpled tile assembly design for increased radiant efficiency
  • Design certified for angle mounting up to 30 degrees
  • Equipped with 100% gas shut-off safety control
  • Constructed of aluminized steel for corrosion resistance
  • Aluminum reflectors designed to maximize radiant output
  • Does not require external electrical power to operate
  • Certified for horizontal or angle mounting up to 30 degrees

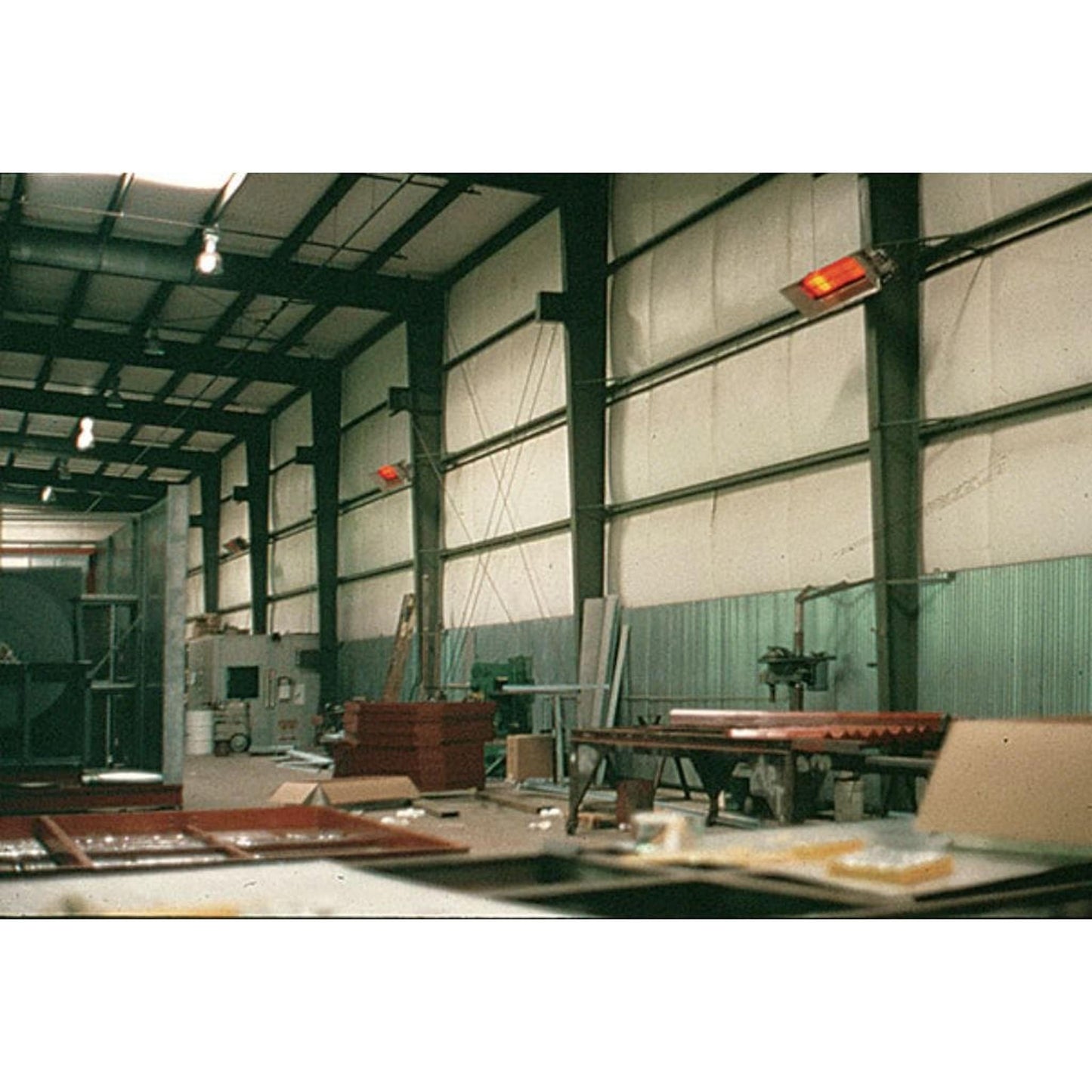

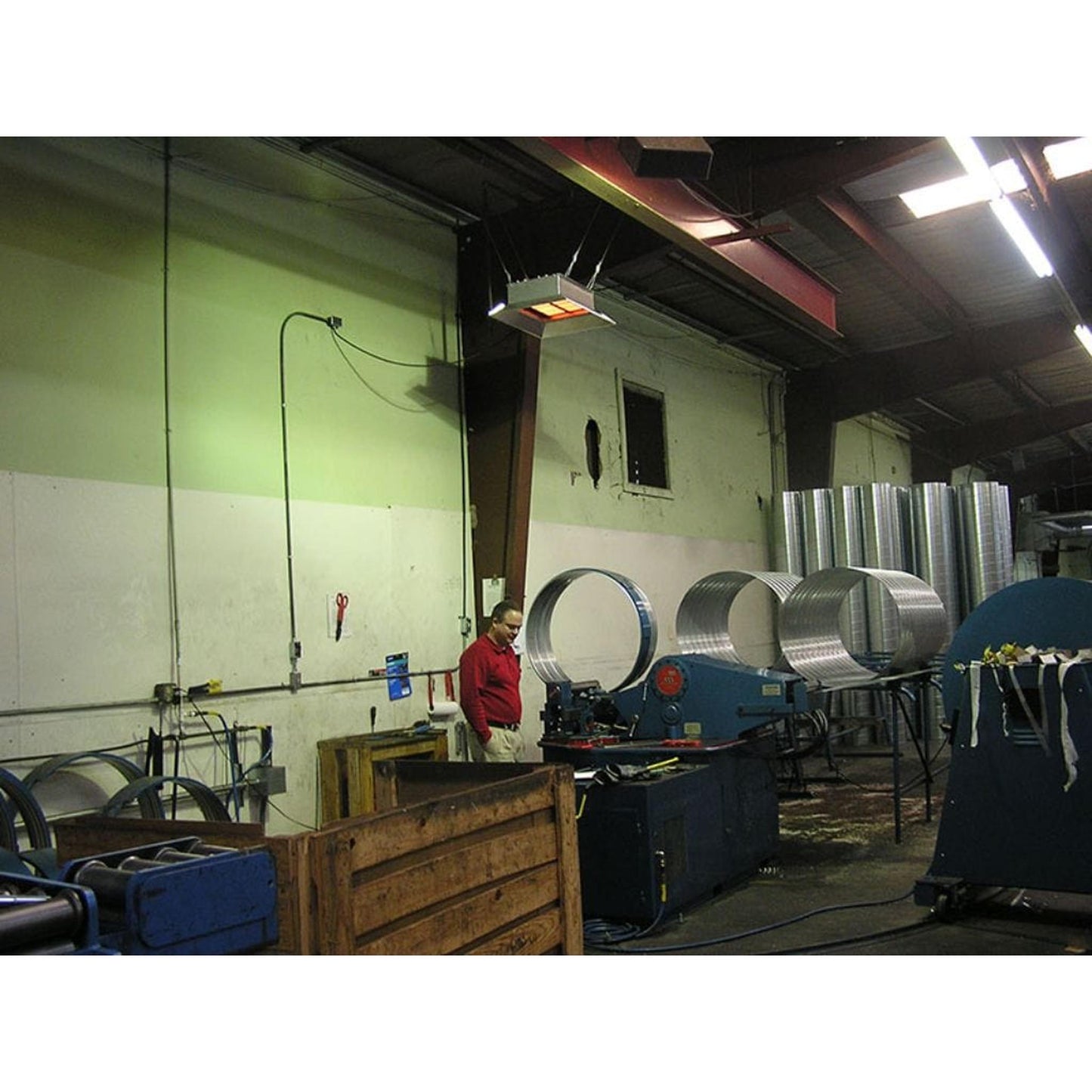

  • Great for warehouses, maintenance shops, loading docks, and more

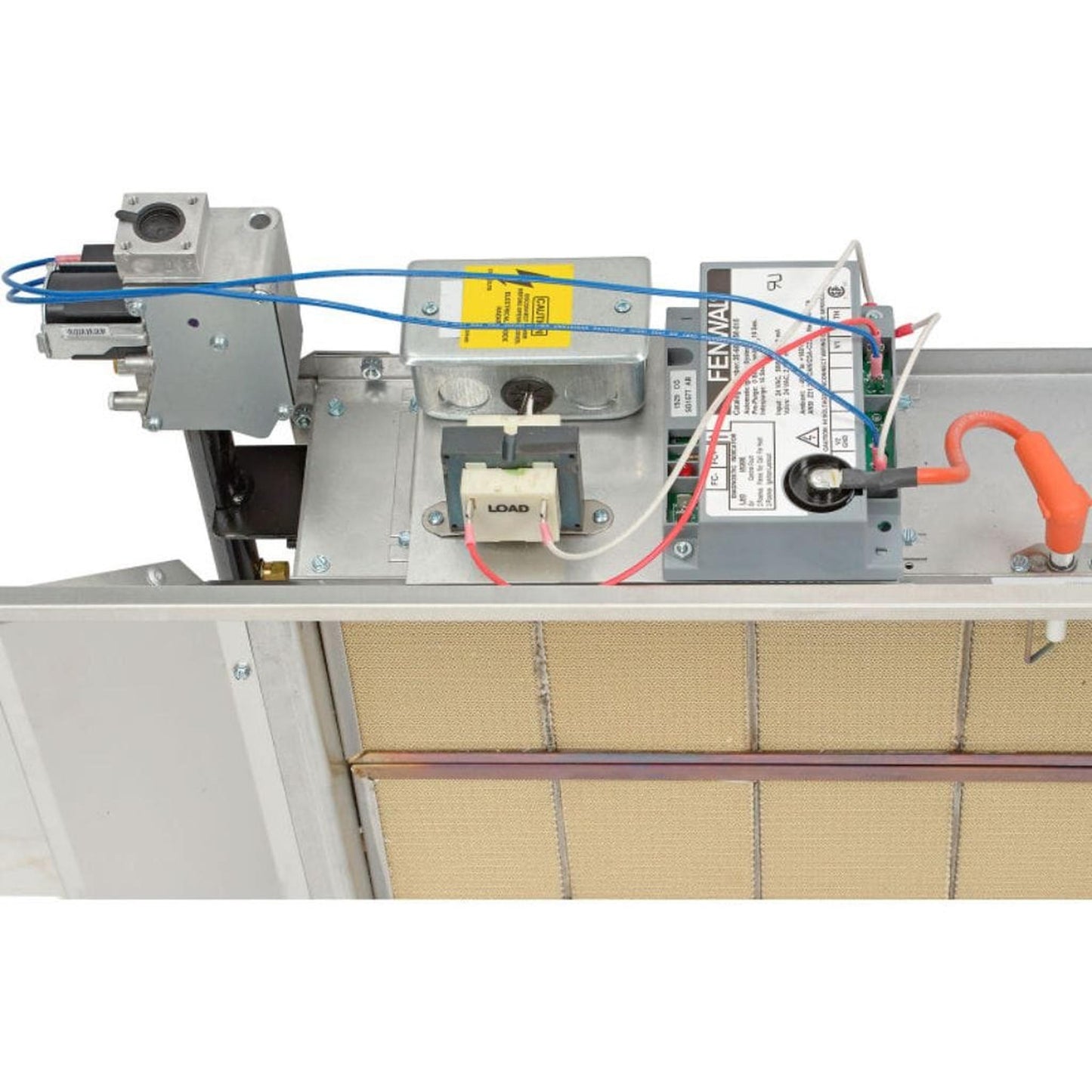

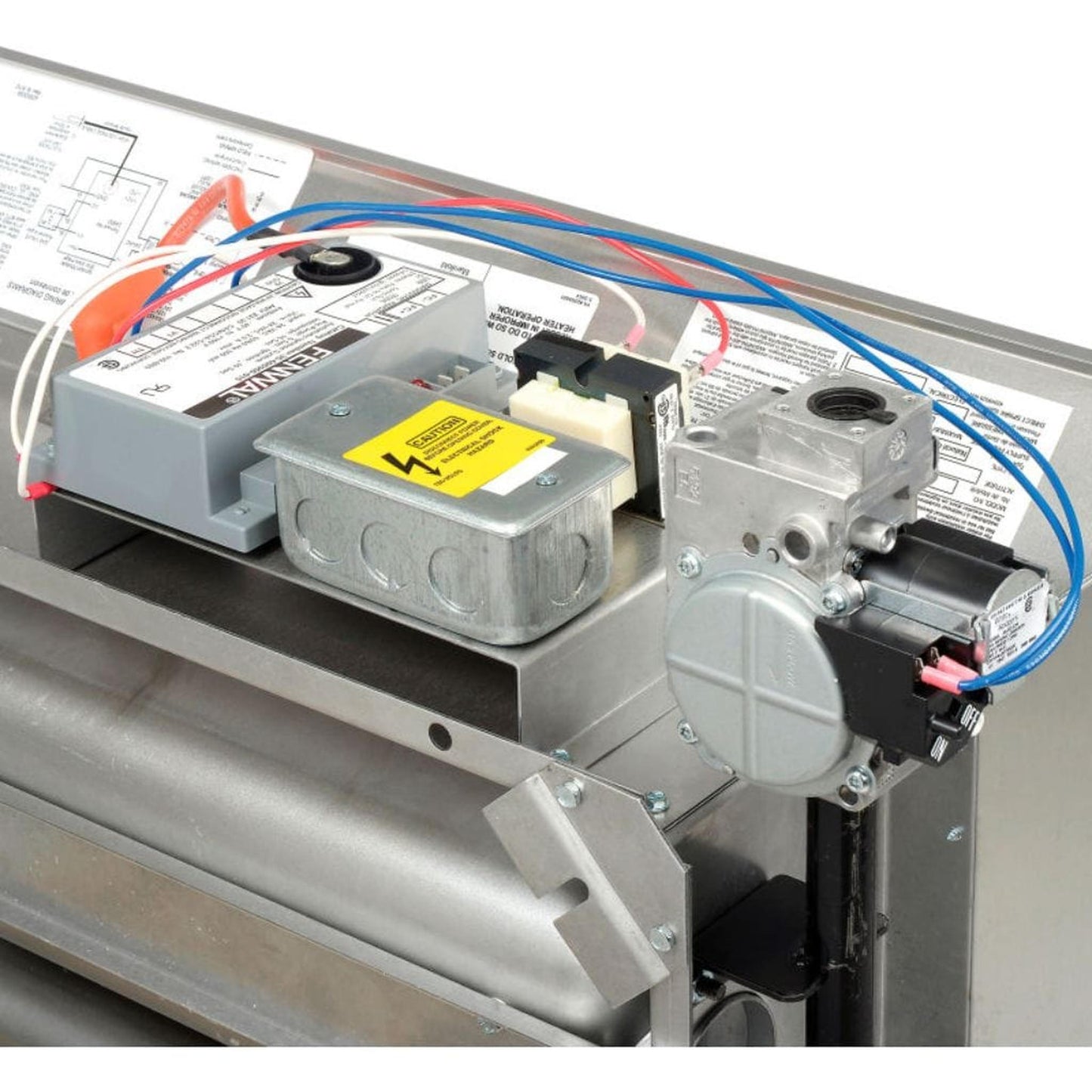

  • Includes 120/24 V Transformer. 1/2 NPT Female Gas Connection.
  • Optional protective radiant screen
  • Compact size for UPS shipping
  • CSA design certified

    Applications:

    • Manufacturing Plants
    • Warehouses
    • Auto Dealerships
    • Aircraft Hangars
    • Loading Docks
    • Fire Stations
    • Commercial Garages
    • Machine Shops
    • Tennis Courts
    • Maintenance Shops
    • Farm Buildings
    • Truck Service Areas

    Specifications:

    Fuel Type Natural Gas | Propane
    Material Aluminized Steel/Aluminum
    Color Stainless Steel
    Dimensions
    • SG12-N: 26 1/2" W x 7 3/4" H x 27 1/2" D
    Weight 48.0 lbs
    BTU Ratings (BTU/hr) 120,000 (NG)

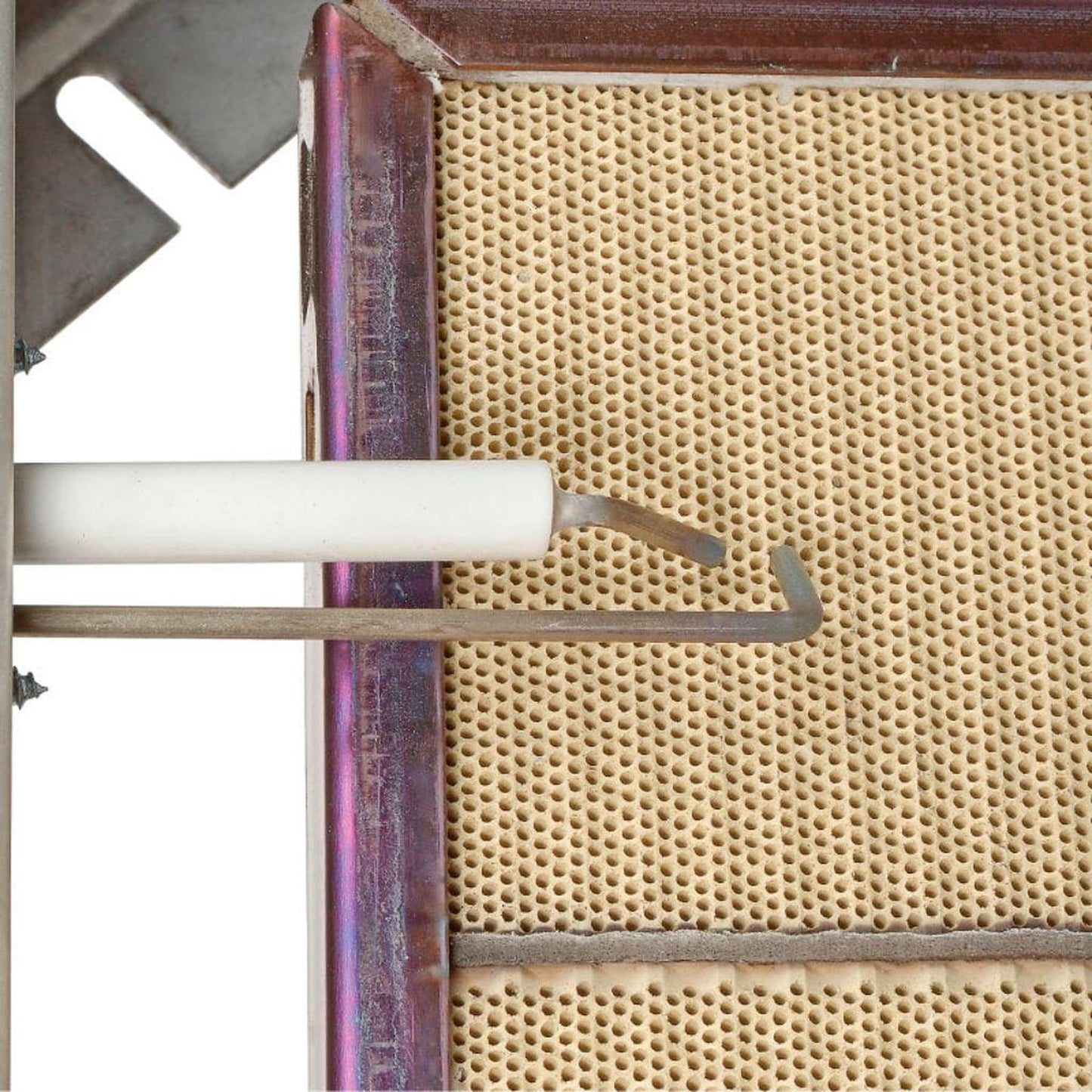

    Ignition Type Direct Spark Ignition
    Volts 120 V
    Supply Pressure
    • NG - 7"/14" WC
    Burner Pressure
    • NG - 6" WC
    Warranty
    • 5-year limited manufacturer warranty on the burner assembly
    • 1-year limited manufacturer warranty on controls


    SG12 Clearances to Combustibles (Mounted Horizontally):

    Sides
    Ceiling Below
    w/Reflector Extension
    49" 65" 129" 181"

    SG12 Clearances to Combustibles (Mounted 30° Angle):

    Below w/Reflector Extension Front w/Reflector Extension Rear
    129" 181" 61" 85" 49"

    *Important Note: "This heater is not approved for any residential installation, including home, residential garage or recreational use(mobile homes, RV’s, campers, etc.). For residential garage applications SunStar recommends SIR Series vented tube heaters".

    Please check Product Manual for more Information...

    Dimensions:

    Side View
    End View

    Options & Accessories

    Click to see Gas Supply Accessories


    Gas Line Pressure Regulator Up To 2 PSIG

    This Regulator is for use with all Tube Heaters between 1/2 and 2 psig. The maximum supply pressure to the infrared heaters is 14" WC or 1/2 psig. If your supply pressure is between 1/2 psig and 2 psig then you will need this second stage regulator. The regulator is equipped with vent limiting device and complies with ANSI standards. The regulator does not need any venting. This product has limited warranty of 1 year. This product is made in USA.

    Gas Line Pressure Regulator Above 2 PSIG

    This Regulator is for use with all Tube Heaters between 2 and 10 psig. The maximum supply pressure to the infrared heaters is 14 " WC or 1/2 psig. If your supply pressure is above 2 psig and less than 10 psig then you will need this second stage regulator. The regulator requires venting outside the building to comply with local codes. This product has limited warranty of 1 year. This product is made in USA.

    36" Flexible Gas Connector

    This 36" flexible gas connector is For use with all ceramic heaters. Features long-lasting stainless steel construction. This product has limited warranty of 1 year. This product is made in USA.



    Click to see Chain Kit




    This chain kit is used to hang heaters from the ceiling. Includes 12' of chain and 8 S-hooks. For use with all ceramic heaters.



      Click to see Manual Cutoff Valve




      This Manual Cutoff Valve is for use with All Infrared Tube Heaters. Ball valve with 1/2" NPT female thread.



        Click to see Parabolic Reflector Extension




        This parabolic reflector extension helps to focus the radiant energy to a smaller area by changing the reflector angle from approximately 45 degrees to 60 degrees. For use with SG10 and SG12 Series 100,000 and 120,000 BTU Ceramic Heaters. This product has limited warranty of 1 year. This product is made in USA.



          Click to see Radiant Safety Screen




          SunStar protective radiant safety screen acts as a safety net in the unlikely event that the ceramic tile assembly is broken by an outside Force. In addition it increases the overall emissivity of the radiating surface with a blackbody radiation effect. This product has limited warranty of 1 year. This product is made in USA.
