SKU:SPS20050N5

SunStar SPS Series Standard/Tough Guy Infrared Straight Tube Single Stage Heater - 200,000 BTU

SunStar SPS Series Standard/Tough Guy Infrared Straight Tube Single Stage Heater - 200,000 BTU

Regular price $2,181.00
Regular price Sale price $2,181.00
Sale Sold out

Tube Type
Fuel Type
Tube Length

4" Vent Cap For Sidewall Or Roof Vent

-- Please Select --

SunStar 4" Vent Cap For Sidewall Or Roof Venting

No, Thank You

4" Combustion Air Termination Cap

-- Please Select --

SunStar 4" Combustion Air Termination Cap For Infrared Tube Heaters

No, Thank You

Exhaust Hood

-- Please Select --

SunStar Exhaust Hood for Straight & U Shaped Infrared Heaters

No, Thank You

Gas Supply Accessories

-- Please Select --

SunStar Gas Line Pressure Regulator Up To 2 PSIG for Infrared Heaters

SunStar Gas Line Pressure Regulator Above 2 PSIG for Infrared Heaters

SunStar 36" Flexible Gas Connector For Ceramic & Tube Heaters

No, Thank You

Thermostats Options

-- Please Select --

SunStar Economy Line Voltage Thermostat For Infrared Heaters

SunStar Deluxe Line Voltage Thermostat For Infrared Tube Heaters

SunStar Corrosive Environment Voltage Thermostat For Infrared Tube Heaters

SunStar 24v Thermostat for Infrared Tube Heaters

SunStar Night Setback Thermostat For Infrared Tube Heaters

No, Thank You

Chain Kit

-- Please Select --

SunStar 25' Chain Kit for Infrared Tube Heaters

No, Thank You

Manual Cutoff Valve

-- Please Select --

SunStar Manual Cutoff Valve For Infrared Tube Heaters

No, Thank You

End Reflector Kit

-- Please Select --

SunStar End Reflector Kit For SIS or SPS Infrared Heaters

No, Thank You

10' Deflector Kit

-- Please Select --

SunStar 10' Deflector Kit For Straight Infrared Tube Heaters

No, Thank You

Manual (On/Off) Toggle Switch

-- Please Select --

SunStar Manual (On/Off) Toggle Switch For Single Stage Heaters

No, Thank You

90° Elbow

-- Please Select --

SunStar 90° Elbow For Straight Infrared Tube Heaters

No, Thank You

60 Minute Auto Shut-Off Timer

-- Please Select --

SunStar 60 Minute Auto Shut-Off Timer

No, Thank You

  • Free Shipping on Orders Over $200
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

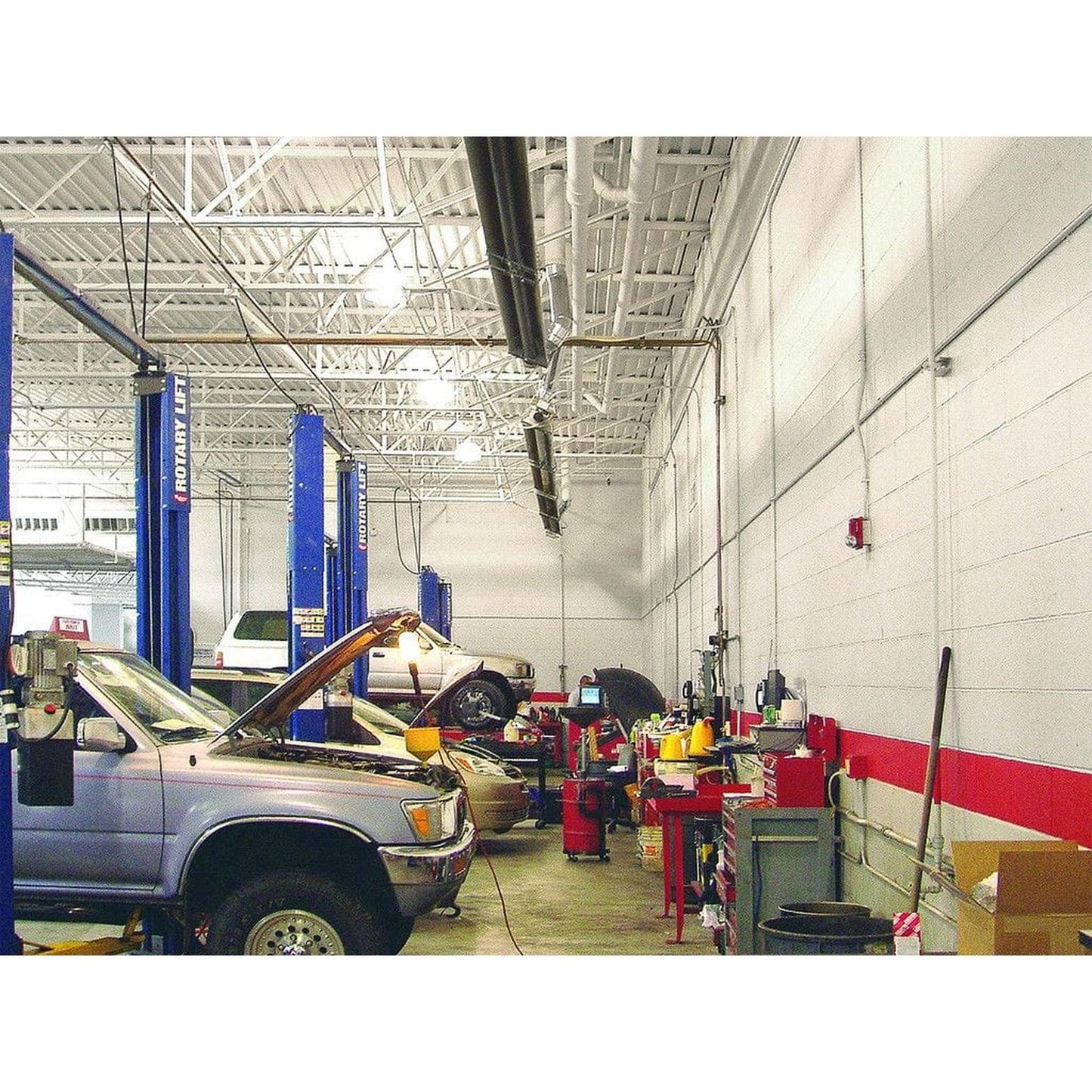

Whether you need to heat your warehouse, garage, or other hard-to-heat spaces, the SunStar SPS/U Series infrared heaters provide both the field efficiency of radiant heat and the installation flexibility you need.

SunStar infrared tube heaters are ideal for complete building heat or spot heating needs. The best applications are those where doors open and close frequently and in buildings where ceiling heights are above ten feet. The flexible SunStar infrared heating system can be designed to meet any commercial or industrial heating needs.

The minimum mounting heights are shown for human comfort and uniform energy distribution for complete building applications. Mount heaters as high as possible. CSA certified. This product has 5 year limited warranty on tubes and 1 year limited warranty on unit. This product is made in USA.

TISS™ Tube Integrity Safety Shut-Off System

SunStar’s patent pending innovative safety feature for positive pressure radiant tube heaters is called the “Tube Integrity Safety System” (TISS™).

In the unlikely event of a tube failure, TISS™ has been designed to automatically shut off the heater. The revolutionary TISS™ uses a simple principle to place an electrically insulated aluminum wire in tension above the reflector. Low voltage is then continuously passed along the wire in line with the gas control circuit. If heat levels increase due to heat exchanger failure, the wire melts and the safety circuit is broken, breaking the 24 volt circuit and shutting down the heater.

Note: Since straight tubes are always hotter at the burner end than at the exhaust end, always observe the minimum recommended mounting heights shown on the specification sheet for greatest human comfort. Use SIU series instead of SIS series for spot heating applications.

What's Included: (Burner Package: Main Burner and hardware Emitter Tubes and Reflectors).

Features:

  • Heavy duty cast iron burner
  • Maintenance-free operation
  • Enclosed combustion chamber
  • 100% gas shut-off safety control
  • 5 year limited warranty on all tubes
  • 30 second pre-purge before ignition
  • Highly efficient aluminum reflectors
  • Heavy duty permanently lubricated ball bearing
  • Individual reflectors can rotate up to 45 degrees
  • 30 second post-purge after thermostat is satisfied
  • Suitable for horizontal or angle mounting up to 45 degrees
Push Through System
  • Products of combustion are pushed through the combustion chamber
  • No draft hoods, totally enclosed combustion chamber
  • Blower motor totally enclosed in the burner box. Ideal for applications where minimal noise (less than 60 dB) is desired.
  • Heavy duty permanently lubricated ball bearing, totally enclosed motor for maintenance-free operation
  • 30 second pre-purge before ignition and 30 second post-purge after thermostat is satisfied
  • Diaphragm air switch for proof of venting before gas flow and ignition
Gas Shut-Off Safety Control
  • Burner inspection sight glass
  • Step-opening redundant combination gas valve for quite ignition and added safety
  • Inside or outside air for combustion
  • Up to 25 ft. outside combustion air capability
  • Standard outside combustion air intake
  • Diagnostic Monitoring Light System
Radiant Emitter Tube System
  • 4” O.D. heat treated aluminized steel combustion chamber (10’ length)
  • Standard highly emissive radiant tubes (10’ lengths)
  • Optional aluminized steel radiant tubes (Tough Guy Option)
  • 5 year limited warranty on all tubes
  • Suitable for horizontal or angle mounting up to 45°
  • Up to 25 feet sidewall vent capability
Burner System
  • Heavy duty cast iron burner
  • Reliable direct spark ignition systems and 100% gas shut-off safety control
  • Burner inspection sight glass
  • Step-opening redundant combination gas valve for quiet ignition and added safety
  • Inside or outside air for combustion
  • Up to 25 ft. outside combustion air capability
  • Standard outside combustion air intake
  • Diagnostic Monitoring Light System
Reflector System
  • Highly efficient aluminum reflectors
  • Individual reflectors can be rotated up to 45° to direct heat where needed
  • Optional end, corner, U-bend and side extension reflectors

Applications:

  • Manufacturing Plants
  • Warehouses
  • Auto Dealerships
  • Aircraft Hangars
  • Loading Docks
  • Weld Shops
  • Car Washes
  • Fire Stations
  • Greenhouses
  • Gymnasiums
  • Garages
  • Machine Shops
  • Tennis Courts
  • Swimming Pools
  • Maintenance Shops
  • Farm Buildings
  • Truck Service Areas
  • Auto Body Shops

Specifications:

Fuel Type Natural Gas / Propane Gas
Material Cast Iron/Aluminum
Color Stainless Steel
Dimensions
(WxHxD)
  • SPS20050N5/L5:
    52' x 6 1/4" x 13"
  • SPS20050TGN5/L5:
    52
    '
     x 6 1/4" x 13"
  • SPS20060N5/L5:
    62' x 6 1/4" x 13"
  • SPS20060TGN5/L5:
    62
    '
     x 6 1/4" x 13"
  • SPS20070N5/L5:
    72' x 6 1/4" x 13"
  • SPS20070TGN5/L5:
    72
    '
     x 6 1/4" x 13"
Weight 190.4 lbs
BTU Ratings (BTU/hr) 200,000 (LP/NG)
Ignition Type Direct Spark Ignition
Volts 120 AC 60Hz
Supply Pressure
  • NG - 5"/14" WC
  • LP - 11"/14" WC
Burner Pressure
  • NG - 3.5" WC
  • LP - 10" WC
Warranty
  • 5-year limited manufacturer warranty on the burner assembly
  • 1-year limited manufacturer warranty on controls


SPS Clearances to Combustibles:

Side Ceiling* Below End (45°) Front (45°) Rear
42" 6" 93" ** 20" 80" 12"

*Note: "When used indirect vented, minimum clearance for Ceiling must be 18 inches".

*Also Note: "Maximum clearance below reduces by 50% once you are 25 ft. downstream from the control box."

Please check Product Manual for more Information...

Dimensions:

Bottom View
End View

Options & Accessories

Click to see 4" Vent Cap For Sidewall Or Roof Venting


This 4" vent cap is used for sidewall venting or through-the-roof venting. It can be used with all infrared tube heaters. This product has a limited warranty of 1 Year. This product is made in USA.



Click to see 4" Combustion Air Termination Cap

This 4" cap. is used for combustion air or fresh air duct termination. It can be used with all infrared tube heaters. This product has limited warranty of 1 year. This product is made in USA.



Click to see Exhaust Hood


This Exhaust Hood is for use with all straight and U-Shaped infrared tube heaters. Intended for inside indirect vented use. This product has a limited warranty of 1 Year. This product is made in USA.



Click to see Gas Supply Accessories


Gas Line Pressure Regulator Up To 2 PSIG

This Regulator is for use with all Tube Heaters between 1/2 and 2 psig. The maximum supply pressure to the infrared heaters is 14" WC or 1/2 psig. If your supply pressure is between 1/2 psig and 2 psig then you will need this second stage regulator. The regulator is equipped with vent limiting device and complies with ANSI standards. The regulator does not need any venting. This product has limited warranty of 1 year. This product is made in USA.

Gas Line Pressure Regulator Above 2 PSIG

This Regulator is for use with all Tube Heaters between 2 and 10 psig. The maximum supply pressure to the infrared heaters is 14 " WC or 1/2 psig. If your supply pressure is above 2 psig and less than 10 psig then you will need this second stage regulator. The regulator requires venting outside the building to comply with local codes. This product has limited warranty of 1 year. This product is made in USA.

36" Flexible Gas Connector

This 36" flexible gas connector is For use with all ceramic heaters. Features long-lasting stainless steel construction. This product has limited warranty of 1 year. This product is made in USA.



Click to see Thermostat Options


Economy Line Voltage Thermostat

Economical, easy-to-mount Line Voltage Thermostat fits flat on a wall with 1in. recess in wiring box. Durable, bit-metallic heat-sensing element for use with SIR Series Garage Heaters and SGM Series Infrared Ceramic Heaters.

Deluxe Line Voltage Thermostat

This Deluxe Line Voltage Thermostat can be used to control up to 6 heaters at once. Maintains consistent temperatures within a range of 35° to 95°F. Thermostat is extremely accurate, with a ±2°F differential. 16 amp full load. Includes NEMA 1 enclosure and SPST switch.

Corrosive Environment Voltage Thermostat

This Corrosive Environment Line voltage Thermostat is capable of controlling up to 6 heaters. Features a durable stainless steel sensing element and water-tight UL recognized ABS plastic enclosure. Maintains consistent temperatures within a range of 40° to 104°F.

24v Thermostat

Economical, easy-to-mount 24V Thermostat fits flat on a wall with 1in. recess in wiring box. Durable, bit-metallic heat-sensing element for use with SIR Series Garage Heaters and SGM Series Infrared Ceramic Heaters. U.S.A.

Night Setback Thermostat

This Night Setback Thermostat is digital and easily programmable. Can be used to control up to 6 heaters at once. Maintains consistent temperatures within a range of 45° to 90°F. Thermostat is extremely accurate, with a ±1°F differential. Features four different programmable periods per day and 5/2 day programming. Includes self-contained painted locked cabinet with hinged door. 16 amp full load. This product is made in USA.

Thermostat Enclosure

This Thermostat enclosure with heavy duty metal enclosure.

  • Heavy Duty metal thermostat enclosure - tamperproof
  • Hinged access door with locking cover
  • Can be used with any thermostat
  • Prevents direct radiant energy affecting the thermostat sensor.



Click to see Chain Kit




This chain kit is used to hang heaters from the ceiling. It includes 25' of chain and 12 S-hooks. It can be used with all infrared tube heaters.



    Click to see Manual Cutoff Valve




    This Manual Cutoff Valve is for use with All Infrared Tube Heaters. Ball valve with 1/2" NPT female thread.



      Click to see End Reflector Kit




      This optional End Reflector Kit is designed to cover both ends of the tubes to increase radiant output. Helps to minimize convection losses and increase tube temperatures. Recommended for use when the heaters are angle mounted or when overall system efficiency improvements are needed.



        Click to see Deflector Kit




        This Deflector Kit diffuses the radiation on the first 10' of the tube heater and reduces the clearance to combustibles below. The deflector is 10' long and ships in two separated 5' sections.



          Click to see Manual (On/Off) Toggle Switch




          The SunStar Manual (On/Off) Toggle Switch is designed for manual heater control of single stage heaters.



            Click to see 60 Minute Auto Shut-Off Timer




            The 60 minute Auto Shut-off timer is specifically designed for SunStar heaters. it's Safety feature shuts off your heater after an hour.



              Click to see 90° Elbow




              The 90 degree elbows are used for all straight infrared tube heaters. The corner reflector can be added to reduce the clearance to combustibles above the heater.
