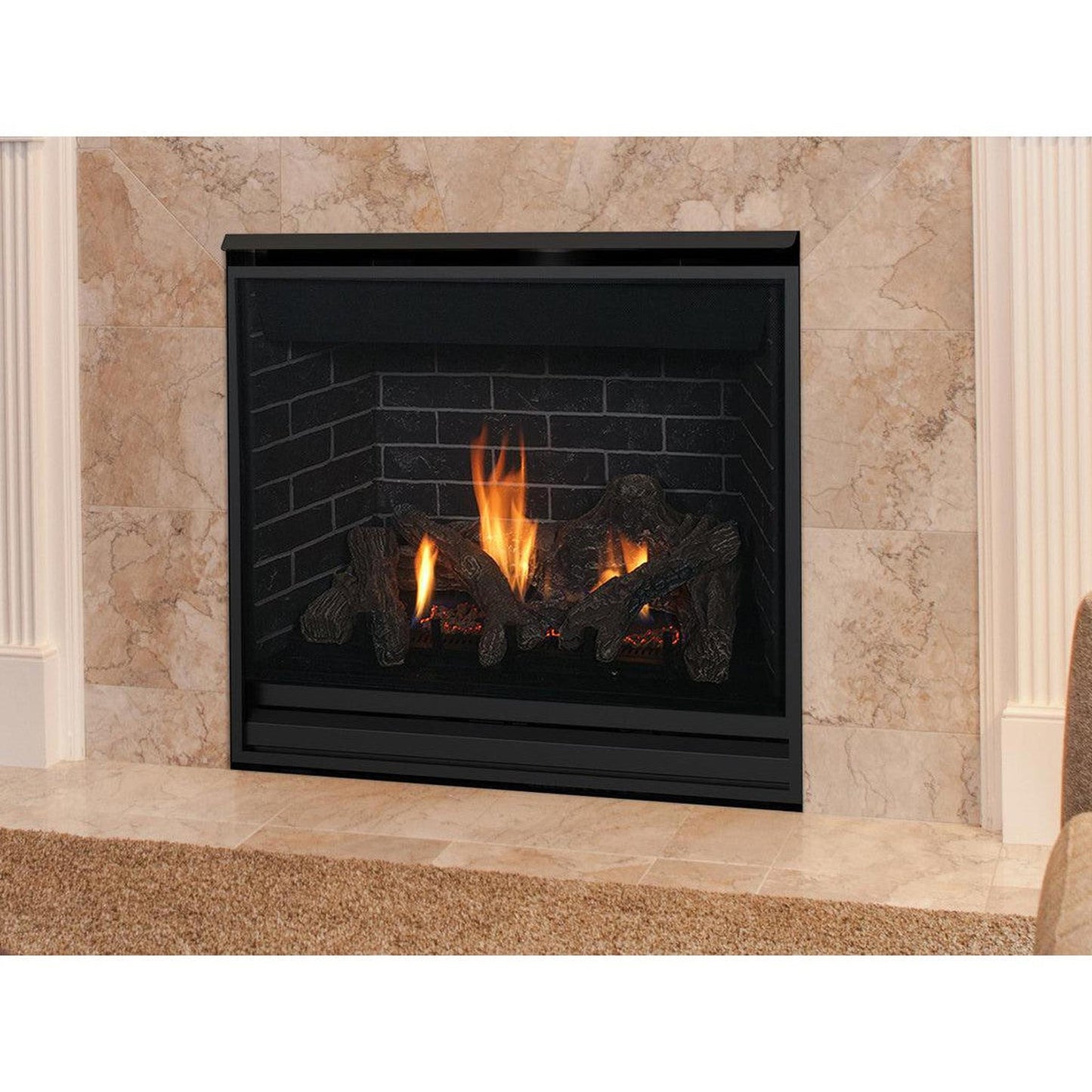

Superior DRT3040 40" Mid-Size Traditional Top/Rear Direct Vent Natural Gas Fireplace With Millivolt Ignition
Superior DRT3040 40" Mid-Size Traditional Top/Rear Direct Vent Natural Gas Fireplace With Millivolt Ignition
Facades (Order One)
-- Please Select --
No, Thank You
Liner Kits
-- Please Select --
No, Thank You
Decorative Face Surrounds
-- Please Select --
No, Thank You
Blower Kits
-- Please Select --
No, Thank You
Remote Control Kits and Wall Switches
Common Accessories
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Modest yet refined, the DRT3000 Series fireplaces provide undeniable value and quality. With a wide selection of interior liner options, high-definition logs, vibrant flames, a variety of control options and reliable performance, the DRT3000 Series is a wise choice for any home.
What's Included
- Fireplace Unit
- Literature Kit (Installation and Operation Instructions, Hot Glass Safety Flyer, and Safety-In-Operation Warning Labels)
- 2 Vent Restrictors
- 1 Non-Combustible Board, 2 Side Brackets, and 1 Center Bracket
- 1 Header Shield
- 1 Elbow/Wall Heat Shield
- 1 Log Set
- 1 Bag of Glowing Embers
- 15 feet of two Conductor Wire
- 2 Vent Cover Plates
- 1 Rear Flue Cover
Not Included
- Facade
- Liner Kit
- Decorative Face Surround
- Blower Kit
- Remote Control Kits and Wall Switches
- Common Accessories
Features
- Available in 35”, 40” and 45” models
- Mid-size 17” depth saves installed floor space
- Combination top/rear flue configuration
- Millivolt or Electronic ignition models available
- Electronic ignition models include seamless battery backup and provides continued operation in the event of a power outage (IPI/CPI switch standard)
- Outstanding heating efficiency for increased comfort and lower operating costs
- Standard tempered glass and a protective screen*
- Detailed ceramic fiber log set
- Face selections include a Vista inside fit façade or one of several Designer overlap fit facades (required)
- Black painted interior (optional liners available)
- Optional blower and touch remote or hand-held remote control available for all models
- Durable textured powder coat finish
- Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17-M91 standards. PFS report F13-094
- 20 year limited warranty
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
Venting Notes
- Uses 4.5" / 7.5" Secure Vent Rigid and Secure Flex Direct-Vent Components
Specifications
Model | DRT3040 |
Series |
DRT3000 (Pro Series) |
Item Number | DRT3040DMN-E |
Catalog Number | F4997 |
Product Type | Direct Vent Gas Fireplace |
Fuel Type |
Natural Gas |
Framing Width | 40-7/8" |
Framing Height | 41-1/4" |
Framing Depth | 18-1/2" |
BTU | 24,000 - 19,000 |
Design Style | Traditional |
View Style | Front-View |
Controls | Optional Remote |
Warranty | 20 Year Limited Warranty |
Agency Listing |
Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17-M91 standards. PFS report F13-094 |
Technical Dimensions
Warranty
ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 | Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
Click to See Warranty Coverage and Limitations
20-Year Limited Warranty THE WARRANTY Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior ® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. The product body, firebox, and barrier carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the 20-Year Limited Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components. If repair or replacement is not commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to five years. THERE ARE EXCLUSIONS AND LIMITATIONS to this 20-Year Limited Warranty as described herein. COVERAGE COMMENCEMENT DATE Warranty coverage begins on the date of purchase. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date. EXCLUSIONS AND LIMITATIONS This 20-Year Limited Warranty applies only if the Product is installed in the United States or Canada and only if operated and maintained in accordance with the printed instructions accompanying the Product and in compliance with all applicable installation and building codes and good trade practices. This warranty is non-transferable and extends to the original owner only. The Product must be purchased through a listed supplier of IHP and proof of purchase must be provided. The product body, firebox, and barrier carry the 20 Year Limited Warranty from the date of installation. Vent components, trim components, and paint are excluded from this 20 Year Limited Warranty. The following do not carry the 20-Year Limited Warranty but are warranted as follows: Burner – Repair or replacement for one year from the date of installation Parts not otherwise listed carry a 90-day warranty from the date of installation. |
Documents & Files
- Mid-Size Fireplace Brochure
-
DRT3000 Smart Sheet
-
DRT3000 Installation and Operation Manual
- DRT3000 Specification Sheet
Videos
Frequently Asked Questions
Gas Fireplace Buying GuideGas fireplaces offer the beauty and realism of “live” dancing flames with all the conveniences of a modern gas appliance. With the flip of a switch or the click of a remote, you can immediately begin enjoying your fireplace without the effort of loading wood or cleaning ashes when you are done. There are three main types of gas fireplaces to consider, Direct Vent gas fireplaces, Vent-Free gas fireplaces, and B-Vent gas fireplaces, that differ in their installation flexibility, features, and efficiencies. Another option to consider is an open-hearth Wood-Burning fireplace combined with a vented gas log set. You will find a wide range of designs and opening styles to choose from with gas fireplaces depending on the type you choose. GAS FIREPLACE DESIGN STYLES
GAS FIREPLACE OPENING TYPES
DIRECT VENT GAS FIREPLACESThese fireplaces offer a great balance between aesthetics, heating efficiency, and installation flexibility. Direct vent fireplaces are designed with sealed glass fronts and are vented using a special two-wall vent system. This sealed system brings all the air used for combustion into the fireplace through the outer vent wall and all the exhaust exits through the inner vent wall. No air loss from the home combined with the heat circulating features of these fireplaces makes them a very efficient source of supplemental heat. Direct Vent Gas Fireplace Features
VENT-FREE GAS FIREPLACESVent-free or ventless gas fireplaces are a great choice if you are looking for the highest heating efficiency possible. Since they are not vented to the outside, all the heat produced is realized in the living space making them a superb supplemental heat source. The main byproduct of vent-free systems is moisture, so it is important that they are properly sized for the room. Download and complete the Air for Combustion and Ventilation Worksheet and check with local building codes to make sure a vent-free gas appliance is an appropriate option for your home. Vent-free Gas Fireplace Features
B-VENT GAS FIREPLACESPrimarily chosen for decorative applications, these fireplaces offer the aesthetic appeal of a traditional open-front fireplace with the convenience of gas controls. These fireplaces are vertically vented, naturally drafting appliances that use an economical Type-B gas vent for installation. Glass fronts and outside air kit options are available to help reduce the amount of room air that is drawn out of the living area. B-vent Gas Fireplace Features
WOOD-BURNING FIREPLACES & GAS LOG SETSToday’s factory-built, open-hearth, wood-burning fireplaces offer the look and feel of a traditional masonry-constructed fireplace at a much lower installed cost. They also are considered a “dual-fuel” appliance in that they can be used to burn natural wood or be retrofitted with gas log sets. Because the chimney system can withstand the higher temperatures of burning wood, it can also accept gas log sets that burn with larger flames than a gas-only fireplace. Combined with heavy-duty grates and realistic ember beds, a wood-burning fireplace combined with a vented gas log set is an option to consider if you want a decorative fireplace. Wood-burning Fireplaces & Gas Log Sets Features
|
Gas Log Set Buying GuideGas log sets bring the enjoyment of “having a fire” at home without the effort and cleanup associated with a natural wood fire. Gas log sets have detailed log arrangements that mimic the look and feel of real wood logs paired with dancing yellow flames for the ultimate in realism and ease of use. There are two main types of gas log sets to consider: vent-free gas log sets that offer a superb balance between appearance and heating efficiency and vented gas log sets that create larger, more random flame presentations that come closest to a real wood fire. GAS LOG SET DESIGN STYLES
VENT-FREE GAS LOG SETSVent-free or ventless gas log sets are a great choice if you are looking for the highest heating efficiency possible. They’re a superb supplemental heating source when used in an approved vent-free firebox or wood-burning fireplace with the damper closed. Since vent-free gas logs produce moisture, it’s important they’re properly sized for the room you use them in. Download and complete the Air for Combustion and Ventilation Worksheet and check with local building codes to make sure a vent-free gas appliance is an appropriate option for your application. Vent-free Gas Log Set Features
VENTED GAS LOG SETSPrimarily chosen for decorative applications, vented gas log sets offer the ambiance of a traditional real wood fire with the convenience of gas. Since these log sets are only approved for use in fully vented wood-burning fireplaces that can withstand higher temperatures, they are able to burn with larger, more realistic flames and embers. Electronic ignition models combined with remote controls bring another level of convenience. Vented gas log sets also eliminate the work and mess associated with building, tending, and cleaning up after a wood fire. Vented Gas Log Set Features
|
Tips for Safe OperationOur Commitment to SafetySuperior products are constructed with the utmost care and precision and designs comply with national safety standards. However, personal safety begins with good fire management. The temperatures of surfaces in and around a fire can become extremely hot during operation. It is essential to monitor traffic around a Superior Fireplace to prevent burns and to protect the overall safety of your home and loved ones. Tips for Safe Operation
Free Safety Guard Offer for Superior Single-Pane, Sealed Glass Front Gas Fireplaces* Superior Fireplace Safety Guards provide some benefit relative to reducing the severity of a burn or injury against severe burns and injuries by preventing direct contact with the front glass surface of your gas fireplace through the use of a formed mesh screen that stands off from the unit. It is easy to install and is removable. This screen is not decorative but rather a safety device that should be used when children or other at-risk populations will be near the fireplace. However, it is not a substitute for following all safety guidelines included in the care and operation manual accompanying your fireplace. *Safety Guards may not be available for some older models, which are no longer in production. Decorative Firescreens for Superior Fireplaces Superior Fireplace makes several types of firescreens available for fireplaces. While wood-burning, factory-built fireplaces come equipped with wire mesh draw screens, Superior Fireplace offers for purchase decorative firescreens for Superior brand gas fireplaces with single-pane glass panel fronts. These include Screen Panel Kits or Screen Barrier Kits which provide a mesh covering that prevents direct contact with the hot glass surface. Although these screens provide some benefit relative to reducing the severity of a burn, they are not intended as a safety device. Remember, Safety is a Responsibility with any Fire-Associated Product Read and understand the information in the Homeowner’s Care and Operation Manual that accompanies each appliance. Refer to these tips regularly and review with those in your home to assure careful operation and long-lasting comfort. For more information on hearth product safety, visit the Hearth, Patio, & Barbecue Association (HPBA) at www.hpba.org. |
