The Outdoor Plus

OPT-BP1224SBDSS

The Outdoor Plus Rectangular Drop-in Pan With Stainless Steel Switchback Bullet Burner

Pan Kit Size: 24x12-inch
Ignition Type: Match Lit


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

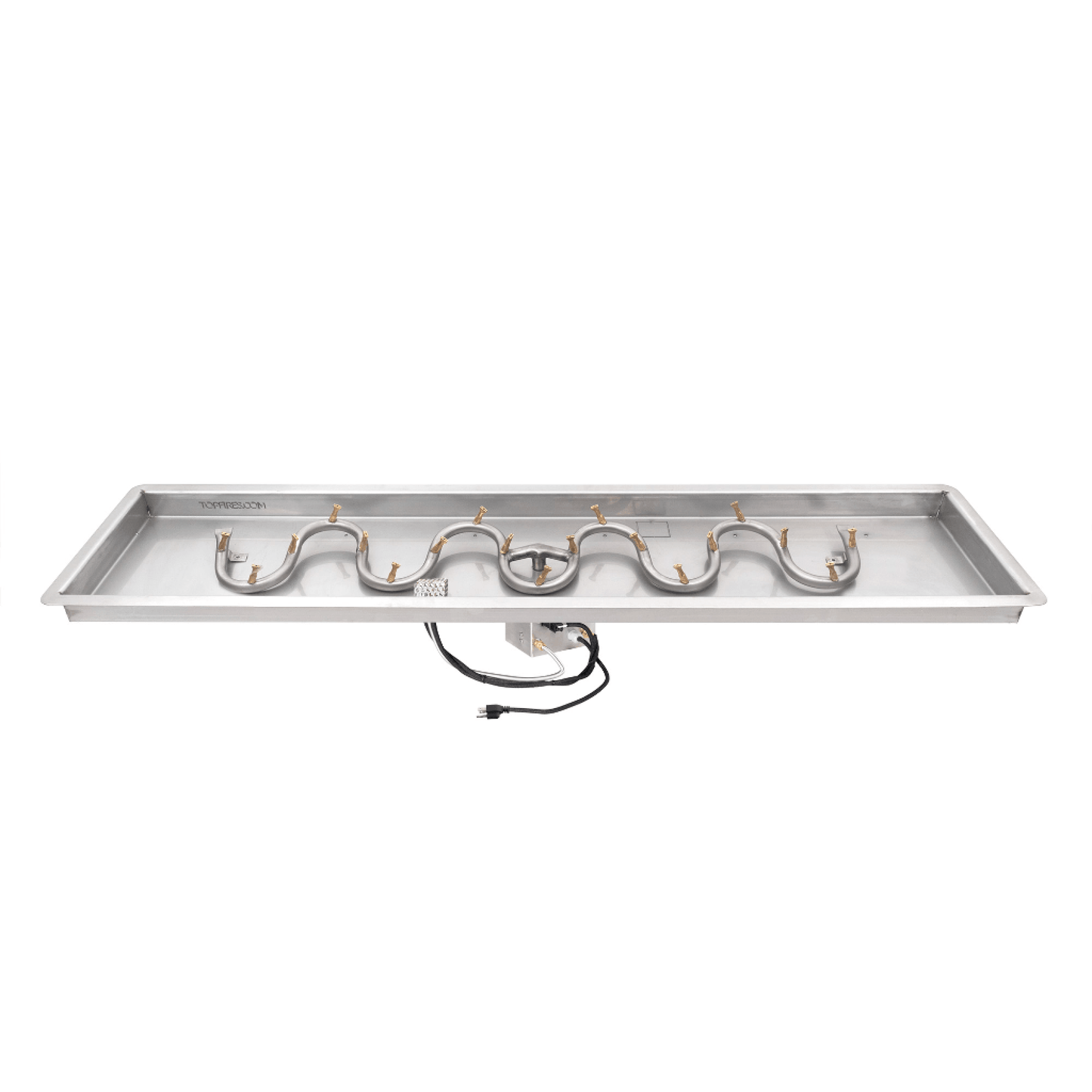

The Outdoor Plus's Rectangular Drop-in Pan and Switchback Bullet Burner is the perfect addition to any pre-existing fire pit or fire bowl. This switchback burner can easily replace any standard burner and provide you with a taller, fuller flame while consuming 30% less gas than a typical import burner, saving you money in the long run. Constructed with high-grade Stainless Steel, providing you with a long-lasting burner. This bullet burner will not rust or corrode, and under normal use should last significantly longer than standard burners.

Its unique Bullet Burner Orifices compress gas flow and incorporates oxygen to create a superior blaze. The Patented Bullet Burner's eliminate the need for an additional air mixer when using liquid propane. Suitable for either natural gas or liquid propane applications.

You can expect to get the same flame height while using less gas than your standard burner, or crank it up for a dramatic and impressive flame, taller than any standard burner is able to produce.

The inlet of the burner is raised and tapered so that if water does enter the burner, it will not enter the gas line and the burner has multiple drain holes to release any water that may enter the burner through the flame holes.

This durable and fuel-efficient Switchback Bullet Burner offers 7 different sizes ranging from 18-inches to 84-inches and five ignition types. Choose the best size and ignition for your fire pit or bowl & enhance your firepit experience with our Drop-in Pan & Patented Bullet Burner. Make sure to keep sufficient space between your burner and the inside edge of your fire pit or fire bowl.

Features

  • Fuel-efficient
  • Pan Lip: 1 Inch
  • Pan Height: 2 Inch
  • Pan Width: 12 inch
  • Tall and Full Flame
  • More flame, less gas
  • Pan Shape: Rectangle
  • Burner Shape: S-Shaped
  • Limited lifetime warranty
  • Pan Material: Aluminum
  • Burner Material: Stainless Steel
  • Patented Flat Flame Technology
  • Corrosion Resistant and Durable
  • Proudly manufactured In the USA
  • BTU: 70,000 BTU – 360,000 BTU
  • Works with Liquid Propane or Natural Gas
  • Burners holes are individually hand-drilled
  • Pan Sizes: 24, 36, 48, 60, 72, 84 and 96 inches
  • Burner Sizes: 18, 30, 42, 48, 60, 72 and 84 inches
  • 110V Ignition System Kits use a 3-prong grounded plug
  • Electronic ignition systems require 10" clearance below the pan
  • The patented bullet burners eliminate the need for an additional LP air mixer
  • Manufactured with high-grade Stainless Steel, Providing you with a long-lasting burner
  • Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic

Product Specifications

Item Pan Kit Size Burner Size Inlet BTU
24”x12” Pan Kit 24" x 12" 18” x 6” 1/2" 70,000
36”x12” Pan Kit 36" x 12" 30” x 6” 1/2" 90,000
48”x12” Pan Kit 48" x 12" 42” x 6” 3/4" 125,000
60”x12” Pan Kit 60" x 12" 48” x 6" 3/4" 165,000
72”x12” Pan Kit 72" x 12" 60” x 6”(M) 3/4"
200,000
84”x12” Pan Kit 84" x 12" 72” x 6”(M) 3/4" 240,000
96”x12” Pan Kit 96" x 12" 84” x 6”(M) 3/4" 360,000

Legend: M = Uses manifold, Adds 5″ in height.

CA Residents: See Prop 65 WARNING

Includes

  • Pan
  • Burner
  • Pilot Igniter
  • Electronic Valve
  • 12V Transformer
  • 110V Transformer

Isometric View

Match Lit Ignition:

12V Electronic Ignition:

110V Electronic Ignition:

Top View

Match Lit Ignition:

12V Electronic Ignition:

110V Electronic Ignition:

Right Side View

Match Lit Ignition:

12V Electronic Ignition:

110V Electronic Ignition:

Front Side View

Match Lit Ignition:

    12V Electronic Ignition:

    110V Electronic Ignition:
