The Outdoor Plus

OPT-BFP18RDSS

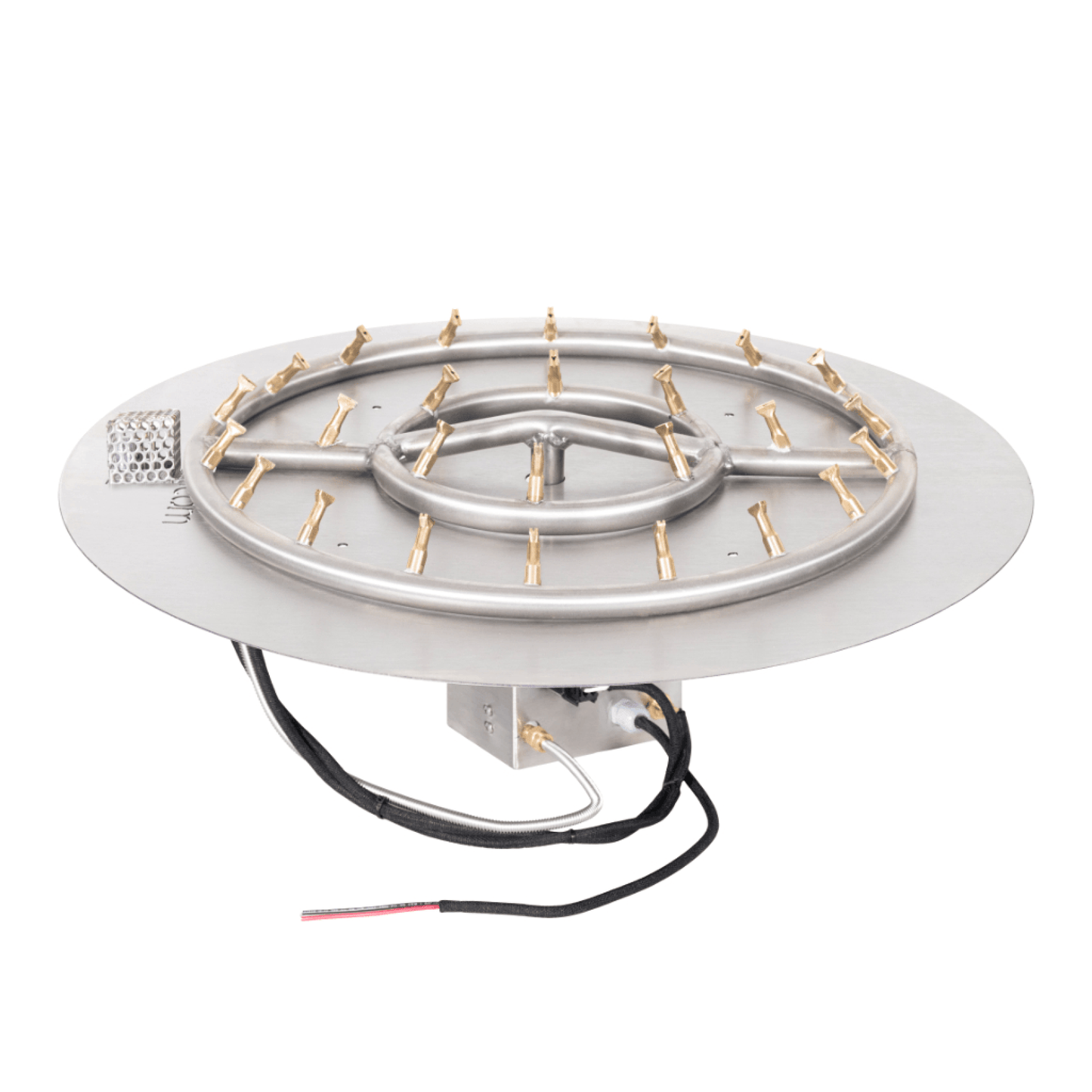

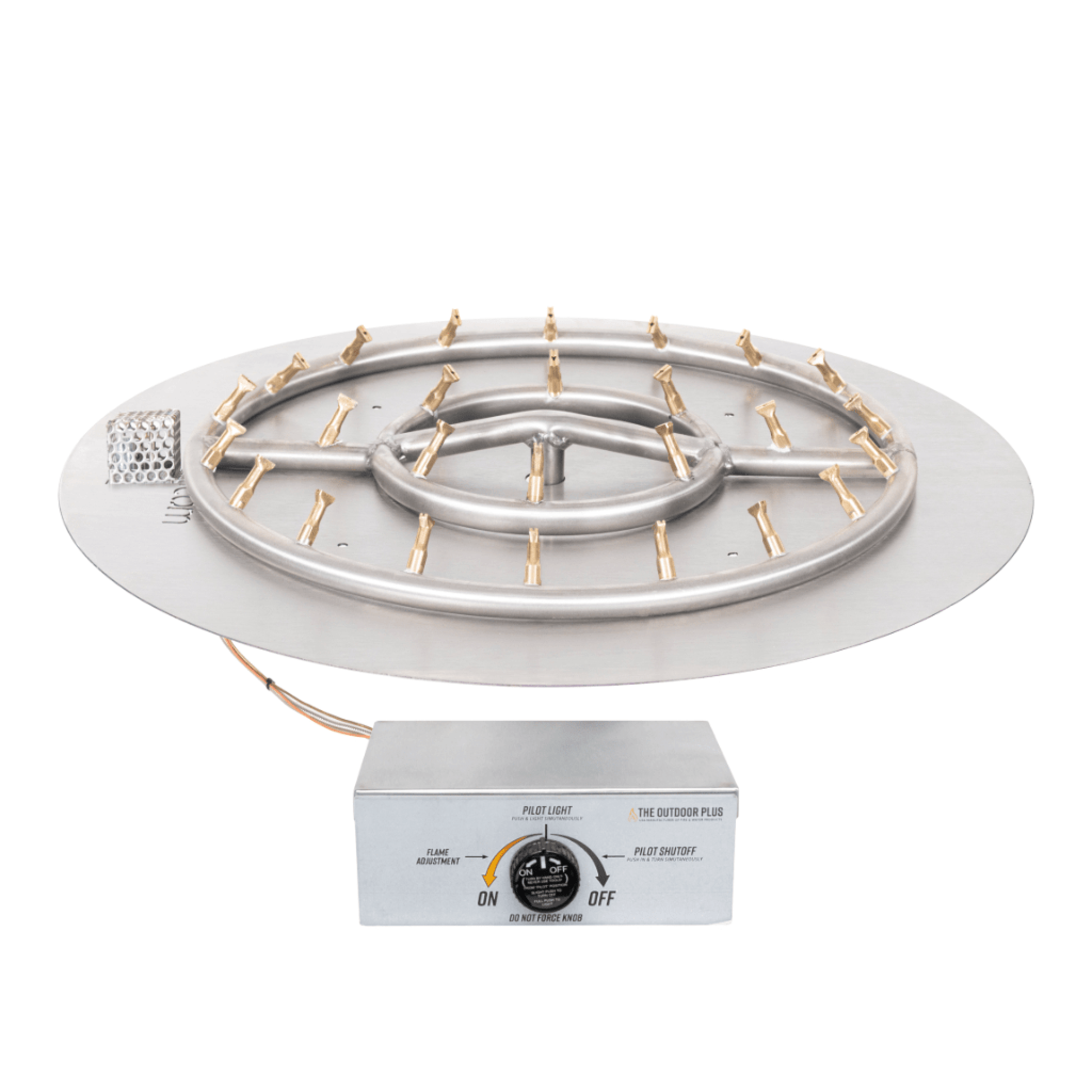

The Outdoor Plus Round Flat Pan With Stainless Steel Round Bullet Burner

Ignition Type: Match Lit
Pan Kit Size: 18-inch - A


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The Outdoor Plus's Round Flat Pan and Stainless Steel Round Patented Bullet Burner is the perfect addition to any pre-existing fire pit or fire bowl. This burner can easily replace any standard burner and provide you with a taller, fuller flame while consuming 30% less gas than a typical import burner, saving you money in the long run. Constructed with high-grade stainless steel material, providing you with a long-lasting burner. This bullet burner will not rust or corrode, and under normal use should last significantly longer than standard burners.

Its unique Bullet Burner Orifices compress gas flow and incorporate oxygen to create a superior blaze. The Patented Bullet Burner eliminates the need for an additional air mixer when using liquid propane. Suitable for either natural gas or liquid propane applications.

The inlet of the burner is raised and tapered so that if water does enter the burner, it will not enter the gas line and the burner has multiple drain holes to release any water that may enter the burner through the flame holes.

This durable and fuel-efficient Round Bullet Burner offers 7 different sizes ranging from 8-inches to 48-inches and five ignition types. Choose the best size and ignition type for your fire pit or fire bowl & enhance your firepit experience with our Round Flat Pan & Patented Bullet Burner. Make sure to keep sufficient space between your burner and the inside edge of your fire pit or fire bowl.

FEATURES

  • Fuel-efficient
  • Shape: Round
  • Tall and Full Flame
  • More flame, less gas
  • Pan Material: Aluminum
  • Limited lifetime warranty
  • Long-lasting and durable
  • Burner Material: Stainless Steel
  • BTU: 65,000 BTU – 850,000 BTU
  • Patented Flat Flame Technology
  • Proudly manufactured In the USA
  • Works with Liquid Propane or Natural Gas
  • Burners holes are individually hand-drilled
  • Pan Sizes: 18, 24, 30, 36, 48 and 60 inches
  • Burner Sizes: 8, 12, 18, 24, 30, 36 and 48 inches
  • Electronic ignition systems require 10" clearance below the pan
  • The patented bullet burners eliminate the need for an additional LP air mixer
  • Manufactured with high-grade Stainless Steel, Providing you with a long-lasting burner
  • Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic

PRODUCT SPECIFICATIONS

Item Pan Size Burner Size Rings Inlet BTU
18” Pan Kit - A
18" 8" 1 Ring 1/2" 65,000
18” Pan Kit - B
18" 12" 1 Ring 1/2" 100,000
24” Pan Kit
24" 18" 2 Rings 1/2" 225,000
30” Pan Kit
30" 24" 2 Rings 1/2" 275,000
36” Pan Kit
36" 30" 3 Rings 3/4" 460,000
48” Pan Kit
48" 36" 3 Rings 3/4" 525,000
60” Pan Kit
60" 48" 4 Rings (M) 3/4" 850,000

*Note: LEGEND: M = Uses manifold, Adds 5 Inch in height

CA Residents: See Prop 65 WARNING

INCLUDES

  • Pan
  • Burner
  • Pilot Igniter
  • Electronic Valve
  • 12V & 110V Transformer

ISOMETRIC VIEW

Match Lit Ignition:


12V Electronic Ignition:

110V Electronic Ignition:

TOP VIEW

Match Lit Ignition:

12V Electronic Ignition:

110V Electronic Ignition:

RIGHT SIDE VIEW

Match Lit Ignition:

12V Electronic Ignition:

110V Electronic Ignition:

FRONT SIDE VIEW

Match Lit Ignition:

12V Electronic Ignition:

110V Electronic Ignition:

    OPTIONAL ACCESSORIES

    Click to see Optional Whistle Free Hose

    Whistle Free Hose (OPT-245)

    The Outdoor Plus Stainless Steel Whistle Free Flex Hose provides a premium piping component for use with gas appliances. It is made of high-grade stainless steel to ensure durability and longevity while the flexible design makes for an easy installation process. Make sure to follow the manufacturer’s listed directions and local codes when installing this product.

    • Finish: Hose
    • Type: Gas Connector
    • Material: Stainless Steel
    • Proudly made in the USA
    • Male and Female fitting
    • Size: 12, 18, 24, 36 and 48 inches
    • Alternating tube pattern allows for whistle free gas flow
    • High-grade stainless steel construction ensures durability and longevity

    High Capacity Whistle Free Hose (OPT-248HC)

    The Outdoor Plus Stainless Steel Whistle Free Flex Hose provides a premium piping component for use with gas appliances. It is made of high-grade stainless steel to ensure durability and longevity while the flexible design makes for an easy installation process. Make sure to follow the manufacturer’s listed directions and local codes when installing this product.

    • Size: 36 inch
    • Finish: Hose
    • Type: Gas Hose
    • Material: Stainless Steel
    • Proudly made in USA
    • Male and Female fitting
    • High Capacity Whistle Free Hose
    • Alternating tube pattern allows for whistle free gas flow
    • High-grade stainless steel construction ensures durability and longevity
    • High Capacity - For 290,000 BTU and higher

    Click to see Optional Emergency Stop Button & 1-Hour Timer

    Emergency Stop Button & 1-Hour Timer (OPT-ESTOPTM/OPT-ESTOPTMPL)

    The 1-Hour Gas Timer with E-Stop is an emergency shut-off, mechanical timer, and manual shut-off gas valve designed to be installed on the inlet side of a gas appliance to enable the user to manage the time gas is allowed to flow to a gas appliance. this is often a mechanical timer (no batteries or power required) that has the flexibility to manage the gas flow for 1-hour (60 minutes). additionally, both models have an emergency shut-off (red knob) that allows the user to quickly and easily shut the gas completely OFF, should the necessity arise.

    • Outdoor Rated
    • 4X Gas Entries (1/2'')
    • No conversion required
    • Type: Emergency Stop Button
    • CSA and ANSI Approved
    • Can replace Manual Shut-Off Valve
    • Dimensions: 4" H x 2 7/8" W x 2 1/8" D
    • 1 Hour Gas Timer with E-Stop for Gas Fire Pits
    • Compatible with Propane (LP) or Natural Gas (NG) Fire Pits

      Click to see Optional Conversion Kit

      Conversion Kit to Propane (OPT-LPCKIT)

      When converting your gas appliance from natural gas to propane or propane to natural gas the proper conversion kit is necessary.

      • Natural gas to Liquid propane
      • Includes: LP Air Mixing Orifice, Coupling, Propane Regulator with Hose

        Conversion Kit to Natural Gas (OPT-NGCKIT)

        When converting your gas appliance from natural gas to propane or propane to natural gas the proper conversion kit is necessary.

        • Liquid Propane to natural gas
        • Includes: Natural Gas Orifice, Coupling, 1/2″ Whistle Free Hose

        Click to see Optional Gas Kit

        Natural Gas Kit (OPT-NGKNG/OPT-NGKNGHC)

        The Outdoor Plus Natural Gas Kits are made of high-quality Brass and Stainless Steel. The high-quality material ensures that your kit will last longer and be durable to the elements. This Kit from The Outdoor Plus is a simple complete hose kit for your natural gas & liquid propane fire appliances.

        Standard Capacity:

        • Finish: Hose
        • Natural gas kit key valve
        • Whistle free hoses, key valve, key
        • For use with a maximum of 290,000 BTUs
        • All components are made from High-Grade Brass and Stainless Steel for durability and longevity
        • Includes two 24 inch Whistle Free Hoses with 1/2 inch fittings, 1/2 inch brass Key Valve, and Key

        High Capacity:

        • Natural gas kit key valve
        • For use with 290,000 BTUs or higher
        • Accessory/Replacement Part
        • Whistle free hoses, full flow key valve, key
        • All components are made from High-Grade Brass and Stainless Steel for durability and longevity
        • Includes two 36 inch Whistle Free Hoses with 3/4 inch fittings, 3/4 inch Full-Flow Key Valve, and Key

          Liquid Propane Kit (OPT-LPKLP/OPT-LPKLPHC)

          The Outdoor Plus Natural Gas Kits are made of high-quality Brass and Stainless Steel. The high-quality material ensures that your kit will last longer and be durable to the elements. This Kit from The Outdoor Plus is a simple complete hose kit for your natural gas & liquid propane fire appliances.

          Standard Capacity:

          • Air mix
          • Finish: Hose
          • Liquid propane kit key valve
          • For use with a maximum of 290,000 BTUs
          • Propane regulator, whistle free hose, key valve, key
          • All components are made from High-Grade Brass and Stainless Steel for durability and longevity
          • Includes 24 inches Whistle Free Hose with 3/8 inch fitting, Low-Pressure Regulator, Brass Key Valve, and Key

          High Capacity:

          • Air mix
          • Liquid propane gas kit
          • For use with 290,000 BTUs or higher
          • Accessory/Replacement Part
          • High-pressure propane regulator, whistle free hose, full flow key valve, key
          • All components are made from High-Grade Brass and Stainless Steel for durability and longevity
          • Includes 24 inches Whistle Free Hose with 3/8 inch fitting, High-Pressure Regulator, Full Flow Key Valve, and Key

          You Can Also Buy Round Bullet Burner Only from here

          Stainless Steel Round Bullet Burner
