The Outdoor Plus

OPT-BP12SD

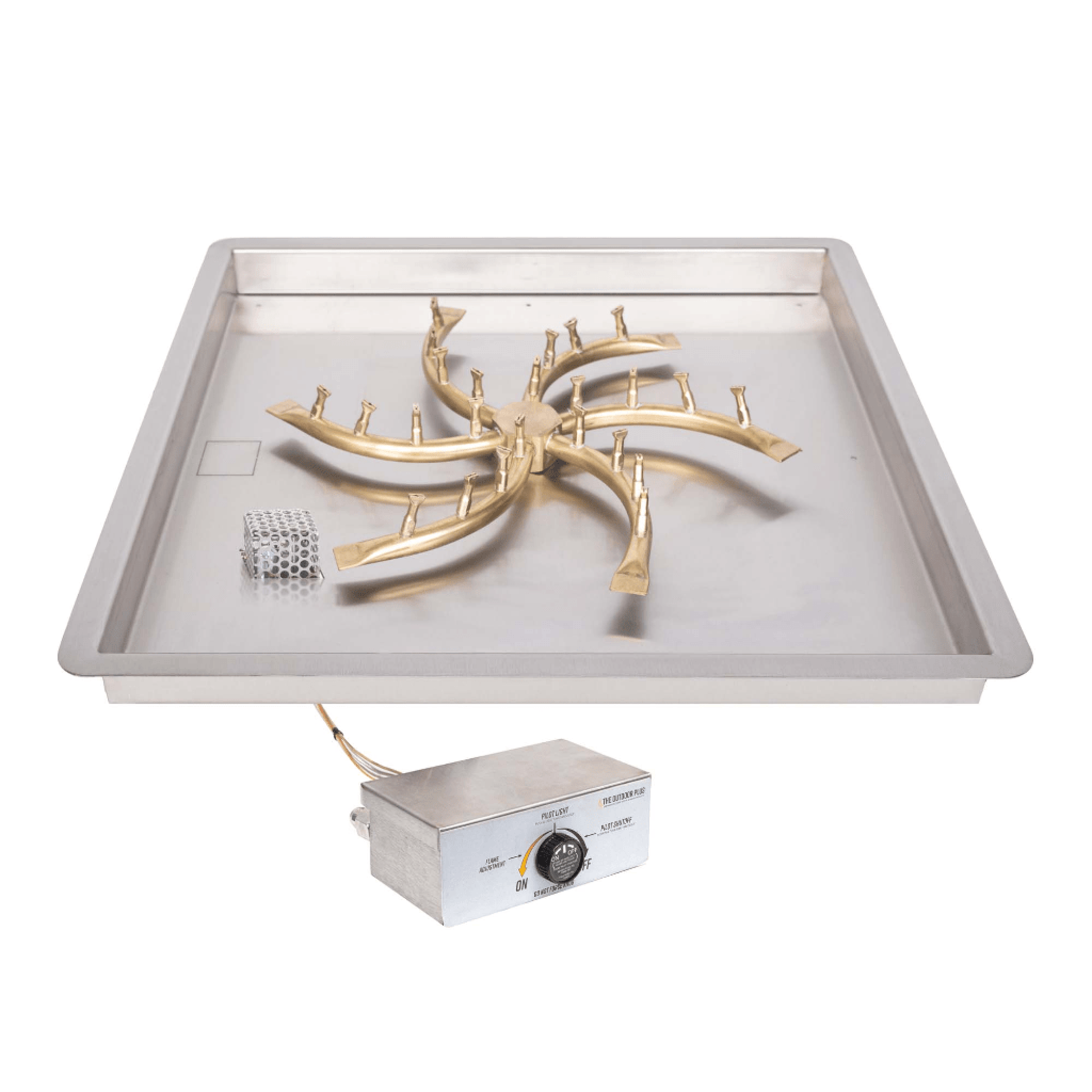

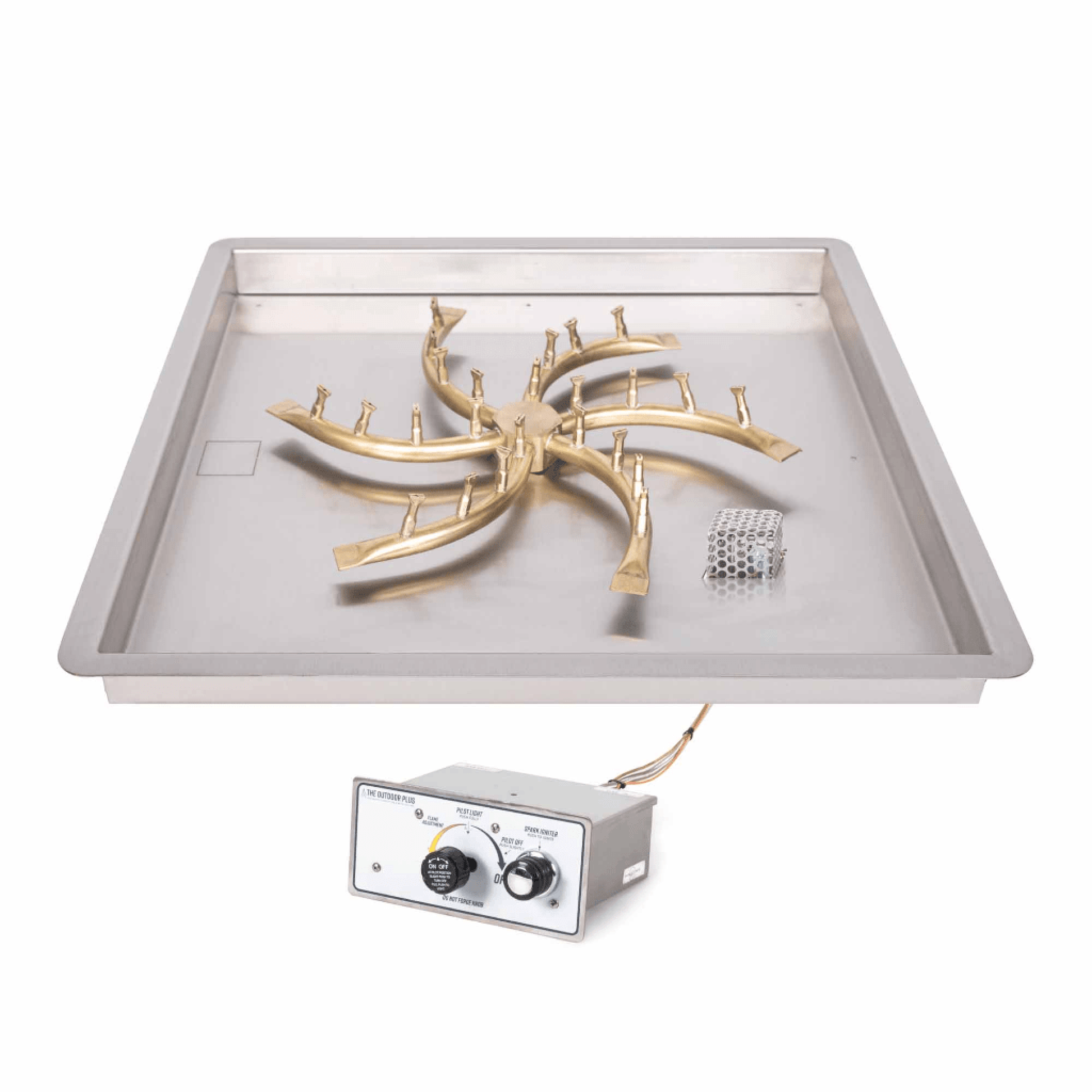

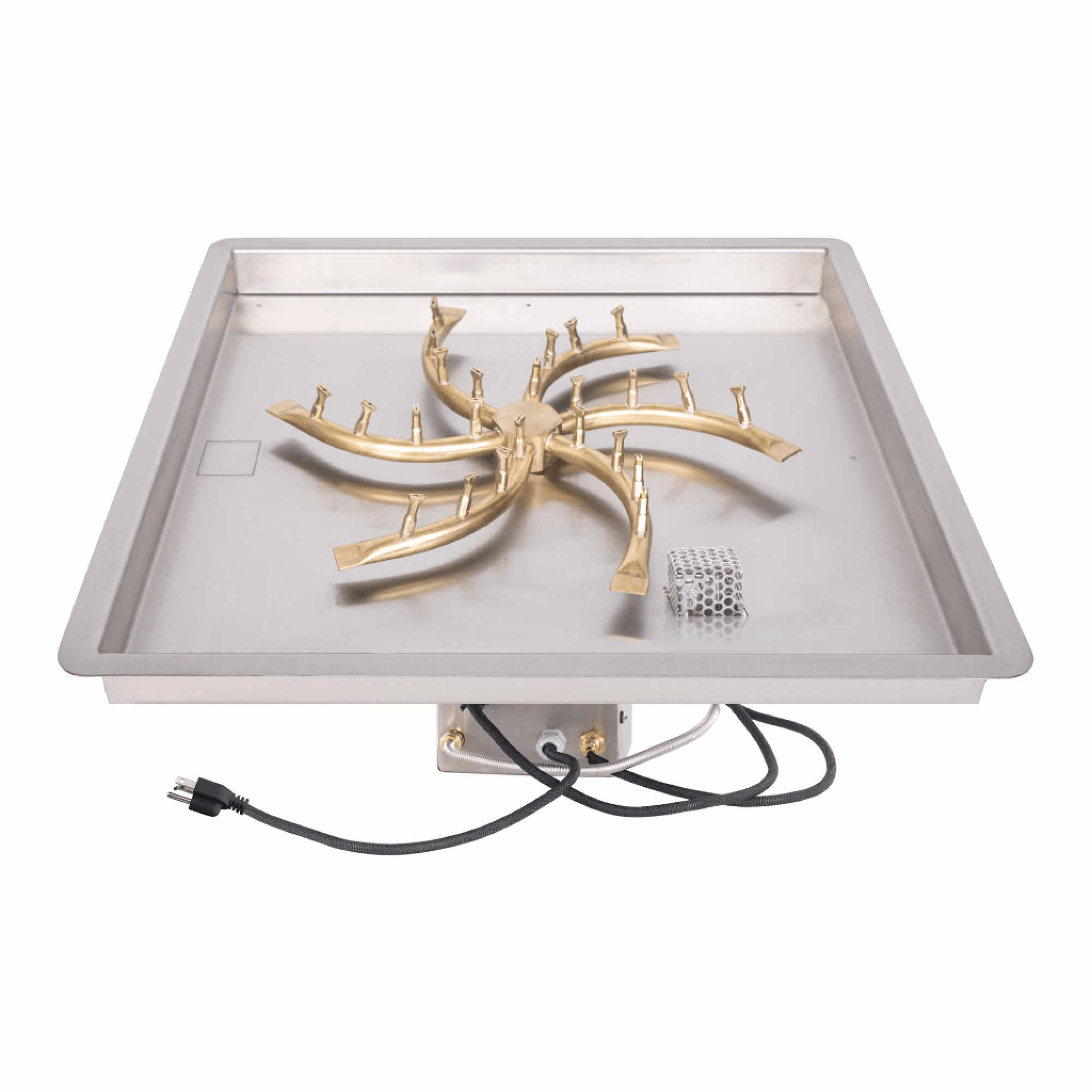

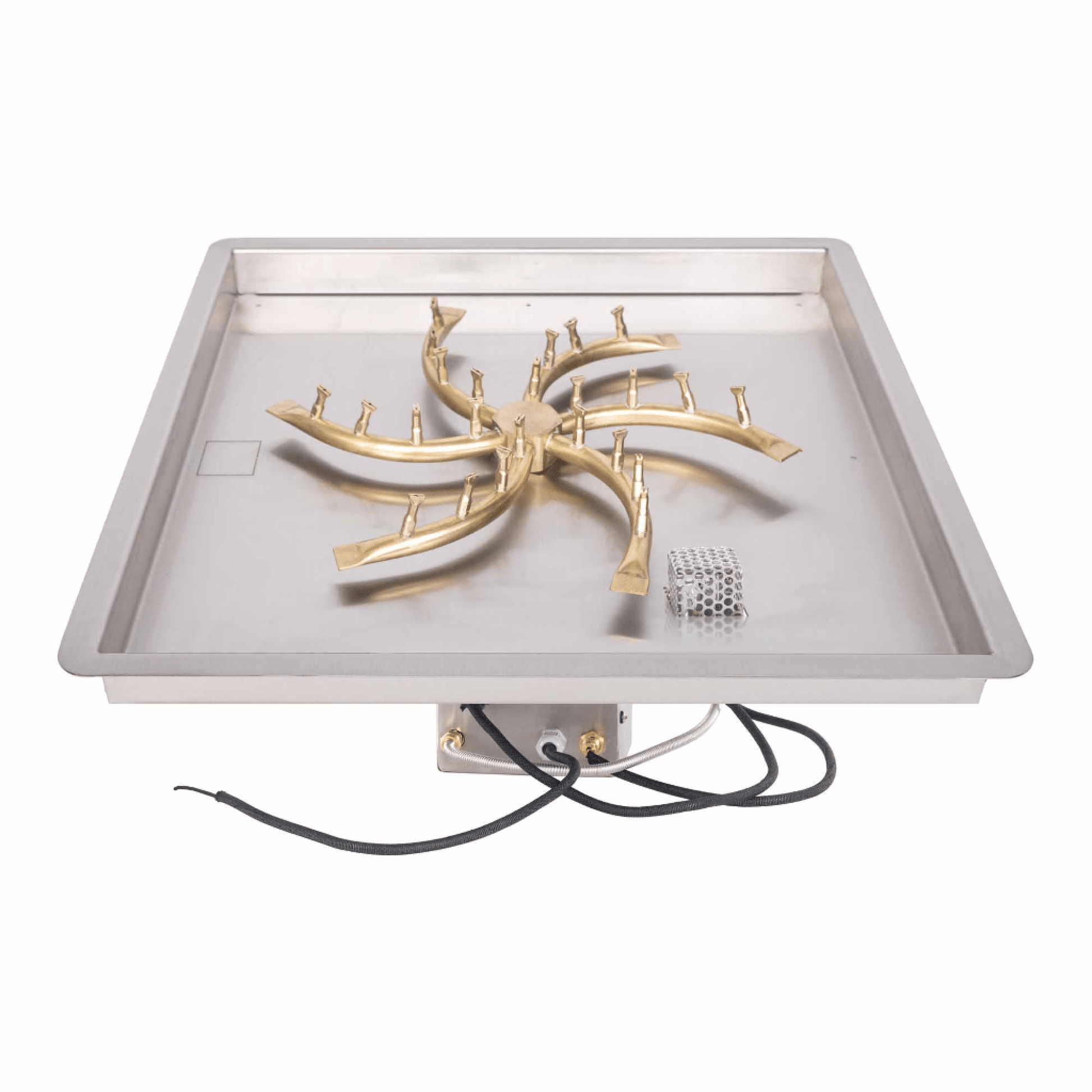

The Outdoor Plus Square Drop-in Pan With Brass Triple 'S' Bullet Burner

Ignition Type: Match Lit
Pan Kit Size: 12-inch


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The Outdoor Plus's Square Drop-in Pan and Triple 'S' Bullet Burner is the perfect addition to any pre-existing fire pit or fire bowl. The round-shaped Triple "S'' burner can easily replace any standard burner and provide you with a taller, fuller flame while consuming 30% less gas than a typical import burner, saving you money in the long run. Constructed with high-grade Brass, providing you with a long-lasting burner. This bullet burner will not rust or corrode, and under normal use should last significantly longer than standard burners.

Its Hexagonal Center Hub and Curved Arms evenly distribute gas while its unique Bullet Burner Orifices compress gas flow and incorporate oxygen to create a superior blaze. The Patented Bullet Burner eliminates the need for an additional air mixer when using liquid propane. Suitable for either natural gas or liquid propane applications.

You can expect to get the same flame height while using less gas than your standard burner, or crank it up for a dramatic and impressive flame, taller than any standard burner is able to produce.

The inlet of the burner is raised and tapered so that if water does enter the burner, it will not enter the gas line and the burner has multiple drain holes to release any water that may enter the burner through the flame holes.

This durable and fuel-efficient Triple 'S' Bullet Burner offers 6 different sizes ranging from 8-inches to 36-inches and five ignition types. Choose the best size and ignition for your fire pit or bowl & enhance your firepit experience with our Drop-in Pan & Patented Bullet Burner. Make sure to keep sufficient space between your burner and the inside edge of your fire pit or fire bowl.

Features

  • Fuel-efficient
  • Pan Lip: 1 Inch
  • Pan Height: 2 Inch
  • Tall and Full Flame
  • Pan Shape: Square
  • More flame, less gas
  • Burner Shape: Round
  • Burner Material: Brass
  • Pan Material: Aluminum
  • Limited lifetime warranty
  • Patented Flat Flame Technology
  • Corrosion Resistant and Durable
  • Proudly manufactured In the USA
  • BTU: 50,000 BTU – 220,000 BTU
  • Works with Liquid Propane or Natural Gas
  • Burners holes are individually hand-drilled
  • Pan Sizes: 12, 18, 24, 30, 36 and 48 inches
  • Burner Sizes: 8, 12, 18, 24, 30 and 36 inches
  • Electronic ignition systems require 10" clearance below the pan
  • The patented bullet burners eliminate the need for an additional LP air mixer
  • Manufactured with high-grade Brass, Providing you with a long-lasting burner
  • Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic

Product Specifications

Item Pan Size Burner Size Inlet BTU
12” Pan Kit
12" 8" 1/2" 50,000
18” Pan Kit
18" 12" 1/2" 75,000
24” Pan Kit
24" 18" 1/2" 110,000
30” Pan Kit
30" 24" 1/2" 145,000
36” Pan Kit
36" 30" 3/4" 180,000
48” Pan Kit 48" 36" 3/4" 220,000

CA Residents: See Prop 65 WARNING

Includes:

  • Pan
  • Burner

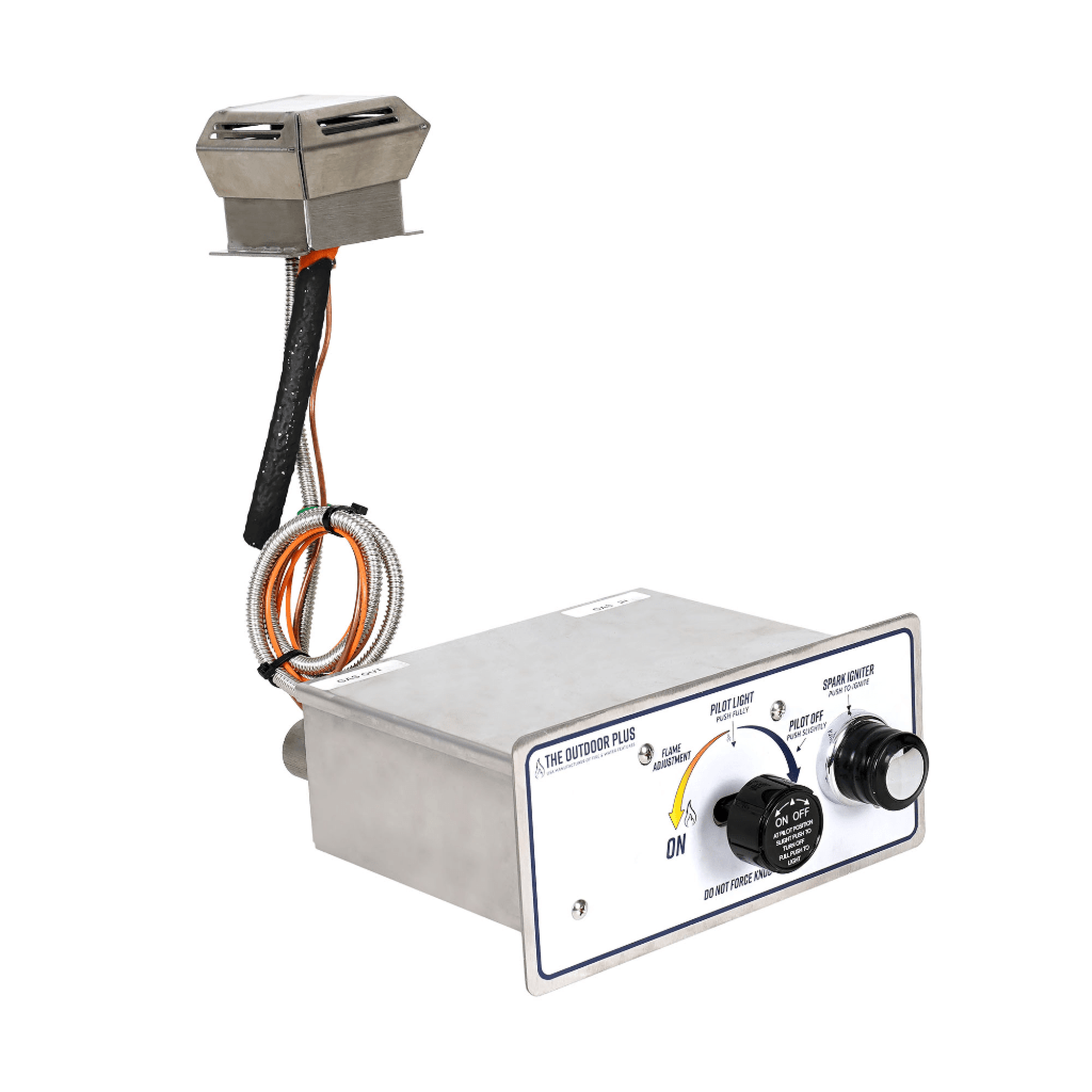

  • Pilot Igniter
  • Electronic Valve
  • 12V Transformer
  • 110V Transformer

Isometric View

Match Lit Ignition:

12V Electronic Ignition:

110V Electronic Ignition:

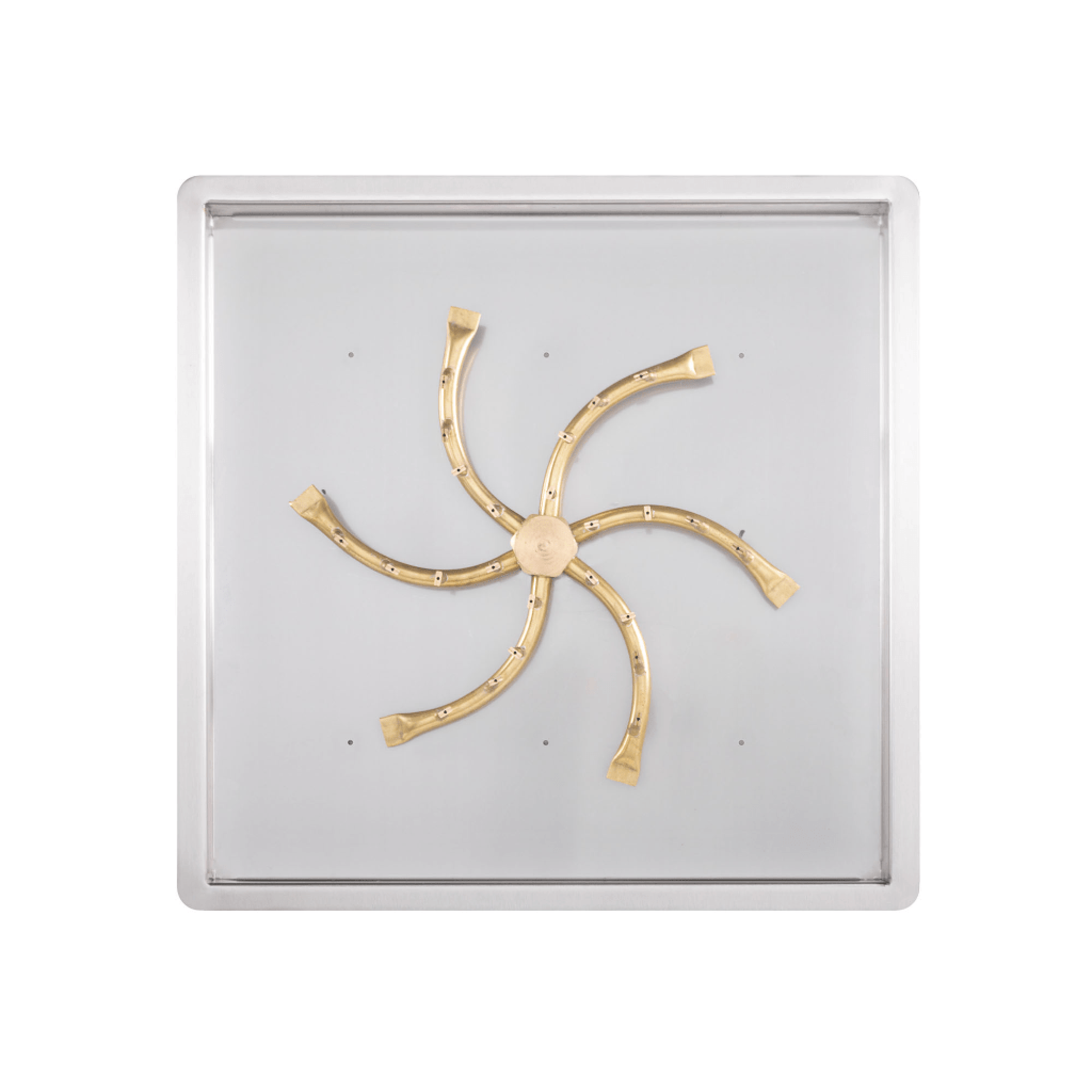

Top View

Match Lit Ignition:

12V Electronic Ignition:

110V Electronic Ignition:

Right Side View

Match Lit Ignition:

12V Electronic Ignition:

110V Electronic Ignition:

Front Side View

Match Lit Ignition:

    12V Electronic Ignition:

    110V Electronic Ignition:
