Touchstone Whisper Lift II TV Lift


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The Whisper Lift™ II holds TVs up to 100 lbs, features steel construction, a quiet lift that raises TVs to 68" and a 5 year warranty.

Product Highlights

  • Holds televisions up to 100 lbs
  • Features a steel construction for optimal durability
  • Lifts whisper quiet 24V motor raises TV up to 68.5 inches within 30 seconds
  • Installation and mounting your TV is simple with the included universal hardware kit and quick connect system
  • Lift operates with a single piston actuator and steel external casing to prevent wear

Easy Integration

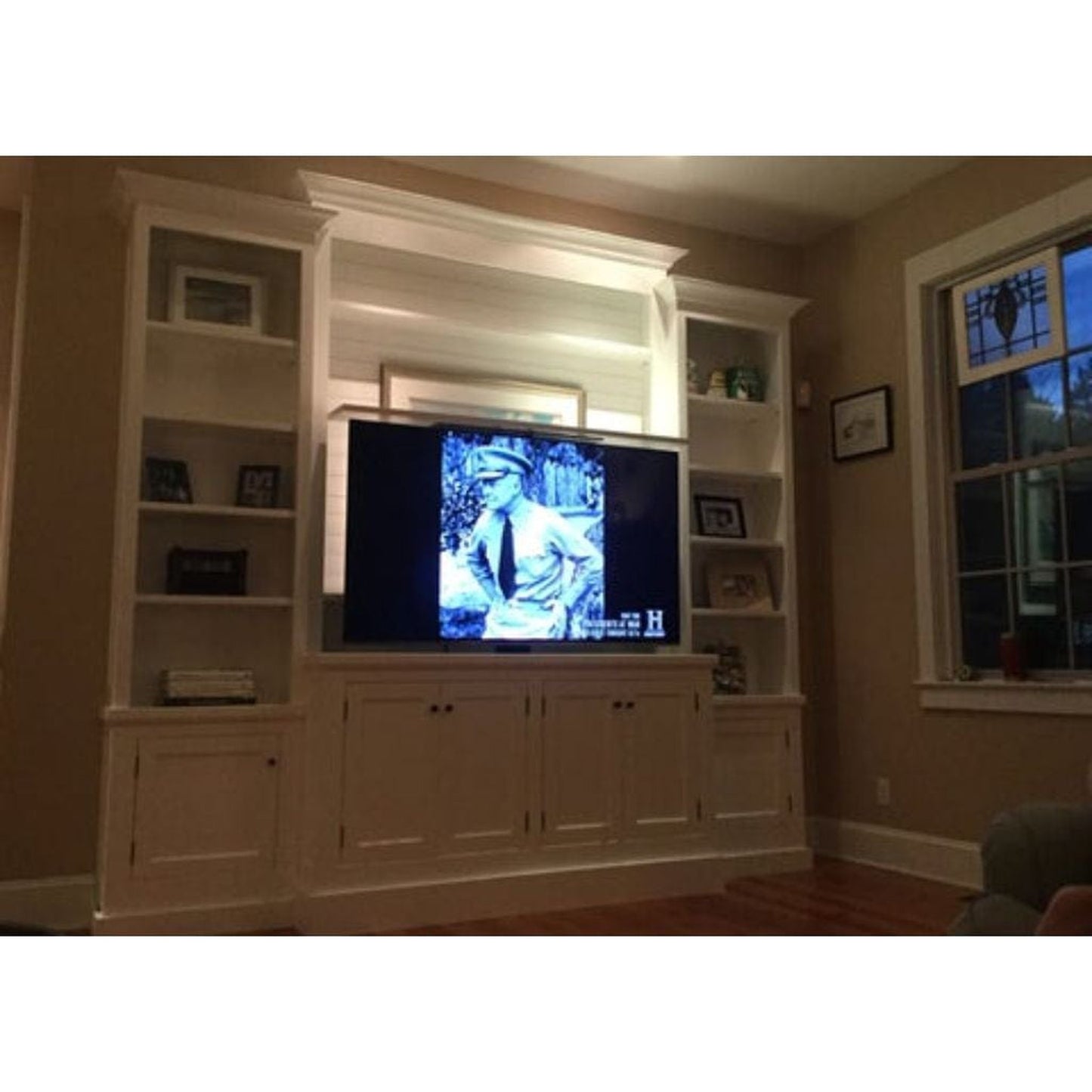

Use this versatile TV lift mechanism as a dropdown TV lift, pop up TV lift, floor mount TV lift, ceiling mount TV lift or outside outdoor TV lift. Trusted by woodworkers, the Whisper Lift is featured in the Woodsmith® magazine TV lift cabinet project plans and the Jon Peters Art & Home custom TV lift project plans. All Touchstone TV lift cabinets feature Whisper Lift TV lifts.

Overview

The patented Whisper Lift® II by Touchstone is the culmination of over 7 years of Touchstone's research and design by our expert mechanical engineers. This lift is constructed from durable steel for unmatched strength and stability and is powered by our whisper quiet 24V motor. The Whisper Lift® II is equipped to provide the power and durability you need in your TV lift mechanism.

The Whisper Lift® II measures 32.5" H x 10" W x 7" D (including brackets that connect to back of TV) and lifts to a full height of 68.5" in under 30 seconds. Designed to fit flat screen TV's up to 65", this lift holds televisions up to 100 lbs, with a lift capacity of 120 lbs.

Touchstone's Universal Quick Connect system makes it easy to install any flat screen TV in just minutes. A universal hardware kit comes with each TV lift kit which includes bolts and machine screws to accommodate most brands and models of flat screen TVs. The Whisper Lift® II features a unique mounting mechanism which fastens your flat screen TV to the Quick Connect Bracket for guaranteed safety and security. While most Whisper Lifts® are installed within our Touchstone TV Lift Cabinets to lift your flat screen upward, these lifts can also be mounted to your ceiling or wall and drop your flat screen downward.

The Whisper Lift® II operates by using a single piston actuator in an enclosed system for completely safe operation with virtually zero wear and tear. The steel external casing of the lift provides added protection for the lift internal parts, which keeps it clean and free of dirt and any debris.

The Whisper Lift® II is the highest quality television lift on the market. Our customers adore this product. It’s the most durable, quiet, and reliable lift mechanism out there despite its low price. You may find other more expensive lifts from other brands, but do not mistake high mark ups for high quality: the Touchstone Whisper Lift® II is the top of the line TV lift. This lift’s high quality makes it extremely reliable, as well. You will have to replace your flat screen television long before you ever have to replace this lift: the Whisper Lift® II is built to last.

Optionally, you can upgrade the Whisper Lift® II tv lift with our add-on component shelf to store your cable box, game system, DVD player, and other components for only $89.

The add-on component shelf attaches to the TV lift system directly below the flat screen TV and raises or lowers into the cabinet along with you TV when remotely activated.

The shelf provides an area of 16" W x 9" D on both the left and right side to fit a wide variety of multimedia components.

Just select the add-on component shelf option when placing your order.

Specifications

  • Lift raises quickly to the full height of 68.5" in less than 30 seconds
  • Whisper Lift® fully depressed measures 32"H x 10"W x 7"D (Including TV mount brackets, does not include TV depth)
  • Holds televisions up to 100 lbs
  • Durable Steel Construction with 24 V Motor makes operation quiet and reliable
  • Single actuator in an enclosed steel casing reduces wear and tear, enhances safe operation, and keeps the lift clean and free of dirt and debris
  • Modular design allows for internal components to be easily replaced in just minutes
  • Universal Quick Connect system for mounting TV to lift is easy to use and install
  • Hardware kit includes all necessary bolts and screws and is compatible with most flat panel TV in the market today
  • Includes wireless 1 RF remote control and a wired handset control
  • Supports TVs with VESA mounting patterns up to 600mm wide by 400mm high

Dimensions

  • Lift Dimensions: 32.5"H x 7"D
  • Unit Weight: 50lbs
  • Box Dimensions: 38"H x 13"W x 9"D
  • Shipping Weight: 55lbs

Dimensional Drawings

Documents

23202 - Whisper Lift® II Owners Manual
23202 - Whisper Lift® II Dimensional Drawing
