Valcourt

FP1LM

Valcourt Manoir Clean Burning Decorative Wood Fireplace


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

The Manoir is the updated version of Valcourt’s very first fireplace.

Valcourt’s fireplace doors are second to none and the Manoir is another good example of their exception.

The steel framed double doors with ceramic glass slide into each side of the fireplace, smoothly and easily; allowing for an exceptional view of the crackling flames.

Thanks to the availability of two different styles of faceplates, this model will enable you to be creative with your décor.

Moreover, you can benefit from the Manoir’s maximum heating output by using its optional blower and its two hot air distribution kits.

All Valcourt fireplaces feature a heavy duty construction for guaranteed peace of mind. A real solid luxury that will provide years of relaxation for you and your family.

Decorative Fireplaces for Ambiance While Being Environmentally Friendly
While giving you the ambiance and comfort of a wood fire, these fireplaces give you elegance without compromising air quality. These fireplaces qualify for Phase II of the EPA voluntary program of decorative wood-burning fireplaces which is approximately 70% cleaner than unqualified models.

Manoir Clean Burning Decorative Fireplace

Includes:

  • Retractable Ceramic Glass Doors
  • Cast Iron Andirons
  • Blower
  • Fresh Air Intake Adapter
  • Molded Refractory Bricks

Note: 4” Outside Air Flex Pipe and Hood not included

Specifications

Heating area <1,500 Ft2
Efficiency
Door  Double retractable
Firebox Size 4.25 cu f
Log Length 20”
Flue Pipe Diameter 8” Class A*
Weight 520 lbs
Overall Dimensions 43 ⅝”H x 41 ⅛”W x 27 ⅜”D
General Features
Fuel type Dry cordwood
Recommended heating area (sq.ft.) <1,500
Overall firebox volume (ft³) 4.25
Average particulate emissions rate 2.9 g/kg
Burn rate >5 kg/h (>11 lb/h)
High-efficiency EPA certified appliance Low Mass
Maximum log length 20"
Log positioning Over width
Chimney diameter 8"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 15'
Approved for a mobile home installation No
Shipping Weight 520 lb (236 kg)
Door type Double, glass with steel frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 29" X 17 1/4"
Glass air-wash system N.A.
Premium quality blower included (CFM) 176
Overall dimension (Height) 43 5/8"
Overall dimension (Width) 41 1/8"
Overall dimension (Depth) 27 3/8"
Door opening – dimension (Height) 17 7/8"
Door opening - dimension (Width) 30"
Firebox – dimension (Height) 18 5/8"
Firebox – dimension (Width) 23 3/8"
Firebox – dimension (Depth) 11 3/8"
Moulded refractory bricks Yes
Cast iron andirons Yes
USA standard (emissions) ASTM 2515, ASTM 2558
USA standard (safety) UL 127
Canadian standard (safety) ULC-S610
Warranty Limited lifetime
Approved Chimney Types
Manufacturiers* Brand Type Diameter
American Metal HSS AC Triple Wall 8" (20 cm)
American Metal HS AC Triple Wall 8" (20 cm)
ICC Excel 2100 1" Solid Pack 8" (20 cm)
M&G DuraVent DuraTech 1" Solid Pack 8" (20 cm)
M&G DuraVent DuraTech Canada (DTC) 1" Solid Pack 8" (20 cm)
M&G DuraVent DuraPlus HTC 2" Solid Pack 8" (20 cm)
M&G DuraVent DuraPlus AC Triple Wall 8" (20 cm)
Metal Fab Temp Guard 1" Solid Pack 8" (20 cm)
Olympia Chimney Ventis 1" Solid Pack 8" (20 cm)
SBI Venting Division Nexvent 1" Solid Pack 8" (20 cm)
Security Chimney ASHT+ 1" Solid Pack 8" (20 cm)
Security Chimney S-2100 + 2" Solid Pack 8" (20 cm)
Selkirk CF Sentinel (CF) 2" Solid Pack 8" (20 cm)
Selkirk Super Pro 2100 (ALT) 2" Solid Pack 8" (20 cm)
Selkirk Super Vent 2100 (JM) 2" Solid Pack 8" (20 cm)

* Specific components may be required depending on the chimney manufacturer.

Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
  Canada United-States
Clearance – top (measured from the platform on which the appliance is installed)** 72" 72"
Clearance – combustible side mantle to unit 8" 8"
Clearance – combustible top mantle to unit 5 1/2" 5 1/2"
Clearance – combustible side wall to unit 24" 24"
Clearance – top shelf to unit 48" 48"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

Customize your product

Faceplate

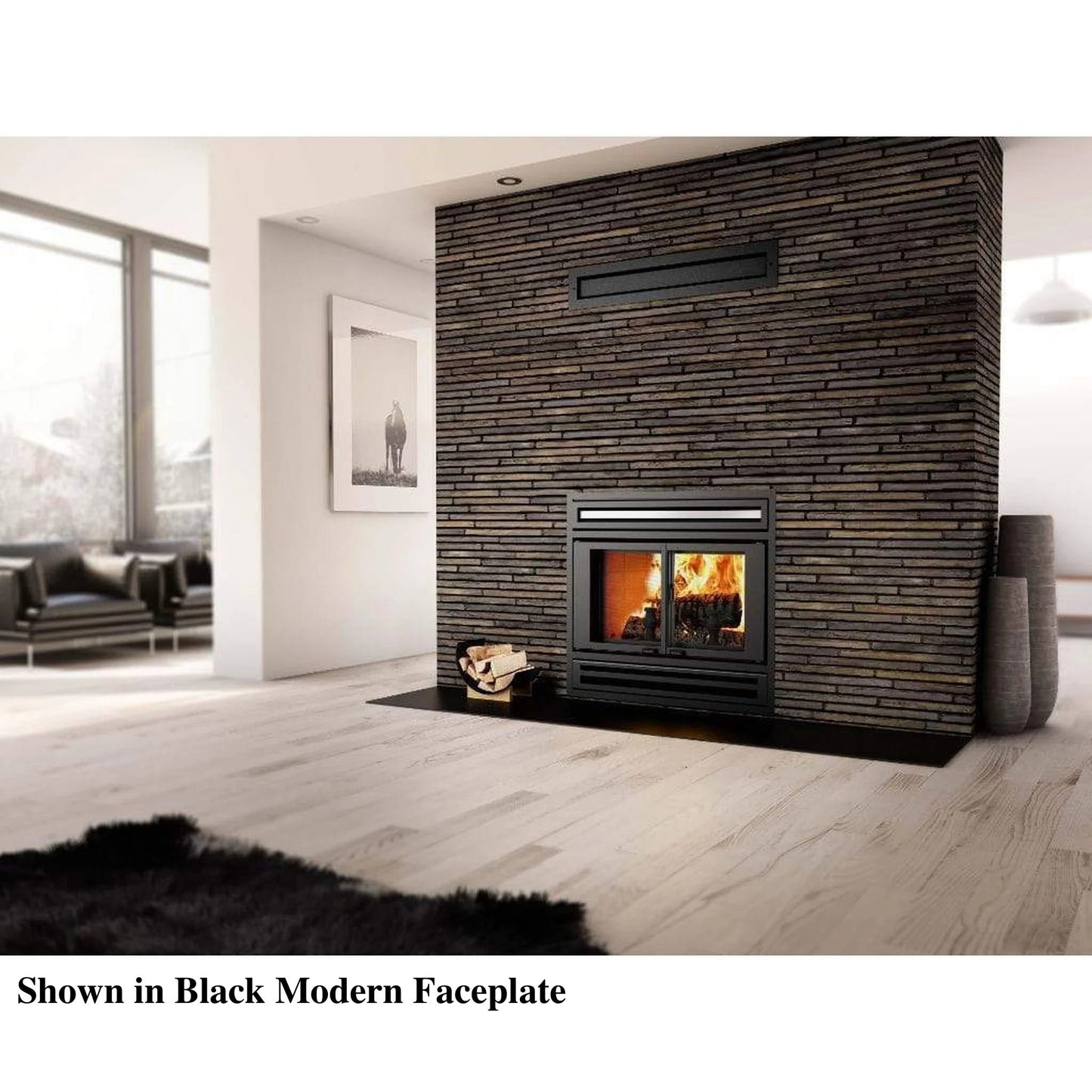

Black Modern Faceplate - VA1FE05

Black Traditional Faceplate - VA1FE06

Options and Accessories

Click to see Options and Accessories

4''Ø Fresh Air Intake Register With Airtight Damper - AC01347

6"Ø X 25' Insulated Flex Pipe for Forced Air Kit - AC01350

Forced Air Distribution Kit - AC01340

Hot Air Gravity Distribution Kit - Modern Style - AC01376

Hot Air Gravity Distribution Kit - Traditional - AC01375

Downloads

  • Manoir Wood Fireplace Installation Manual
  • Manoir Wood Fireplace Dimensions
  • Manoir Wood Fireplace Quick Installation Reference Guide
  • Fresh Air Intake Register Manual
  • Forced Air Distribution Kit Instructions
  • Glass Hearth Pad Manual
  • Digital Moisture Reader Manual
  • Wood Storage with Finishing Trim Manual
  •
