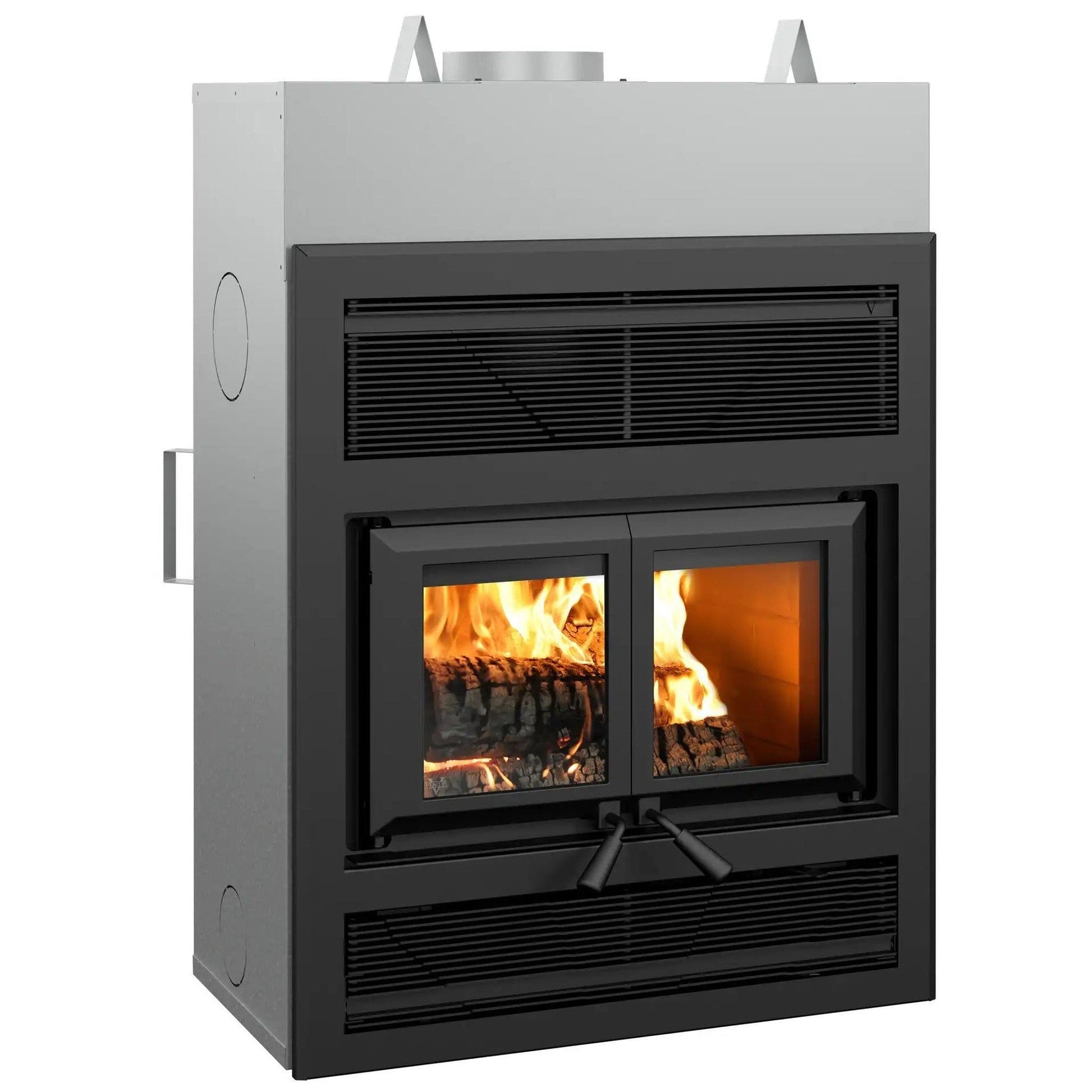

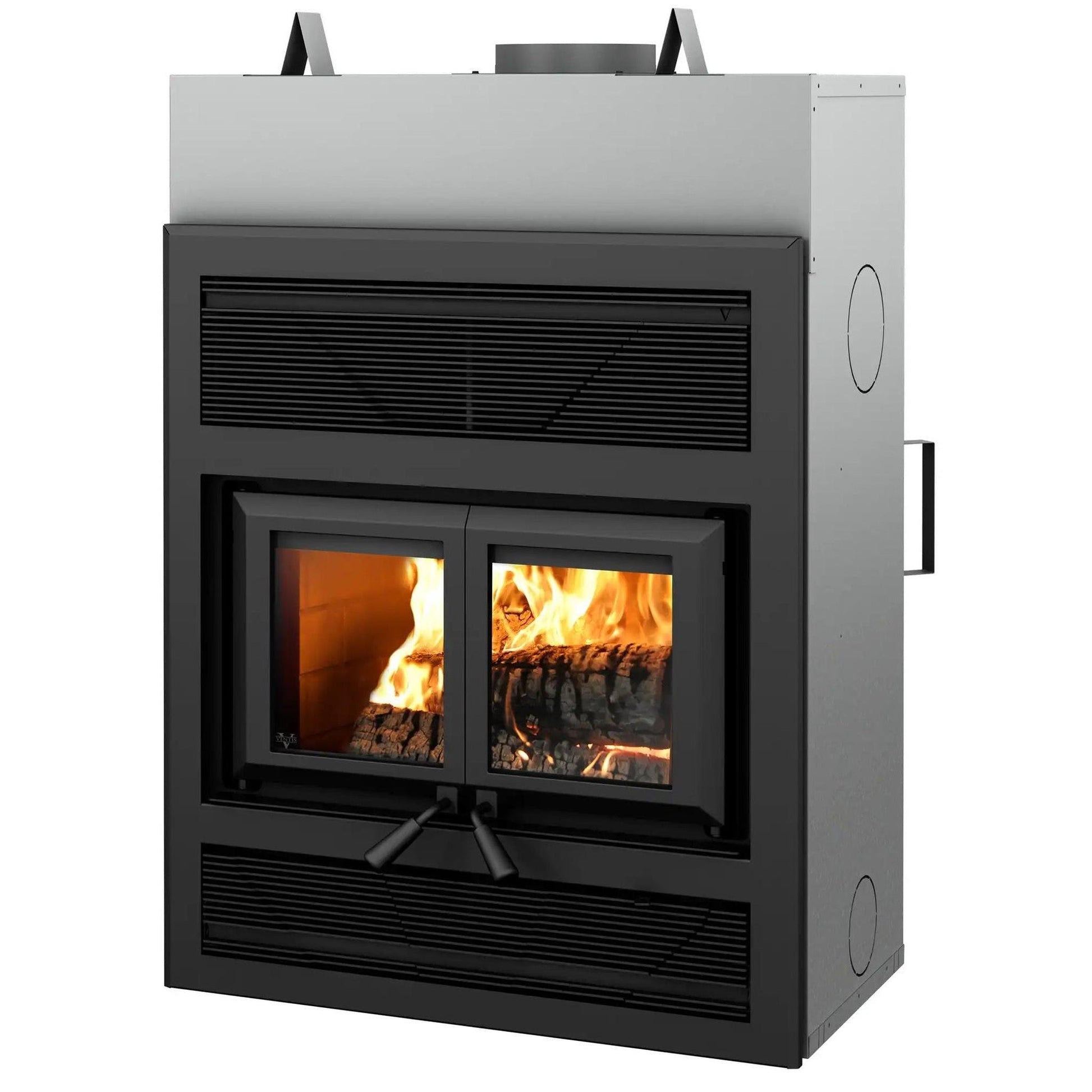

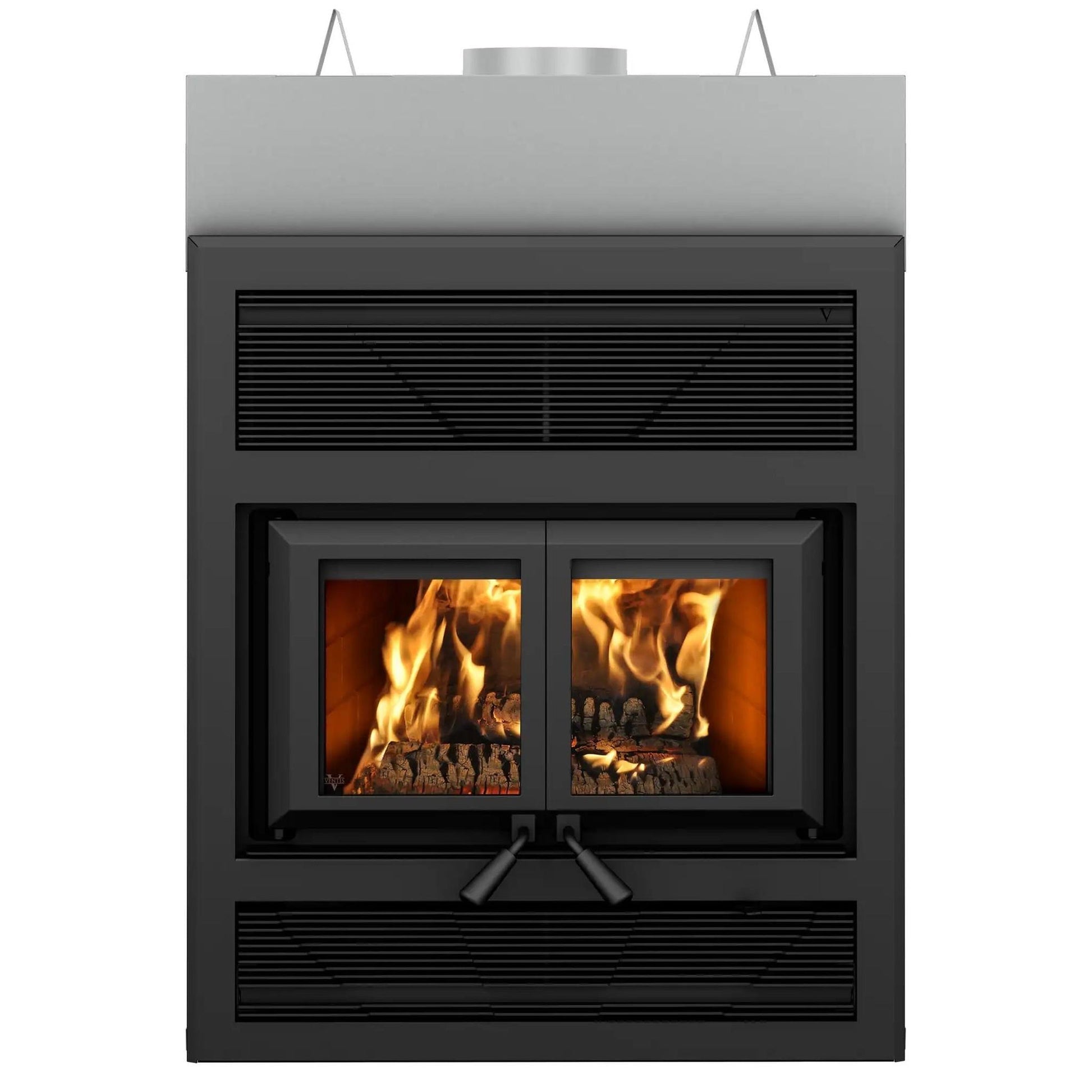

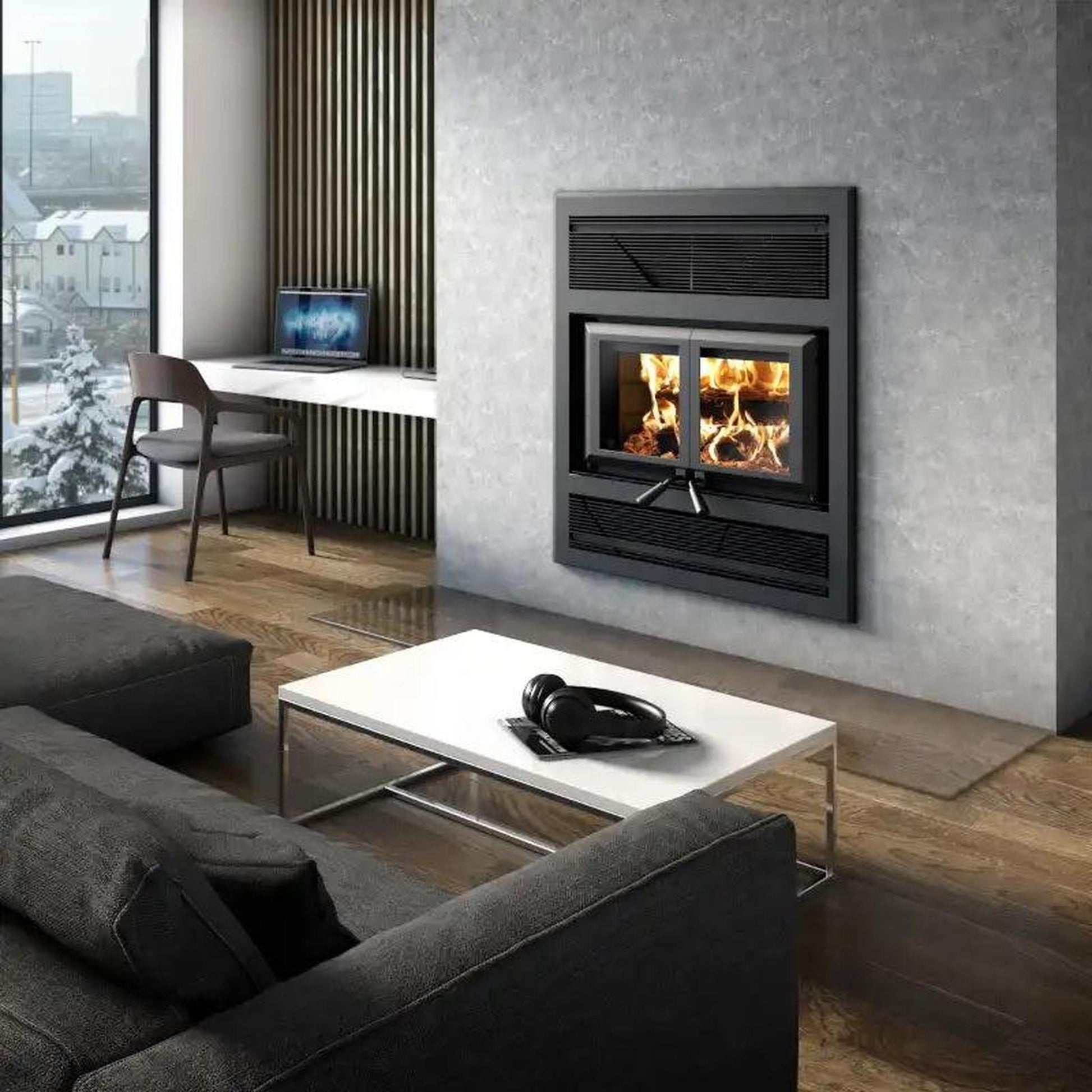

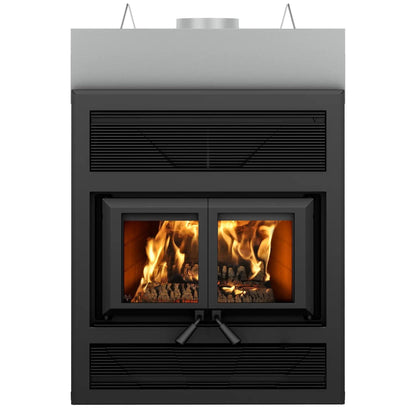

Ventis HE325 42" High Efficiency Wood Fireplace with Blower


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Ventis HE325 Zero Clearance Wood Burning Fireplace is the perfect combination of style and high efficiency, EPA certified and low emission rate is another advantage. It has a 3 cubic foot firebox capable of handling up to 18-Inch log and produces up to 85,000 BTUs. Non-catalytic combustion technology for a clean burn and heats up to 2,500 square feet with a maximum burn time 9 hours.

  • Designed mainly for heating
  • Large, high-efficiency fireplace among the most powerful on the market
  • Retractable double doors for an unrivaled experience
  • EPA 2020 certified
  • Non-catalytic combustion technology
  • Installation authorized on the Island of Montreal
  • Firestop made of high density insulation board
  • Ventis distinctive louvers
  • 176 CFM blower included
  • Molded refractory stones
  • 6" Ventis stainless steel anchor plate included
  • Fresh air intake adapter included

Required Option:

  • (VBA1570) Faceplate required to complete this unit. Not Included, Sold Separately.

CA Residents: See Prop 65 WARNING.

Appliance Performance

Fuel type Dry cordwood (16" recommended)
Recommended heating area 750 - 2,500 ft²
Overall firebox volume 3.0 ft³
EPA loading volume 2.61 ft³
Maximum burn time 9 Hours
Maximum heat output-dry cordwood 85,000 BTU/h
Minimum overall heat output rate 18,057 BTU/h (5.29 kW)
Maximum overall heat output rate 49,654 BTU/h (14.55 kW)
Average efficiency-dry cordwood (HHV) 65.7 %
Average efficiency-dry cordwood (LHV) 70.8 %
Optimum efficiency 72 %
Optimum heat transfer efficiency 68 %
Average particulate emission rate 0.99 g/h
Average CO 50.1 g/h
  • Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
  • Optimum overall efficiency at a specific burn rate (LHV).
  • This appliance is officially tested and certified by an independent agency.
  • The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
  • As measured per CSA B415.1-10 stack loss method.
  • Higher Heating Value of the fuel.
  • Lower Heating Value of the fuel.
  • The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
  • Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
  • Carbon monoxyde.

General Features

Premium quality blower included (CFM) 176 CFM included
Certified according to applicable standards CAN/USA accredited laboratory
Combustion technology Non-catalytic
Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Recommended chimney diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height 15"
Overall dimension (Width) 41 3/4"
Overall dimension (Height) 49 1/8"
Overall dimension (Depth) 28 7/8"
Door type Single, glass with cast iron frame
Door opening size (Width) 20 3/4"
Door opening size (Height) 10 1/4"
Glass type Ceramic glass
Glass surface - W x H 18 3/4" x 11"
Firebox size (Width) 18 7/8"
Firebox size (Height) 16 7/8"
Firebox size (Depth) 17"
Maximum log length 18"
Log positioning Loading over width
Baffle type Ceramic panel
High-efficiency certified appliance Yes, EPA 2020 approved
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA
Canadian Standard (safety) ULC S610
USA Standard (safety) UL 127
Shipping weight 530 lb (240 kg)

OPTIONS & ACCESSORIES





Traditional Style Faceplate (VBA1570)

  • Traditional style faceplate
  • Specifically designed for use with the HE325 wood burning fireplace.
  • Required to complete this unit.





4-Inch Fresh Air Intake Adapter

  • 4-Inch fresh air intake adapter
  • Allows outside combustion air to feed the appliance
  • Airtight damper prevents air drafts when not in use
  • Fully adjustable wall control included





Traditional Hot Air Gravity Kit

  • Traditional hot air gravity kit allows you to heat other parts of the home directly above the Ventis HE325 fireplace.





Firescreen Door

  • Optional accessory
  • Specifically designed for use with the HE325 wood fireplace.





Fireplace Carrying Handle Kit

  • Fireplace carrying handle kit makes transporting the fireplace to the install location much easier.
  • The handle kit enables you to attach handles to the sides of the fireplace and gives you a better grip when lifting the fireplace.





Forced Air Kit

  • Forced air kit allows you to heat other rooms of the home adding to the heating capacity of the HE325 fireplace.
  • Designed for use with HE325 wood fireplace.





6" x 25' Insulated Flex Pipe

  • 6-Inch x 25ft
  • Insulated flex pipe for forced air kit
  • Designed for use with HE325 wood fireplace.



Warranty

  • Limited lifetime warranty.
