Warming Trends

CFB450NGALPL60C

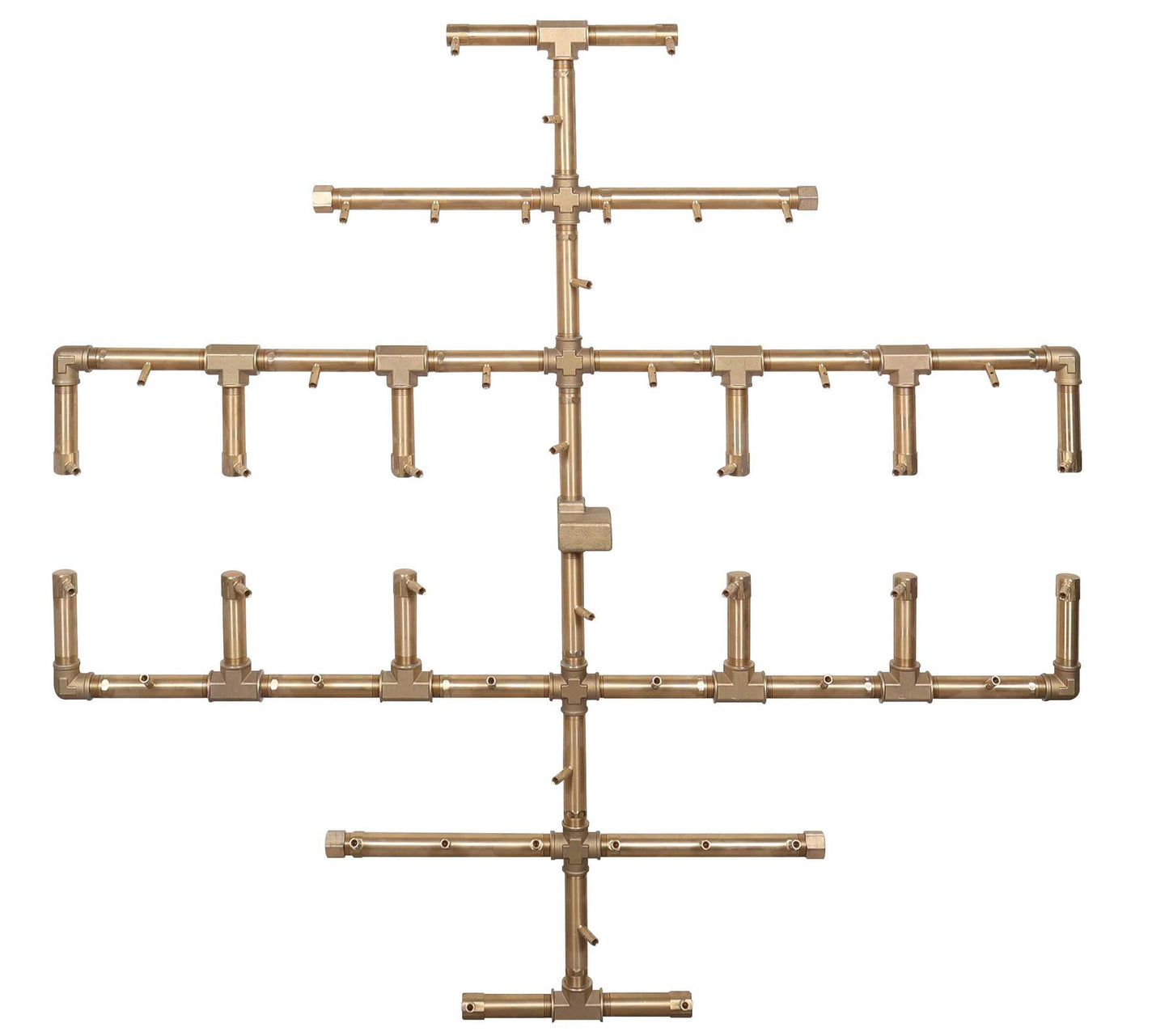

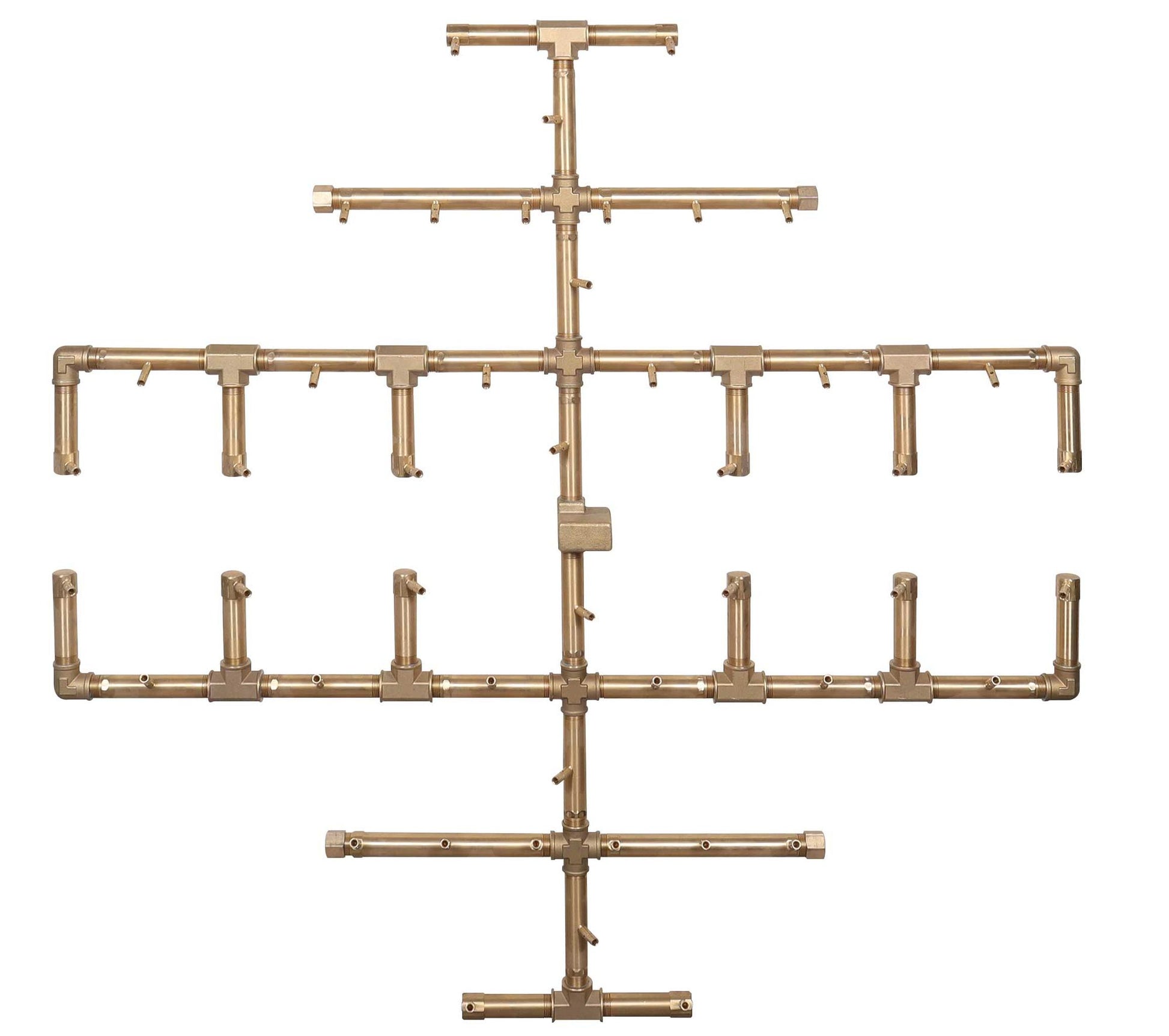

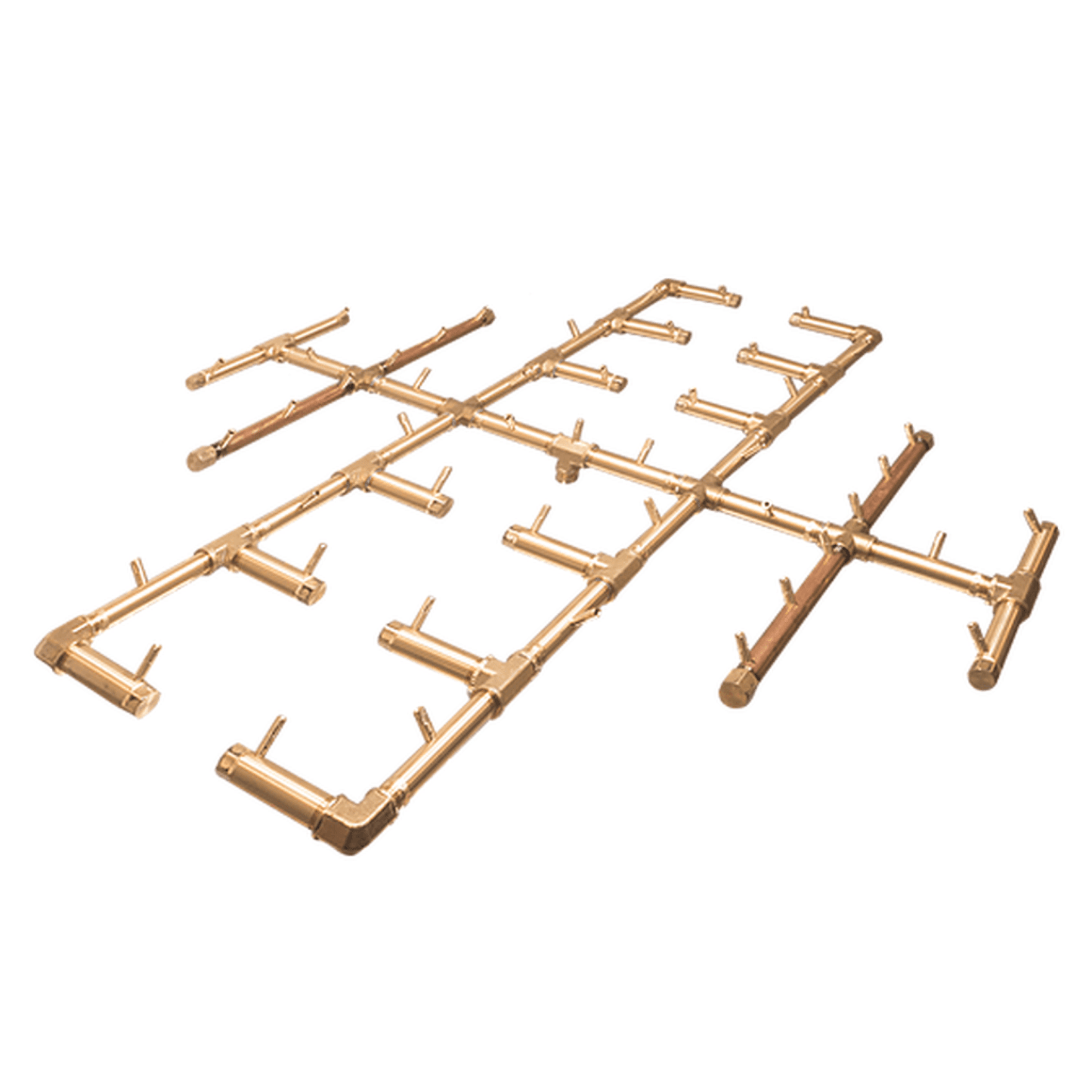

Warming Trends CFB450 Original Crossfire Brass Burner with 60'' Circular Plate

Fuel Type: Natural Gas


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

Innovation. Design. Performance. The Crossfire® Brass Burner by Warming Trends® is a distinctive fire pit burner that utilizes cutting-edge technology to produce a taller, brighter, fuller flame. Leading the industry with a highly engineered, precision product, Warming Trends® is the original and only manufacturer of the Crossfire® Brass Burner.

Our Four Pillars

The patented technology behind our Crossfire® Brass Burner uses a specific air-to-gas ratio at the point of combustion to produce a taller, brighter, fuller flame that resembles a natural, wood-burning fire. We call this the Venturi Effect. Venturi Jet Technology generates high-velocity gas flow and pulls more oxygen into the jet chamber – feeding the combination into the flame at the point of combustion. This causes the gas and oxygen mixture to shoot out of the jet at a high velocity as a super-charged flame, like water out of a fire hose.

Twice the Flame



 All parts and pieces of the Crossfire® Burner are made from brass. Unlike other burners made from stainless steel; brass is corrosion resistant and will not rust, which eliminates the need for replacement. We're so confident the product will last, we offer a lifetime warranty on all brass products.



All Brass Components


We stand behind our products and construction. Corrosion-resistant, Sustainable, and rust-proof, brass allows to offer the strongest lifetime warranty in the industry.

**Learn more about Warranty**



Limited Lifetime Warranty



 Warming Trends® is proud to manufacture and assemble all our products ins the US., supporting local Colorado commerce as well as parts manufacturers across the U.S. We are truly a Made in the USA products.



Made in the USA




Warming Trends® is Proud to be a member of the following organizations:

Six Steps to Fire

  1. Measures the interior dimension of your firepit.
  2. Choose the corresponding Plate or Pan size. (Pans include a 2'' welded sidewall).
  3. Select Bruner based on the appropriate size and fuel type. (Natural Gas or Liquid Propane).
  4.  Choose the Ignition System: match lit or fully automatic ignition system.
  5. Add Optional Electronic Accessories: remote control options, dial timers, and emergency stop buttons.
  6. Complete the fire pit with Media: steel or ceramic logs, lava rock, or fire glass.

Features

  • 450,000 BTU
  • Available  in Natural Gas and Liquid Propane
  • Original Brass Burner
  • Ships Freight
  • Optional Flexible Metal Support Collars
  • Dimension: 46'' x 46''
  • with 60'' Circular Plate

Range of Crossfire Brass Burners by Warning Trends

Included Parts

Plates

ALPL60C Circular Plate


  • 60'' Circular Plate
  • Optional Accessory Circular Plate For Warming Trends Crossfire Brass Burner

 Recommended Parts

Flex Line Kit

 Flex Line Kit (FK2)

For use with any burner 250K BTUs and above.


Kit Includes:

  • (2) 36” L x 3/4” Diameter Flex Lines

  • (4) 3/4" Flared Fittings

  • 3/4” Key Valve + 3” and 12” Key

  • (2) 3/4” x 3” Nipple

  • (2) 3/4” Tee

  • (1) 3/4” x 1/2” MM Reducer Fitting


    KV12





    • 1/2” Key Valve + 3” Key













     Ignition Systems, Electronic Accessories, and Add-Ons

    Click to See Recommended Push Button Ignition
    PBIK3.0
    Push Button Ignition Kit:
    • Spark Igniter Rod and Wire
    • Push Button Battery Operated Control Module
    • 7” x 7” x 5”
    • 2lbs in weight
    PBIK3.0MBR
    Push Button Ignition Kit and Mounting Bracket:
    • Spark Igniter Rod and Wire
    • Push Button Battery Operated Control Module
    • Mounting Bracket
    • 11" x 11" x 5"
    • 2lbs in weight
    PBIK3.0MBRKV12
    Push Button Ignition Kit, Mounting Bracket, and 1/2'' Key Valve Kit:
    • Spark Igniter Rod and Wire
    • Push Button Battery Operated Control Module
    • Mounting Bracket
    • 1/2'' Key Valve Kit
    • (2) Pre-mounted 1/2'' Street Elbows
    • 11" x 11" x 5"
    • 2lbs in weight
    PBIK3.0MBRKV34
    Push Button Ignition Kit, Mounting Bracket, and 3/4'' Key Valve Kit:
    • Spark Igniter Rod and Wire
    • Push Button Battery Operated Control Module
    • Mounting Bracket
    • 3/4'' Flex Line Kit
    • (2) Pre-mounted 3/4'' Street Elbows
    • 11" x 11" x 5"
    • 2lbs in weight
    PBIK3.0MBRFK1

    Push Button Ignition Kit, Mounting Bracket, and 3/4'' Flex Line Kit

    • Spark Igniter Rod and Wire
    • Push Button Battery Operated Control Module
    • Mounting Bracket
    • 3/4'' Flex Line Kit
    • (2) Pre-Mounted 3/4'' Street Elbows
    • 13" x 13" x 5"
    • 5lbs in weight
    PBIK3.0MBRFK2

    Push Button Ignition Kit, Mounting Bracket, and 3/4'' Dual Flex Line Kit

    • Spark Igniter Rod and Wire
    • Push Button Battery Operated Control Module
    • Mounting Bracket
    • 3/4'' Dual Flex Line Kit
    • (2) Pre-mounted 3/4'' Street Elbows
    • 15" x 15" x 5"
    • 7lbs in weight

    Click to See Recommended 3 Volt Ignition
    3VIK-NG  |  3VIK-LP
    3 Volt Electronic Ignition System:
    • Spark Igniter
    • Control Module
    • D-Cell Battery Pack
    • 3 Volt Gas Valve Ignition Switch
    • 7” x 7” x 5”
    • 2lbs in weight
    Click to See Recommended 24 Volt Ignition
    24VIKHC-NG  |  24VIKHC-LP
    24 Volt Spark Ignition supplies up to 400K BTUs. Included step down transformer for use with 24 Volt/110 Volt Supply.
    • Spark igniter
    • Control Module
    • 24 Volt Transformer
    • 13” x 13” x 13”
    • 17lbs in weight
    Click to See Recommended 24 Volt Hot Surface Ignition
    P24VIKSCCG-NG  |  P24VIKSCCG-LP
    24 Volt Hot Surface Ignition System, Standard Capacity supplies up to 290K BTUs. 24 Volt Hot Surface Ignition High Capacity supplies up to 512 BTUs. Includes step-down transformer for use with 24 Volt/110 Volt Supply.
    24 Volt Hot Surface Ignition System, Standard Capacity:
    • Hot Surface Igniter
    • 50VA/24VAC Transformer
    • Maximum Gas Output 290K BTU/hr
    • 13” x 13” x 13”
    • 18lbs in weight
    P24VIKHCCG-NG  |  P24VIKHCCG-LP
    24 Volt Hot Surface Ignition System, Standard Capacity supplies up to 290K BTUs. 24 Volt Hot Surface Ignition High Capacity supplies up to 512 BTUs. Includes step-down transformer for use with 24 Volt/110 Volt Supply.



    24 Volt Hot Surface Ignition System, High Capacity:

    • Hot Surface Igniter
    • 50VA/24VAC Transformer
    • Maximum Gas Output 780K BTU/hr
    • 13” x 13” x 13”
    • 18lbs in weight
    Click to See Recommended Electronic Accessories

    3 Volt Remote (3VRC)

    On/Off Remote Control for 3 Volt Ignition System

    • 7" x 7" x 5"
    • 4lbs in weight

    24 Volt Key Chain Remote (KCRC)

    On/Off Wireless Key Chain Remote Control & Plug for 24 Volt Ignition System

    • 11" x 11" x 5"
    • 4lbs in weight

    Dial Timers

    Available in 2 hours and 12-hour Options for Automatic Shut off, with or without NEMA Rated outdoor enclosure

    • DT2HR  2 Hour Dial Timer
    • DT2HRNB  2 Hour Dial Timer with NEMA Rated Enclosure
    • DT12HR  12 Hour Dial Timer
    • DT12HRNB  12 Hour Dial Timer with NEMA Rated Enclosure

    Emergency Stop (EMERSTOP)

    Push Button Emergency Stop with yellow shell and weatherproof Lift cover.

    • 11" x 11" x 5"
    • 5lbs in Weight

    **Recommended for commercial properties**



    Media and Additional Accessories

    Click to See Lava Rock

    Black Lava Rock

    • 1" - 1 ½" Black Lava Rock
    • 1 bag per 1 cubic foot
    Rolled Lava Rock
    • 1" - 2" Gray/Black Rolled Lava
    • 1 bag per 1 cubic foot
    Click to See Fireglass

    CS AMBER 9

    • Dark Amber in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners
    CS AMBER 4

    • Light Amber in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    BURNT ORANGE

    • Burnt Orange in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    CA RED

    • Red in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    MN PURPLE 4

    • Purple in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    PLUM 7

    • Plum in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    CO BLUE 5

    • Dark Blue in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    CO BLUE 3

    • Light Blue in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    CR GREEN 6

    • Dark Green in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    CR GREEN 4

    • Light Green in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

     AQUA 2

    • Aqua in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    GRAY 5

    • Gray in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    BLACK

    • Black in Color
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    CLEAR

    • Clear
    • 3/4" Fireglass
    • Priced per Pound
    • Additional Accessory for Brass Burners

    "Talk to our Chat Support to calculate the amount of fireglasses you need for your firepit."
