SKU:UH300ALPL5625

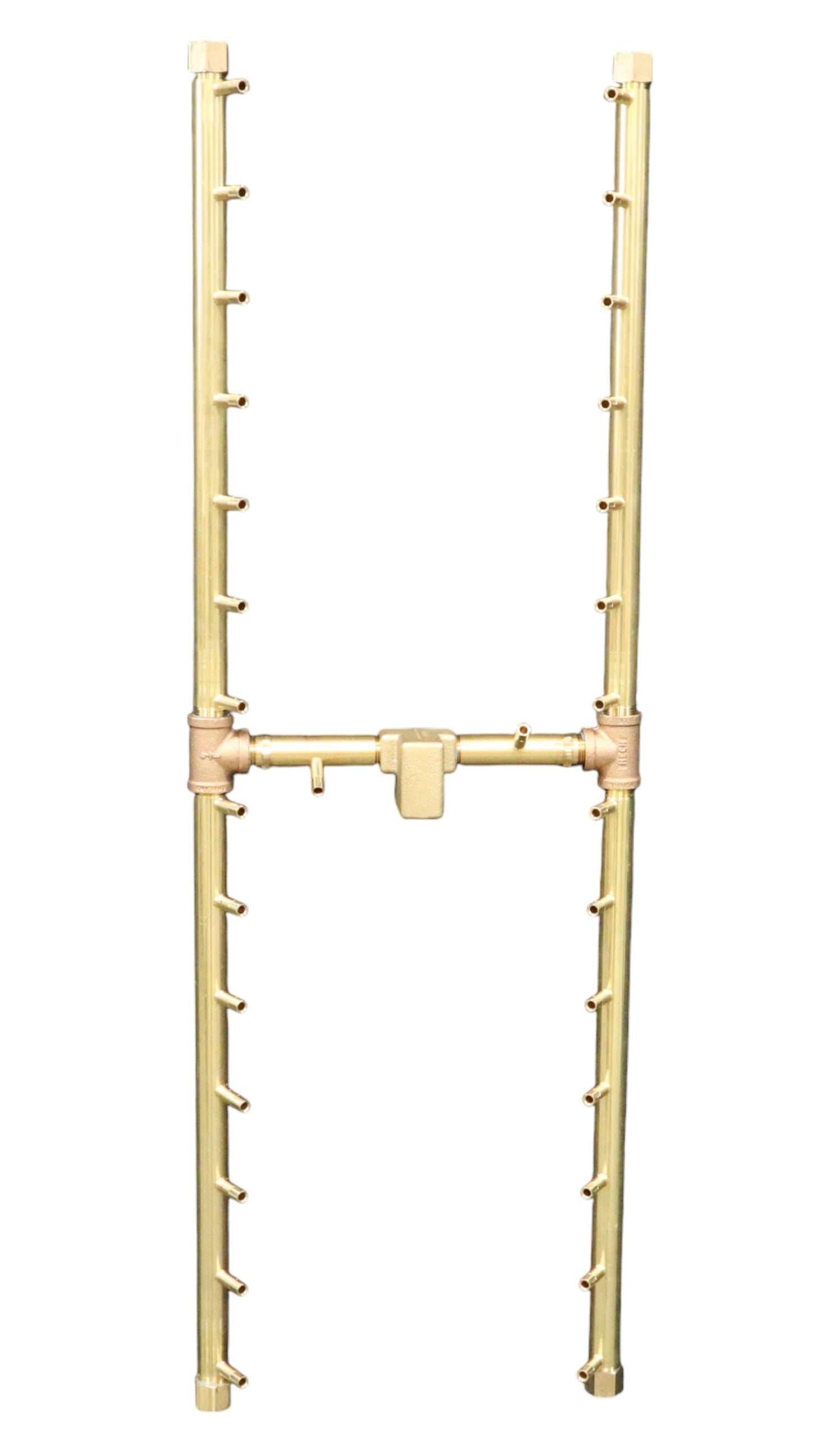

Warming Trends H-Style 42" 300K BTU Universal Crossfire 2.0 Brass Burner With 56" x 25" Rectangle Plate
Warming Trends H-Style 42" 300K BTU Universal Crossfire 2.0 Brass Burner With 56" x 25" Rectangle Plate
Collar
-- Please Select --
No, Thank You
Flex Line Kit
-- Please Select --
No, Thank You
Platinum Ignition System
-- Please Select --
No, Thank You
Remote Control
-- Please Select --
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Crafted with purpose, Warming Trends® patented CrossFire® brass burner sets the standard for performance, efficiency, and lasting reliability. Designed, engineered, and assembled in Colorado, each fire feature elevates any outdoor setting with stunning flames and sophisticated style. Luxury without compromise. Don't settle for less.
What's Included
- H-Style 300K BTU Universal Crossfire Brass Burner with WATERSTOP
- Natural Gas and Propane Adapter
- Plate: ALPL5625 (rectangle)
Not Included (Sold Separately)
- Flex Line Kit: FK2
- Optional 9x Flexible Metal Support Collars
Features
- For 56" x 25" opening or larger
- 100% brass construction for ultimate durability
- Burner produces up to 300,000 BTUs with match lit ignition
- Patented design delivers unmatched flame performance
- Works universally with liquid propane or natural gas
- Designed, engineered, and assembled in the USA
Specifications
| Item Number | UH300ALPL5625 |
| Collection | H-Style |
| BTU | 300,000 |
| Fuel Type | Natural Gas, Liquid Propane |
| Ignition | Match Lit |
| Dimensions | 42" x 14" |
| Plate / Pan Size | 56" x 25" |
Technical Drawings & Dimensions
Warranty
 |
Limited Lifetime Warranty We€™re confident in every detail of CROSSFIRE® 2.0, and we stand behind it. Each CROSSFIRE 2.0 burner system is backed by an industry-leading Lifetime Warranty. The new design simplifies ignition compatibility, eliminates unnecessary complexity, and integrates WaterStop„¢ protection as a standard feature across all models. One product. Total confidence. |
Documents & Files
- Owner's Guide and Manual
- Warranty Guide
- Crossfire Burner Certifications
- Platinum Ignition User Guide
- Platinum Ignition Sell Sheet
- Platinum Electronics and Clearance Diagram
- Platinum CSA Certification Report
Videos
Frequently Asked Questions
Is there a standard and high capacity version of the platinum?
The Platinum Ignition is certifi ed up to 680,000 BTUs. There is no need for a Standard and a High Capacity version. |
What is the valve and inlet sizing?
The Platinum has a 3/4" valve and gas inlet. It can be easily adapted to 1/2" manifolds. |
Is there any difference between the NG and LP version of the ignition?
Yes, the Pilot Assembly on the Platinum is gas specific. |
Is this a dual pilot system?
No, the Platinum Ignition is a single pilot system. |
Will this be offered with pilot tube extensions?
Yes. The Platinum comes with a two-foot pilot tube. The Pilot can be extended up to an additional 10 feet. We offer pilot tubing in one-foot increments. |
What is the purpose of the led indicator light?
The LED Indictator light is for troubleshooting and diagnostic purposes and will pause between blinks to allow you to diagnose the issue being encountered. |
What is the voltage range of the platinum?
The Platinum operates at 24 volts. The transformer is wired for 120 volts. The transformer can be used with 240 or 480 volt outlets. This will require appropriate pig tail modifi cations to be made by the electrician on site. |
Does the platinum use a standing pilot?
Yes, the Platinum uses a standing pilot. |
